Matched power package
Combines major solar, storage, and inverter components so the system is easier to plan from the start.
1 / 7
SunGoldPower
Hybrid Solar Kit 11.4KW 48V Split Phase 30.72KWH Lithium Battery 28 X 450 Watt Solar Panel SGH-11N3E - SGH-11N3E
$16,757.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Hybrid Solar Kit
Hybrid Solar Kit 11.4KW 48V Split Phase 30.72KWH Lithium Battery 28 X 450 Watt Solar Panel SGH-11N3E
The Hybrid Solar Kit 11.4KW 48V Split Phase 30.72KWH Lithium Battery 28 X 450 Watt Solar Panel SGH-11N3E brings the major pieces of a hybrid solar and backup power system into one matched package. It is built for customers who want solar generation, lithium storage, and inverter power planned together instead of sourcing every component separately.
11.4KW30.72KWH450W48V28 X 450WSplit PhaseHybridLiFePO4
Hybrid system flexibility
Supports solar charging, battery storage, and backup power planning for homes and energy storage projects.
Simpler project planning
Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.
A cleaner way to build a complete system
A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.
- Built for customers planning a more complete solar and backup power system.
- Designed around hybrid energy storage where solar, batteries, and grid/backup needs may work together.
- Combines solar charging, lithium storage, and inverter output into one project-focused package.
- A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
- Helps reduce component-matching guesswork before installation.

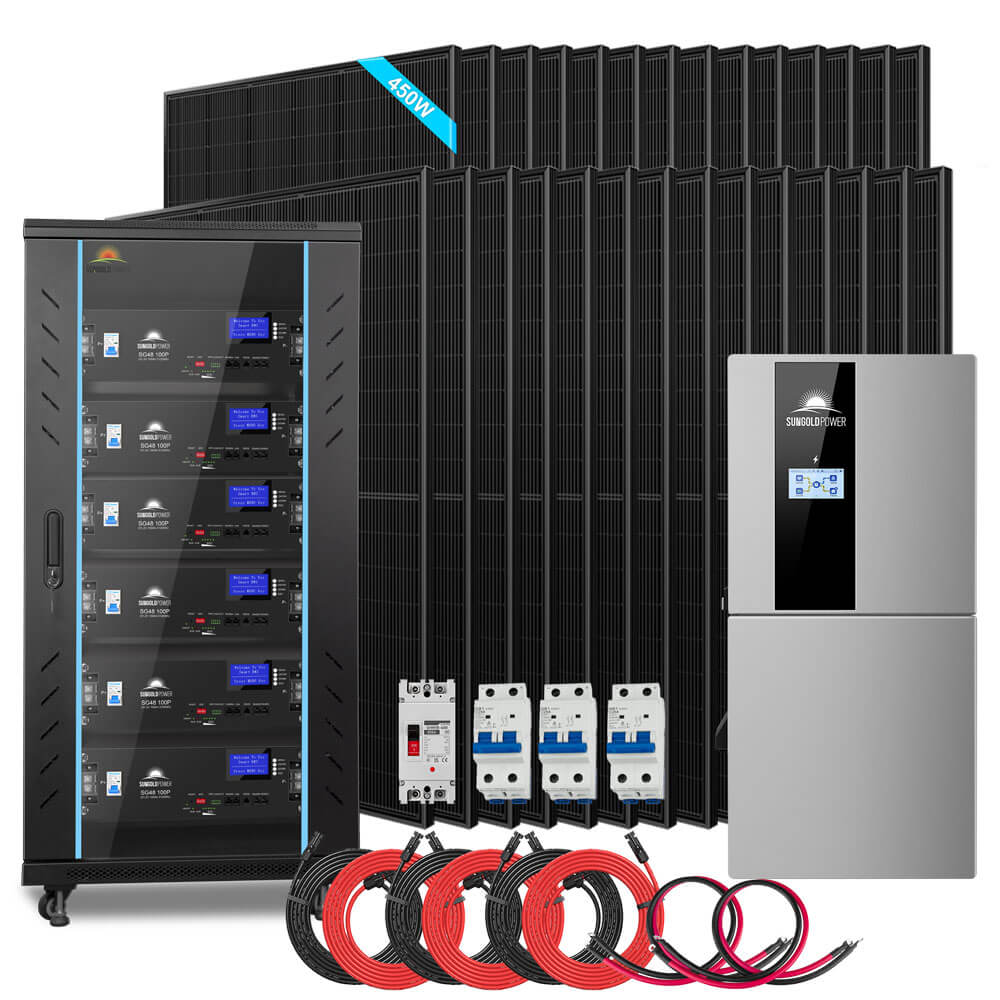

Package Includes
1 11.4KW 48V Split Phase Hybrid Solar Inverter
Package Includes
28 450W Bifacial N-Type Monocrystalline Solar Panels
Package Includes
6 100AH 51.2V LiFePO4 Battery
Package Includes

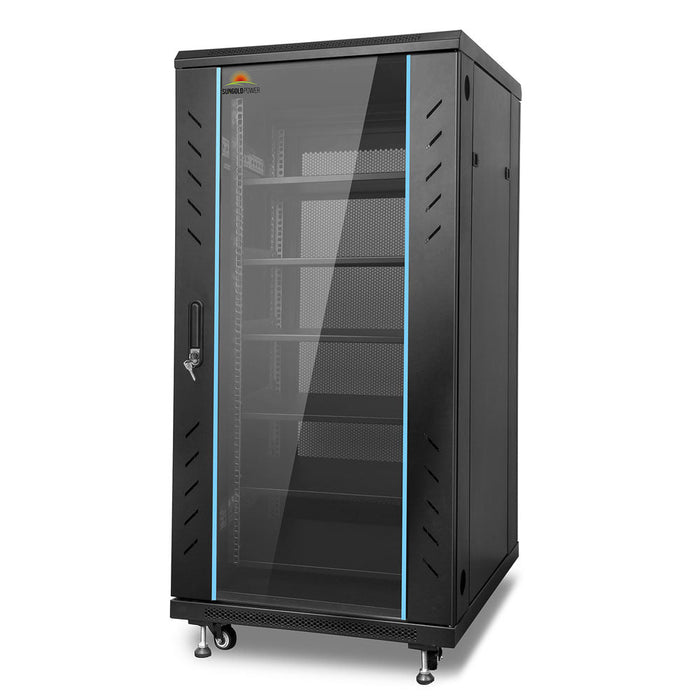

1 Enclosed Battery Cabinet for 6 X 100Ah 51.2V LiFePO4 Batteries
Package Includes
3 50 Feet, Solar Extension Cables-Inverter PV input
Package Includes
2 2/0 AWG Cables (Breaker to Battery or Inverter Connection)
Package Includes
3 25A PV Breakers
Package Includes
1 200A DC Breaker
| Hybrid Solar Kit 11.4KW 48V Split Phase 30.72KWH Lithium Battery 28 X 450 Watt Solar Panel SGH-11N3E | |
| Model SKU | SGH-11N3E |
|---|---|
| MODEL | |
| Inverter Model | SGN-11K15PRO |
| Product Type | Solar Power Kit |
| Available Variants | SGH-11N3E; Hybrid Solar Kit 11.4KW 48V Split Phase 30.72KWH Lithium Battery Without Solar Panels SGH-11N3E-s (SGH-11N3E-s) |
| ELECTRICAL | |
| CEC Efficiency | 96.5% |
| Maximum PV Input Power | 15,000 W |
| Maximum PV Voltage | 600 V |
| PV Start-Up Voltage | 90 V |
| MPPT Operating Voltage Range | 70-540 V |
| Maximum Input Current per MPPT | 30 A / 22 A / 22 A |
| Maximum Short-Circuit Current per MPPT | 40 A / 30 A / 30 A |
| PV Strings per MPPT | 2 / 2 / 2 |
| Number of MPPTs | 3 |
| Battery Types | Lithium-ion or lead-acid |
| Nominal Battery Voltage | 51.2 V |
| Battery Voltage Range | 40-64 V |
| Maximum Battery Charge / Discharge Current | 210 A / 210 A |
| Maximum Battery Charge / Discharge Power | 10,000 W / 10,000 W |
| Nominal Grid AC Output Power | 11,400 W |
| Maximum Grid AC Output Current | 47.5 A |
| Maximum Grid Passthrough Current | 200 A |
| Nominal Grid Voltage | 120/240 V split phase or 120/208 V two-thirds phase |
| Nominal Grid Frequency | 50/60 Hz |
| Grid Frequency Range | 45-55 Hz / 55-65 Hz, adjustable |
| Nominal Load Output Power | 11,400 W |
| Maximum Load AC Output Power | 11,400 W at power factor 1 |
| Nominal Load Output Current | 47.5 A |
| Nominal Load Output Voltage | 120/240 V split phase or 120/208 V two-thirds phase |
| Nominal Load Output Frequency | 50/60 Hz |
| Transfer Time | 10 ms typical |
| Surge Arresters | DC Type II and AC Type II |
| Integrated Battery Breaker | 300 A |
| Integrated Load Breaker | 2 × 200 A |
| 11.4KW 48V Split Phase Hybrid Solar Inverter — Maximum PV Voltage | 600 V |
| 11.4KW 48V Split Phase Hybrid Solar Inverter — PV Start-Up Voltage | 90 V |
| 11.4KW 48V Split Phase Hybrid Solar Inverter — Nominal Battery Voltage | 51.2 V |
| 450W Bifacial N-Type Monocrystalline Solar Panels — Bifacial Short-Circuit Current | 17.78 A |
| 100AH 51.2V LiFePO4 Battery — Battery Chemistry | LiFePO4 |
| 100AH 51.2V LiFePO4 Battery — Nominal Voltage | 51.2 V |
| 100AH 51.2V LiFePO4 Battery — Nominal Capacity | 100 Ah |
| 100AH 51.2V LiFePO4 Battery — Nominal Energy | 5.12 kWh |
| 100AH 51.2V LiFePO4 Battery — BMS Current | 100 A |
| Discharge current | > 1A |
| Charge current | > 1A |
| Standard charging current | (25℃):example:0.2C(20A) |
| Number of cells | 96 cells |
| Module efficiency | ηm (%) 22.5 |
| Solar Array Configuration | 28 × 450W panels (12,600W rated total) |
| Listed Capacity | 30.72KWH |
| Listed System Voltage | 48V |
| Listed Solar Power | 11.4KW |
| CONNECTIONS | |
| Generator Port Capacity | Maximum 100 A / 24,000 W input or output |
| Communication | CAN for BMS, RS485 for meter, RS485 and CAN for parallel operation; optional Wi-Fi / LAN |
| PHYSICAL | |
| Mounting | Wall bracket |
| Inverter Dimensions | 17.6 × 35.5 × 10.6 in (448 × 901 × 270 mm) |
| Inverter Weight | 103.6 lb (47 kg) |
| 100AH 51.2V LiFePO4 Battery — Dimensions | 19.3 × 18.9 × 5.5 in |
| 100AH 51.2V LiFePO4 Battery — Weight | 93 lb |
| Dimensions (W*H*D) | 17.6*35.5*10.6 inch (448*901*270 mm) |
| Weight | 47 Kg / 103.6 lb |
| Frame | Black anodized aluminum alloy |
| OPERATING LIMITS | |
| Protection Category | Class I |
| Integrated Protections | DC switch, anti-islanding, AC overcurrent, DC/AC overvoltage, AC short circuit, PV reverse connection, insulation-resistance detection, leakage-current protection, AFCI, and RSD monitoring |
| Maximum Operating Altitude | 2,000 m |
| Ingress Protection | NEMA 3R |
| Operating Temperature Range | -25°C to 60°C; derates above 45°C |
| Safety Certifications | UL 1741, CSA C22.2, and UL 1699B |
| EMC Certification | FCC Part 15 Class B |
| Grid Certifications | UL 1741SA, UL 1741SB, UL 1741 PCS CRD, IEEE 1547, HECO SRD 2.0, and CSIP |
| Warranty | 5 years standard / 10 years where applicable |
| Certification | Safety UL 1741/CSA C22.2/UL 1699B |
| PACKAGE | |
| Included Components | 1 × 11.4KW 48V Split Phase Hybrid Solar Inverter, 28 × 450W Bifacial N-Type Monocrystalline Solar Panels, 6 × 100AH 51.2V LiFePO4 Battery, 1 × Enclosed Battery Cabinet for 6 X 100Ah 51.2V LiFePO4 Batteries, 3 × 50 Feet, Solar Extension Cables-Inverter PV input, 2 × 2/0 AWG Cables (Breaker to Battery or Inverter Connection), 3 × 25A PV Breakers, 1 × 200A DC Breaker |
