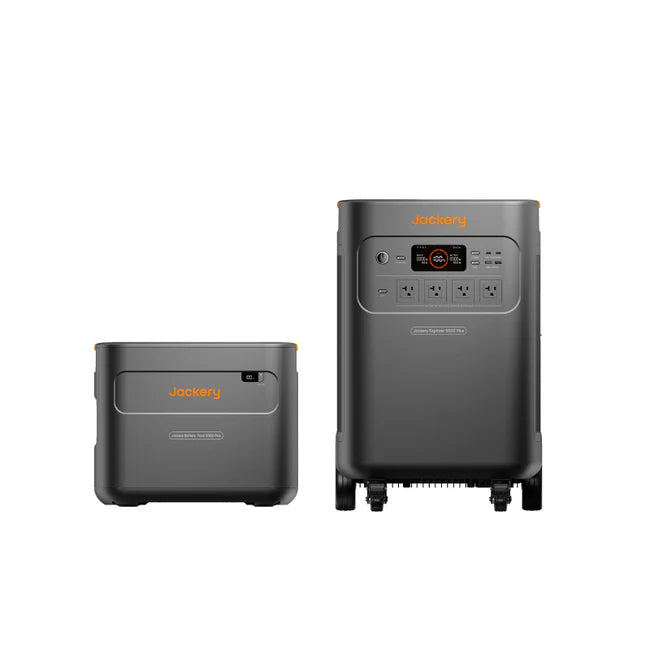

Jackery Explorer 5000 Plus + Battery Pack 5000 Plus Kit (10,080Wh) Jackery Explorer 5000 Plus + Battery Pack 5000 Plus Kit (10,080Wh)
SKU: 60-505000-AU00012
- 10,080Wh combined rated capacity
- 7,200W maximum AC output at the Explorer 5000 Plus
- 120V / 240V AC output
The Jackery Explorer 5000 Plus 10kWh kit pairs one Explorer 5000 Plus power station with one compatible Battery Pack 5000 Plus. Each holds 5,040Wh, giving the connected system 10,080Wh of rated battery capacity. This kit includes the power station; it is not a stand-alone expansion battery or Jackery's two-station Double Kit.
Output and charging
The Explorer 5000 Plus supplies up to 7,200W AC output and supports 120V and 240V AC connections. Its 4,000W figure is the maximum high-voltage solar input at 135–450V DC, not its AC output rating. Low-voltage solar input is separate: up to 600W on one DC port or 1,200W across both. Check the full array voltage, current and connector arrangement against Jackery's instructions before connecting panels.
What is included
One Explorer 5000 Plus power station, one Battery Pack 5000 Plus, one AC charging cable, one MC4 wrench, the station's user manual and one expansion cable are included. The expansion battery connects to the Explorer 5000 Plus; Jackery says the pack cannot charge devices on its own. Solar panels and a transfer switch are not part of this listing.
For backup planning
The station uses LiFePO4 cells, and Jackery rates the station and pack for 4,000 cycles to at least 70% capacity. The Explorer station weighs about 61kg (134.5lb); the separate battery pack weighs about 37kg (81.6lb). Jackery lists a five-year warranty for each component. AC charging time and solar recharge time depend on the connected configuration and available input; do not use the station-only 3.5-hour AC estimate or 1.7-hour high-voltage solar estimate as a guarantee for this expanded kit. See the Explorer 5000 Plus manual and Battery Pack 5000 Plus manual for setup, safety and port limits.
SKU: 60-505000-AU00012.
Compare a related option
Compare the station-only listing with this configuration to check what the selected package includes.
Jackery Explorer 5000 Plus Portable Power Station - 5040Wh Capacity | 7200W | Whole-Home Backup
| Kit SKU | 60-505000-AU00012 |
|---|---|
| Power station | Explorer 5000 Plus (JE-5000A) × 1 |
| Expansion battery | Battery Pack 5000 Plus × 1 |
| Power station capacity | 5,040Wh |
| Expansion battery capacity | 5,040Wh |
| Combined rated capacity | 10,080Wh |
| Battery chemistry | LiFePO4 |
| Maximum AC output | 7,200W (Explorer 5000 Plus) |
| AC output voltage | 120V / 240V, 60Hz |
| High-voltage solar input | 135–450V DC, 15A maximum, 4,000W maximum |
| Low-voltage solar input | 16–60V DC; one port up to 600W, dual ports up to 1,200W |
| AC input | 120V, 60Hz, 15A maximum; 1,750W ±50W maximum input |
| Cycle life | 4,000 cycles to at least 70% capacity (station and battery pack) |
| Power station weight | About 61kg (134.5lb) |
| Battery pack weight | About 37kg (81.6lb) |
| Power station dimensions | 42.0 × 39.0 × 63.5cm |
| Battery pack dimensions | 41.8 × 34.4 × 33.6cm |
| Warranty | 5 years per manufacturer for each component |
| Expansion compatibility | Battery Pack 5000 Plus connects to Explorer 5000 Plus; up to five packs supported by the station |
| Selected variant SKU | 60-505000-AU00012 |
