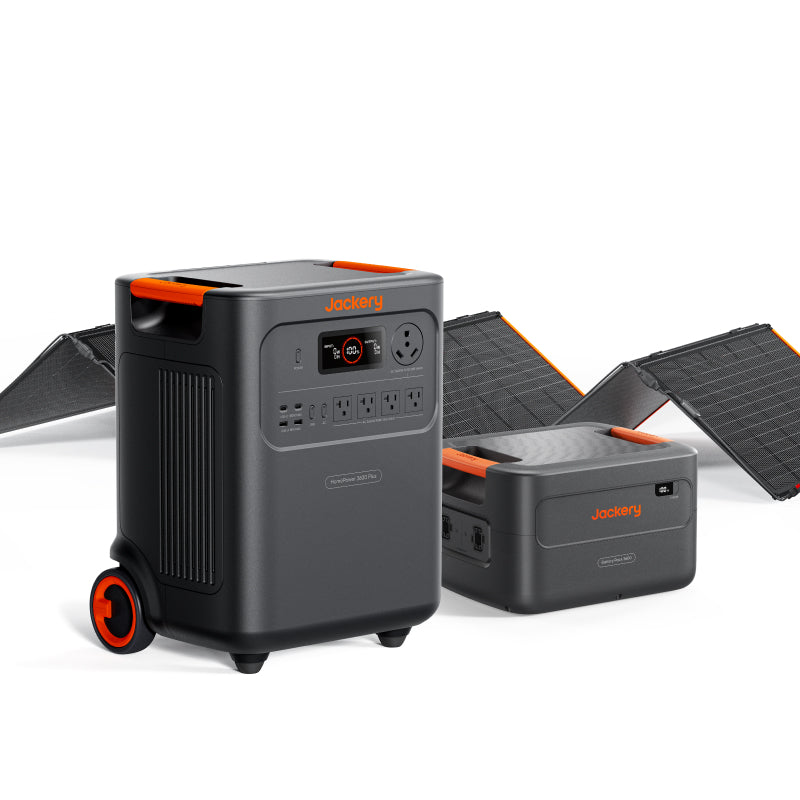

Jackery HomePower 3600 Plus + Battery Pack 3600 + 500Wx Solar Panel
Jackery Home Backup System
Jackery HomePower 3600 Plus + Battery Pack 3600 + 500Wx Solar Panel
Jackery HomePower 3600 Plus + Battery Pack 3600 + 500Wx Solar Panel is made for customers planning a more serious backup-power setup for outages, high-demand appliances, essential circuits, and longer runtime needs. It gives shoppers a cleaner Jackery home backup path for emergency power, solar generator planning, and expandable energy storage without the noise and fuel management of traditional gas generators.
Why customers choose it
This Jackery product is best for shoppers who want a practical power solution without overcomplicating the setup. Focus on the way it supports your real use case: backup power at home, cleaner charging on the road, better RV energy planning, or a more reliable camping and off-grid system.
- Cleaner battery power helps customers avoid the noise, fumes, and maintenance of a gas-only backup plan.
- Useful for comparing runtime, output, recharge speed, and portability before choosing a solar generator.
Best-fit use cases
Choose this product when you want a Jackery setup that matches your actual load, runtime, charging, storage, and portability needs. It is especially useful for customers comparing solar generators, portable power stations, home backup equipment, RV power, camping power, and compatible Jackery accessories.
What to check before buying
Before buying, confirm your backup goals, circuit requirements, transfer-switch plan, expansion battery needs, installation requirements, and compatible solar input.
| Jackery HomePower 3600 Plus + Battery Pack 3600 + 500Wx Solar Panel | |
| Model SKU | 60-363650-US00124 |
|---|---|
| MODEL | |
| Product Model | JHP-3600A |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Battery Capacity | 3584 Wh |
| Battery Chemistry | LiFePO4 |
| AC Output Waveform | Pure sine wave |
| AC Output | 120 V, 60 Hz, 3,600 W rated across five AC outlets |
| Surge Output | 7,200 W |
| USB-A Outputs | Two ports; 18 W maximum each |
| USB-C Outputs | Two ports; 100 W maximum each |
| AC Charging Input | 100–120 V AC, 60 Hz, 15 A maximum; 1,720 W ±50 W maximum input |
| Solar Input | 16–60 V DC, 12 A per input; 24 A and 1,000 W maximum across both inputs |
| Vehicle Charging Input | 12–16 V DC, 8 A maximum whether one or both ports are used |
| AC Recharge Time | Approximately 2.5 hours |
| Solar Recharge Time | Approximately 12 hours with one SolarSaga 500X or 6 hours with two SolarSaga 500X panels |
| Standby Power Consumption | 22 W |
| UPS Transfer Time | Within 20 ms |
| Maximum Power | 545 W ±5% |
| Conversion Efficiency | 25% |
| Rated Voltage | 42.5 V ±5% |
| Rated Current | 12.84 A ±5% |
| Open-Circuit Voltage | 49.2 V ±5% |
| Fold Design | Six-fold array |
| USB Outputs | Not included |
| DC Expansion Input | 36.4–50.4 V DC, 60 A maximum |
| DC Expansion Output | 36.4–50.4 V DC, 100 A maximum |
| Compatibility | Jackery HomePower 3600 Plus |
| Wall Recharge Time | Approximately 2.5 hours when connected to HomePower 3600 Plus |
| Package Configuration | One HomePower 3600 Plus, one Battery Pack 3600, and one SolarSaga 500X solar panel |
| Battery Nominal Voltage | 44.8 V DC |
| Battery Expansion Connection | 36.4–50.4 V DC expansion interface |
| HomePower 3600 Plus — Battery Capacity | 3584 Wh |
| HomePower 3600 Plus — Battery Chemistry | LiFePO4 |
| HomePower 3600 Plus — AC Output Waveform | Pure sine wave |
| HomePower 3600 Plus — AC Output | 120 V, 60 Hz, 3,600 W rated across five AC outlets |
| HomePower 3600 Plus — Surge Output | 7,200 W |
| HomePower 3600 Plus — USB-A Outputs | Two ports; 18 W maximum each |
| HomePower 3600 Plus — USB-C Outputs | Two ports; 100 W maximum each |
| SolarSaga 500 X — Maximum Power | 545 W ±5% |
| SolarSaga 500 X — Rated Voltage | 42.5 V ±5% |
| SolarSaga 500 X — Rated Current | 12.84 A ±5% |
| SolarSaga 500 X — Open-Circuit Voltage | 49.2 V ±5% |
| Battery Pack HomePower 3600 — Battery Capacity | 3584 Wh (80 Ah at 44.8 V DC) |
| Battery Pack HomePower 3600 — Battery Chemistry | LiFePO4 |
| Battery Pack HomePower 3600 — DC Expansion Output | 36.4–50.4 V DC, 100 A maximum |
| CONNECTIONS | |
| DC Input Ports | Two parallel DC8020 ports |
| Solar Panel Support | One, two, or four matching panels; four-panel operation requires two SolarSaga adapters |
| Expansion Battery Support | Up to five Battery Pack 3600 units; 21.5 kWh maximum system capacity |
| Main Connector | Anderson |
| PHYSICAL | |
| Dimensions | 15.2 × 12.2 × 19.3 in (38.5 × 30.9 × 49.1 cm) |
| Weight | Approximately 77.2 lb (35 kg) |
| Housing Material | High-strength PC and ABS plastic |
| Cable Length | 16.4 ft (5 m) |
| Folded Dimensions | 39.2 × 20.7 × 3.8 in (996 × 526 × 97 mm) |
| Unfolded Dimensions | 98.1 × 39.2 × 11.6 in (2493 × 996 × 294 mm) |
| SolarSaga 500 X — Folded Dimensions | 39.2 × 20.7 × 3.8 in (996 × 526 × 97 mm) |
| SolarSaga 500 X — Unfolded Dimensions | 98.1 × 39.2 × 11.6 in (2493 × 996 × 294 mm) |
| SolarSaga 500 X — Weight | 23.1 lb ±1.1 lb (10.5 kg ±0.5 kg) |
| Battery Pack HomePower 3600 — Dimensions | 14.8 × 12.5 × 9.0 in (37.5 × 31.7 × 22.9 cm) |
| Battery Pack HomePower 3600 — Weight | Approximately 55.1 lb (25 kg) |
| OPERATING LIMITS | |
| Cycle Life | 6,000 cycles to at least 70% capacity |
| Charge Temperature Range | -4°F to 113°F (-20°C to 45°C) |
| Discharge Temperature Range | -4°F to 113°F (-20°C to 45°C) |
| Operating Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Ingress Protection | IP68 |
| Warranty | 5 years |
| PACKAGE | |
| Included Components | 1 × HomePower 3600 Plus, 1 × SolarSaga 500 X, 1 × Battery Pack HomePower 3600, 1 × AC Charge Cable |
