Rich Solar MEGA 100 SLIM | 100 Watt Slim Solar Panel | Compact 12V Off-Grid Narrow Solar Panel for Vans, Overlanders, Boats | 25-Year Output Warranty - MEGA 100 SLIM (Silver) / 1 Panel

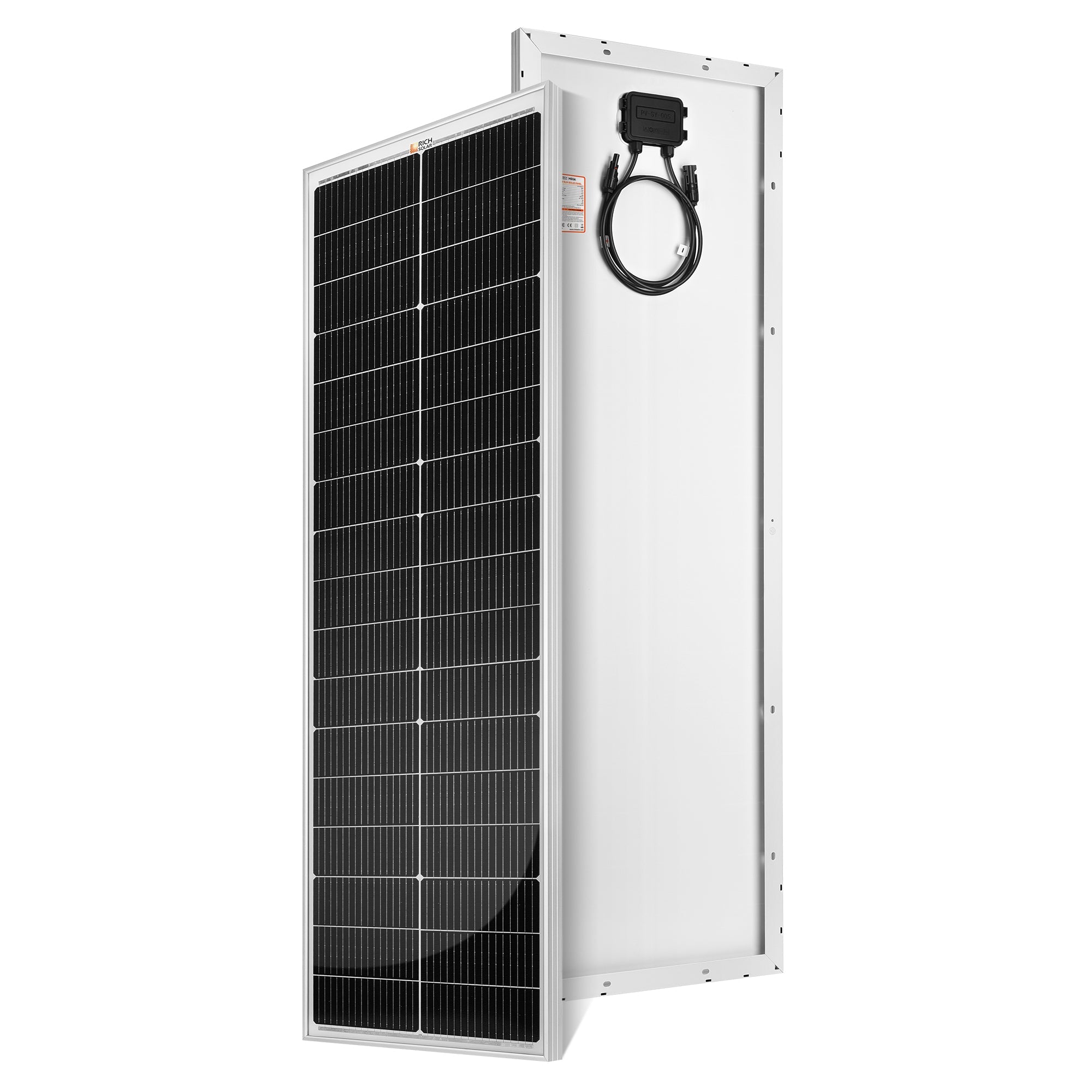

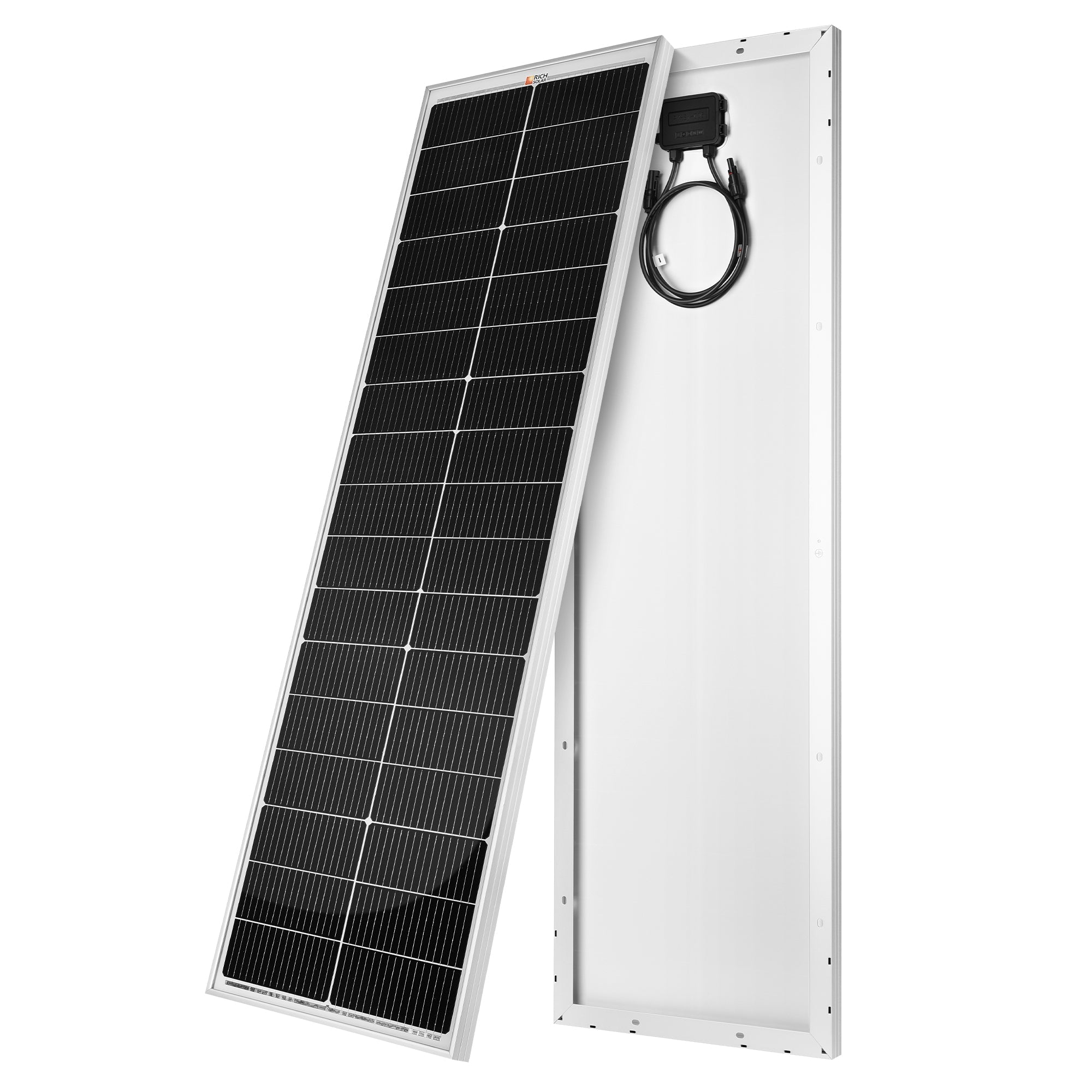

Rich Solar MEGA 100 SLIM — 100 Watt 12V Slim Solar Panel
The MEGA 100 SLIM brings N-Type TOPCon cell technology — the same platform used in Rich Solar's flagship 250W panels — to the most compact rigid form factor in the MEGA lineup. At 50.0 × 15.7 inches and just 12.4 lbs, it delivers 100 watts and 25.1% maximum cell efficiency in a narrow profile built for RV roof edge rails, van ridgelines, boat gunwales, overlanding rigs, and any tight space where a standard-width panel won't fit. The lightest rigid MEGA panel available, with a 25-year output warranty and IP67 weatherproofing built in.
25.1% N-Type TOPCon — Flagship Tech in a Slim Panel
The same N-Type TOPCon cell platform used in Rich Solar's 250W panels delivers 25.1% maximum cell efficiency here — extracting more power from each square inch of the 100 SLIM's narrow active area than any standard mono or PERC design in this footprint class.
15.7 Inches Wide — The Tightest Rigid Fit in the Lineup
At 50.0 × 15.7 inches and 12.4 lbs, the MEGA 100 SLIM is the narrowest and lightest rigid panel Rich Solar makes — 11.8% smaller in footprint than the MEGA 100 SLIM SLX, built for spaces where even the 130 SLIM is too long to fit cleanly.
IP67 Rated, Built for Harsh Climates
IP67-rated junction box and solar cables seal out dust and water completely. Rated for 5400 Pa snow load and 2400 Pa wind load, with a full -40°F to +185°F operating range — engineered for permanent outdoor installation through every season.
Product Overview

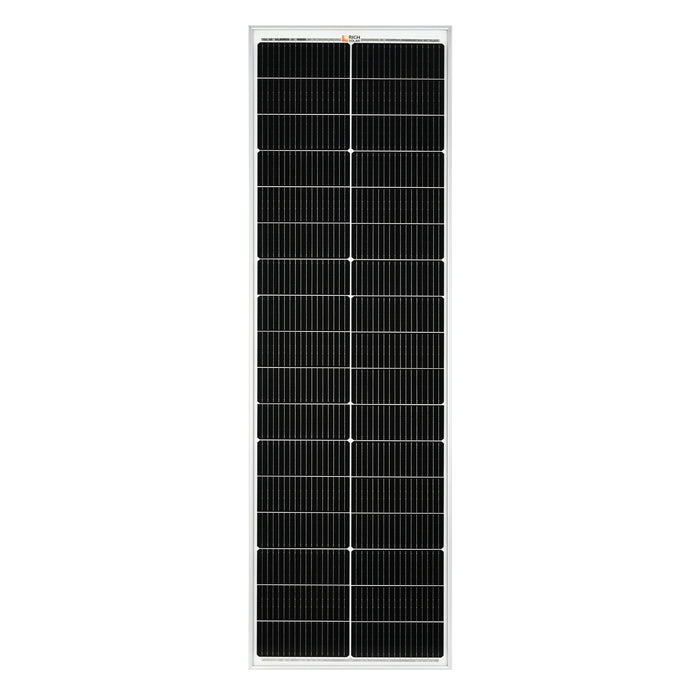

The Rich Solar MEGA 100 SLIM is a 100-watt, 12-volt slim solar panel built around N-Type TOPCon cell technology — a meaningful upgrade from the standard monocrystalline and PERC cells used in most 100W slim panels on the market. At 50.0 × 15.7 × 1.2 inches and 12.4 lbs, it's the smallest and lightest rigid panel in the MEGA lineup, purpose-built for narrow mounting zones on RV rooftops, van builds, overlanding rigs, boat decks, and trailers where standard-width panels create overhangs or can't mount at all.
The N-Type TOPCon platform delivers two advantages that matter for a slim panel specifically. First, at 25.1% maximum cell efficiency, more of the panel's limited active area converts to usable power — closing the output gap between a compact slim panel and a full-size 100W standard panel. Second, N-Type cells are inherently resistant to light-induced degradation (LID) — a gradual output loss that affects P-Type PERC cells in the first hours of sunlight exposure. The MEGA 100 SLIM starts at its rated output and stays there, delivering more consistent power across the full 25-year warranty period.
Operating at 19.6V Vmp and 23.6V Voc, the panel is optimized for 12V battery charging systems and compatible with both PWM and MPPT charge controllers. Pre-attached 4-foot MC4 cables — longer than the standard 35-inch leads on most MEGA panels — give extra reach for rooftop cable runs without splicing. Pre-drilled mounting holes support Z-brackets, rail systems, and flat surface mounting for straightforward solo installation. Available in both silver aluminum and all-black Onyx frame finishes.

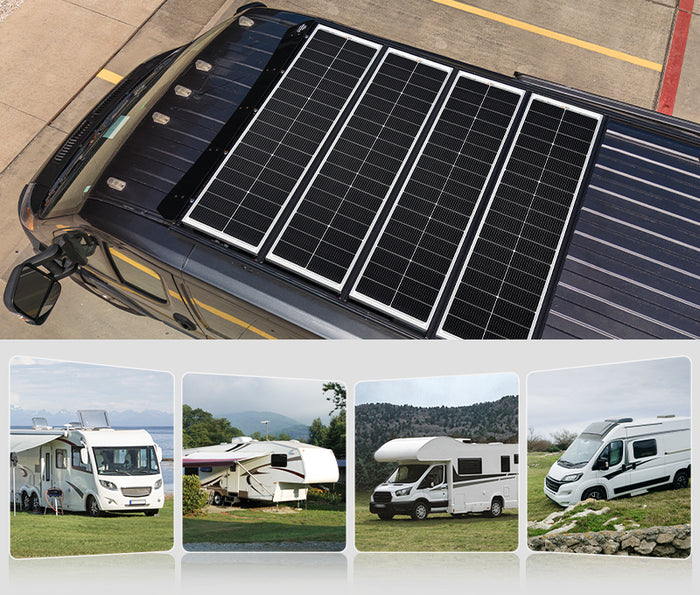

Sized for Spaces No Standard Panel Reaches
- 50.0 × 15.7 in — Narrowest Rigid MEGA Panel: Fits RV roof edge rails, the narrow side strips of Class A and Class B rooftops, van ridgelines, fifth wheel tops, and boat gunwale rails where standard 26+ inch wide panels won't mount without overhanging.
- 11.8% Smaller Than MEGA 100 SLIM SLX: The most compact 100W rigid slim panel in the Rich Solar lineup — for builds where even the SLX version is slightly too large for the available mounting zone.
- 12.4 lbs — Lightest Rigid Panel in the MEGA Series: Easy solo rooftop handling without mechanical lifting assistance — lighter than any other rigid panel Rich Solar offers at any wattage.
- Maximizes Narrow Dead Zones: Fills the strips of unused rooftop between vents, AC units, antennas, and rail edges that standard panels leave empty — turning dead space into productive solar area.
- Pairs With Wider MEGA Panels: Use alongside standard-width MEGA panels to fill every usable section of your rooftop with a matched Rich Solar array — consistent aesthetics, shared MC4 compatibility.
N-Type TOPCon — More Power, Less Degradation
- 25.1% Maximum Cell Efficiency: Top-tier efficiency in a compact narrow footprint — extracts significantly more power per square inch than standard monocrystalline or PERC 100W slim panels.
- LID Resistant: N-Type cells do not exhibit the light-induced degradation that reduces output in P-Type PERC cells during initial sun exposure — the MEGA 100 SLIM starts at full rated output and maintains it throughout its service life.
- Stable Performance in Extreme Temperatures: N-Type TOPCon cells maintain strong output in both high-heat rooftop conditions and extreme cold — less thermal efficiency loss than older cell generations on peak summer days.
- Superior Low-Light Energy Conversion: Generates meaningful power on overcast days, during morning and evening hours, and in diffuse light conditions — reducing daily charging dead time compared to standard cells.
- Lower Long-Term Degradation Rate: N-Type cells degrade more slowly than P-Type PERC monocrystalline cells over the panel's 25-year service life — sustained output well above the linear warranty minimums.

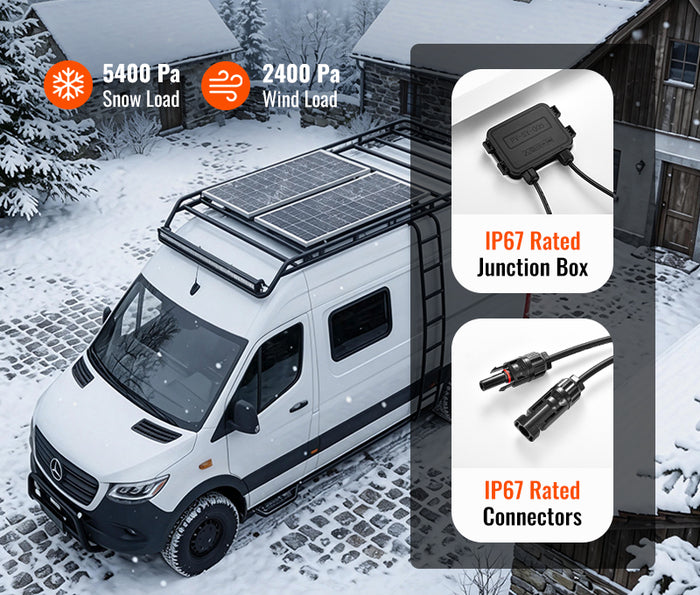

Built to Withstand Harsh Climates

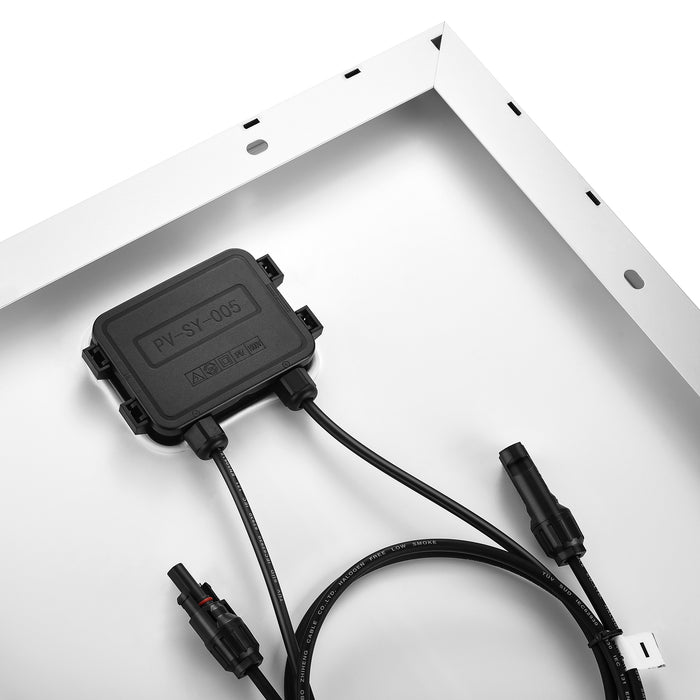

- IP67 Rated Junction Box & Solar Cables: Fully sealed against dust ingress and water submersion — reliable through rain, salt air, condensation, and high-humidity marine environments.
- 5400 Pa Snow Load / 2400 Pa Wind Load: Certified for the same structural load ratings as the full-size MEGA lineup — built for permanent rooftop installation through heavy winters and high-wind conditions on moving vehicles.
- Full -40°F to +185°F Operating Range: Handles arctic winter temperatures and desert rooftop heat extremes without performance compromise — suited for year-round installations in any climate.

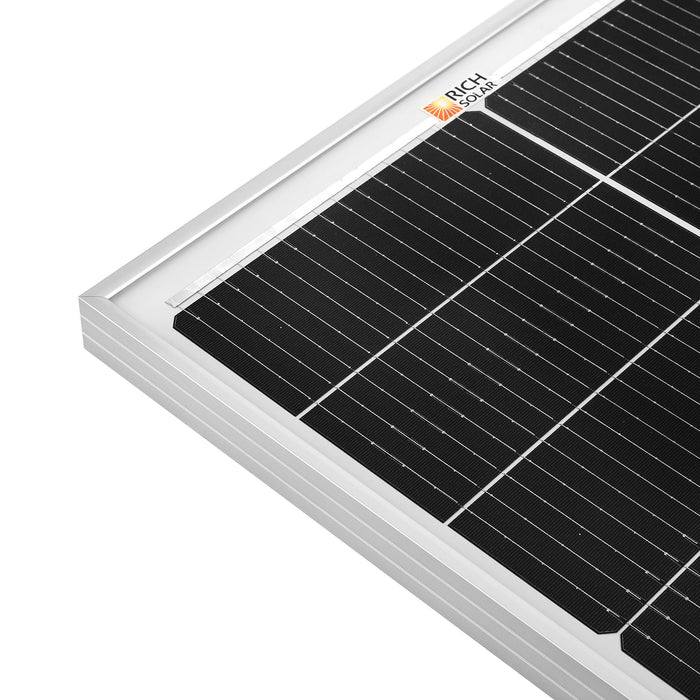

- 3.2mm AR-Coated Tempered Glass: Anti-reflective coating reduces surface reflection and improves light absorption across the full arc of daily sun angles, including diffuse and low-angle light in morning and evening hours.
- Anodized Aluminum Frame: Corrosion-resistant, lightweight frame resists weathering, oxidation, and road vibration — built for the demands of mobile installations on vehicles that cover thousands of miles per year.

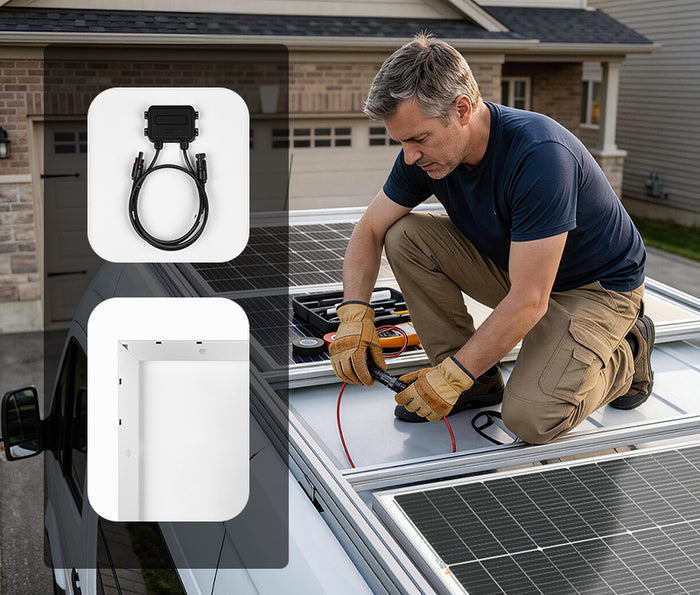

Hassle-Free Setup on Any Narrow Surface

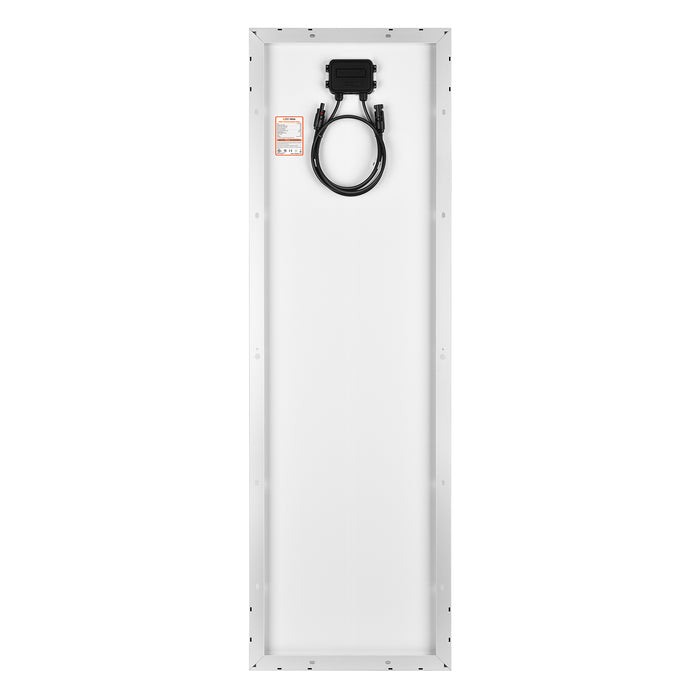

- Pre-Drilled Mounting Holes: Compatible with Z-brackets, rail systems, and flat surface mounting — no additional drilling required for most standard narrow-profile mounting hardware configurations.
- 4ft Pre-Attached MC4 Cables: Longer leads than the standard 35-inch cables on most MEGA panels — gives extra reach for routing to rooftop junction boxes or charge controller inputs without additional splicing or cable extensions.
- 12.4 lbs — Solo Installable: At under 13 pounds and 50 inches long, the MEGA 100 SLIM is manageable for one person to carry, position, and fasten on any rooftop or ground-mount surface without assistance.
- Series or Parallel Ready: Wire multiple MEGA 100 SLIMs in parallel to increase current for a 12V battery bank, or in series for an MPPT controller input — flexible for a range of 12V and 24V system configurations.
- Available in Silver or Onyx Black: Choose the frame finish that best matches your van build aesthetic, RV rooftop, or overlanding rig.
Best Uses
- Narrow RV rooftop edge rails and side strips
- Class A, Class B, and Class C motorhome rooftops
- Van ridgelines and roof gaps alongside rooftop features
- Overlanding rigs, roof racks, and rooftop tent setups
- Boat gunwales, cockpit surrounds, and narrow deck runs
- Trailer tops, fifth wheels, and toy hauler rooftops
- Filling narrow gaps between full-size panels in larger arrays
- Any space where the standard MEGA 100 is too wide to mount
Key Benefits
- 100W at 19.6V Vmp — optimized for 12V battery systems
- 25.1% N-Type TOPCon efficiency — flagship cell tech in slim format
- LID resistant — no first-light output loss unlike P-Type PERC cells
- 50.0 × 15.7 in — narrowest, most compact rigid MEGA panel
- 12.4 lbs — lightest rigid panel in the entire MEGA lineup
- 11.8% smaller footprint than MEGA 100 SLIM SLX
- IP67 junction box and cables; 5400 Pa / 2400 Pa load ratings
- 4ft pre-attached MC4 cables; silver or Onyx black frame options
Where the MEGA 100 SLIM Gets Installed
RVs
Motorhome
Marine
Cabin
DIY Solar
Off-Grid
| Specifications | |
| Model SKU | RS-M100SL25 |
|---|---|
| Maximum Power (Pmax) | 100W |
| Maximum Power Voltage (Vmp) | 19.6V |
| Maximum Power Current (Imp) | 5.01A |
| Open Circuit Voltage (Voc) | 23.6V |
| Short Circuit Current (Isc) | 5.38A |
| Maximum System Voltage (Vmax) | 1000VDC |
| Temperature Range | -40°F~ +185°F |
| Weight | 12.4 lb |

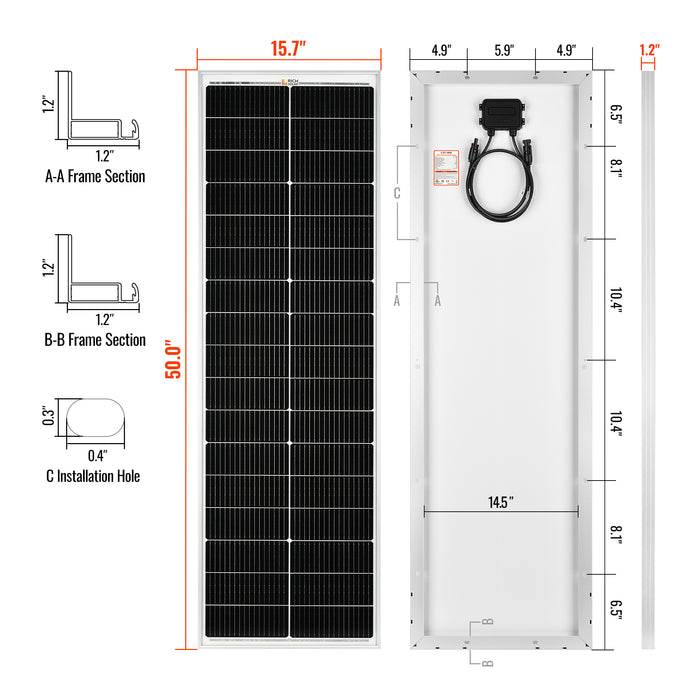

| Dimensions | 50.0 × 15.7× 1.2 in |
