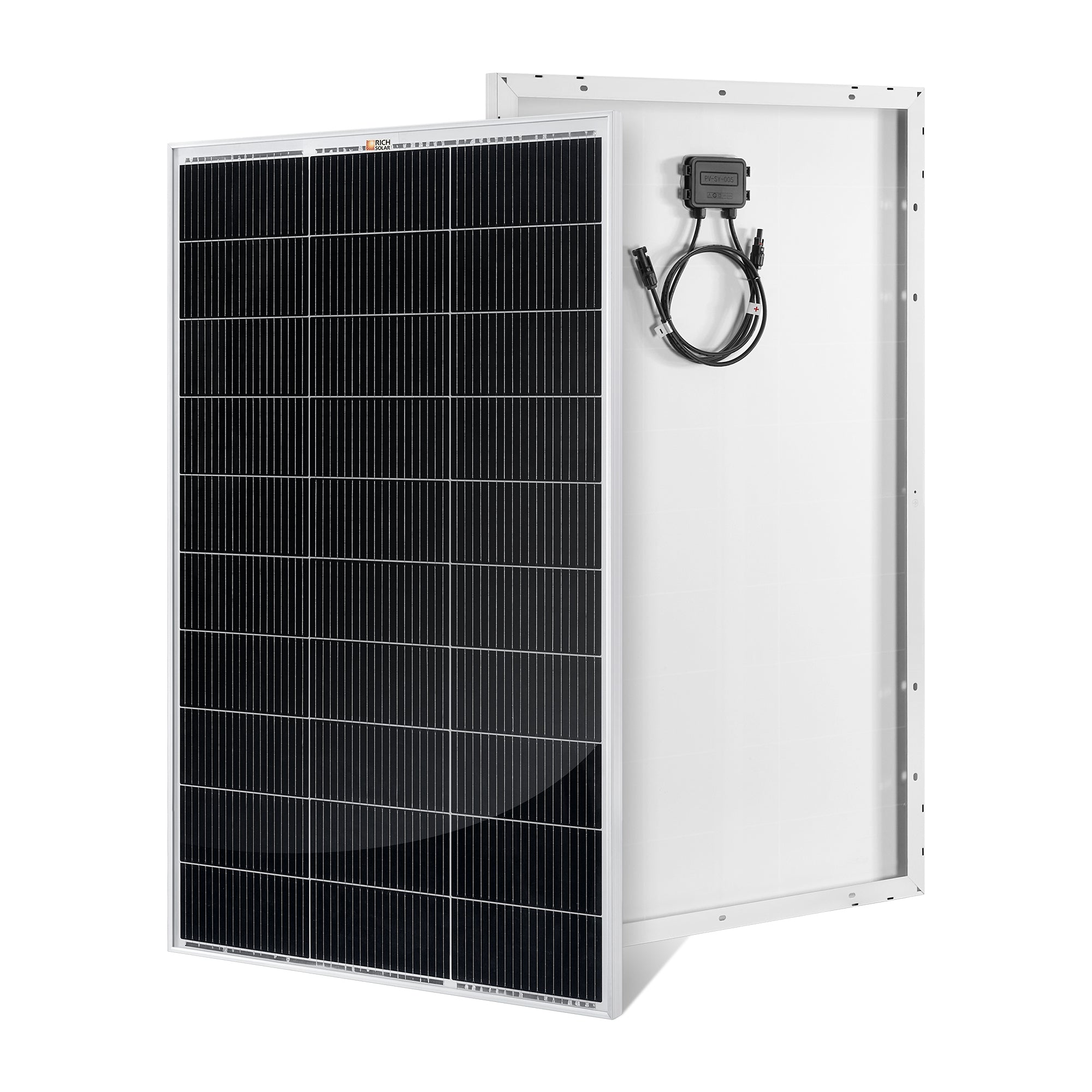

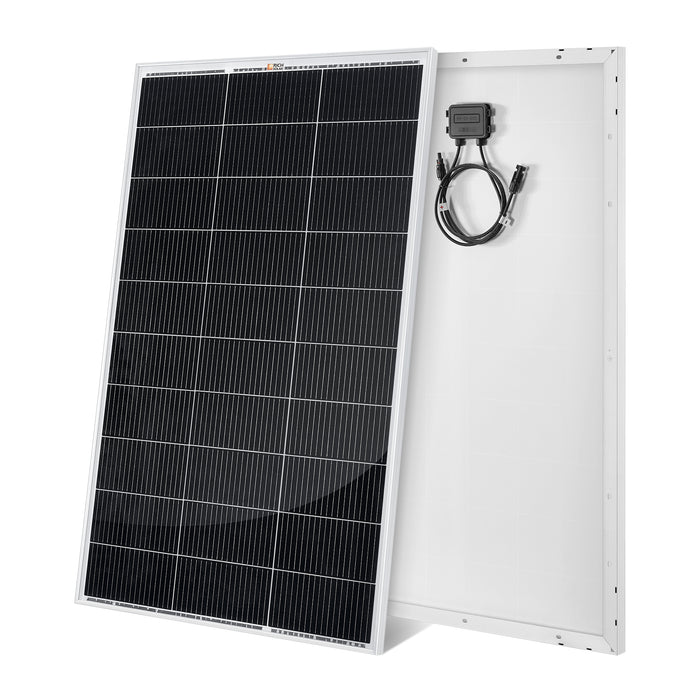

Rich Solar MEGA 150 — 150 Watt 12V Solar Panel
The MEGA 150 is a 150-watt, 12-volt monocrystalline solar panel built for compact off-grid installations that demand high efficiency in a small footprint. At just 44.0 × 26.4 inches and 18.1 lbs, it's the lightest rigid panel in the MEGA lineup — making it a natural fit for tight RV rooftops, small van builds, boat decks, motorcycle trailers, sheds, and single-panel starter systems where space and weight both matter.
24.8% Efficiency in a Compact 44-Inch Panel
High-efficiency 18-busbar monocrystalline cells deliver 24.8% maximum cell efficiency from a 44.0 × 26.4 inch footprint — more output per square inch than standard monocrystalline designs, in one of the most manageable panel sizes in the MEGA lineup.
Strong Output in Low-Light Conditions
AR-coated high-transmission tempered glass and high-efficiency monocrystalline cells maintain meaningful output on overcast days, during morning and evening hours, and in partially shaded conditions — reducing daily dead time in your 12V charging cycle.
25-Year Output Warranty, UL Certified
Backed by a 25-year power output warranty and UL certification for safety and performance. Built-in bypass diodes, IP67-rated junction box and connectors, and a corrosion-resistant anodized aluminum frame deliver lasting reliability in demanding outdoor environments.
Product Overview
The Rich Solar MEGA 150 is a 150-watt monocrystalline solar panel purpose-built for 12-volt off-grid systems where rooftop space is limited, weight is a consideration, or a compact single-panel setup is exactly what the application calls for. Operating at 17.5V maximum power voltage (Vmp) and 21.8V open circuit voltage (Voc), it integrates directly into standard 12V battery charging setups with both PWM and MPPT charge controllers.
The MEGA 150 uses an 18-busbar monocrystalline cell configuration — a higher busbar count than many panels in this wattage class. More busbars mean shorter current paths across each cell, which reduces resistive losses and improves overall output consistency, particularly under real-world conditions where temperature variation and off-angle sunlight are factors. Combined with AR-coated high-transmission tempered glass, the MEGA 150 captures more usable light throughout the day compared to standard glass surfaces.
At 18.1 lbs, the MEGA 150 is the lightest panel in the MEGA rigid lineup — easy enough for a single person to carry, position, and fasten to most standard mounting hardware without assistance. Pre-drilled holes support Z-brackets, tilt mounts, pole mounts, and ground-mount frames, and the 3-foot plug-and-play MC4 leads connect directly to your charge controller or adjacent panels without additional splicing. Available individually or as a matched 2-panel set for systems requiring 300W at 12V.
The Right Size for Tight Installations

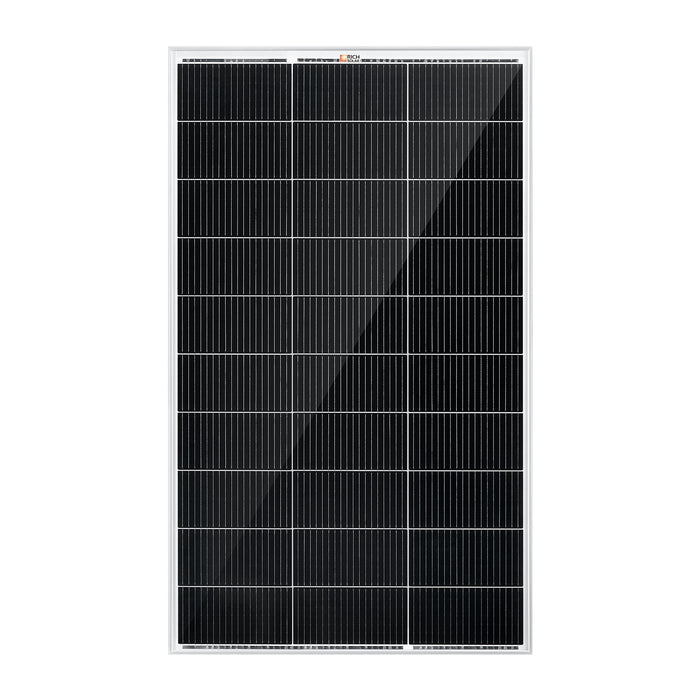

- Compact 44.0 × 26.4 in Footprint: Fits RV rooftop sections, van cab-over areas, small boat decks, and other constrained surfaces where larger panels simply won't fit.
- 18.1 lbs — Lightest Rigid MEGA Panel: Light enough for solo handling, rooftop positioning, and one-person installation without specialized lifting equipment or a second set of hands.
- Scalable in Pairs: Available as a matched 2-panel set — wire two MEGA 150s in parallel for 300W of 12V charging, or in series for a 24V MPPT controller configuration.
- Ideal Starter Panel: A single MEGA 150 paired with a basic MPPT charge controller and a 12V battery is a complete, functional off-grid charging system — simple for first-time solar builders to commission and expand over time.
- Fits Where Larger Panels Can't: Sized for motorcycle trailers, teardrop campers, small sheds, pergolas, dock houses, and other applications where 200W+ panels would overhang or not mount cleanly.

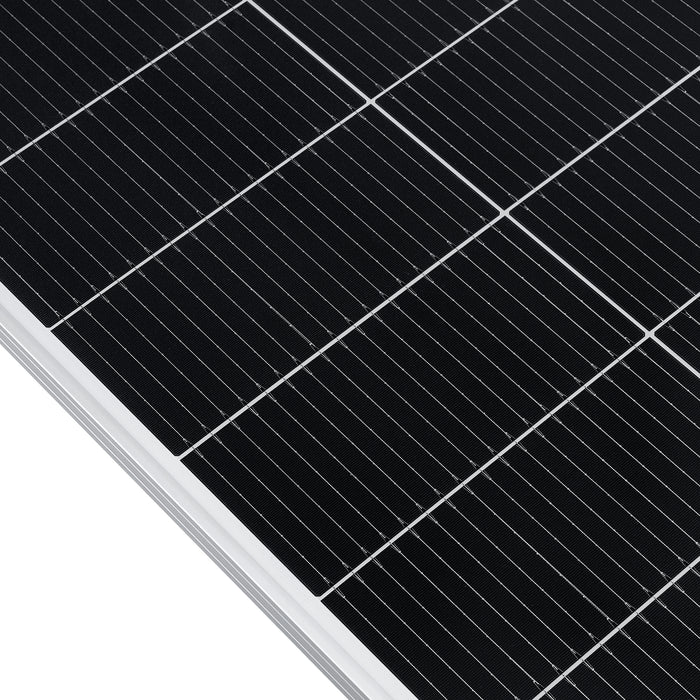

18-Busbar Cells — More Output Per Cell
- 18-Busbar Configuration: Higher busbar count than many competing 150W panels — more busbars shorten the current path across each cell, reducing resistive loss and improving output stability across the panel's service life.
- 24.8% Maximum Cell Efficiency: Premium-binned monocrystalline cells produce more power per square inch than standard mono or poly designs at equivalent panel sizes.
- AR-Coated High-Transmission Tempered Glass: Anti-reflective coating reduces surface reflection and increases light absorption across the full range of daily sun angles — including diffuse overcast conditions and low-angle morning and evening light.
- Excellent Low-Light Performance: Continues generating meaningful output in conditions where lower-grade panels produce little to no usable power — important for locations with frequent cloud cover or shaded morning windows.
- Bypass Diodes Built Into Junction Box: Maintain stable panel output when partial shading affects one section of the cell array — preventing shaded cells from pulling down the output of unshaded sections.
Weatherproof Construction for Outdoor Life

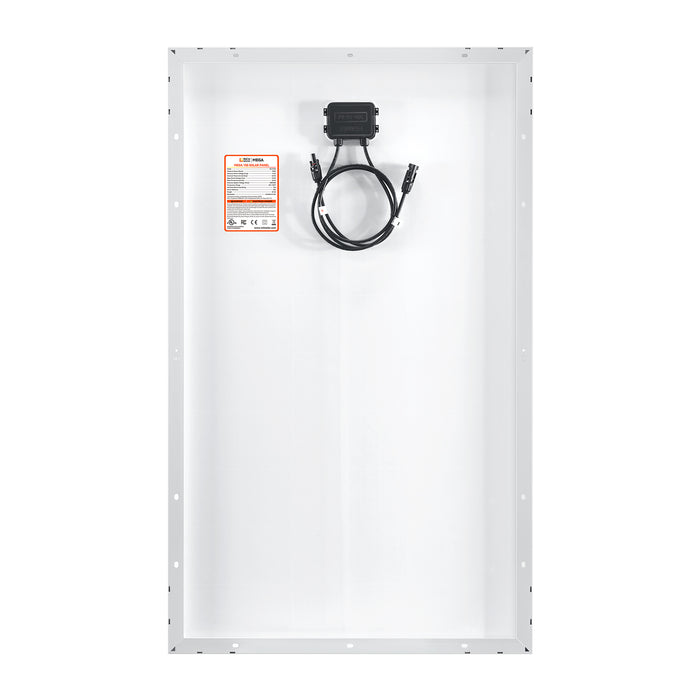

- IP67 Waterproof Junction Box: Fully sealed against dust and water ingress — reliable through rain, condensation, salt air, and high-humidity marine environments.
- IP67 Waterproof MC4 Connectors: Industry-standard quick-connect solar connectors rated for direct water exposure — compatible with standard MC4 solar wiring and Y-branch adapters for parallel array expansion.

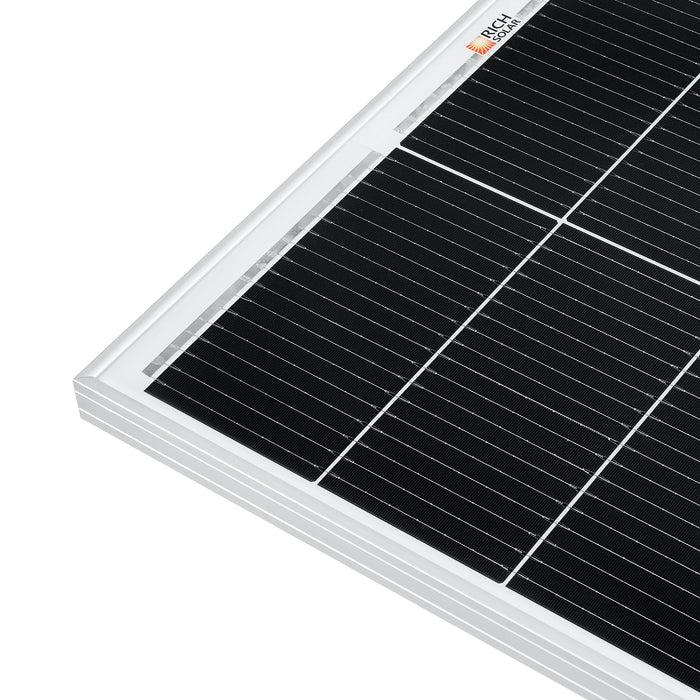

- Anodized Aluminum Frame: Corrosion-resistant lightweight frame provides structural rigidity and long-term protection against weathering, oxidation, and UV degradation in permanent outdoor installations.
- Wide Operating Temperature Range: Certified to operate reliably from -40°F to +185°F — covering desert summer rooftops, high-altitude mountain conditions, and everything between.
- Certified for Challenging Environmental Conditions: UL-certified construction meets established safety and performance standards for outdoor photovoltaic installations.
Simple Installation for Any Mount Type
- Pre-Drilled Mounting Holes: Compatible with Z-brackets, tilt mounts, pole mounts, and ground-mount frames — no additional drilling required for most standard mounting hardware configurations.

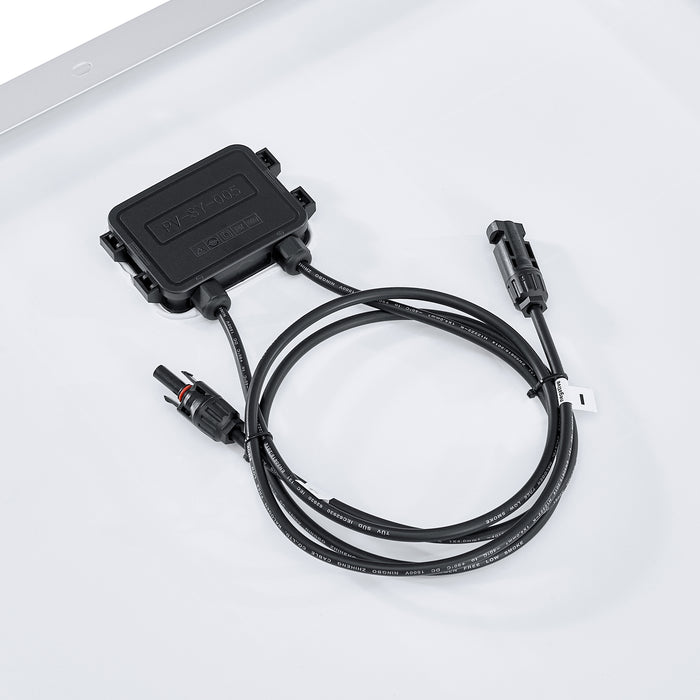

- Plug-and-Play Junction Box: IP67-rated junction box with 3-foot pre-attached MC4 leads for fast, tool-free connection to your charge controller or adjacent panels in a series or parallel array.
- Series or Parallel Wiring: Wire multiple MEGA 150s in parallel for increased current in a 12V system, or in series to raise voltage for an MPPT charge controller — flexible for a range of system architectures.
- On-Grid & Off-Grid Inverter Compatible: 1000V maximum system voltage supports both standard off-grid inverter setups and grid-tie configurations.
- Solo-Installable: At 18.1 lbs with a manageable 44-inch length, most RV, van, and rooftop installations can be completed by a single person without mechanical lifting assistance.
Best Uses
- Tight RV rooftop sections where larger panels won't fit
- Small van builds, Sprinter cab-overs, and teardrop campers
- Boat and marine 12V battery charging systems
- Motorcycle trailers, cargo trailers, and utility sheds
- Off-grid cabin and tiny home supplemental solar
- Single-panel starter 12V off-grid systems
- Ground-mount and pole-mount rural power setups
- Dock houses, pergolas, and small outbuilding solar
Key Benefits
- 150W at 17.5V Vmp — optimized for 12V battery systems
- 24.8% cell efficiency with 18-busbar monocrystalline cells
- Compact 44.0 × 26.4 in footprint — fits where larger panels can't
- 18.1 lbs — the lightest rigid panel in the MEGA lineup
- AR-coated glass for strong low-light and off-angle performance
- IP67 junction box and MC4 connectors with built-in bypass diodes
- Pre-drilled holes for Z-bracket, tilt, pole, and ground mounts
- 25-year output warranty; UL certified; available in 1 or 2-panel sets
Where the MEGA 150 Gets Installed
RVs
Marine
Motorhome
Cabin
DIY Solar
Off-Grid
Compare panel options
Our solar panel selection guide explains how to compare panel ratings and installation needs; check this product’s electrical ratings before pairing it with other equipment.
Compare before you choose
Compare wattage per panel, physical dimensions, Voc, current and connector type before planning an array.
See the Rich Solar MEGA 100 | 100 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for Vans, Campers, Boats | 25-Year Output Warranty for another RICH SOLAR solar panel option.
| Specifications | |
| Selected variant SKU | RS-M150 |
|---|---|
| Maximum Power (Pmax) | 150 W |
| Maximum Power Voltage (Vmp) | 17.5V |
| Maximum Power Current (Imp) | 8.57A |
| Open Circuit Voltage (Voc) | 21.8V |
| Short Circuit Current (Isc) | 8.94A |
| Maximum System Voltage (Vmax) | 1000VDC |
| Maximum Series Fuse Rating | 10A |
| Temperature Range | -40 ~ +185°F |
| Weight | 18.1 lb |

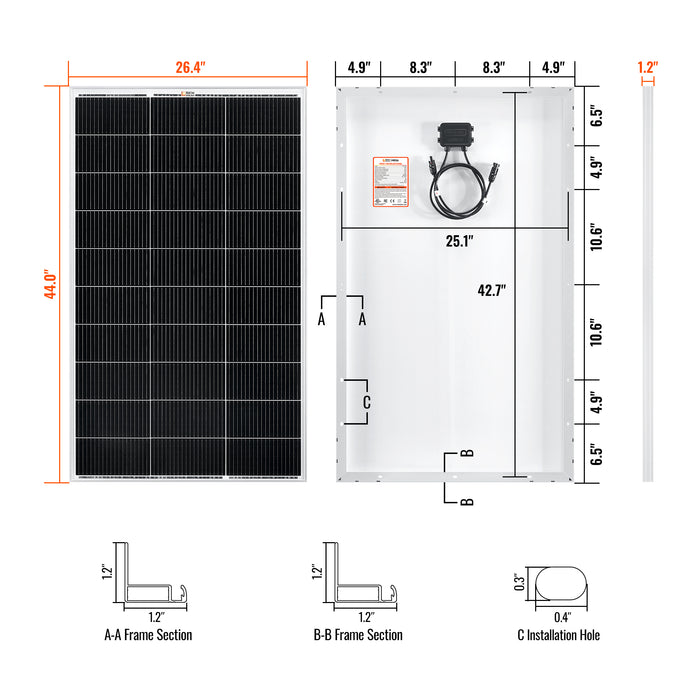

| Dimensions | 44.0 x 26.4 x 1.2 in |
| Panel leads (pair) | 12 AWG, 3 ft each |
