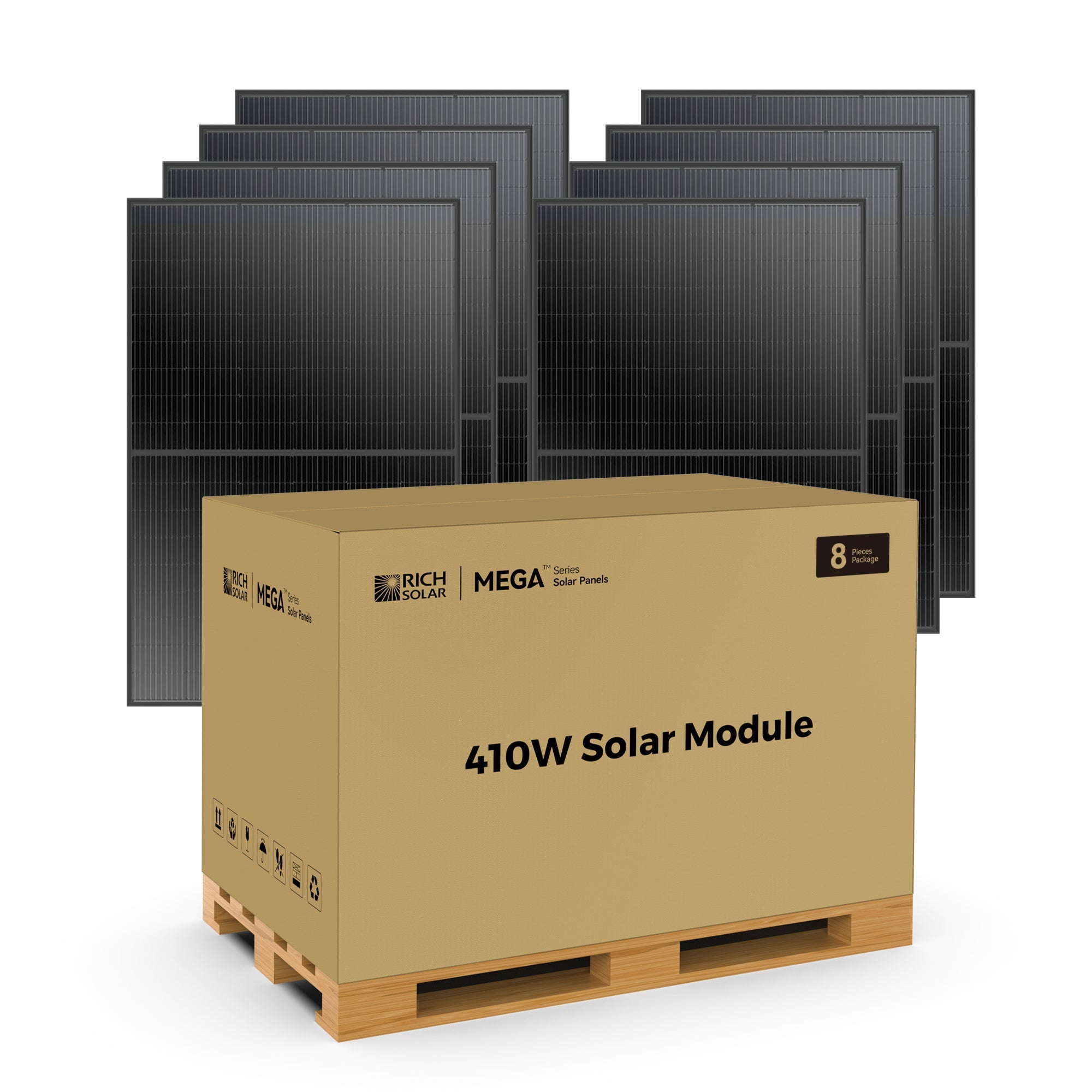

Rich Solar MEGA 410 | 410 Watt Solar Panel - 8 Panels Rich Solar MEGA 410 | 410 Watt Solar Panel

How large and heavy is the MEGA 410 for mounting purposes? The published panel dimensions are 67.8 x 44.7 x 1.2 in, and the listed weight is 45.2 lb. Measure the complete mounting envelope - not only the module face - and leave room for clamps or brackets, cable routing, roof hardware, ventilation, and service access. On a mobile installation, confirm the structure and rack can handle both the panel weight and travel loads. Which MEGA 410 voltage and current values must my charge controller accept? At maximum power, the MEGA 410 is listed at 31.3V and 13.1A; its open-circuit voltage is 37.5V and short-circuit current is 13.8A. Use Vmp and Imp to estimate normal array operation, but use the applicable Voc and Isc calculations when checking controller limits, series strings, parallel current, conductor size, and protection. Is the MEGA 410 a direct battery charger, or does it still need a controller? No solar module should be approved for direct battery charging from a nominal-voltage label alone. The MEGA 410's published operating values are 31.3V at maximum power and 37.5V open circuit. A compatible charge controller must accept the final array voltage and current and provide the charging profile required by the battery bank. How should I estimate daily energy from a 410W MEGA 410? 410W is the module's published nameplate power under standardized test conditions, not a constant field output. Cell temperature, sun angle, shade, cloud cover, dirt, wiring loss, controller efficiency, and battery state all affect measured production. Estimate the purchase from expected daily energy at the installation site, not by multiplying 410W by every daylight hour. Does the MEGA 410 arrive with preattached solar leads and connectors? RICH SOLAR lists the following factory connection details: MC4 connectors with 4 ft pre-attached cables for quick and easy installation. Panel Leads (Pair): 12 AWG, 4 ft each. Confirm polarity, lead length, conductor size, and the distance to the combiner or controller before ordering extensions. Factory leads do not automatically include every adapter, branch connector, roof entry, fuse, disconnect, or extension cable required by the final layout. Can several MEGA 410 panels share the same array protection design? RICH SOLAR lists a maximum system voltage of 1500VDC and a maximum series-fuse rating of 25A for this module. Those are panel ratings, not permission to use the same string length or fuse in every installation. The controller or inverter input limits, conductor ampacity, parallel-string current, local code, and lowest expected temperature can require lower design limits.
