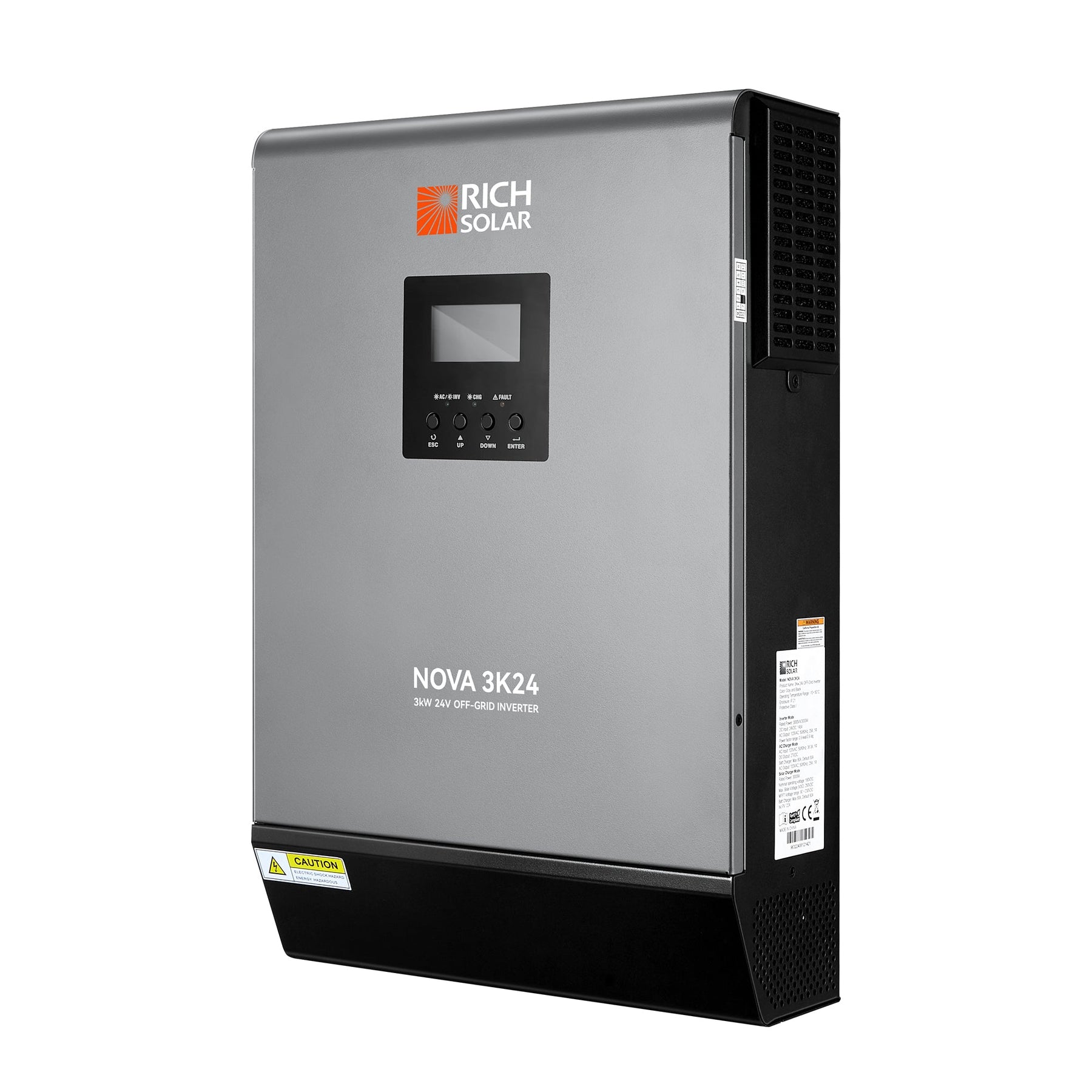

Rich Solar NOVA MAX 3K | 3000 Watt (3kW) 24 Volt Off-Grid Hybrid Solar Inverter | Powerful 3000W 24V Hybrid Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid Inverter Rich Solar NOVA MAX 3K | 3000 Watt (3kW) 24 Volt Off-Grid Hybrid Solar Inverter | Powerful 3000W 24V Hybrid Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid Inverter
SKU: RS-H3024
- Model NOVA 3K24
- Rated Output Power 3KVA / 3KW
- Output Voltage Waveform Pure Sine Wave
Add what you need.
Start with your product. Choose the extras that suit your setup.
Rich Solar RS-H3024 24V Off-Grid Hybrid Solar Inverter
The Rich Solar RS-H3024 is an off-grid hybrid solar inverter designed for 24V battery-based power systems. It combines pure sine wave inverter output, a built-in MPPT solar charge controller, configurable LCD settings, and multiple protection features in one compact power conversion unit.
Hybrid Power Control
Combines inverter output, solar charging, and AC charging support into one unit for off-grid and backup power applications.
Built-In MPPT Charging
The integrated MPPT solar charge controller helps manage solar input and battery charging without requiring a separate controller.
Configurable LCD Settings
Adjust input voltage range, charging current, and AC/solar charging priority directly through the LCD settings.
Product Overview
The Rich Solar RS-H3024 Hybrid Solar Inverter is built for off-grid solar systems, backup power setups, cabins, sheds, workshops, mobile installations, and other 24V battery-based power systems. It provides pure sine wave output for compatible appliances and electronics, while also managing solar and AC charging in a single system.
With configurable settings for home appliances and personal computers, this inverter lets you adjust input voltage range and charging behavior based on how the system will be used. AC or solar charger priority can also be configured from the LCD, giving you more control over how the inverter handles available power sources.
The RS-H3024 is compatible with mains voltage or generator power, making it useful for off-grid systems that need flexible charging options. Auto restart, cold start function, smart battery charging, and built-in protection features help support reliable operation in demanding power setups.
Best Uses
- 24V off-grid solar power systems
- Cabins, sheds, workshops, and remote buildings
- Backup power systems with battery storage
- Solar battery charging and AC power conversion
- Generator-supported off-grid installations
- Powering compatible home appliances and electronics
Key Benefits
- Pure sine wave inverter output for compatible AC loads
- Built-in MPPT solar charge controller
- Configurable input voltage range via LCD settings
- Configurable battery charging current based on application
- Configurable AC and solar charger priority
- Compatible with mains voltage or generator power
- Auto restart while AC power is recovering
- Overload, over-temperature, and short-circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function for flexible startup conditions
Size the inverter
Our RV inverter sizing guide explains continuous watts, startup loads and battery-side demand before choosing an RV inverter.
Compare a related option
Compare the 24V NOVA MAX hybrid model with a 24V NOVA PURE MAX inverter. Their charging and PV functions differ.
| Inverter | |
| Selected variant SKU | RS-H3024 |
|---|---|
| Model | NOVA 3K24 |
| Rated Output Power | 3KVA / 3KW |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage Regulation | 120 VAC±5% |
| Output Frequency | 60Hz / 50Hz |
| Peak Efficiency | 91% |
| Surge Capacity | 2* rated power for 5s |
| Nominal DC Voltage | 24 VDC |
| Solar Input | |
| Max. PV Array Open Circuit Voltage | 250 VDC |
| PV Array MPPT Voltage Range | 90 VDC~230 VDC |
| Max. Input Current | 18A |
| Physical | |
| Operation Temperature Range | 14°F ~ 104°F |
| Dimension (D*W*H) | 5.6*12.1*18.8in (142.4*307.8*477.6mm) |
| Net Weight | 26.5lb (12kg) |
| Three output priority modes | Utility First (USB), Solar First (SUB), and SBU Priority for flexible energy management. |
| Rated PV Power | 3000W |
| Maximum PV Open Circuit Voltage | 250V DC |
| Maximum Input Current | 22A |
| Start-up Voltage | 80V ± 5V DC |
| Input Voltage Waveform | Sinusoidal (Utility or Generator) |
| Nominal Input Voltage | 120V AC |
| Maximum AC Input Voltage | 150V AC |
| Nominal Input Frequency | 50Hz / 60Hz (Auto Detection) |
| Transfer Time | 10ms (UPS) / 20ms (Appliances) |
| Efficiency (Line Mode) | >95% |
| Rated Power | 3kVA / 3kW |
| Surge Power | 6000W (5 Seconds) |
| Output Voltage | 120V AC ±5% |
| Output Waveform | Pure Sine Wave |
| Nominal DC Input Voltage | 24V DC |
| MPPT Charge Controller | 80A |
| Bulk Charging Voltage | 29.2V DC (Flooded) / 28.8V DC (AGM / Gel) |
| Float Charging Voltage | 27.6V DC |
| Overcharge Protection | 33V DC |
| Operating Temperature | 14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| Dimensions | 5.6 × 12.1 × 18.80 in |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| MPPT Range @ Operating Voltage | 90 VDC ~ 230 VDC |
| current | To |
| High Loss Voltage | 140Vac±7V |
| High Loss Return Voltage | 135Vac±7V |
| Max AC Input Voltage | 150Vac |
| Low Loss Frequency | 40±1Hz |
| Low Loss Return Frequency | 42±1Hz |
| High Loss Frequency | 65±1Hz |
| High Loss Return Frequency | 63±1Hz |
