Matched power package
Combines major solar, storage, and inverter components so the system is easier to plan from the start.
1 / 4
SunGoldPower

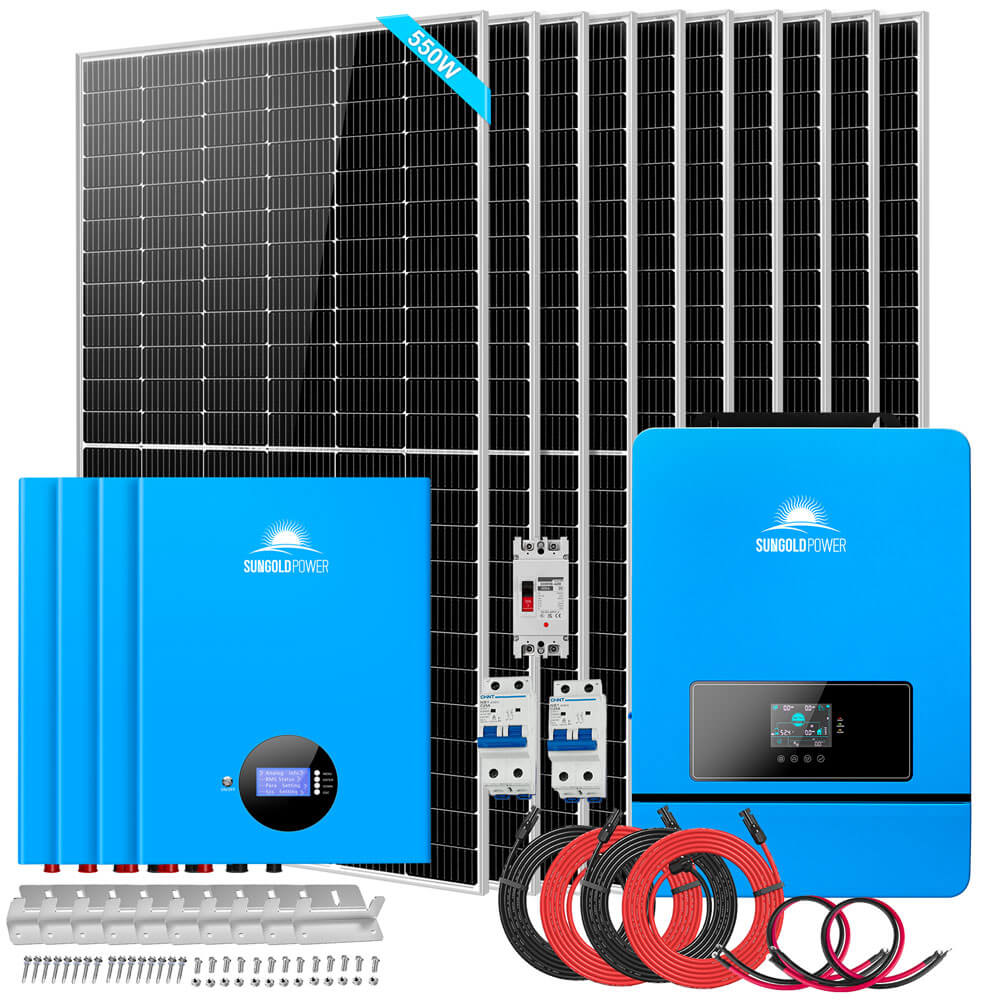

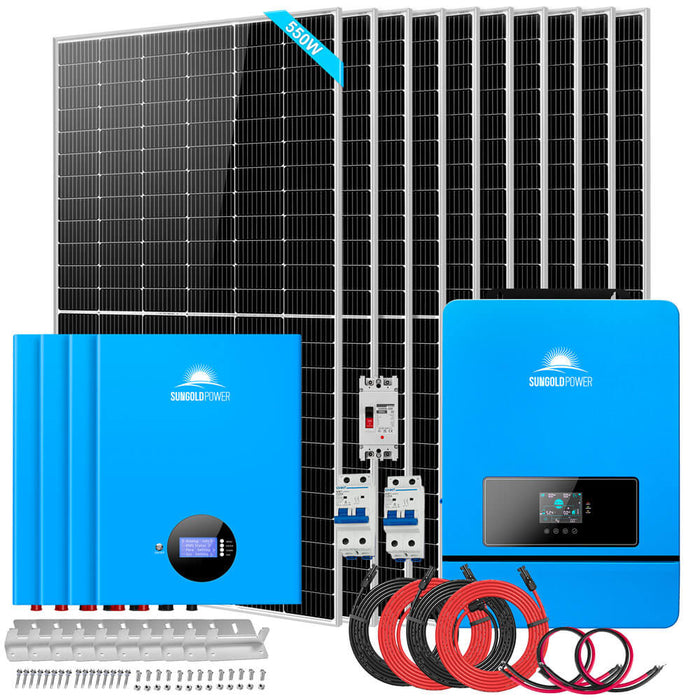

OFF GRID SOLAR KIT 10 X 550 WATTS SOLAR PANELS 4 X 5.12KWH POWERWALL LITHIUM BATTERY 10KW SOLAR INVERTER 48VDC 120V/240V SGM-10K20
$9,217.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Off-Grid Solar Kit
OFF GRID SOLAR KIT 10 X 550 WATTS SOLAR PANELS 4 X 5.12KWH POWERWALL LITHIUM BATTERY 10KW SOLAR INVERTER 48VDC 120V/240V SGM-10K20
The OFF GRID SOLAR KIT 10 X 550 WATTS SOLAR PANELS 4 X 5.12KWH POWERWALL LITHIUM BATTERY 10KW SOLAR INVERTER 48VDC 120V/240V SGM-10K20 is a complete off-grid power package built around solar charging, lithium storage, and inverter output. It is made for customers who want a more complete path to backup power, remote power, or energy independence without piecing together the full system from scratch.
10KW5.12KWH550WS48VDC120V240V10 X 550WSOff-Grid
Backup and off-grid use
Built for properties that need stored energy, solar charging, and reliable AC output when grid power is limited or unavailable.
Simpler project planning
Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.
A cleaner way to build a complete system
A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.
- Built for customers planning a more complete solar and backup power system.
- Combines solar charging, lithium storage, and inverter output into one project-focused package.
- A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
- Helps reduce component-matching guesswork before installation.
Package Includes
1 10000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
Package Includes
10 550 Watt Monocrystalline Solar Panels
Package Includes
4 100AH 51.2V LiFePO4 Battery
Package Includes
2 50 Feet, Solar Extension Cables-Inverter PV input
Package Includes
10 Sets of Mounting Z-Brackets
Package Includes
1 200A DC Breaker
Package Includes
2 25A PV Breakers
Package Includes
2 2/0 AWG Cables (Breaker to Battery or Inverter Connection)
| OFF GRID SOLAR KIT 10 X 550 WATTS SOLAR PANELS 4 X 5.12KWH POWERWALL LITHIUM BATTERY 10KW SOLAR INVERTER 48VDC 120V/240V SGM-10K20 | |
| Model SKU | SGM-10K20 |
|---|---|
| MODEL | |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| 100AH 51.2V LiFePO4 Battery — Battery Chemistry | LiFePO4 |
| 100AH 51.2V LiFePO4 Battery — Nominal Voltage | 51.2 V |
| 100AH 51.2V LiFePO4 Battery — Nominal Capacity | 100 Ah |
| 100AH 51.2V LiFePO4 Battery — Nominal Energy | 5.12 kWh |
| 100AH 51.2V LiFePO4 Battery — BMS Current | 100 A |
| Charge Voltage Setting Range | 48-58.4 V in 0.4 V steps |
| Rated Output Power | 10,000 W |
| Rated Output Voltage | 120/240 VAC (single-phase/split-phase) |
| Rated Frequency | 50/60 Hz |
| Output Wave | Pure sine wave |
| Parallel Number | 6 |
| Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery |
| Rated Battery Voltage | 48 Vdc |
| Voltage Range | 40 Vdc−60 Vdc |
| Max. PV Charge Current | 200 A |
| Charge Current (Continuous / Maximum) | 100 A / 120 A |
| No. of MPPT Trackers | 2 |
| Max. Input Power | 11,000 W |
| Max. Input Current | 22/22 A |
| Input Voltage Range | 90 VAC−140 VAC |
| Input Frequency Range | 50/60 Hz |
| Bypass Overload Current | 63 A |
| MPPT Tracking Efficiency | 99.9% |
| Maximum Battery-Mode Efficiency | 92% |
| Discharge current | > 1A |
| Charge current | > 1A |
| Efficiency | reach to 21.3%. |
| Open-circuit Voltage (Voc) | 49.70V |
| Short-circuit Current (Isc) | 14.03A |
| Module Efficiency | 21.3% |
| Cell Type | Mono 182*91mm |
| Output Cables | 4mm2,Length:(+)300mm/(-)300mm |
| Maximum System Voltage | 1500Vdc |
| Maximum Series Fuse Rating | 25A |
| Solar Array Configuration | 10 × 550W panels (5,500W rated total) |
| Battery System Voltage | 48VDC |
| Listed Capacity | 5.12KWH |
| Listed System Voltage | 120V |
| Listed Solar Power | 10KW |
| CONNECTIONS | |
| Communications | RS485 for PC/remote monitoring and BMS communication |
| BMS Communication | CAN |
| Communication | mode can be set |
| PHYSICAL | |
| 100AH 51.2V LiFePO4 Battery — Dimensions | 19.3 × 18.9 × 5.5 in |
| 100AH 51.2V LiFePO4 Battery — Weight | 93 lb |
| Dimension | 620 mm*445 mm*130 mm |
| Weight | 27 kg |
| Frame | Material Anodized aluminium alloy |
| OPERATING LIMITS | |
| Ambient temperature | -10°C−55°C (14°F−131°F), to ensure optimal operation |
| Protection level | IP20, for indoor use only |
| Certification | Safety IEC62109-1, IEC62109-2, and UL1741 |
| Warranty | ⚫ 5 year 95% output warranty, 10 year 90%output |
| PACKAGE | |
| Included Components | 1 × 10000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel, 10 × 550 Watt Monocrystalline Solar Panels, 4 × 100AH 51.2V LiFePO4 Battery, 2 × 50 Feet, Solar Extension Cables-Inverter PV input, 10 × Sets of Mounting Z-Brackets, 1 × 200A DC Breaker, 2 × 25A PV Breakers, 2 × 2/0 AWG Cables (Breaker to Battery or Inverter Connection) |
