Matched power package
Combines major solar, storage, and inverter components so the system is easier to plan from the start.
1 / 5
SunGoldPower

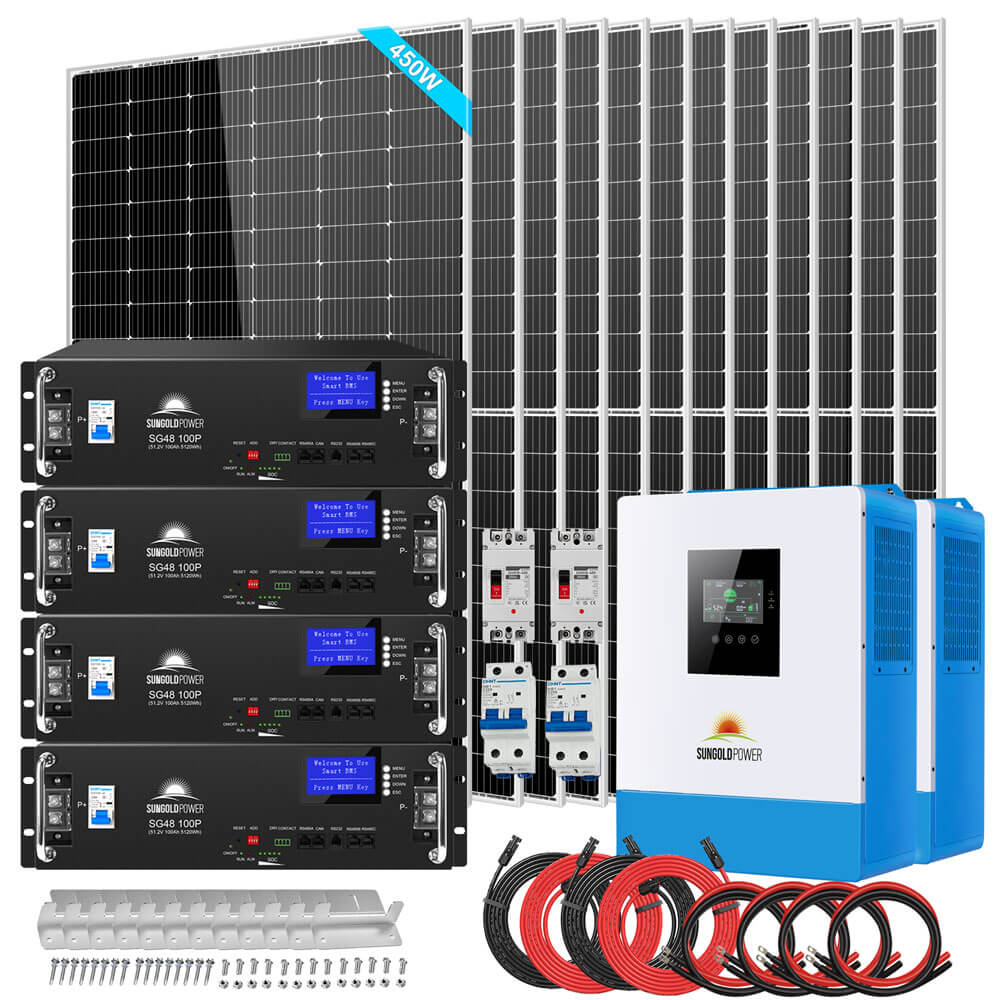

Off Grid Solar Kit 10000W 48VDC 120V/240V LifePO4 20.48KWH Lithium Battery 12 X 450 Watts Solar Panels SGR- 10K2M Off Grid Solar Kit 10000W 48VDC 120V/240V LifePO4 20.48KWH Lithium Battery 12 X 450 Watts Solar Panels SGR- 10K2M
SKU: SGR-10K2M
$9,330.00
$12,440.00
Save $3,110.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Off-Grid Solar Kit
Off Grid Solar Kit 10000W 48VDC 120V/240V LifePO4 20.48KWH Lithium Battery 12 X 450 Watts Solar Panels SGR- 10K2M
The Off Grid Solar Kit 10000W 48VDC 120V/240V LifePO4 20.48KWH Lithium Battery 12 X 450 Watts Solar Panels SGR- 10K2M is a complete off-grid power package built around solar charging, lithium storage, and inverter output. It is made for customers who want a more complete path to backup power, remote power, or energy independence without piecing together the full system from scratch.
20.48KWH10000W450WS48VDC120V240V12 X 450WSOff-Grid
Backup and off-grid use
Built for properties that need stored energy, solar charging, and reliable AC output when grid power is limited or unavailable.
Simpler project planning
Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.
A cleaner way to build a complete system
A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.
- Built for customers planning a more complete solar and backup power system.
- Combines solar charging, lithium storage, and inverter output into one project-focused package.
- A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
- Helps reduce component-matching guesswork before installation.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
Package Includes
2 5000W 48V DC 120V/240V Output with WiFi Model Inverters
Package Includes
12 450W Monocrystalline Solar Panels
Package Includes
4 100AH 51.2V LiFePO4 Batteries
Package Includes
2 50 Feet, Solar Extension Cables-Inverter PV input
Package Includes
12 Sets of Mounting Z-Brackets
Package Includes
2 200A DC Breakers
Package Includes
2 25A PV Breakers
Package Includes
4 4AWG Cables (Breaker to Battery or Inverter Connection)
| Off Grid Solar Kit 10000W 48VDC 120V/240V LifePO4 20.48KWH Lithium Battery 12 X 450 Watts Solar Panels SGR- 10K2M | |
| Selected variant SKU | SGR-10K2M |
|---|---|
| MODEL | |
| Model / SKU | SGR-10K2M |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| 100AH 51.2V LiFePO4 Batteries — Battery Chemistry | LiFePO4 |
| 100AH 51.2V LiFePO4 Batteries — Nominal Voltage | 51.2 V |
| 100AH 51.2V LiFePO4 Batteries — Nominal Capacity | 100 Ah |
| 100AH 51.2V LiFePO4 Batteries — Nominal Energy | 5.12 kWh |
| 100AH 51.2V LiFePO4 Batteries — BMS Current | 100 A |
| Rated input voltage | 110/120Vac |
| Input voltage range | (90Vac~140Vac)±2% |
| Efficiency | >95% |
| Rated output voltage | (Vac) 120Vac (100/105/110Vac Settable) |
| Maximum Efficiency | >92% |
| Rated Output Power | (W) 5000W |
| Battery type | Lead acid or lithium battery |
| Charge voltage | range 40 –58Vdc |
| Discharge current | > 1A |
| Charge current | > 1A |
| Standard charging current | (25℃):example:0.2C(20A) |
| Open-circuit Voltage (Voc) | 41.72V |
| Short-circuit Current (Isc) | 13.82A |
| Module Efficiency | 20.79% |
| Cell Type | Mono 182*91mm |
| Output Cables | 4mm2,Length:(+)300mm/(-)300mm |
| Maximum System Voltage | 1500Vdc |
| Maximum Series Fuse Rating | 20A |
| Solar Array Configuration | 12 × 450W panels (5,400W rated total) |
| Battery System Voltage | 48VDC |
| Listed Capacity | 20.48KWH |
| Listed System Voltage | 120V |
| Listed Solar Power | 10000W |
| CONNECTIONS | |
| Communication | loss protection In parallel operation, an alarm will be given when CAN communication |
| PHYSICAL | |
| 100AH 51.2V LiFePO4 Batteries — Dimensions | 19.3 × 18.9 × 5.5 in |
| 100AH 51.2V LiFePO4 Batteries — Weight | 93 lb |
| Dimension (L*W*D) | 446.9mm*350mm*133mm |
| Dimensions | 75.16*44.65*1.38 inch (1909*1134*35mm) |
| Frame | Material Anodized aluminium alloy |
| OPERATING LIMITS | |
| Certification | CE(IEC62109-1) |
| Operating temperature | range -10°C to 55°C |
| Storage temperature range | -25°C ~ 60°C |
| Warranty | 25 year 80% output warranty. |
| PACKAGE | |
| Included Components | 2 × 5000W 48V DC 120V/240V Output with WiFi Model Inverters, 12 × 450W Monocrystalline Solar Panels, 4 × 100AH 51.2V LiFePO4 Batteries, 2 × 50 Feet, Solar Extension Cables-Inverter PV input, 12 × Sets of Mounting Z-Brackets, 2 × 200A DC Breakers, 2 × 25A PV Breakers, 4 × 4AWG Cables (Breaker to Battery or Inverter Connection) |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What major equipment is included in the SGR-10K2M solar kit?
The exact package is defined by the selected variant and its Package Includes list, centered on 10000W, 20.48KWH of battery storage, and 12 panels rated 450W each. Verify quantities for batteries, panels, controllers, cables, breakers, brackets, and racks before checkout because similar SunGoldPower kits use different component counts.
Can the SGR-10K2M's 10000W inverter start every appliance below that wattage?
Do not size from nameplate watts alone. Add simultaneous continuous loads, then separately check startup demand and duration for compressors, pumps, motors, microwaves, and heating equipment against every inverter, leg, outlet, transfer, and battery-current limit.
How long can the SGR-10K2M's 20.48KWH battery supply my critical loads?
Build an hourly watt-hour load profile and compare it with usable battery energy after reserve, inverter loss, battery temperature, standby consumption, and aging. High-power appliances may fit the inverter yet consume the available 20.48KWH much faster than expected.
Can the SGR-10K2M's twelve-panel array recharge its 20.48KWH bank after a heavy overnight load?
Daily harvest depends on site-specific peak sun hours, season, tilt, shade, snow, module temperature, wiring, and conversion loss. The string design must also keep cold open-circuit voltage, operating current, and tracker allocation inside the exact controller or inverter limits.
How should 120V branch circuits be distributed around the SGR-10K2M's 240V loads?
The title identifies a 120V/240V system, but an installer must still verify per-leg limits, load imbalance, neutral and ground treatment, transfer equipment, breakers, conductor sizes, and which circuits belong in the backed-up panel.
