Matched power package
Combines major solar, storage, and inverter components so the system is easier to plan from the start.
1 / 6
SunGoldPower
Off-Grid Solar Kit 12000W 48VDC 120V/240V LifePo4 25.6KWH Lithium Battery 12 X 415 Watts Solar Panels SGR- 12K20E Off-Grid Solar Kit 12000W 48VDC 120V/240V LifePo4 25.6KWH Lithium Battery 12 X 415 Watts Solar Panels SGR- 12K20E
SKU: SGR-12K20E
$13,273.00
$17,697.00
Save $4,424.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Off-Grid Solar Kit

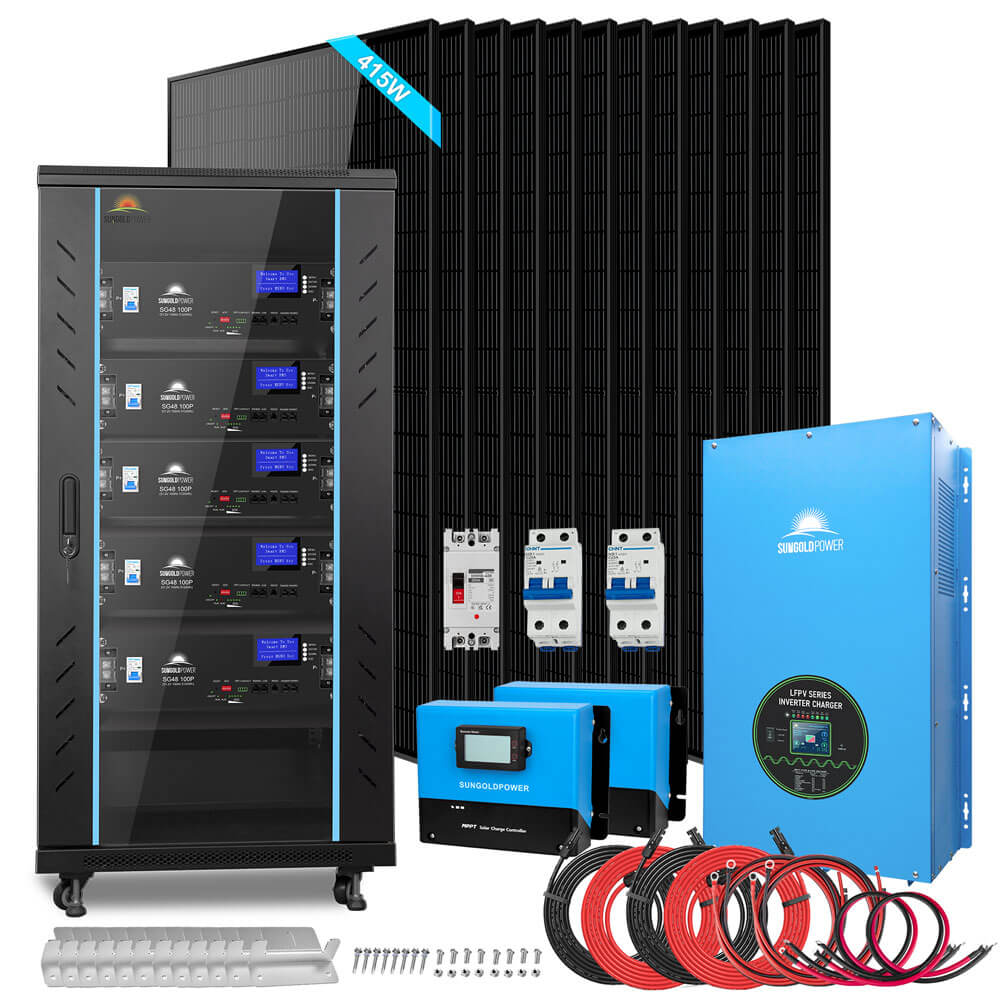

Off-Grid Solar Kit 12000W 48VDC 120V/240V LiFePO4 25.6KWH Lithium Battery 12 X 415 Watts Solar Panels SGR- 12K20E
The Off-Grid Solar Kit 12000W 48VDC 120V/240V LiFePO4 25.6KWH Lithium Battery 12 X 415 Watts Solar Panels SGR- 12K20E is a complete off-grid power package built around solar charging, lithium storage, and inverter output. It is made for customers who want a more complete path to backup power, remote power, or energy independence without piecing together the full system from scratch.
25.6KWH12000W415WS48VDC120V240V12 X 415WSOff-Grid
Backup and off-grid use
Built for properties that need stored energy, solar charging, and reliable AC output when grid power is limited or unavailable.
Simpler project planning
Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.
A cleaner way to build a complete system
A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.
- Built for customers planning a more complete solar and backup power system.
- Combines solar charging, lithium storage, and inverter output into one project-focused package.
- A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
- Helps reduce component-matching guesswork before installation.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
Package Includes

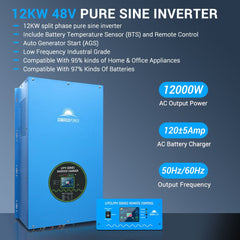

1 12000 Watt 48V DC 120V/240V AC Output Inverter
Package Includes
12 415 Watt Monocrystalline Solar Panels
Package Includes
5 100Ah CoreX 5 Pro Server Rack 51.2V Lithium Batteries
Package Includes
2 100A MPPT Solar Charge Controllers
Package Includes

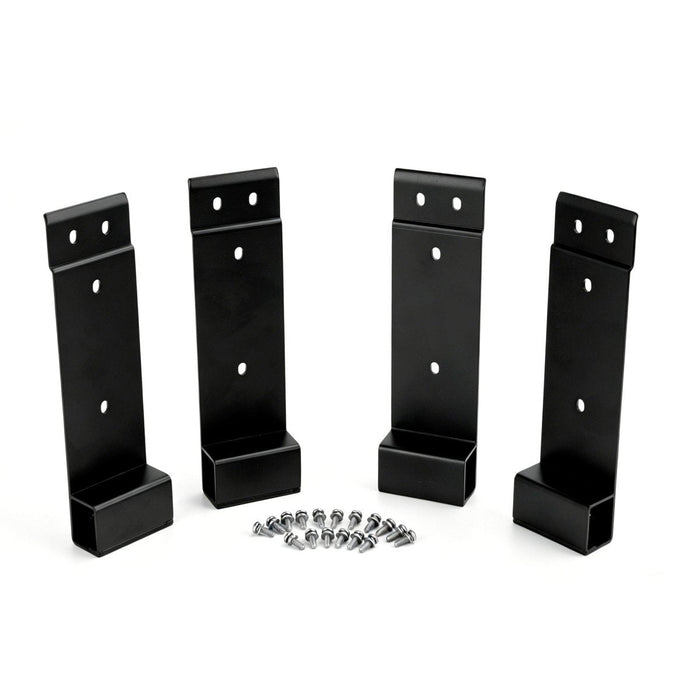

5 Battery Brackets for Batteries
Package Includes
2 50 Feet, Solar Extension Cables-Inverter PV input
Package Includes
2 Cable Between Battery and MPPT Controller
Package Includes
12 Mounting Z-Brackets
Package Includes
1 400A DC Breaker
Package Includes
2 25A PV Breakers
Package Includes

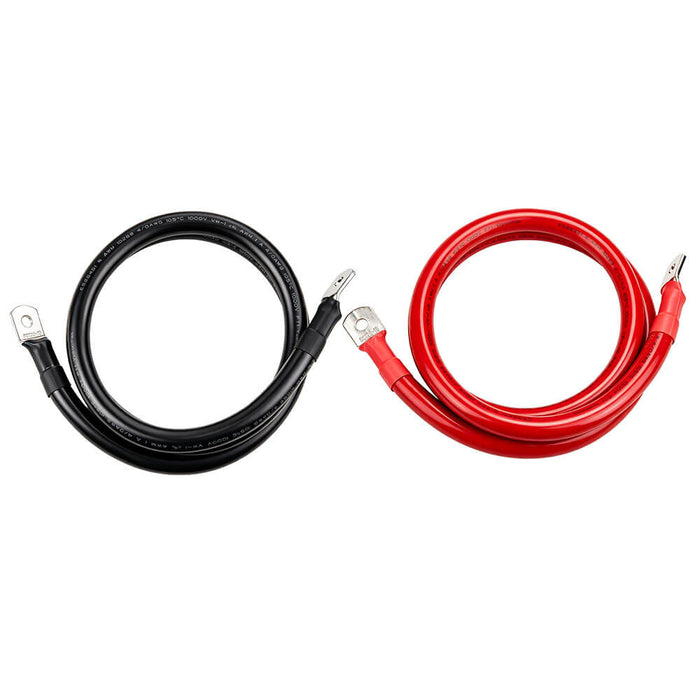

2 4/0 AWG Cables (Breaker to Battery or Inverter Connection)
| Off-Grid Solar Kit 12000W 48VDC 120V/240V LifePo4 25.6KWH Lithium Battery 12 X 415 Watts Solar Panels SGR- 12K20E | |
| Selected variant SKU | SGR-12K20E |
|---|---|
| MODEL | |
| Model / SKU | SGR-12K20E |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| 12000 Watt 48V DC 120V/240V AC Output Inverter — Output Frequency | 50/60 Hz |
| 12000 Watt 48V DC 120V/240V AC Output Inverter — Battery Voltage | 48 VDC |
| 415 Watt Monocrystalline Solar Panels — Rated Power (Pmax) | 415 W |
| 415 Watt Monocrystalline Solar Panels — Open-Circuit Voltage (Voc) | 38.32 V |
| 415 Watt Monocrystalline Solar Panels — Short-Circuit Current (Isc) | 14.09 A |
| 415 Watt Monocrystalline Solar Panels — Maximum System Voltage | 1500 VDC |
| Solar Array Configuration | 12 × 415W panels (4,980W rated total) |
| Battery System Voltage | 48VDC |
| Listed Capacity | 25.6KWH |
| Listed System Voltage | 120V |
| Listed Inverter Output | 12000W |
| PHYSICAL | |
| 12000 Watt 48V DC 120V/240V AC Output Inverter — Dimensions | 27.5 × 16.5 × 7.9 in |
| 12000 Watt 48V DC 120V/240V AC Output Inverter — Weight | 159.6 lb |
| 100Ah CoreX 5 Pro Server Rack 51.2V Lithium Batteries — Dimensions | 20.80 × 17.64 × 5.91 in |
| 100Ah CoreX 5 Pro Server Rack 51.2V Lithium Batteries — Weight | 94.8 lb |
| OPERATING LIMITS | |
| 100Ah CoreX 5 Pro Server Rack 51.2V Lithium Batteries — Warranty | 10 years |
| PACKAGE | |
| Included Components | 1 × 12000 Watt 48V DC 120V/240V AC Output Inverter, 12 × 415 Watt Monocrystalline Solar Panels, 5 × 100Ah CoreX 5 Pro Server Rack 51.2V Lithium Batteries, 2 × 100A MPPT Solar Charge Controllers, 5 × Battery Brackets for Batteries, 2 × 50 Feet, Solar Extension Cables-Inverter PV input, 2 × Cable Between Battery and MPPT Controller, 12 × Mounting Z-Brackets, 1 × 400A DC Breaker, 2 × 25A PV Breakers, 2 × 4/0 AWG Cables (Breaker to Battery or Inverter Connection) |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What major equipment is included in the SGR-12K20E solar kit?
The exact package is defined by the selected variant and its Package Includes list, centered on 12000W, 25.6KWH of battery storage, and 12 panels rated 415W each. Verify quantities for batteries, panels, controllers, cables, breakers, brackets, and racks before checkout because similar SunGoldPower kits use different component counts.
Can the SGR-12K20E's 12000W inverter start every appliance below that wattage?
Do not size from nameplate watts alone. Add simultaneous continuous loads, then separately check startup demand and duration for compressors, pumps, motors, microwaves, and heating equipment against every inverter, leg, outlet, transfer, and battery-current limit.
How long can the SGR-12K20E's 25.6KWH battery supply my critical loads?
Build an hourly watt-hour load profile and compare it with usable battery energy after reserve, inverter loss, battery temperature, standby consumption, and aging. High-power appliances may fit the inverter yet consume the available 25.6KWH much faster than expected.
Is the SGR-12K20E's 12 panels rated 415W each array enough to refill the batteries in one day?
Daily harvest depends on site-specific peak sun hours, season, tilt, shade, snow, module temperature, wiring, and conversion loss. The string design must also keep cold open-circuit voltage, operating current, and tracker allocation inside the exact controller or inverter limits.
Can the SGR-12K20E serve 120V lighting and a 240V pump from the same backup panel?
The title identifies a 120V/240V system, but an installer must still verify per-leg limits, load imbalance, neutral and ground treatment, transfer equipment, breakers, conductor sizes, and which circuits belong in the backed-up panel.
