Matched power package
Combines major solar, storage, and inverter components so the system is easier to plan from the start.
1 / 11
SunGoldPower
Off-Grid Solar Kit 13000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery 14 X 415 Watts Solar Panels SGR- 13KM - SGR-13KM Off-Grid Solar Kit 13000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery 14 X 415 Watts Solar Panels SGR- 13KM
SKU: SGR-13KM
$10,990.00
$14,653.00
Save $3,663.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Off-Grid Solar Kit

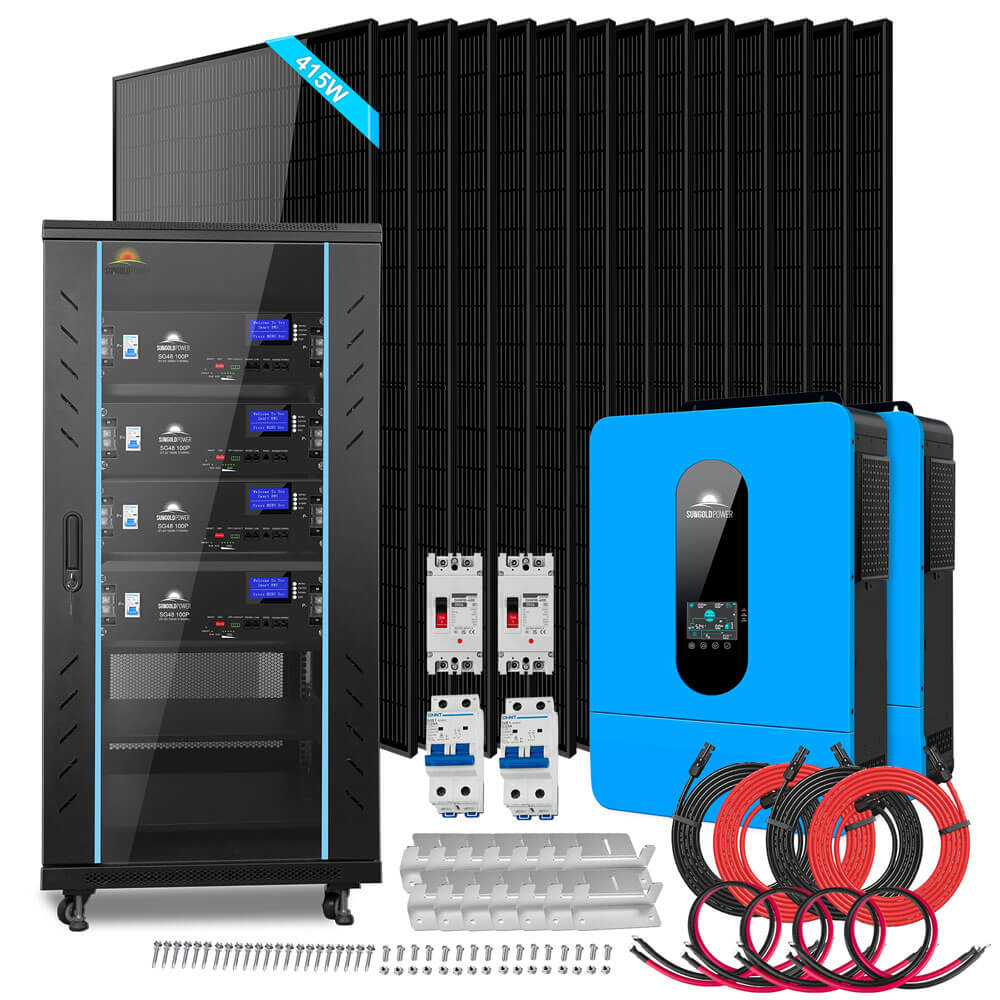

Off-Grid Solar Kit 13000W 48VDC 120V/240V LiFePO4 20.48KWH Lithium Battery 14 X 415 Watts Solar Panels SGR- 13KM
The Off-Grid Solar Kit 13000W 48VDC 120V/240V LiFePO4 20.48KWH Lithium Battery 14 X 415 Watts Solar Panels SGR- 13KM is a complete off-grid power package built around solar charging, lithium storage, and inverter output. It is made for customers who want a more complete path to backup power, remote power, or energy independence without piecing together the full system from scratch.
20.48KWH13000W415WS48VDC120V240V14 X 415WSOff-Grid
Backup and off-grid use
Built for properties that need stored energy, solar charging, and reliable AC output when grid power is limited or unavailable.
Simpler project planning
Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.
A cleaner way to build a complete system
A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.
- Built for customers planning a more complete solar and backup power system.
- Combines solar charging, lithium storage, and inverter output into one project-focused package.
- A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
- Helps reduce component-matching guesswork before installation.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
Package Includes
1x Off-Grid Solar Kit 13000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery 14 X 415 Watts Solar Panels SGR- 13KM - SGR-13KM
Includes the selected item based on the current package option.
| Off-Grid Solar Kit 13000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery 14 X 415 Watts Solar Panels SGR- 13KM | |
| Selected variant SKU | SGR-13KM |
|---|---|
| MODEL | |
| Inverter Model | SPH6548P |
| Battery Model | SG48100P |
| Panel Model | SG415WM |
| Model / SKU | SGR-13KM, SGR-13K25S |
| Product Type | Solar Power Kit |
| Available Variants | SGR-13KM; Off-Grid Solar Kit 13000W 48VDC 120V/240V LifePo4 25.6KWH Lithium Battery 20 X 415 Watts Solar Panels SGR- 13K25S (SGR-13K25S) |
| ELECTRICAL | |
| System Inverter Output | 13,000 W total from two 6,500 W inverters |
| Solar Array | 5,810 W total from fourteen 415 W panels |
| Battery Storage | 20.48 kWh total from four 5.12 kWh batteries |
| Inverter Rated Output | 6,500 W each |
| Inverter Peak Output | 13,000 VA each |
| Inverter Output Voltage | 120/240 V AC, single-phase or split-phase |
| Inverter Output Frequency | 50/60 Hz |
| Inverter Output Waveform | Pure sine wave |
| Inverter Transfer Time | 10 ms typical |
| Inverter Parallel Capacity | Up to 6 units |
| Inverter Battery Types | Lithium-ion, lead-acid, or user-defined |
| Inverter Battery Voltage | 48 V nominal; 40-60 V DC operating range |
| Inverter Maximum Grid / Generator Charge Current | 80 A |
| Inverter Maximum Mixed Charge Current | 140 A |
| Inverter MPPT Inputs | 2 |
| Inverter Maximum PV Input Power | 5,000 W + 5,000 W |
| Inverter Maximum PV Input Current | 18 A + 18 A |
| Inverter Maximum PV Open-Circuit Voltage | 550 V DC per input |
| Inverter MPPT Range | 150-450 V DC |
| Inverter MPPT Tracking Efficiency | 99.9% |
| Inverter Maximum Battery Efficiency | 93% |
| Battery Chemistry | Lithium iron phosphate (LiFePO4) |
| Battery Nominal Voltage | 51.2 V |
| Battery Rated Capacity | 100 Ah at 25°C, 0.2C, and 100% depth of discharge |
| Battery Recommended / Limit Charge Voltage | 54.5 V / 57.6 V |
| Battery Standard / Maximum Discharge Current | 50 A / 100 A continuous |
| Battery Standard / Maximum Charge Current | 50 A / 100 A continuous |
| Battery Discharge Cutoff Voltage | 43.2 V |
| Battery Parallel Capacity | Up to 63 batteries |
| Panel Peak Power | 415 W |
| Panel Short-Circuit Current | 14.09 A |
| Panel Open-Circuit Voltage | 38.32 V |
| Panel Maximum System Voltage | 1,500 V |
| Panel Cell Configuration | 108 monocrystalline cells |
| Solar Array Configuration | 14 × 415W panels (5,810W rated total) |
| Battery System Voltage | 48VDC |
| Listed Capacity | 20.48KWH |
| Listed System Voltage | 120V |
| CONNECTIONS | |
| Battery Communication | RS232, RS485, and CAN |
| PHYSICAL | |
| Inverter Dimensions | 23 × 16.2 × 5.2 in each |
| Inverter Weight | 42 lb (18.9 kg) each |
| Battery Dimensions | 442 × 460 × 133 mm (3U), ±1 mm |
| Battery Weight | Approximately 43 kg |
| Panel Dimensions | 67.8 × 44.6 × 1.4 in each |
| Panel Weight | 45.8 lb each |
| OPERATING LIMITS | |
| Inverter Protection | IP20; indoor use only |
| Inverter Operating Temperature | -10°C to 55°C; derates above 45°C |
| Battery Cycle Life | 7,000 or more cycles at 80% depth of discharge, 25°C, and 0.5C charge/discharge |
| Battery Charge / Discharge Temperature | 0°C to 45°C / -20°C to 60°C |
| Panel Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Panel Certifications | UL 61730, CE, TUV, and CEC listed |
| Panel Warranty | 12-year material and workmanship warranty and 25-year warranty to 80% output |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Does the SGR-13KM package include the complete power train shown in its title?
The exact package is defined by the selected variant and its Package Includes list, centered on 13000W, 20.48KWH of battery storage, and 14 panels rated 415W each. Verify quantities for batteries, panels, controllers, cables, breakers, brackets, and racks before checkout because similar SunGoldPower kits use different component counts.
How should I build a load list for the SGR-13KM before purchase?
Do not size from nameplate watts alone. Add simultaneous continuous loads, then separately check startup demand and duration for compressors, pumps, motors, microwaves, and heating equipment against every inverter, leg, outlet, transfer, and battery-current limit.
What usable runtime should I expect from 20.48KWH in the SGR-13KM?
Build an hourly watt-hour load profile and compare it with usable battery energy after reserve, inverter loss, battery temperature, standby consumption, and aging. High-power appliances may fit the inverter yet consume the available 20.48KWH much faster than expected.
How much unshaded mounting area is needed for all fourteen SGR-13KM modules?
Daily harvest depends on site-specific peak sun hours, season, tilt, shade, snow, module temperature, wiring, and conversion loss. The string design must also keep cold open-circuit voltage, operating current, and tracker allocation inside the exact controller or inverter limits.
How should the two AC legs be balanced on the SGR-13KM's 13000W output?
The title identifies a 120V/240V system, but an installer must still verify per-leg limits, load imbalance, neutral and ground treatment, transfer equipment, breakers, conductor sizes, and which circuits belong in the backed-up panel.
