Matched power package
Combines major solar, storage, and inverter components so the system is easier to plan from the start.
1 / 4
SunGoldPower

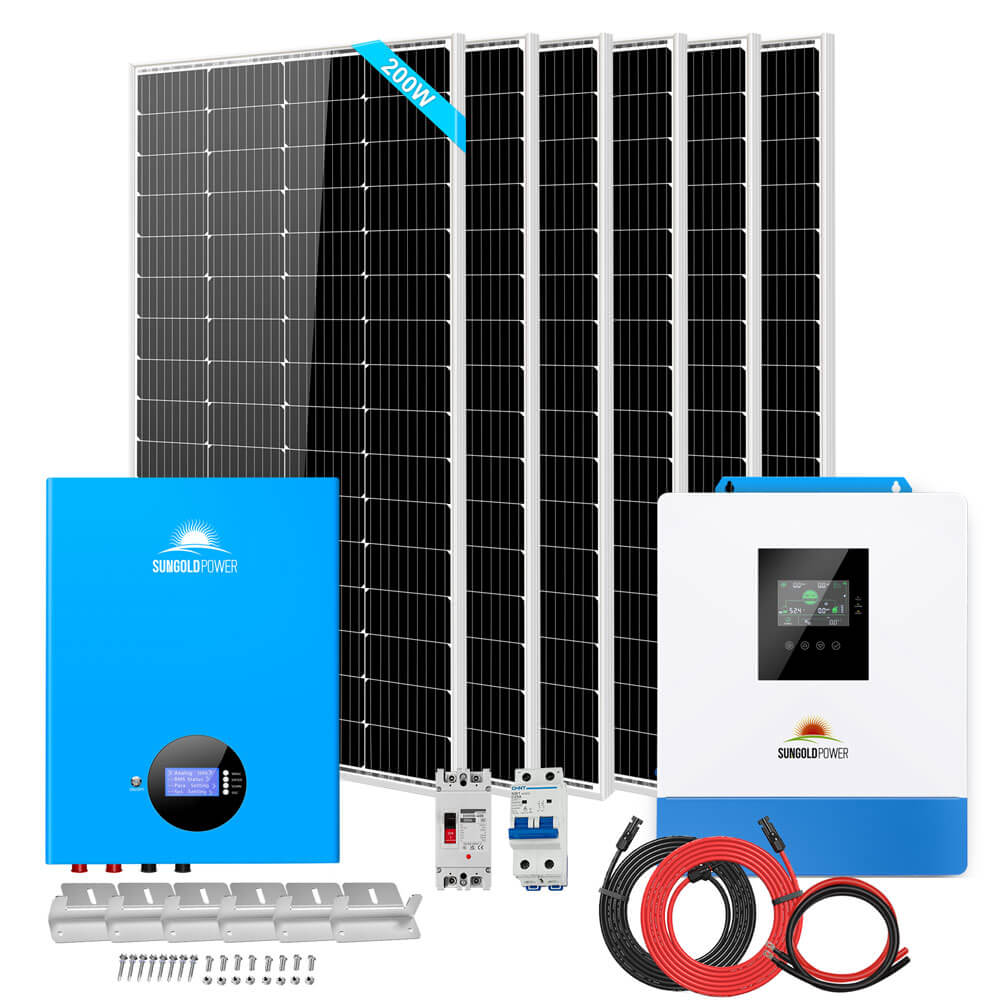

Off-Grid Solar Kit 5000W 48VDC 120V 5.12KWH PowerWall Battery 6 X 200 Watts Solar Panels SGM-5K5E Off-Grid Solar Kit 5000W 48VDC 120V 5.12KWH PowerWall Battery 6 X 200 Watts Solar Panels SGM-5K5E
SKU: SGM-5K5E
$3,145.00
$4,193.00
Save $1,048.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Off-Grid Solar Kit
Off-Grid Solar Kit 5000W 48VDC 120V 5.12KWH PowerWall Battery 6 X 200 Watts Solar Panels SGM-5K5E
The Off-Grid Solar Kit 5000W 48VDC 120V 5.12KWH PowerWall Battery 6 X 200 Watts Solar Panels SGM-5K5E is a complete off-grid power package built around solar charging, lithium storage, and inverter output. It is made for customers who want a more complete path to backup power, remote power, or energy independence without piecing together the full system from scratch.
5.12KWH5000W200WS48VDC120V6 X 200WSOff-GridWall Mounted
Backup and off-grid use
Built for properties that need stored energy, solar charging, and reliable AC output when grid power is limited or unavailable.
Simpler project planning
Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.
A cleaner way to build a complete system
A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.
- Built for customers planning a more complete solar and backup power system.
- Combines solar charging, lithium storage, and inverter output into one project-focused package.
- A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
- Helps reduce component-matching guesswork before installation.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
Package Includes
1 5000 Watt 48V DC 120V Output with WiFi Model Inverter
Package Includes
6 200 Watt Monocrystalline Solar Panels
Package Includes
1 100AH 51.2V LiFePO4 Battery
Package Includes
1 50 Feet, Solar Extension Cables-Inverter PV input
Package Includes
6 Sets of Mounting Z-Brackets
Package Includes
1 200A DC Breaker
Package Includes
1 25A PV Breaker
Package Includes
1 4AWG Cable (Breaker to Inverter Connection)
| Off-Grid Solar Kit 5000W 48VDC 120V 5.12KWH PowerWall Battery 6 X 200 Watts Solar Panels SGM-5K5E | |
| Selected variant SKU | SGM-5K5E |
|---|---|
| MODEL | |
| Model / SKU | SGM-5K5E |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| 200 Watt Monocrystalline Solar Panels — Maximum Power (Pmax) | 200 W |
| 200 Watt Monocrystalline Solar Panels — Open-Circuit Voltage (Voc) | 43.39 V |
| 200 Watt Monocrystalline Solar Panels — Short-Circuit Current (Isc) | 5.86 A |
| 200 Watt Monocrystalline Solar Panels — Maximum System Voltage | 1,000 V DC |
| 100AH 51.2V LiFePO4 Battery — Battery Chemistry | LiFePO4 |
| 100AH 51.2V LiFePO4 Battery — Nominal Voltage | 51.2 V |
| 100AH 51.2V LiFePO4 Battery — Nominal Capacity | 100 Ah |
| 100AH 51.2V LiFePO4 Battery — Nominal Energy | 5.12 kWh |
| 100AH 51.2V LiFePO4 Battery — BMS Current | 100 A |
| Output Frequency | (When the rocker switch is off can |
| Discharge current | [78]100A |
| Rated input voltage | 110/120Vac |
| Input voltage range | (90Vac~140Vac) ±2% |
| Max. Efficiency | 92% |
| Rated output voltage | (Vac) 120Vac (100/105/110Vac Settable) |
| Maximum Efficiency | 92% |
| Battery type | Lead acid or lithium battery |
| Charge voltage | range 40-58Vdc |
| Charge current | > 1A |
| Efficiency | reach to 20.41%. |
| Open-circuit Voltage (Voc) | 43.39V |
| Short-circuit Current (Isc) | 5.86A |
| Module Efficiency | 20.41% |
| Maximum System Voltage | 1000Vdc |
| Maximum Series Fuse Rating | 10A |
| Cell Type | Mono 166mm |
| Output Cables | 4mm2,Length:(+)1200mm/(-)1200mm+MC4 |
| Solar Array Configuration | 6 × 200W panels (1,200W rated total) |
| Battery System Voltage | 48VDC |
| Listed Capacity | 5.12KWH |
| Listed System Voltage | 120V |
| Listed Inverter Output | 5000W |
| CONNECTIONS | |
| Communication | interface USB / RS485 (WiFi/GPRS) / Dry contact control |
| PHYSICAL | |
| 100AH 51.2V LiFePO4 Battery — Dimensions | 19.3 × 18.9 × 5.5 in |
| 100AH 51.2V LiFePO4 Battery — Weight | 93 lb |
| Dimension (L*W*D) | 446.9*350*133mm (1.47*1.15*0.44ft) |
| Frame | Material Anodized aluminium alloy |
| OPERATING LIMITS | |
| Certification | CE(IEC62109-1)/FCC/UL1741 |
| Operating temperature | range -10°C ~ 55°C (14°F ~131°F) |
| Storage temperature range | -25°C ~ 60°C (-13°F ~140°F ) |
| Warranty | 5 years workmanship warranty. |
| PACKAGE | |
| Included Components | 1 × 5000 Watt 48V DC 120V Output with WiFi Model Inverter, 6 × 200 Watt Monocrystalline Solar Panels, 1 × 100AH 51.2V LiFePO4 Battery, 1 × 50 Feet, Solar Extension Cables-Inverter PV input, 6 × Sets of Mounting Z-Brackets, 1 × 200A DC Breaker, 1 × 25A PV Breaker, 1 × 4AWG Cable (Breaker to Inverter Connection) |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What major equipment is included in the SGM-5K5E solar kit?
The exact package is defined by the selected variant and its Package Includes list, centered on 5000W, 5.12KWH of battery storage, and 6 panels rated 200W each. Verify quantities for batteries, panels, controllers, cables, breakers, brackets, and racks before checkout because similar SunGoldPower kits use different component counts.
Can the SGM-5K5E's 5000W inverter start every appliance below that wattage?
Do not size from nameplate watts alone. Add simultaneous continuous loads, then separately check startup demand and duration for compressors, pumps, motors, microwaves, and heating equipment against every inverter, leg, outlet, transfer, and battery-current limit.
How long can the SGM-5K5E's 5.12KWH battery supply my critical loads?
Build an hourly watt-hour load profile and compare it with usable battery energy after reserve, inverter loss, battery temperature, standby consumption, and aging. High-power appliances may fit the inverter yet consume the available 5.12KWH much faster than expected.
Is the SGM-5K5E's 6 panels rated 200W each array enough to refill the batteries in one day?
Daily harvest depends on site-specific peak sun hours, season, tilt, shade, snow, module temperature, wiring, and conversion loss. The string design must also keep cold open-circuit voltage, operating current, and tracker allocation inside the exact controller or inverter limits.
What electrical and structural work remains after the SGM-5K5E equipment is delivered?
Plan structural mounting, trenching or raceways, grounding and bonding, disconnects, overcurrent protection, battery clearances, communications, code-required rapid shutdown, permits, commissioning, and any hardware not explicitly named in Package Includes.
