Matched power package
Combines major solar, storage, and inverter components so the system is easier to plan from the start.
1 / 5
SunGoldPower
Off-Grid Solar Kit 5000W 48VDC 120V LifePo4 10.24KWH Lithium Battery 6 X 415 Watts Solar Panels SGR- 5KE Off-Grid Solar Kit 5000W 48VDC 120V LifePo4 10.24KWH Lithium Battery 6 X 415 Watts Solar Panels SGR- 5KE
SKU: SGR-5KE
$4,782.00
$6,376.00
Save $1,594.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Off-Grid Solar Kit
Off-Grid Solar Kit 5000W 48VDC 120V LiFePO4 10.24KWH Lithium Battery 6 X 415 Watts Solar Panels SGR- 5KE
The Off-Grid Solar Kit 5000W 48VDC 120V LiFePO4 10.24KWH Lithium Battery 6 X 415 Watts Solar Panels SGR- 5KE is a complete off-grid power package built around solar charging, lithium storage, and inverter output. It is made for customers who want a more complete path to backup power, remote power, or energy independence without piecing together the full system from scratch.
10.24KWH5000W415WS48VDC120V6 X 415WSOff-GridLiFePO4
Backup and off-grid use
Built for properties that need stored energy, solar charging, and reliable AC output when grid power is limited or unavailable.
Simpler project planning
Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.
A cleaner way to build a complete system
A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.
- Built for customers planning a more complete solar and backup power system.
- Combines solar charging, lithium storage, and inverter output into one project-focused package.
- A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
- Helps reduce component-matching guesswork before installation.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.

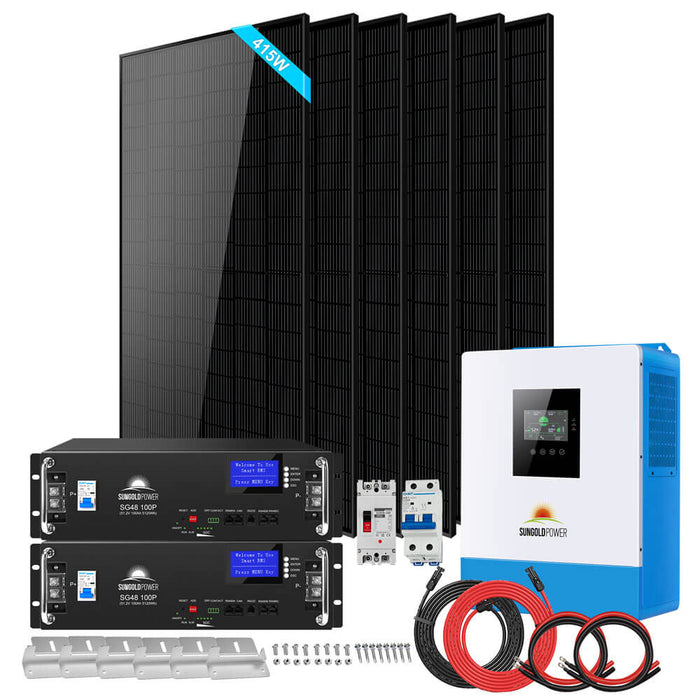

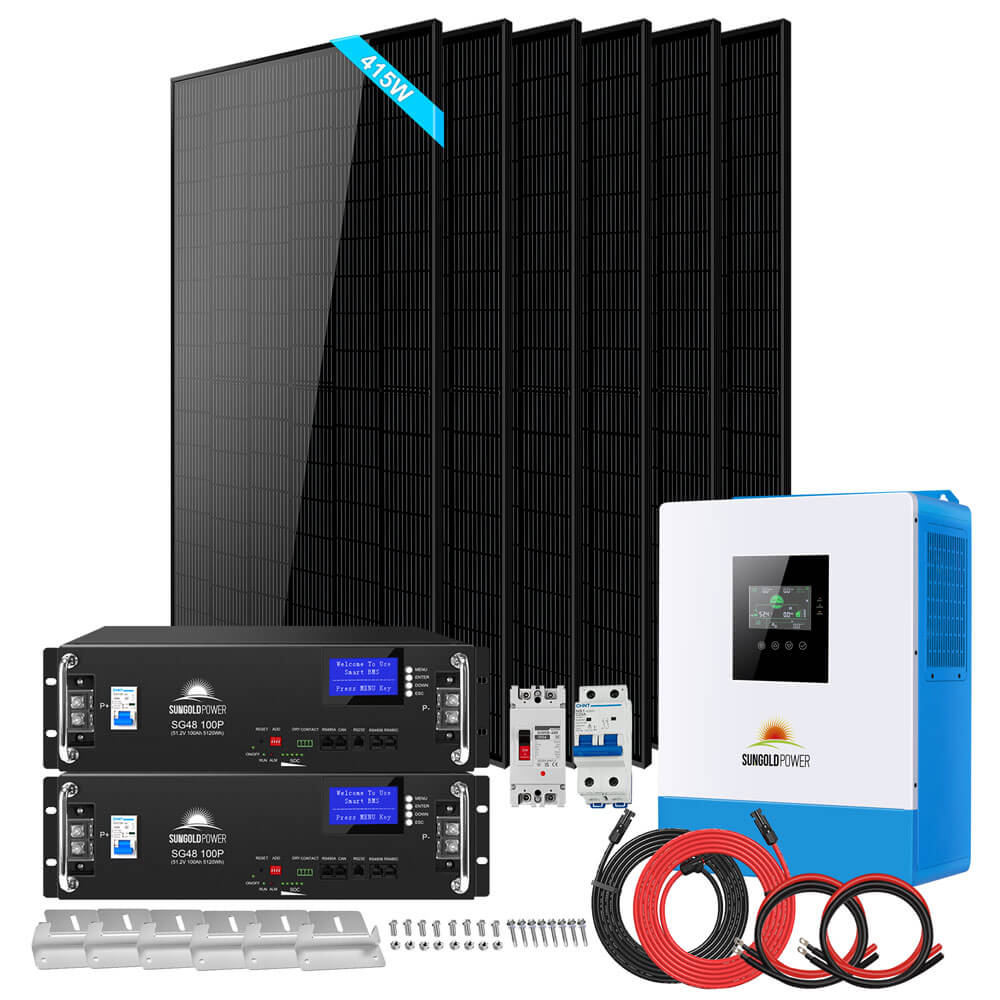

Package Includes
1 5000 Watt 48V DC 120V Output with WiFi Model
Package Includes
6 415 Watt Monocrystalline Solar Panels
Package Includes
2 100AH 51.2V LiFePO4 Batteries
Package Includes
1 50 Feet, Solar Extension Cables-Inverter PV input
Package Includes
6 Sets of Mounting Z-Brackets
Package Includes
1 200A DC Breaker
Package Includes
1 25A PV Breaker
Package Includes
2 4AWG Cables (Breaker to Battery or Inverter Connection)
| Off-Grid Solar Kit 5000W 48VDC 120V LifePo4 10.24KWH Lithium Battery 6 X 415 Watts Solar Panels SGR- 5KE | |
| Selected variant SKU | SGR-5KE |
|---|---|
| MODEL | |
| Model / SKU | SGR-5KE |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| 415 Watt Monocrystalline Solar Panels — Rated Power (Pmax) | 415 W |
| 415 Watt Monocrystalline Solar Panels — Open-Circuit Voltage (Voc) | 38.32 V |
| 415 Watt Monocrystalline Solar Panels — Short-Circuit Current (Isc) | 14.09 A |
| 415 Watt Monocrystalline Solar Panels — Maximum System Voltage | 1500 VDC |
| 100AH 51.2V LiFePO4 Batteries — Battery Chemistry | LiFePO4 |
| 100AH 51.2V LiFePO4 Batteries — Nominal Voltage | 51.2 V |
| 100AH 51.2V LiFePO4 Batteries — Nominal Capacity | 100 Ah |
| 100AH 51.2V LiFePO4 Batteries — Nominal Energy | 5.12 kWh |
| 100AH 51.2V LiFePO4 Batteries — BMS Current | 100 A |
| Output Frequency | (When the rocker switch is off can |
| Discharge current | [78]100A |
| Rated input voltage | 110/120Vac |
| Input voltage range | (90Vac~140Vac) ±2% |
| Max. Efficiency | 92% |
| Rated output voltage | (Vac) 120Vac (100/105/110Vac Settable) |
| Maximum Efficiency | 92% |
| Battery type | Lead acid or lithium battery |
| Charge voltage | range 40-58Vdc |
| Charge current | > 1A |
| Standard charging current | (25℃):example:0.2C(20A) |
| Efficiency | reach to 21.25%. |
| Short-circuit Current (Isc) | 14.09A |
| Module Efficiency | 21.3% |
| Maximum System Voltage | 1500Vdc |
| Maximum Series Fuse Rating | 20A |
| Output Cables | 4mm2,Length |
| Solar Array Configuration | 6 × 415W panels (2,490W rated total) |
| Battery System Voltage | 48VDC |
| Listed Capacity | 10.24KWH |
| Listed System Voltage | 120V |
| Listed Inverter Output | 5000W |
| CONNECTIONS | |
| Communication | interface USB / RS485 (WiFi/GPRS) / Dry contact control |
| PHYSICAL | |
| 100AH 51.2V LiFePO4 Batteries — Dimensions | 19.3 × 18.9 × 5.5 in |
| 100AH 51.2V LiFePO4 Batteries — Weight | 93 lb |
| Dimension (L*W*D) | 446.9*350*133mm (1.47*1.15*0.44ft) |
| Frame | Material Anodized aluminium alloy |
| OPERATING LIMITS | |
| Certification | CE(IEC62109-1)/FCC/UL1741 |
| Operating temperature | range -10°C ~ 55°C (14°F ~131°F) |
| Storage temperature range | -25°C ~ 60°C (-13°F ~140°F ) |
| Warranty | ⚫ 5 year 95% output warranty, 10 year 90% output |
| PACKAGE | |
| Included Components | 1 × 5000 Watt 48V DC 120V Output with WiFi Model, 6 × 415 Watt Monocrystalline Solar Panels, 2 × 100AH 51.2V LiFePO4 Batteries, 1 × 50 Feet, Solar Extension Cables-Inverter PV input, 6 × Sets of Mounting Z-Brackets, 1 × 200A DC Breaker, 1 × 25A PV Breaker, 2 × 4AWG Cables (Breaker to Battery or Inverter Connection) |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Does the SGR-5KE package include the complete power train shown in its title?
The exact package is defined by the selected variant and its Package Includes list, centered on 5000W, 10.24KWH of battery storage, and 6 panels rated 415W each. Verify quantities for batteries, panels, controllers, cables, breakers, brackets, and racks before checkout because similar SunGoldPower kits use different component counts.
How should I build a load list for the SGR-5KE before purchase?
Do not size from nameplate watts alone. Add simultaneous continuous loads, then separately check startup demand and duration for compressors, pumps, motors, microwaves, and heating equipment against every inverter, leg, outlet, transfer, and battery-current limit.
What usable runtime should I expect from 10.24KWH in the SGR-5KE?
Build an hourly watt-hour load profile and compare it with usable battery energy after reserve, inverter loss, battery temperature, standby consumption, and aging. High-power appliances may fit the inverter yet consume the available 10.24KWH much faster than expected.
How should 6 panels rated 415W each be divided among the SGR-5KE's solar inputs?
Daily harvest depends on site-specific peak sun hours, season, tilt, shade, snow, module temperature, wiring, and conversion loss. The string design must also keep cold open-circuit voltage, operating current, and tracker allocation inside the exact controller or inverter limits.
Which balance-of-system parts are not guaranteed with the SGR-5KE?
Plan structural mounting, trenching or raceways, grounding and bonding, disconnects, overcurrent protection, battery clearances, communications, code-required rapid shutdown, permits, commissioning, and any hardware not explicitly named in Package Includes.
