Off Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels SGK- PRO62

1 / 6

SunGoldPower

Off Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels SGK- PRO62

Name: Off Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels SGK- PRO62
Brand: SunGoldPower
SKU: SGK-PRO62
Price: 6093.00 USD
Availability: InStock

Brand SunGoldPower In Stock

$6,093.00 In Stock

No sales tax collected at checkout where applicable.

Estimated delivery Calculating current delivery window…

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerSunGoldPower warranty

Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

SunGoldPower Off-Grid Solar Kit

Off Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels SGK- PRO62

The Off Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels SGK- PRO62 is a complete off-grid power package built around solar charging, lithium storage, and inverter output. It is made for customers who want a more complete path to backup power, remote power, or energy independence without piecing together the full system from scratch.

10.24KWH6000W370W24VDC120V240V6 X 370WOff-Grid

Matched power package

Combines major solar, storage, and inverter components so the system is easier to plan from the start.

Backup and off-grid use

Built for properties that need stored energy, solar charging, and reliable AC output when grid power is limited or unavailable.

Simpler project planning

Helps reduce guesswork compared with sourcing panels, batteries, and inverter hardware separately.

A cleaner way to build a complete system

A complete solar power package saves time by bringing the major system pieces together around one goal: dependable stored power. It is built for customers who want a clearer path to an installed system instead of guessing through a long parts list.

Built for customers planning a more complete solar and backup power system.
Combines solar charging, lithium storage, and inverter output into one project-focused package.
A strong fit for homes, cabins, farms, workshops, remote properties, and off-grid power builds.
Helps reduce component-matching guesswork before installation.

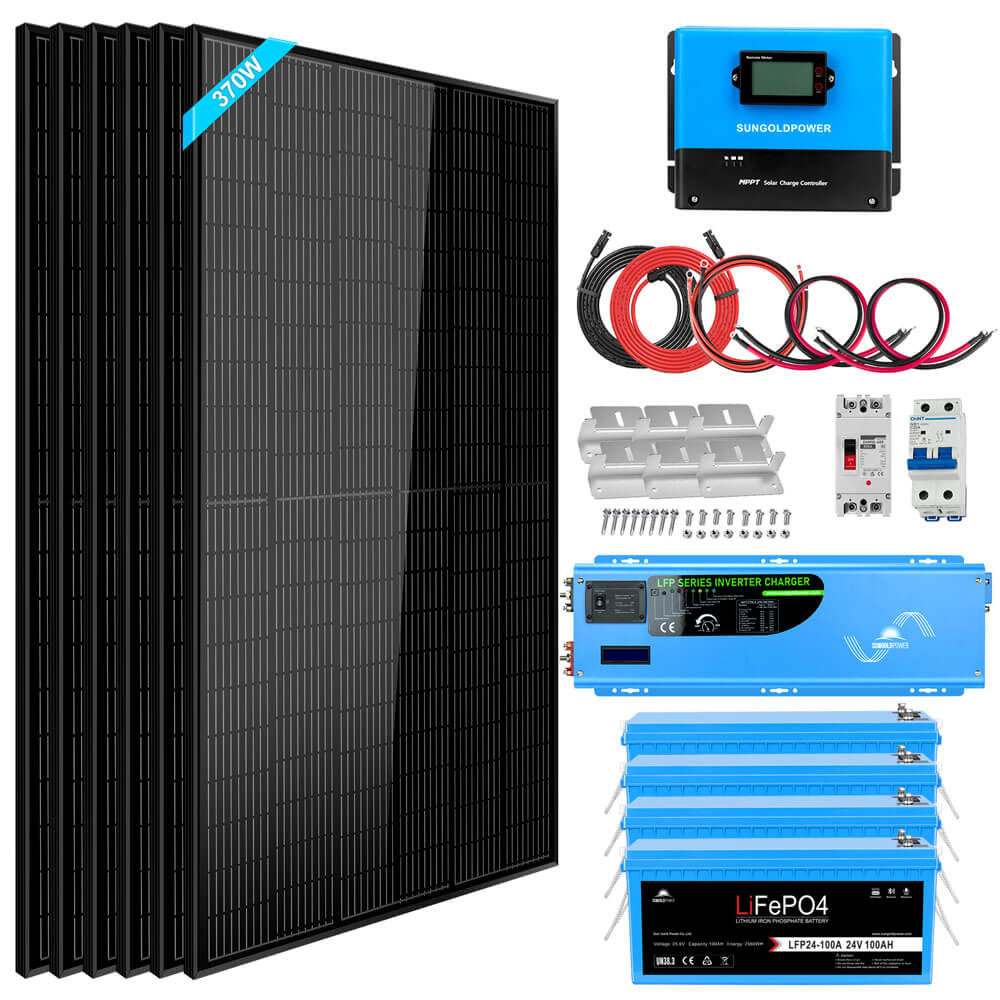

Package Includes

1 6000 Watt 24V DC 120V/240V Inverter/Charger

Package Includes

6 370 Watt Monocrystalline Solar Panels

Package Includes

4 24V 100AH LiFePO4 Battery with Bluetooth

Package Includes

1 100A MPPT Solar Charge Controller

Package Includes

1 50 Feet, Solar Extension Cables-Inverter PV input

Package Includes

1 Cable Between Battery and MPPT Controller

Package Includes

6 Sets of Mounting Z-Brackets

Package Includes

1 400A DC Breaker

Package Includes

1 25A PV Breaker

Package Includes

2 2/0 AWG Cables (Breaker to Battery or Inverter Connection)

Off Grid Solar Kit 6000W 24VDC 120V/240V LiFePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels SGK- PRO62
Model SKU	SGK-PRO62
MODEL
Product Type	Solar Power Kit
ELECTRICAL
6000 Watt 24V DC 120V/240V Inverter/Charger — Continuous AC Output	6,000 W
6000 Watt 24V DC 120V/240V Inverter/Charger — Peak AC Output	18,000 W
6000 Watt 24V DC 120V/240V Inverter/Charger — Battery Voltage	24 VDC
6000 Watt 24V DC 120V/240V Inverter/Charger — AC Input Voltage	240 VAC
6000 Watt 24V DC 120V/240V Inverter/Charger — AC Output Voltage	120/240 VAC split phase
6000 Watt 24V DC 120V/240V Inverter/Charger — Output Waveform	Pure sine wave
370 Watt Monocrystalline Solar Panels — Rated Power (Pmax)	370 W
370 Watt Monocrystalline Solar Panels — Open-Circuit Voltage (Voc)	40.17 V
370 Watt Monocrystalline Solar Panels — Short-Circuit Current (Isc)	11.81 A
370 Watt Monocrystalline Solar Panels — Maximum System Voltage	1500 VDC
Charge	-4°F—113°F (-20℃—45℃)
Output Waveform	Pure Sine wave/Same as input(Bypass mode)
Output Frequency	50/60Hz ±0.3Hz
Input Voltage Range	Narrow: 100~135VAC / 194~243VAC;
Input Frequency Range	Narrow: 47-55±0.3Hz for 50Hz, 57-65±0.3Hz for 60Hz
Nominal Voltage	120Vac 230Vac
Efficiency	reach to 20.31%.
Cell Type	Mono182mm
Output Cables	4mm2,Length:(+)300mm/(-)300mm
Maximum Series Fuse Rating	Power Tolerance 11.81A
MPPT Tracking efficiency	can be as much as 99.9%.
Maximum output power	4400W 5280W 5280W 4400W
Solar Array Configuration	6 × 370W panels (2,220W rated total)
Battery System Voltage	24VDC
Listed Capacity	10.24KWH
Listed Solar Power	6000W
CONNECTIONS
24V 100AH LiFePO4 Battery with Bluetooth — Battery Chemistry	LiFePO4
24V 100AH LiFePO4 Battery with Bluetooth — Nominal Voltage	25.6 V
24V 100AH LiFePO4 Battery with Bluetooth — Nominal Capacity	100 Ah
24V 100AH LiFePO4 Battery with Bluetooth — Nominal Energy	2,560 Wh
24V 100AH LiFePO4 Battery with Bluetooth — Maximum Discharge Current	100 A
Bluetooth	APP support both iOS and Android system. iOS users can download and install “SGP Battery”
Communication	setting is performed for specified register E001H with the controller via the mobile phone APP
PHYSICAL
6000 Watt 24V DC 120V/240V Inverter/Charger — Dimensions	25.0 × 9.1 × 7.5 in
24V 100AH LiFePO4 Battery with Bluetooth — Dimensions	20.7 × 9.4 × 8.7 in
24V 100AH LiFePO4 Battery with Bluetooth — Weight	45 lb
Dimensions(LWH)	362242198mm 505242198mm 597242198mm
OPERATING LIMITS
Operating temperature	Charge: -4°F—113°F (-20℃—45℃)
Storage temperature	68°F~86°F (20℃~30℃
Warranty	5 year 95% output warranty, 10 year 90%
PACKAGE
Included Components	1 × 6000 Watt 24V DC 120V/240V Inverter/Charger, 6 × 370 Watt Monocrystalline Solar Panels, 4 × 24V 100AH LiFePO4 Battery with Bluetooth, 1 × 100A MPPT Solar Charge Controller, 1 × 50 Feet, Solar Extension Cables-Inverter PV input, 1 × Cable Between Battery and MPPT Controller, 6 × Sets of Mounting Z-Brackets, 1 × 400A DC Breaker, 1 × 25A PV Breaker, 2 × 2/0 AWG Cables (Breaker to Battery or Inverter Connection)
