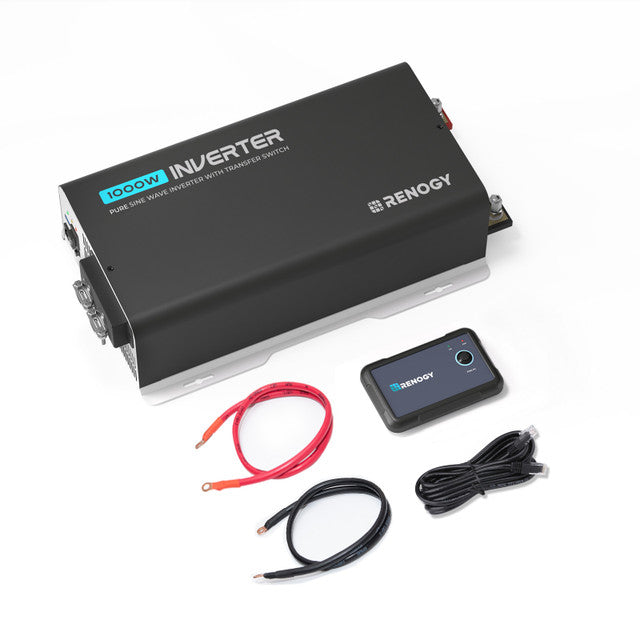

Renogy 1000W 12V Pure Sine Wave Inverter w/ UPS Transfer Switch and Built-In Bluetooth Renogy 1000W 12V Pure Sine Wave Inverter w/ UPS Transfer Switch and Built-In Bluetooth

Will the Renogy 1000W UPS inverter start a refrigerator, microwave, pump, or power tool? It can run 120V appliances whose combined running demand stays within 1,000W, and it provides a 2,000W surge for up to 2 seconds. Motors and compressors can draw several times their running wattage at startup, so compare the appliance's starting watts—not only the number on its normal-use label—to that 2,000W surge limit. If the startup demand or combined load exceeds either limit, the inverter can trip on overload. What battery bank and DC wiring does this 12V 1000W inverter need? This model is for a 12V battery bank and operates across an 11-15.5V DC input range. At full output it can demand up to 105A continuously from the battery side, so the battery, BMS, fuse, disconnect, and cable path all need to support that current. Renogy includes a 3-foot pair of 4 AWG inverter cables with the 1000W model; any change in cable length or installation method should be re-sized for voltage drop and protected according to the manual and applicable code. What does the built-in UPS transfer switch actually do when shore or utility power is available? With a properly wired single-phase 120V AC source connected, the built-in transfer switch bypasses the inverter and sends that source directly to the connected loads. When that source is unavailable, the inverter supplies those loads from the 12V battery bank. The transfer switch is rated for 10A, so the AC pass-through load must stay within that limit even though the inverter itself is rated at 1,000W. Will the AC input recharge my battery while this inverter is on shore power? No. The AC input is for bypass power to the connected loads; Renogy's manual explicitly states that grid power does not charge the battery on this model. You will still need a separate battery charger, solar charge controller, or other charging source sized for your battery chemistry and bank capacity. If you need AC charging and inversion in one unit, choose an inverter charger instead. What can I see or control through the inverter's built-in Bluetooth? The inverter connects directly to the Renogy app without requiring a separate Bluetooth module. The app provides operating data such as inverter status, power use, battery-side voltage and current, and access to supported controls or settings. For a reliable direct connection, Renogy says the inverter must be powered on and the phone should remain within about 10 feet (3m). What installation parts come with the 1000W model, and what will I still need to supply? The package includes the 1000W inverter, a 3-foot pair of 4 AWG inverter cables, a wired remote control, a 5m RJ12 cable, and the user manual. Mounting screws and site-specific protection or wiring are not universal kit items; plan for the correctly sized battery fuse and disconnect, grounding hardware, AC conductors and protection, and mounting fasteners required by your installation. Hardwired AC work should follow the manual and applicable electrical code.
