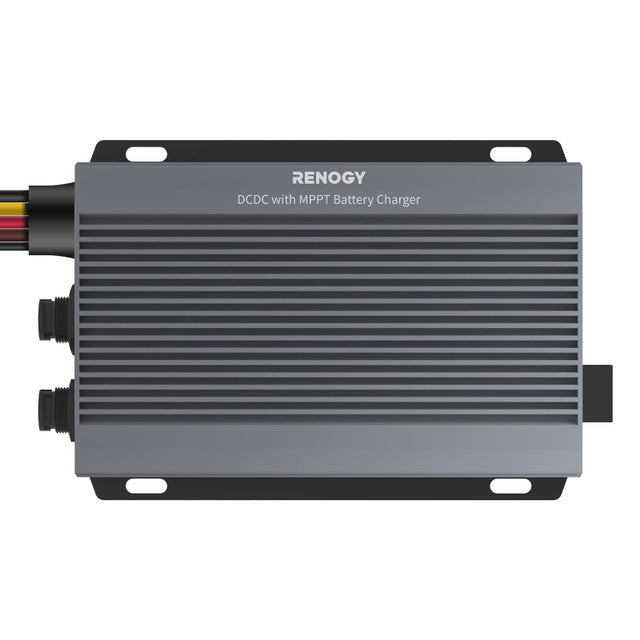

Renogy 12/24V IP67 50A DC to DC Battery Charger w/ MPPT Renogy 12/24V IP67 50A DC to DC Battery Charger w/ MPPT

Can this charger build a 24V house bank from a 12V alternator or 12V solar array? Yes. This model can step voltage up or down between supported 12V and 24V source and house-battery systems. That means a 12V starter battery or suitable 12V solar input can charge a 24V house bank, while a 12V house bank can also be charged from a supported 12V or 24V source. Configure the actual source and battery voltages exactly as the manual specifies before energizing the system. Does the 50A rating apply when charging both 12V and 24V batteries? No. Maximum output is 50A when charging a 12V bank and 25A when charging a 24V bank, with output power capped at 720W. This distinction matters when estimating charge time: a 24V battery receives similar power at half the current, rather than 50A at 24V. How much solar can the built-in MPPT input accept? Renogy specifies up to 720W of solar and a maximum PV input voltage of 50V DC. Rigid and flexible modules are both supported, but the array's cold-weather open-circuit voltage must remain below the charger's limit. Check the voltage and current of the exact series/parallel layout rather than sizing the array from wattage alone. Will the IP67 charger work with a smart alternator as well as a traditional alternator? Yes. Renogy lists compatibility with both smart and traditional alternators. Their operating-voltage behavior is different, so the charger input thresholds must be configured for the vehicle; the built-in Bluetooth connection lets you adjust the applicable input-voltage setting through Renogy's monitoring platform. How is battery chemistry selected, and is temperature compensation included? Battery type can be selected with the button beside the charger's Type indicator or through the supported Renogy app/Core connection. A battery temperature sensor is included. The published temperature-compensation value applies to non-lithium profiles, while Renogy specifies no temperature compensation for lithium, so use the profile required by the battery manufacturer. Are the heavy-gauge cables and protection devices included with the 50A charger? The package lists the charger, battery temperature sensor, quick guide, four M8 ring terminals, and one installation screw. It does not list the site-specific power cables or fuses. Renogy specifies an 8 AWG to 4 AWG terminal range and 75A-100A input and output fuse ratings; final cable gauge, fuse size, routing, and disconnects must match the run length, installation conditions, and manual. Is IP67 enough to mount this DC-to-DC charger in an engine compartment? The IP67 enclosure and published -31°F to 176°F (-35°C to 80°C) operating range give this model much more mounting flexibility than an indoor charger, and Renogy specifically describes engine-compartment or side-storage installation. It still needs secure mounting, suitable cable protection, and a location that follows the manual's clearance and heat guidance; IP67 does not make every hot or high-vibration location acceptable.
