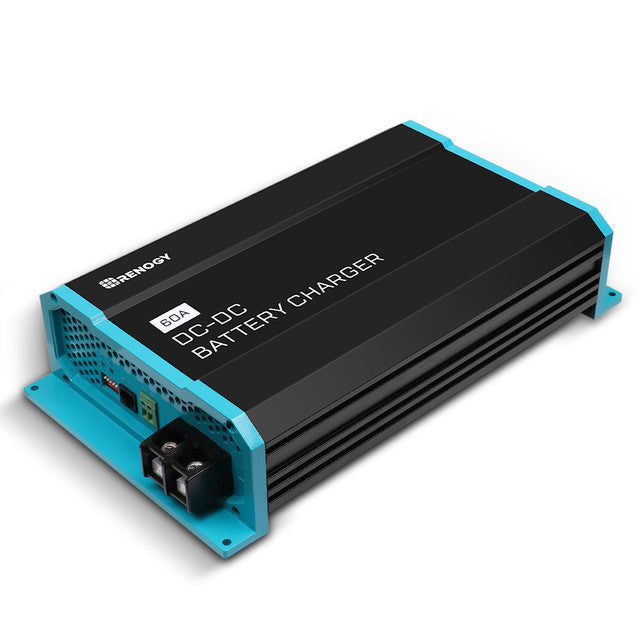

12V 60A DC-DC Battery Charger

Renogy’s RNG-DCC1212-60 is a 12V-to-12V DC-DC onboard battery charger rated for 60A charging current. It is designed to charge a house battery from a vehicle charging system, with a published 750W output and charging voltage range of 13.2V to 14.7V.

Battery Compatibility Guidance

The charger is listed as compatible with AGM, flooded, gel, and lithium batteries. Before installation, select the charging profile required by the battery manufacturer and confirm that the house-battery system is a suitable nominal-voltage match. Battery acceptance, BMS limits, and the vehicle manufacturer’s installation requirements still apply.

Vehicle Charging System Considerations

The input is specified for a 12V system with an 8V to 16V operating range. Renogy’s supplied product information states compatibility with both traditional and smart alternators. Verify the alternator type and capacity, starter-system voltage, ignition signaling, and vehicle restrictions before connecting an onboard charger; the listed installation guidance notes that a D+ ignition cable is not included.

Protection and Installation Details

Input protection specifications include high-voltage, low-voltage, reverse-polarity, high-temperature, and short-circuit protection. The published thresholds include an 8V low-voltage cutoff, 10V low-voltage restart, 16V high-voltage shutdown, and 15.5V high-voltage restart. The unit measures 311 x 175 x 68mm and weighs 2.40kg, so confirm available mounting space before installation.

Plan alternator charging

Our RV DC-to-DC charger guide explains when a DC-to-DC charger is useful in an RV battery system and which electrical limits to check.

Compare a related option

Compare the 60A and 20A versions by alternator capacity, wiring and desired charging rate.

Renogy 12V 20A DC to DC On Board Battery Charger

Package Includes
1 Renogy 60A DC to DC Battery Charger
Renogy 12V 60A DC-DC Battery Charger
Selected variant SKU RNG-DCC1212-60-G1-US
Specifications
Model RNG-DCC1212-60
Transformation 12V to 12V
Nominal Input Voltage 12V
Input Voltage Range 8V to 16V
Charging Current 60A
Charging Voltage 13.2V to 14.7V
Output 750W
Residual Ripple of Output Voltage at Rated Current <50 mVeff
Efficiency Up to 90%
Idle Power Consumption <0.4A
Ambient Temperature for Operation -4°F to 122°F / -20°C to 50°C
Ambient Humidity ≤95% Non-Condensing
Dimensions (W x D x H) 311 x 175 x 68mm / 12.2 x 6.9 x 2.7 in
Weight 2.40kg / 5.29 lbs
Protective Function Specifications
Protections at Input High-Voltage, Low-Voltage, Reverse-Polarity, High-Temperature, Short-Circuit
Low Voltage Cut Off 8V
Low Voltage Restart 10V
High-Voltage Shutdown 16V
High Voltage Restart 15.5V
Certifications
CE Yes
System Voltage: 12VDC Equalization Voltage: N/A
Rated Charge Current: 60A Float Voltage: 13.2-13.8v
Output: 750W Boost Voltage: 14.1-14.7v
Idle Power Consumption: <0.4A Operating Temperature: -20°C to +50°C
Input Voltage Range: 8V-16V Dimensions: 12.2 x 6.9 x 2.7 in / 311 x 175 x 68 mm
Weight: 5.3 lbs. / 2.4 kg Certification: CE ROHS
Float Voltage 13.2-13.8v
Boost Voltage 14.1-14.7v
Operating Temperature -20°C to +50°C
Dimensions 12.2 x 6.9 x 2.7 in / 311 x 175 x 68 mm
Certification CE ROHS
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Specification Sheet
Product documentation and manufacturer terms.
View PDF
📄
Warranty Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

Will the 12V 60A DC to DC On Board Battery Charger work with the alternator and ignition behavior in a utility-trailer installation in a conventional motorhome charging circuit? Renogy publishes these model-specific details: Compatible with both traditional and smart alternators, the DC-DC charger supports efficient generator starts while preventing over-discharge of the starter battery. (Recommended: 18–16 AWG copper cable; D+ ignition cable not included.); Input Voltage Range: 8V-16V. Verify alternator type and capacity, starter-system voltage, ignition signaling, any PV input limits, and the vehicle manufacturer's restrictions before connecting an onboard charger. Which house-battery chemistry and nominal voltage can the 12V 60A DC to DC On Board Battery Charger charge in a conventional motorhome charging circuit? Renogy publishes these model-specific details: Description: -Compatible with AGM, Flooded, Gel, and Lithium batteries.; -Compatible with AGM, Flooded, Gel, and Lithium batteries.; Compatible with Multiple Battery Types: The DC-DC battery charger is highly compatible with AGM, Flooded, Gel, and Lithium batteries, ensuring optimal performance for various battery types.. Match the profile to the battery manufacturer's required bulk, absorption, float, temperature, and BMS limits; similar nominal voltage does not make every chemistry interchangeable. When will the 12V 60A DC to DC On Board Battery Charger deliver less than its advertised charge current in a conventional motorhome charging circuit? Renogy publishes these model-specific details: Rated Charge Current: 60A; Output: 750W; Seamless Charging, Ultimate Safety: Incorporates isolated input/output and advanced safety technology, ensuring reliable and secure charging for your house batteries.; Equalization Voltage: N/A: Rated Charge Current: 60A. Source limitations, alternator temperature, battery acceptance, programmed limits, cable drop, and thermal protection can reduce real output. Charging current is not guaranteed at every engine speed or state of charge. Does the 12V 60A DC to DC On Board Battery Charger require an ignition signal, sensor, or add-on monitor in a conventional motorhome charging circuit? Renogy publishes these model-specific details: Prolong Battery Lifespan: Automatically adapts charging modes to match battery voltages, while the temperature sensor provides -3mV/°C/2V compensation, ensuring optimal charging in varying temperatures. (Please note: Temperature sensor not included, not compatible with Lithium batteries.). Built-in and add-on monitoring are not interchangeable; confirm whether a sensor, module, communication cable, or separate hub is required for the function you want. What wiring and circuit protection should be budgeted for the 12V 60A DC to DC On Board Battery Charger in a conventional motorhome charging circuit? Renogy publishes these model-specific details: Compatible with both traditional and smart alternators, the DC-DC charger supports efficient generator starts while preventing over-discharge of the starter battery. (Recommended: 18–16 AWG copper cable; D+ ignition cable not included.). Size input and output conductors, fuses or breakers, disconnects, grounding, and strain relief from maximum current and route length, not merely from the charger's front-panel rating.
