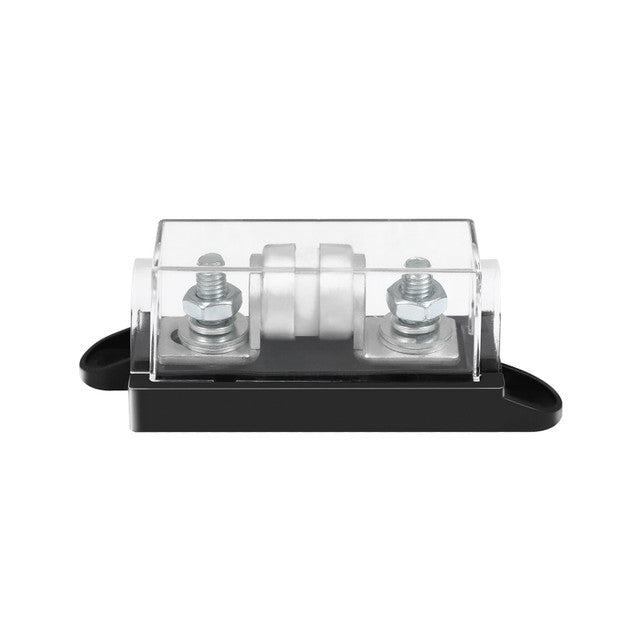

Renogy 150A Class T Fuse with Set 1 / 1
Renogy

Renogy 150A Class T Fuse with Set Renogy 150A Class T Fuse with Set

SKU: RPD150CTF-SET-G1-US

Brand Renogy In Stock
$26.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy 150A Class T Fuse with Set

In Stock
Renogy 150A Class T Fuse with Set
Quantity$26.99 each
1

Class T Fuse with Set - 150A

Protect a compatible high-current battery system from overcurrent with a Class T fuse set designed for reliable circuit safeguarding.

Renogy Class T Fuse

Class T fuses help safeguard compatible electrical systems from overcurrent for dependable long-term system protection.

Renogy Class T fuse protective design features

Wiring Diagram

The verified source diagram illustrates the Class T fuse positioned within a high-current battery-to-inverter connection.

Renogy Class T fuse battery-to-inverter wiring diagram

Versatile High-Current Protection

Designed for suitable high-current applications including RVs, boats, cars and trucks.

Renogy Class T fuse compatible high-current applications

Can the fuse be replaced?

Yes. The fuse can be removed from its housing by loosening the two bolts for replacement.

What size posts or lugs fit this holder?

The holder uses 5/16 in studs, also identified as M8.

How do I select a fuse size?

The live Renogy page identifies 150A for 1000W inverters, 250A for 2000W inverters and 350A for 3000W inverters.

Does the set include a short fuse cable?

No. A compatible cable must be purchased separately.

Renogy 150A Class T Fuse with Set
Package Includes
1x Renogy 150A Class T Fuse with Set
Includes the selected item based on the current package option.
Class T Fuse with Set
Selected variant SKU RPD150CTF-SET-G1-US
Estimated Dimensions And Weights
Package Dimensions 4.96 x 1.46 x 1.77 in
Package Weight 0.42 lb
Master Carton Dimensions 13.39 x 7.87 x 10.63 in
Master Carton Weight 23.15 lb
Units Per Carton 50
Cartons Per Pallet 36
Units Per Pallet 1800
Electrical Parameters
Voltage Rating 250V AC/DC
Max Interrupt Current 10kA
Mechanical Specifications
Connector Type Screw
Warranty
Material and Workmanship Warranty 1 Year
🛡️
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

1. Can the fuse be replaced or does the entire device have to be replaced? Yes, the fuse is replaceable.The fuse can be removed from the housing by loosening 2 bolts.The fuse is easy to replace, and it is best to have something extra on hand and easy to disassemble and replace. Order on Amazon. 2. What size posts on this holder? Or what size lug works? The post are 5/16 stud (M8). 3. How do I choose a fuse size? Choose an inverter rating or go up one from there? Class T fuse can be used to protect 12V inverters up to 3000W ， 150A for 1000W inverters, 250A for 2000W inverters, and 350A for 3000W inverters . 4. Does this include a short fuse cable? NO, cable is provided you must purchase your own cable separately, which can be found at any Auto parts store.
