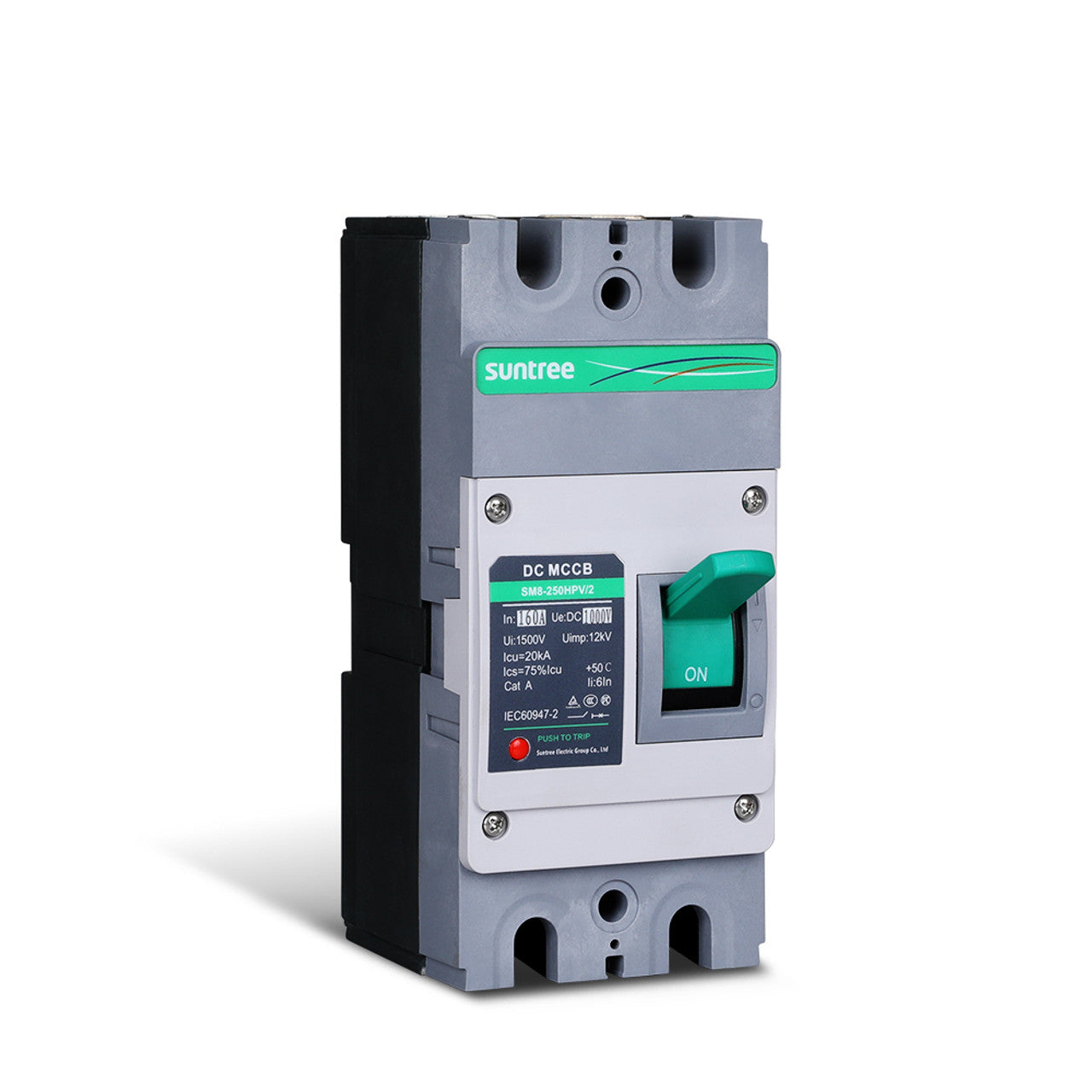

Renogy 160A 2P DC Molded Case Circuit Breaker
160A 2P DC Molded Case Circuit Breaker
Protect compatible DC electrical installations from overload and short-circuit conditions with a breaker that combines thermal and magnetic tripping mechanisms.
Reliable and Safe
Thermal and magnetic trip protection supports reliable circuit safeguarding for suitable DC electrical installations.
Durable for Use
Built for dependable operation and strong electrical conductivity in compatible systems.
Sizing Tips
Choose a circuit breaker rating suitable for the operating current requirements of the connected system.
Connection
The breaker is designed for compatible positive and negative DC circuit connections.
Clear Position Marking
A built-in indicator window makes the contact position easier to identify at a glance.
Quick Installation Design
The enclosure design supports compatible DIN rail or panel-mounted placements.
| 160A 2P DC Molded Case Circuit Breaker | |
| Model SKU | SUNDCCB160MC2P-G1-US |
|---|---|
| Electrical Parameters | |
| Rated Insulation Voltage | 1500V |
| Rated Operating Voltage | 1000V |
| Rated Frame Current | 250A |
| Rated Current | 160A |
| Number of Poles | 2 |
| Operating Short-Circuit Breaking Capacity | 15KA |
| Ultimate Short-Circuit Breaking Capacity | 20KA |
| Rated Impulse Withstand Voltage | 12KV |
| Mechanical Life | 10000 Times |
| Electrical Life | 2000 Times |
| Trip Mechanism | Thermal-Magnetic |
| Damp Heat Resistance | N/A |
| Tripping Characteristics | |
| Rated Non-Tripping Current | 168A ≥2h |
| Rated Tripping Current | 208A <2h |
| Rated Instantaneous Tripping Current | 1000A <0.1s |
| Environmental Data | |
| Operating Temperature Range | -40℉~167℉ / -40℃~75℃ |
| Storage Temperature Range | -40℉~167℉ / -40℃~75℃ |
| Protection Rating | IP20 |
| Operating Relative Humidity | ≤95% |
| Mechanical Specifications | |
| Dimensions | 7.9 x 3.5 x 5.3 in / 200 x 90 x 135 mm |
| Weight | 4.67 lb |
| Recommended Terminal Torque | 44.3 inch·lbs / 5 N·m |
| Conductor Size | 4 AWG to 4/0 AWG |
| Accessories | |
| Mounting Screw | 2 Pieces, M4 x 55 mm |
| Insulation Barrier | Included |
| Certifications | |
| CE | YES |
| RoHS | YES |
| CB | YES |
| TUV | YES |
| Warranty | |
| Material and Workmanship Warranty | 1 Year |
