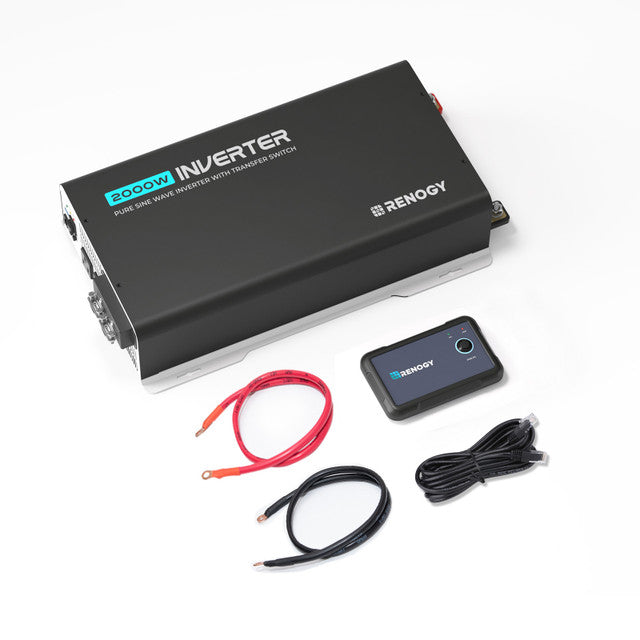

Renogy 2000W 12V Pure Sine Wave Inverter w/ UPS Transfer Switch and Built-In Bluetooth
UPS-Ready Inverter Power
2000W 12V Pure Sine Wave Inverter with UPS Transfer Switch and Built-In Bluetooth
Run compatible AC equipment with clean 2000W inverter output, automatic transfer support and connected monitoring for mobile or backup-power systems.
- Built-in Bluetooth and remote-control support.
- UPS transfer capability for compatible essential loads.
- Pure sine wave output for sensitive electronics and household appliances.
Efficient Power Transformation
Deliver stable AC output for compatible household and mobile applications.
Support for Inductive Loads
Handle eligible startup-demand appliances using clean pure sine wave output.
Stable Power for Everyday Appliances
Support common compatible electrical loads with dependable inverter operation.
Cooling and Temperature Management
The cooling system shown in the Description supports stable operation under load.
Electrical Safety and GFCI Protection
Safety-focused outlet protection helps support compatible connected devices.
Built-In Bluetooth Monitoring
Track supported inverter status through compatible Renogy app monitoring.
Remote Control and UPS Powering
Manage supported operation and provide transfer support for eligible backup loads.
Performance Comparison
The source Description presents performance and usability benefits in its comparison section.
Power for Daily Productivity
Support compatible electronics and tools for daily off-grid use.
Energy for a Garden Shed
Provide compatible AC energy in a compact shed power arrangement.
Power on the Open Road
Bring clean inverter power into suitable RV and travel setups.
One-Stop Renogy System Compatibility
Combine compatible Renogy solar and battery components in a complete energy system.
Off-Grid Application Overview
The source Description closes with an additional inverter application visual.
| Renogy 2000W 12V Pure Sine Wave Inverter | |
| Model SKU | RIV1220PU-126-G1-US |
|---|---|
| General Data | |
| Model | RIV1220PU-126 |
| Output Waveform | Pure Sine Wave |
| AC Terminals | 2 x AC Sockets, 1 x AC High-Output Terminal Block |
| DC Terminals | M8 x 25mm |
| Operating Temperature | -4°F to 113°F / -20°C to 45°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Humidity | Max 95%, Non-Condensing |
| Cooling | Fans |
| Dimensions (L x W x H) | 18.3 x 9.9 x 3.8 in / 468.3 x 250.4 x 95.3mm |
| Weight | 10.9 lbs / 4.8kg |
| Electrical Data | |
| Continuous Output Power | 2,000W |
| Continuous Output Current | 16.6A AC |
| Total Harmonic Distortion (THD) | <3% |
| Power Factor | 1 |
| Surge Rating | 4,000W @ 2s |
| Output Voltage | 120V AC ± 3% |
| Output Frequency | 50Hz / 60Hz |
| Rated Battery Input Voltage | 12V DC |
| Battery Input Voltage Range | 11.0V to 15.5V DC |
| Rated AC Input Voltage Range | 90V to 140V AC |
| Transfer From AC Mains Supply to Battery | 20ms |
| Transfer From Battery Supply to AC Mains | 20ms |
| Maximum Continuous Battery Output Current | 210A |
| Inverter Efficiency | 92% Max |
| Full Load Efficiency | 87% |
| Power Consumption | <18W |
| Battery Overvoltage Shutdown | 16.0V ± 0.3V DC |
| Battery Low Voltage Alarm | 11.0V ± 0.3V DC |
| Battery Low Voltage Shutdown | 10.5V ± 0.3V DC |
| Wired Remote Data | |
| Front Plate Dimensions | 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8mm |
| Wired Length | 16.4ft / 5m |
| Certifications | |
| UL Certified to 458 and CSA 22.2 No. 107.1-01, FCC Part 15 Class B | Yes |
