Renogy
Renogy 200W 12V Solar Starter Kit Renogy 200W 12V Solar Starter Kit
SKU: RNG-KIT-STARTER200D-WND30-G4-US
$229.99
Out of Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
200W 12V Starter Solar Panel Kit
A compact Renogy starter solar charging kit built around solar panels and a Wanderer Li 30A PWM charge controller for small off-grid applications.
Durable and User-Friendly Design
The live description highlights a reinforced aluminum-alloy frame and pre-drilled mounting holes designed to support straightforward installation.

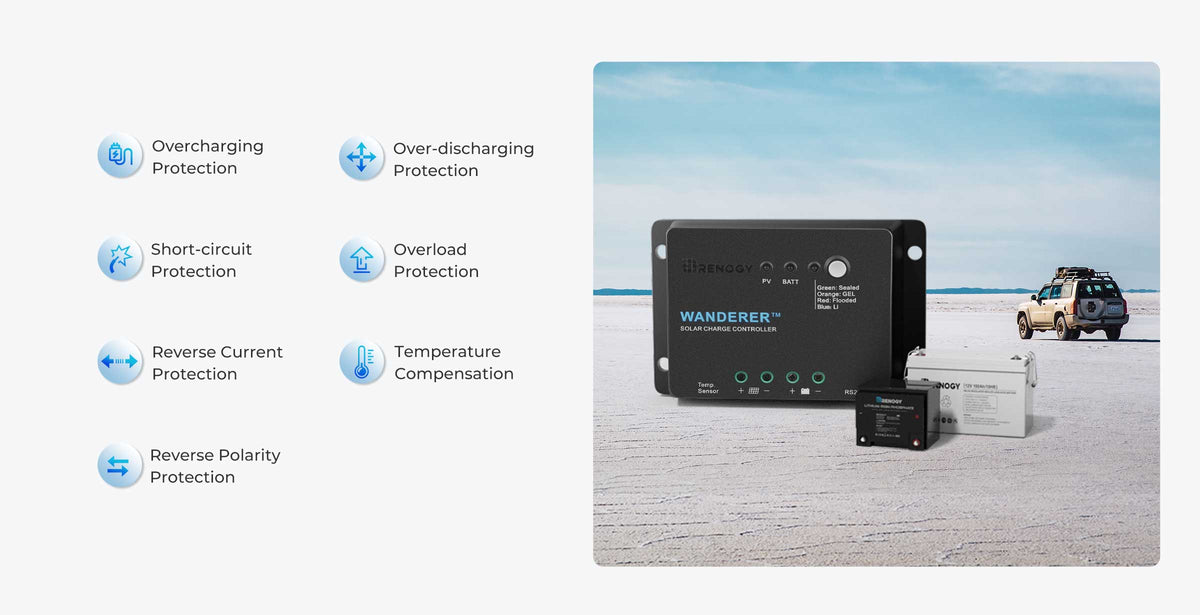

All-Round Protection for Your Batteries
The controller is presented with protections against overcharging, over-discharging, short circuit, overload, reverse polarity, reverse current and temperature-related conditions.
Impeccable Functional Versatility
Five load modes and the lightweight controller design help support compatible small off-grid energy applications.

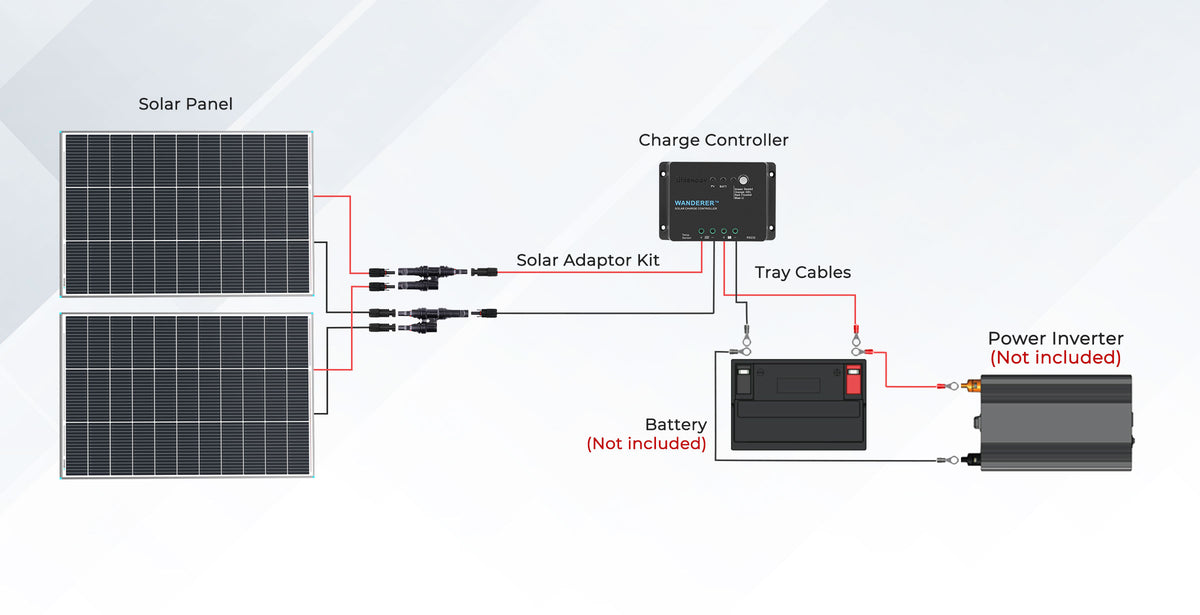

Simple System Connection Diagram
The live description provides a connection diagram illustrating the compatible starter system arrangement.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
Package Includes
2 100W Monocrystalline Solar Panel
Package Includes
1 Wanderer Li 30A PWM Charge Controller
Package Includes
1 Solar Y Branch Connectors (Pair)
Package Includes
2 Mounting Z Brackets (Set)
Package Includes
1 20ft 10AWG Solar Adaptor Kit (Pair)
Package Includes
1 8ft 10AWG Tray Cable (Pair)
| Renogy 16BB N-Type 100 Watt Solar Panel | |
| Selected variant SKU | RNG-KIT-STARTER200D-WND30-G4-US |
|---|---|
| Electrical Parameters | |
| Max Power at STC | 100W |
| Open Circuit Voltage VOC | 22.79V |
| Short Circuit Current ISC | 5.31A |
| Optimum Operating Voltage VMP | 19.97V |
| Optimum Operating Current IMP | 5.01A |
| Environmental Data | |
| Operating Temperature | -40°F to 185°F / -40℃ to +85℃ |
| Mechanical Specifications | |
| Dimensions | 34.1 x 22.8 x 1.2 in / 865 x 578 x 30 mm |
| Weight | 13.0 lb / 5.9kg |
| Wanderer Li 30A PWM Charge Controller | |
| Electrical Parameters | |
| Nominal Voltage | 12V |
| Rated Charging Current | 30A |
| Max PV Input Voltage | 25 VDC |
| Max PV Input Power | 400W at 12V |
| Rating Voltage | 600 / 1000V |
| Mechanical Specifications | |
| Max Gauge Size | Up to 8 AWG |
| Size | 10 AWG, 8 ft |
| Dimensions | 6.45 x 4.31 x 1.76 in |
| Weight | 0.65 lbs |
| Environmental Data | |
| Operating Temperature | -40°F to +185°F |
| Renogy 20ft 10AWG Solar Adaptor Kit SET | |
| Electrical Parameters | |
| Rating Voltage | 600 / 1000V |
| Mechanical Specifications | |
| Size | 10 AWG, 20 ft |
| Environmental Data | |
| Operating Temperature | -40°F to +185°F |
| Renogy Solar Y Branch Connectors | |
| Electrical Parameters | |
| Withstanding Voltage | 1000V DC TUV, 600V UL |
| Rated Current | 50A |
| Environmental Data | |
| Protection Degree | IP67, Mated |
| Operating Temperature | -40°F to +194°F |
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What do I need to complete my off-grid solar power system ?
A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cyclebattery.
What does off-grid and on-grid mean?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
Why is my solar panel under producing?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
How should I connect solar panels in my electrical circuit (series vs parallel)?
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
How many solar panels do I need?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
