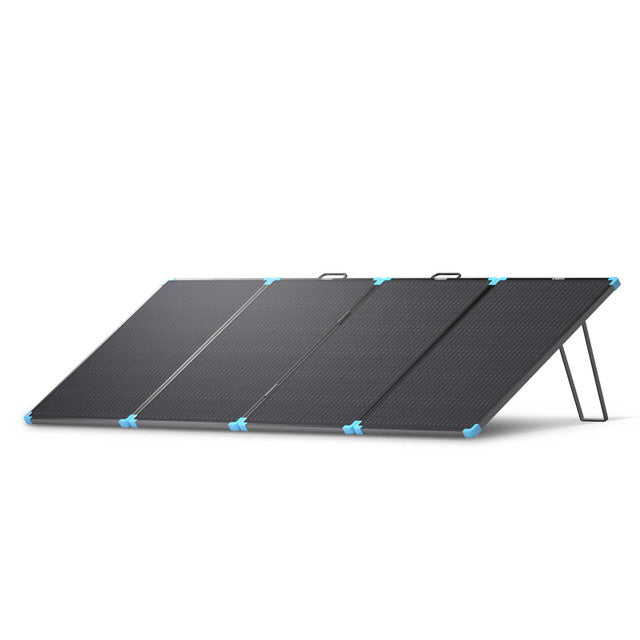

Renogy 220W 12V Lightweight Portable Solar Suitcase
Portable 220W Solar Suitcase
The Renogy 220W 12V Lightweight Portable Solar Suitcase is a foldable solar panel for portable and off-grid power systems. Its suitcase format folds to 18.11 x 27.17 x 3.15 inches and weighs 15.87 lb, making it easier to transport and position when solar generation is needed away from a fixed installation.
Electrical Output for System Planning
The panel is rated for a maximum power of 220W at STC, with an optimum operating voltage of 20.0V and optimum operating current of 11A. Its open-circuit voltage is 23.6V and short-circuit current is 12.1A. These values help you check whether the panel suits the voltage and current requirements of the charge controller or other connected equipment.
Plan the Off-Grid Connection
For an off-grid setup, connect the solar panel to a charge controller and use a battery to store generated power. Adapter kit cables can be used to wire the panel and charge controller, while tray cables connect the charge controller to a deep-cycle battery. Confirm the controller, wiring, and battery are suitable for the panel’s electrical ratings before installation.
Size, Operating Conditions, and Warranty
The suitcase measures 72.56 x 28.74 x 0.79 inches with the handle and 72.56 x 27.17 x 0.79 inches without it. It can operate in temperatures from -40°F to 185°F (-40°C to 85°C). A 3-year output warranty and material and workmanship warranty are listed for this product.
| 220W Lightweight Portable Solar Suitcase | |
| Model SKU | RSP220LSC-G2-US |
|---|---|
| Electrical Parameters | |
| Max Power at STC | 220W |
| Open Circuit Voltage | 23.6V |
| Short Circuit Current | 12.1A |
| Optimum Operating Voltage | 20.0V |
| Optimum Operating Current | 11A |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 15A |
| Cell Efficiency | 22.70% |
| Module Efficiency | 17.3% |
| Environmental Data | |
| Operating Temperature | -40°F~185°F / -40℃~85℃ |
| Mechanical Specifications | |
| Dimensions With Handle | 1843 x 730 x 20 mm / 72.56 x 28.74 x 0.79 in |
| Dimensions Without Handle | 1843 x 690 x 20 mm / 72.56 x 27.17 x 0.79 in |
| Folded Dimensions | 460 x 690 x 80 mm / 18.11 x 27.17 x 3.15 in |
| Weight | 7.20kg / 15.87lb |
| Warranty | |
| Warranty | 3-Year Output Warranty & Material and Workmanship Warranty |
