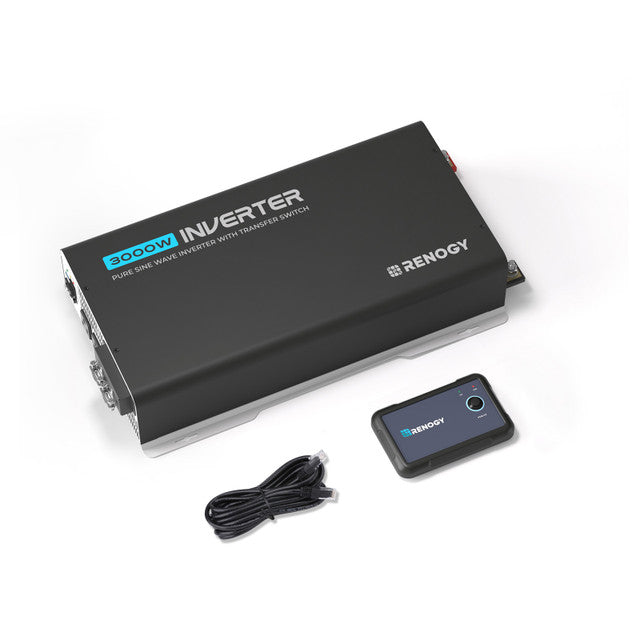

Renogy 3000W 12V Pure Sine Wave Inverter w/ UPS Transfer Switch and Built-In Bluetooth
3000W 12V Pure Sine Wave Inverter with UPS Transfer Switch
Convert compatible 12V battery power into clean AC output with built-in Bluetooth monitoring and automatic switching between on-grid and off-grid power sources.
Transform Power with Safety, Efficiency and Flexibility
Designed for mobile and backup power systems, the inverter supports automatic power transition, built-in Bluetooth monitoring, quiet operation and pure sine wave output for compatible electronics.
Support Inductive Loads with Proper System Planning
High-starting-current appliances such as refrigerators, washing machines and kettles require a compatible electrical system designed to manage their peak power demand.
Power Everyday Appliances with 3000W Output
Build a compatible system for common travel and backup essentials including laptops, televisions, refrigerators, microwaves, air conditioners, coffee makers and washing machines.
Cooling Temperature Management
Thermally controlled cooling fans move airflow through the inverter to help dissipate heat and support stable operating temperatures under load.
Electrical Safety Protection for Peace of Mind
Integrated protections help safeguard compatible systems against low voltage, high voltage, short circuits and ground-fault conditions.
Instant Device Monitoring
Built-in Bluetooth enables supported real-time monitoring through the compatible DC Home app, helping you track inverter operation from a mobile device.
Easy-to-Use Remote Control
Use the included compatible remote control interface to manage inverter operation from a convenient location inside your installation.
UPS Powering for Seamless Backup Solutions
When connected to shore power in a compatible setup, the inverter supports uninterrupted electricity during temporary outages or transitions between available power sources.
Performance Advantages
The live Renogy comparison highlights pure sine wave output, built-in Bluetooth, UPS functionality, remote control, GFCI protection, quiet operation and more than 92% inverter efficiency.
Power for the Open Road
Integrate the inverter into a compatible RV or van electrical system to convert stored battery energy into usable AC power while travelling.
Keep Productivity and Entertainment Flowing
Compatible backup power arrangements can help keep selected electronics running during off-grid stays or temporary power interruptions.
Power an Off-Grid Workspace
Use the inverter in a properly configured battery-powered setup to support selected tools and equipment around a garden shed or remote work area.
Integrate with a Complete Renogy System
Combine compatible solar panels, a charge controller, battery storage and the inverter to create an off-grid power arrangement for AC and DC energy needs.
| Renogy 3000W 12V Pure Sine Wave Inverter with Built-in Bluetooth | |
| Model SKU | RIV1230PU-126-G1-US |
|---|---|
| General Information | |
| AC Terminals | 3 x AC Sockets + Terminal Block |
| DC Terminals | M8-25 |
| Operating Temperature | -4°F to 113°F / -20°C to 45°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Humidity | Max 95%, Non-Condensing |
| Cooling | Thermally Controlled Fans |
| Enclosure Rating | IP20 |
| Dimensions (L x W x H) | 19.2 x 10.4 x 3.8 in / 488.8 x 263.4 x 95.3mm |
| Weight | 14.8 lbs / 6.7kg |
| Electrical Information | |
| Continuous Output Power | 3,000W |
| Continuous Output Current | 25A AC |
| Total Harmonic Distortion (THD) | ≤3% |
| Power Factor | 1.5A |
| Surge Rating | 6,000W @ 2s |
| Output Voltage | 120V AC ± 3% |
| Output Frequency | 50/60Hz |
| Rated Battery Input Voltage | 12VDC |
| Battery Input Voltage Range | 11 to 15.5VDC |
| Maximum Continuous Battery Output Current | 310A |
| Inverter Efficiency | >92% |
| Full Load Efficiency | >87% |
| Power Consumption | <18W |
| Battery Overvoltage Shutdown | 16.0VDC ± 0.3VDC |
| Battery Low Voltage Alarm | 11.0VDC ± 0.3VDC |
| Battery Low Voltage Shutdown | 10.5VDC ± 0.3VDC |
| Transfer Switch Rating | 30A |
| Wired Remote Information | |
| Front Plate Dimensions | 4.3 x 2.6 x 1.3 in / 108 x 67 x 32mm |
| Wired Length | 16.40ft |
| Certifications | |
| UL458, FCC Part 15 Class B | Yes |
| Warranty | |
| Material and Workmanship Warranty | 1 Year |
