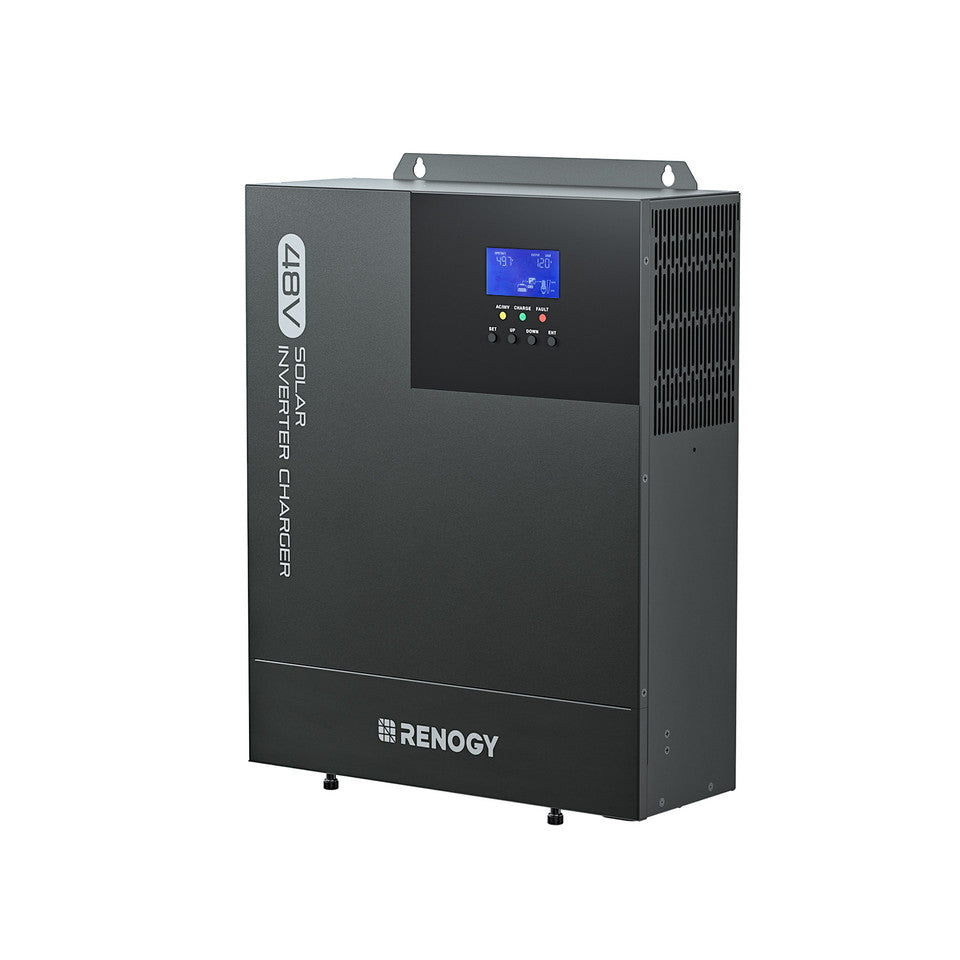

Renogy 3500W 48V Pure Sine Wave Solar Inverter Charger Renogy 3500W 48V Pure Sine Wave Solar Inverter Charger
SKU: RIV4835PCS-1SS-G2-US
- Peak Efficiency >95%
- Max AC Charging Current 40A
Solar Inverter Charging
48V 3500W Pure Sine Wave Solar Inverter Charger
Bring solar charging and pure sine wave AC conversion together for compatible 48V off-grid systems built for household, marine and remote-energy use.
Power Transformation with Safety and Adaptability
This unit combines a 3,500W pure sine wave inverter, solar charging, and AC battery charging for a compatible 48V system.
7000W Peak Boost for Inductive Loads
High surge capacity helps support suitable appliances with demanding startup power requirements.
Achieve Energy Independence for Your Home
Use compatible solar, battery and inverter components to support off-grid household electrical loads.
Embark on Your Boat Trip with Peace of Mind
Pure sine wave conversion supports compatible marine appliance use in a suitable installation.
Seamless Setup for Hassle-Free Installation
The inverter charger is designed to streamline connection planning within compatible off-grid systems.
Monitor System Data On Screen or via Bluetooth
View supported system operating information through the on-device display or compatible Bluetooth workflow.
Effortless Setup and Compatibility for Renogy Solutions
Check battery, solar-array, and monitoring-component requirements against the inverter charger’s input and communication limits before connecting a system.
EcoSleep Mode
Energy-saving operation is designed to reduce unnecessary inverter consumption when load demand is low.
Real-Time Monitoring and Remote Control
Review supported performance data and manage eligible inverter functions remotely.
Compare related products
Compare other options in our 48V inverters collection.
Compare a related option
Compare 48V inverter-charger architectures and PV input limits before sizing a battery and array. These are separate manufacturers and not interchangeable accessories.
| Renogy 48V 3500W Solar Inverter Charger | |
| Selected variant SKU | RIV4835PCS-1SS-G2-US |
|---|---|
| AC | |
| Max Rated Power | 3,500W |
| Power Factor | 1 |
| Input Voltage | 120VAC |
| Input Voltage Range | 85VAC to 140VAC |
| Input/Output Frequency | 50/60Hz Adjustable |
| Output Voltage | 120VAC (100VAC to 120VAC, 5VAC Increments) |
| Output Waveform | Pure Sine Wave |
| Peak Efficiency | >95% |
| Max AC Charging Current | 40A |
| Conversion (Bypass and Invert) | 10ms Typical |
| Solar Charger | |
| Max PV Input/Output Power | 4,400W |
| Max PV Charging Current | 80A |
| Max PV Input Voltage | 150V |
| Max PV Input Current | 50A |
| Algorithm | MPPT |
| MPPT Voltage Range | 60 to 120V |
| Battery Charger | |
| Battery Type | Lead Acid or Lithium |
| Max Battery Charging Current | 120A (Adjustable) |
| Battery Voltage Range | 40 to 60V DC |
| Nominal Battery Voltage | 48V |
| Environmental / Mechanical | |
| Operating Temperature | 5°F to 131°F / -15°C to 55°C |
| Storage Temperature | -4°F to 140°F / -20°C to 60°C |
| Humidity | 5% to 95% (3 Layer Paint Protection) |
| Cooling | Fans |
| Dimensions | 17.51 x 12.99 x 4.88 in / 444.8 x 330 x 124mm |
| Weight | 22.38 lbs / 10.15kg |
| Certifications | |
| UL STD. 458, 1741 | Yes |
| FCC Part 15 Class B | Yes |
| CSA STD. C22.2 No. 107.1 | Yes |
| Warranty | |
| Material and Workmanship Warranty | 2 Year |
| Surge Rating | 7000W (@1s) |
| Output Voltage (Configurable) | 120VAC (100VAC~120VAC, 5VAC Increments) |
| Output Frequency (Configurable) | 50Hz / 60Hz |
| Rated Battery Input Voltage | 48VDC |
| Battery Input Voltage Range | 40VDC~60VDC (44VDC Min. Startup) |
| Charge Current Range | 5A~120A, 5A increments |
| Nominal Input Voltage | 120VAC |
| Power Consumption | 50W |
