Renogy 400W 12V Solar Premium Kit
400W 12V Solar Panel Kit with Optional Smart Monitoring
Build a road-ready off-grid solar charging setup with the Renogy 400W 12V premium kit and its Rover 40A MPPT charge controller option.
Power All Your Essentials on the Road
Support everyday electrical needs on compatible RV and off-grid journeys with a solar charging system built for travel.
The Power You Deserve — Only from Renogy
Renogy presents performance and certification-focused design intended to support dependable solar power generation.

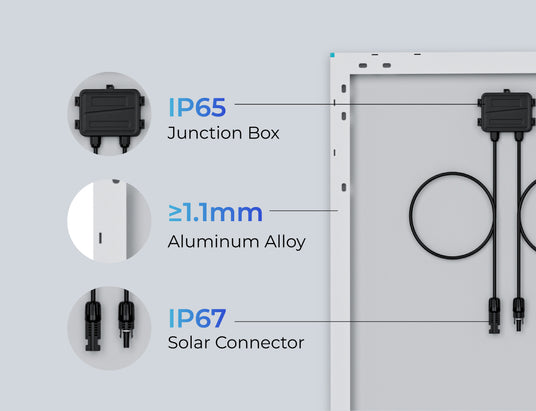

Durable and User-Friendly Design
The live description highlights a robust aluminum frame, 20 pre-drilled mounting holes and IP67 solar connectors for installation and outdoor use.

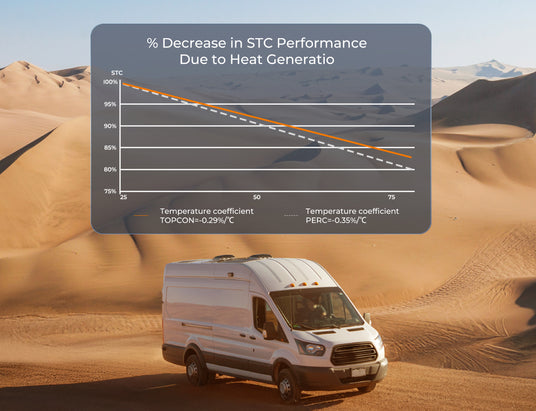

Optimized Performance in High Temperatures
N-type panel performance is designed to maintain stronger output in high-temperature conditions, with the efficiency comparison shown in the live description.

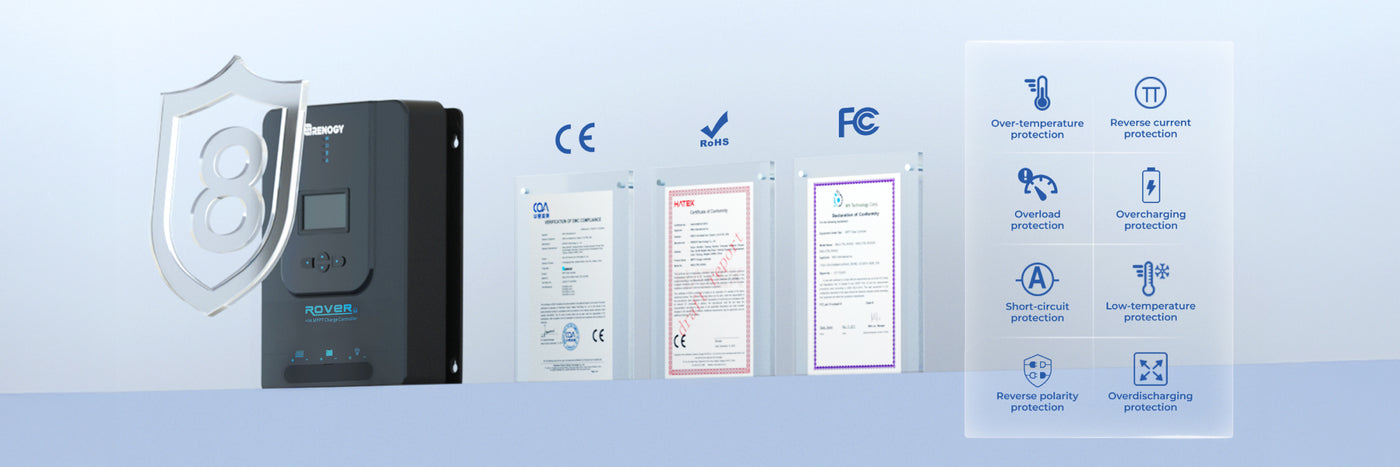

Charge Controller with 8 Built-In Protections
The Rover charge controller is shown with multiple integrated protections supporting compatible system charging safety.

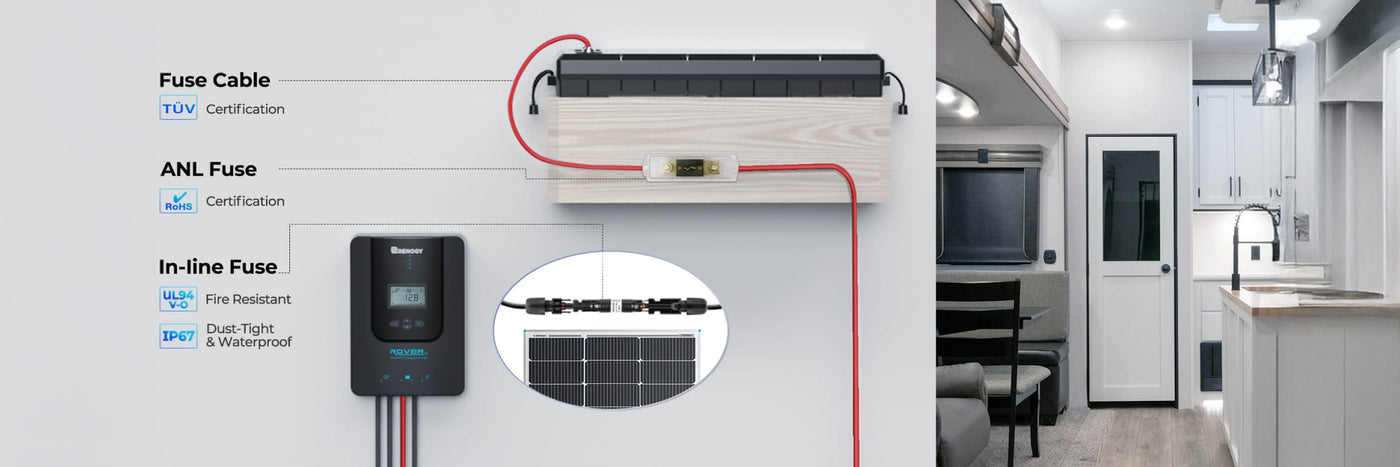

Renogy Fuse Solution
The live description illustrates protective fuse arrangements for compatible system connections.
Parallel Connection with 40A Fuse
The diagram illustrates a parallel connection using a 40A fuse within the compatible system arrangement.
Series Connection with 10A Fuse
The diagram illustrates a series connection using a 10A fuse within the compatible system arrangement.
Your Off-Grid Solution for Any Adventure
The live description presents compatible solar use across RV, boat, caravan and tiny-house applications.
| Renogy 400W 12V Solar Premium Kit | |
| Model SKU | RNG-KIT-PREMIUM400D-RVR40-G4-US |
|---|---|
| MODEL | |
| Available Monitoring Variant | A Renogy ONE Core smart-monitoring configuration is also offered |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| System Solar Power | 400 W |
| Nominal Battery System | 12 V |
| Included Solar Array | Four 16BB N-type 100 W solar panels |
| Included Charge Controller | One Rover Li 40 A MPPT solar charge controller |
| Included Tray Cable | One battery-to-charge-controller tray cable for 3/8 in lugs |
| Included Fuse Cable | One 2 ft ANL fuse cable with double ring terminals for 3/8 in lugs |
| Included Solar Fuse Holder | One waterproof in-line solar connector fuse holder with fuse |
| Included ANL Fuse | One 40 A ANL fuse set with fuse |
| Included Solar Cable | One 20 ft 10 AWG solar adapter kit |
| Listed System Voltage | 12V |
| Listed Solar Power | 400W |
| CONNECTIONS | |
| Included Branch Connectors | Three solar Y-branch connector MMF + FFM pairs |
| PHYSICAL | |
| Included Mounting Hardware | Four sets of solar-panel Z brackets |
| PACKAGE | |
| Included Components | 4 × 16BB N-Type 100W Solar Panel, 1 × Rover Li 40A MPPT Solar Charge Controller, 1 × BT-2 Bluetooth Module, 1 × Battery-to-Charge-Controller Tray Cable for 3/8 in Lugs, 1 × 2ft ANL Fuse Cable with Double Ring Terminals for 3/8 in Lugs, 4 × Solar Panel Mounting Z Brackets (Set of 4), 1 × Solar Connector Waterproof In-Line Fuse Holder with Fuse, 1 × 40A ANL Fuse Set with Fuse, 3 × Solar Y Branch Connectors MMF+FFM Pair, 1 × 20ft 10AWG Solar Adaptor Kit |
