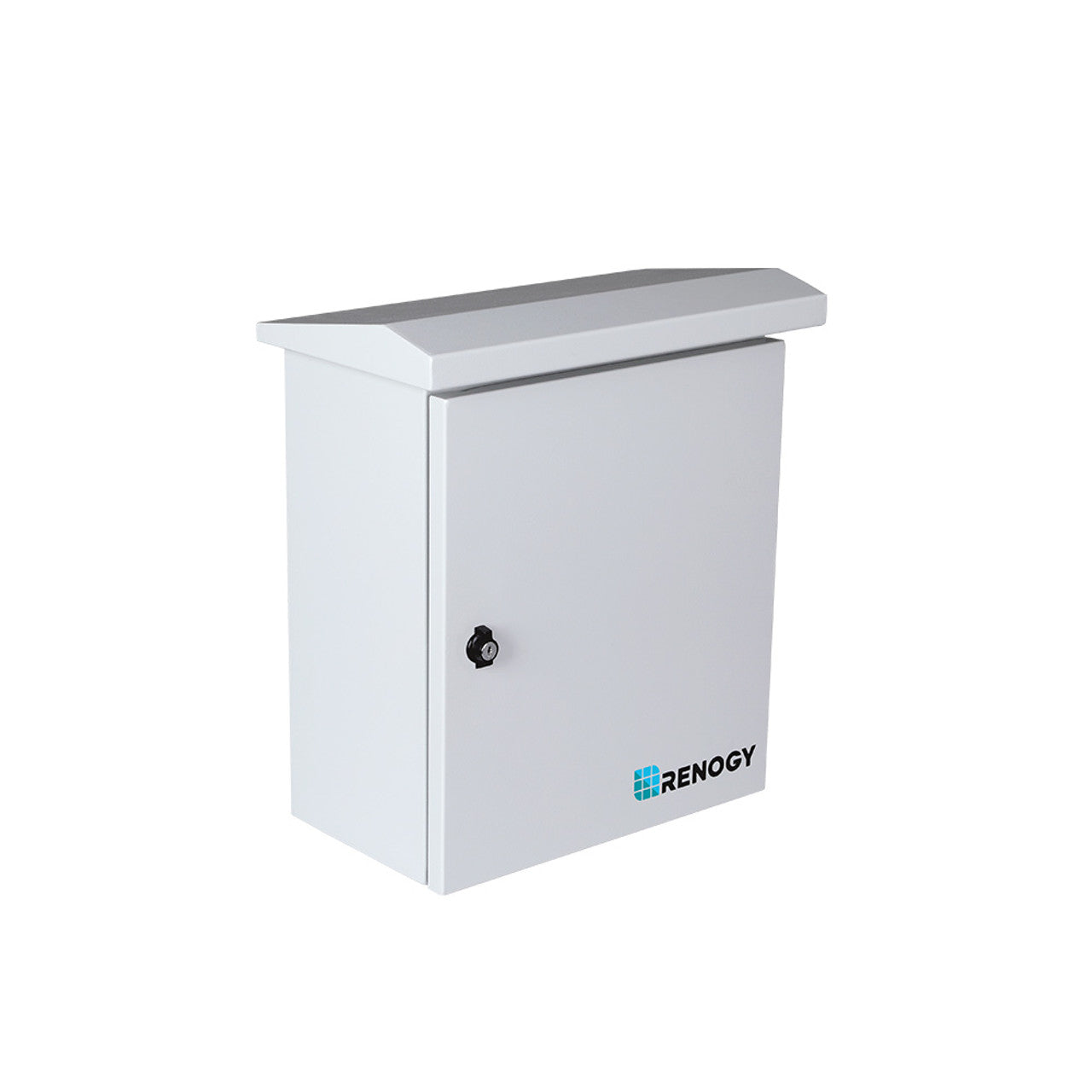

Renogy 5 Strings Solar Combiner Box

Brand Renogy Out of Stock
$142.99 Out of Stock
No sales tax collected at checkout where applicable.
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

5 Strings Solar Combiner Box

Combine inputs from up to five solar panel strings into a single output with a protected enclosure designed for compatible on-grid and off-grid solar systems.

5 To 1 Connection

Bring together up to five solar panel inputs in one enclosure, with space for suitable circuit protection on each input.

Renogy 5-string solar combiner box connection layout

Safety Protection

The enclosure accepts compatible circuit breakers and a surge protection device to support overload, short-circuit and lightning protection.

Renogy solar combiner box protection component layout

Ideal for Outdoor Systems

An IP55 enclosure with a rain cap, double-slope top and rubber-sealed door is designed for suitable outdoor installations.

Renogy combiner box outdoor enclosure protection

Product Display

The enclosure provides internal busbars, a DIN rail, grounding stud, mounting holes and a dedicated output-wire opening for a compatible system layout.

Renogy combiner box component overview

Easy to Use

A built-in DIN rail and rear mounting holes support secure placement of compatible protection components and the enclosure itself.

Renogy combiner box mounting and access design
RV application visualRV application alternate visual

RV

MARINE application visualMARINE application alternate visual

MARINE

CAMPING application visualCAMPING application alternate visual

CAMPING

OUTDOOR application visualOUTDOOR application alternate visual

OUTDOOR

CABIN application visualCABIN application alternate visual

CABIN

TRUCK application visualTRUCK application alternate visual

TRUCK

Renogy 5 Strings Solar Combiner Box
Package Includes
1x Renogy 5 Strings Solar Combiner Box
Includes the selected item based on the current package option.
160A 2P DC Molded Case Circuit Breaker
Model SKU RPVCOM5SMN7P-G1-US
Electrical Parameters
Maximum PV Input / Output Voltage 250VDC
Maximum Number of Input Circuits 5
Maximum Overcurrent Protection Device Rated Current 63A
Rated Short Circuit Current 6KA
Maximum Output Current 100A
Busbar Specifications
Number of Busbars 2, PV Negative Busbar and Grounding Busbar
Busbar Rated Current 200A
Busbar Material Copper
Busbar Terminal Compression Terminals 24, Lug Terminal 1
Busbar Screw M5 Compression Terminal, M8 Lug Terminal
Recommended Busbar Terminal Torque 26 inch·lbs / 2.9 N·m Compression Terminal, 106 inch·lbs / 12 N·m Lug Terminal
Busbar Conductor Size 14 AWG~6 AWG Compression Terminal, 12 AWG~4 AWG Lug Terminal
Enclosure Specifications
Enclosure Material Cold-Formed Steel
Enclosure Protection Rating IP55
Enclosure Security Keyed Cam Lock
Mounting Method Vertical Wall Mount
Installation Environment Outdoor / Indoor
DIN Rail Width 1.38 in / 35 mm
Knockout Diameter 1.99 in 2, 1.12 in 2
Mechanical Specifications
Dimensions 17.1 x 15.0 x 8.8 in / 435 x 379.7 x 222.5 mm
Weight 20.9 lb
Knockout Diameter 1.99 in 4, 1.12 in 4
Accessories
5 Pin Busbar Rated Current 100A
Mechanical Lugs 2
Key and Labels 2
Warranty
Material and Workmanship Warranty 1 Year
🛡️
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.
