Renogy
Renogy 500A Battery Monitor w/ Shunt Renogy 500A Battery Monitor w/ Shunt
SKU: RBM500-G3-US
$87.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Key features
- Compatible Battery Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
- Capacity Accuracy ±1%
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner

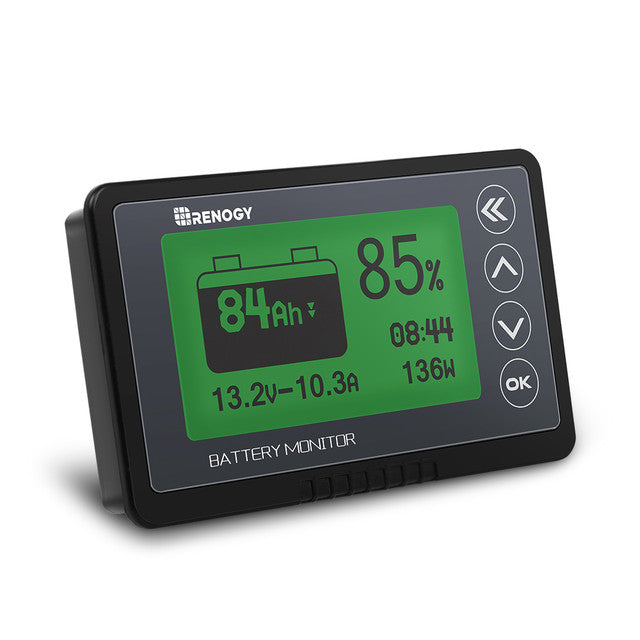

500A Battery Monitor With Shunt
Monitor compatible battery-bank performance with precise shunt-based readings for systems operating from 10V to 120V and up to 500A.
Low Power Consumption Design
The backlight shuts down automatically at the stated low-current threshold, while stored readings remain available after power-off.
Protect Your Battery
Monitor battery state of charge and configure supported alarm functions to help prevent over-discharge in a compatible battery bank.
Easy to Install
The supplied display, shunt holder and long shielded cable support convenient mounting and monitoring in compatible systems.
Package Includes
1 Battery Monitor LCD Interface
Package Includes
1 Shunt/Sampler Holder
Package Includes
1 500A Shunt/Sampler
Package Includes
1 20ft (6 m) Shielded Wire
Package Includes
1 3ft (1 m) 20AWG B+ Wire
| 500A Battery Monitor with Shunt | |
| Selected variant SKU | RBM500-G3-US |
|---|---|
| Operation Specifications | |
| Working Voltage | 10-120V |
| Standby Dissipation | 1-2mA |
| Working Dissipation | 10-15mA |
| Preset Capacity Value | 0.1-9999.0Ah |
| Backlight On Current (>50A) | 100mA |
| Compatible Battery | Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-Ion, Nickel-Metal Hybrid |
| Display | LCD with Green Backlight (Brightness Adjustable) |
| Capacity Accuracy | ±1% |
| Current Accuracy | ±1% |
| Voltage Accuracy | ±1% |
| Mechanical Specifications | |
| Shielded Wire Length | 20ft / 6m |
| B+ Wire Length | 3ft / 1m |
| Size (LCD Interface) | 3.9 x 2.4 x 0.7 in / 99 x 61 x 18mm |
| Weight (LCD Interface) | 2.6 oz / 75g |
| Temperature Range | 14°F to 140°F / -10°C to 60°C |
| Accessories | |
| LCD Interface | x1 |
| 500A Shunt / Sampler | x1 |
| Shielded Wire | x1 |
| B+ Wire | x1 |
| Shunt Holder | x1 |
| Certifications | |
| RoHS | Yes |
| Warranty | |
| Material and Workmanship Warranty | 2 Year |
| LCD Interface 1 x | 500A Shunt/Sampler 1 x |
| Shielded Wire 1 x | B+ Wire 1 x |
| Working Voltage: 10-120V | Standby Dissipation: 1-2mA |
| Working Dissipation: 10-15mA | Preset capacity value: 0.1-9999.0 AH |
| Backlight on current (>50A): 100mA | Compatible Battery: Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid |
| Display: LCD with Green Backlight (brightness is adjustable) | Capacity Accuracy: ±1% |
| Current Accuracy: ±1% | Voltage Accuracy: ±1% |
| Shielded Wire Length: 20 ft/6 m | Weight (LCD Interface): 2.6 oz / 75 g |
| Size (LCD Interface): 3.9 x 2.4 x 0.7 in / 99 x 61 x 18 mm | B+ Wire Length: 3 ft/1 m |
| LCD Interface: x 1 | 500A Shunt / Sampler: x 1 |
| Shielded Wire: x 1 | B+ Wire: x 1 |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Will the Renogy 500A shunt monitor work with lithium and lead-acid battery banks?
Yes. Renogy lists lead-acid AGM and GEL, lithium iron phosphate, lithium-ion, and nickel-metal hybrid batteries across a 10V to 120V operating range. Compatibility still depends on placing every charging and load path through the shunt and keeping bank current within the monitor's 500A limit.
Where must the shunt be installed so the RBM500 sees both charging and discharging current?
Install the shunt in the battery bank's negative path: battery negative connects to the B- side, while charger, inverter, and other load negatives connect on the P- side. Any negative connection that bypasses the shunt will be invisible to the monitor and make its state-of-charge calculation inaccurate.
Does the Renogy battery monitor discover my bank's amp-hour capacity automatically?
No. The monitor measures current through its shunt, but the user must enter the bank capacity and synchronize the displayed state of charge when the battery is known to be full. Incorrect capacity or an incomplete calibration will produce a misleading remaining-capacity reading.
Which readings can I see on the Renogy 500A battery monitor while camping off-grid?
The display reports battery voltage, current, consumed power, remaining capacity, and battery degradation information. Its programmable high- and low-capacity alarms can provide a visible warning, but the monitor is not a substitute for the battery's BMS, fuse, or low-voltage disconnect.
What arrives with the RBM500, and do I need another heavy battery cable for the shunt?
Renogy includes the LCD display, 500A shunt, transparent shunt holder, 20 ft shielded monitor cable, and B+ wire. The high-current cable linking the shunt to the battery is not in that package list, so it must be supplied with the correct gauge, lug size, insulation, and protection for the bank.
Which equipment is verified to work with the Renogy RBM500-G3-US?
The manufacturer explicitly lists Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid. Other models are not established as compatible by this evidence.
