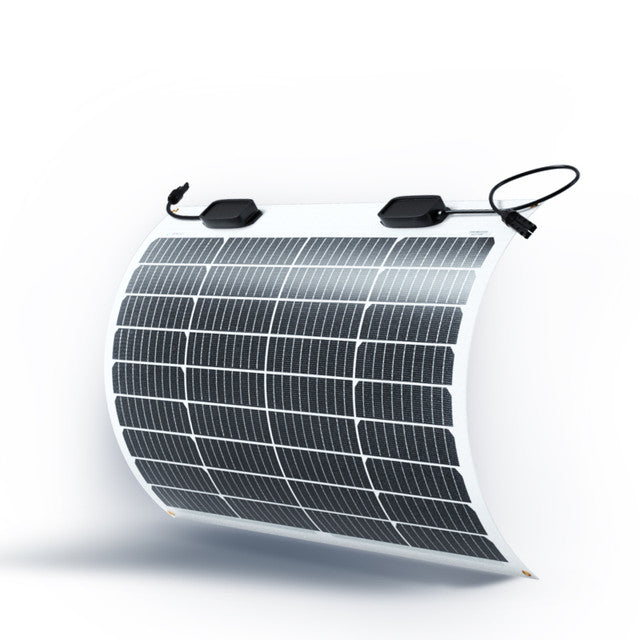

Renogy 50W 12V Flexible Monocrystalline Solar Panel 1 / 8
Renogy

Renogy 50W 12V Flexible Monocrystalline Solar Panel Renogy 50W 12V Flexible Monocrystalline Solar Panel

SKU: RNG-50DB-H-G3-US

Brand Renogy In Stock
$77.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Key features
  • Module Efficiency 15.3%
  • Weight 3.1 lbs/1.4 kg
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy 50W 12V Flexible Monocrystalline Solar Panel

In Stock
Renogy 50W 12V Flexible Monocrystalline Solar Panel
Quantity$77.99 each
1

Flexible 50W Solar Power for Curved Surfaces

Lightweight, slim and able to bend up to 248 degrees, the Renogy 50W Flexible Monocrystalline Solar Panel is built for mobile energy setups where rigid mounting is not the right fit.

Renogy 50W flexible solar panel durability weather resistance and lightweight design

Lightweight and Weather-Ready

At only 2.98 lb, this flexible panel supports outdoor and marine use with an IP68-rated waterproof junction box and IP67-rated solar connectors.

Renogy 50W flexible panel half-cell and nine busbar construction comparison

Better Structure for Better Performance

A 9-busbar layout improves shade tolerance and low-light performance, while half-cell technology reduces internal resistance to support efficient generation.

Renogy flexible solar panel PERC cell efficiency illustration

Advanced PERC Cell Technology

PERC technology improves light capture through a passivation layer, helping the panel reach a stated conversion efficiency of 22%.

Renogy 50W flexible panel Grade A plus solar cell and compact-space graphic

Grade A+ Solar Cells for Compact Roof Areas

EL-tested Grade A+ cells are designed for steady, dependable power output in small or irregular installation spaces.

Renogy 50W flexible solar panel product feature detail
Renogy flexible solar panel application examples for camper van off-road trailer and marine use

Compare panel options

Our solar panel selection guide explains panel selection for different setups. The flexible versus rigid panel guide compares the relevant panel format; check this product’s electrical ratings before pairing it with other equipment.

Compare this Renogy model

24.3V Voc, 20.3V Vmp and 2.75A Isc per panel. Check the selected variant and charge-controller input limits.

Compare Renogy 100W compact panel by electrical ratings, dimensions, features and selected pack quantity before ordering.

Renogy 50W 12V Flexible Monocrystalline Solar Panel
Package Includes
1x Renogy 50W 12V Flexible Monocrystalline Solar Panel
Includes the selected item based on the current package option.
Renogy 50W 12V Flexible Monocrystalline Solar Panel
Selected variant SKU RNG-50DB-H-G3-US
Specifications
Maximum Power at STC 50W ± 3%
Optimum Operating Voltage (Vmp) 20.3V
Optimum Operating Current (Imp) 2.47A
Open-Circuit Voltage (Voc) 24.3V
Short-Circuit Current (Isc) 2.75A
Module Efficiency 15.3%
Maximum System Voltage 600VDC (UL)
Maximum Series Fuse Rating 15A
Dimensions 28.0 x 18.1 x 0.2 in / 712 x 460 x 4mm
Weight 3.1 lbs / 1.4kg
Solar Connectors IP Rating IP67
Junction Box IP Rating IP68
Temperature Range -40°F to 194°F / -40°C to 45°C
Maximum AWG Size Range 10 AWG
Short Circuit Voltage (Isc) 2.75 A
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Specification Sheet
Product documentation and manufacturer terms.
View PDF
📄
Warranty Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

What charging output should I realistically expect from the 50W 12V Flexible solar panel during a full-time off-grid build? Renogy publishes these model-specific details: Optimum Operating Voltage (Vmp): 20.3 V; Optimum Operating Current (Imp): 2.47 A; Open Circuit Voltage (Voc): 24.3 V; Short Circuit Voltage (Isc): 2.75 A. Nameplate output is measured under controlled conditions; sun angle, shade, cell temperature, cable loss, controller efficiency, and battery acceptance determine real charging power. Which controller input limits must be checked before connecting the 50W 12V Flexible solar panel? Renogy publishes these model-specific details: Optimum Operating Voltage (Vmp): 20.3 V; Optimum Operating Current (Imp): 2.47 A; Open Circuit Voltage (Voc): 24.3 V; Short Circuit Voltage (Isc): 2.75 A. Compare open-circuit voltage, short-circuit current, operating voltage, connector type, and array configuration with every input limit. A matching plug alone is not proof of electrical compatibility. How much can the 50W 12V Flexible solar panel flex without creating damaging stress or hot spots? Renogy publishes these model-specific details: Renogy 50W 12V Flexible Monocrystalline Solar Panel; 50W Flexible Solar Panel; Hardly noticeable, the Renogy 50W Lightweight Panel laid flat is only a tenth of an inch tall making it ideal for a stealthy solar setup.; Reviews: 50 Watt 12 Volt Flexible Monocrystalline Solar Panel. Follow the model's support, bend, fastening, ventilation, and waterproof-connection guidance; a weather-rated junction box does not make every roof penetration or adapter waterproof. Can I combine multiple 50W 12V Flexible solar panel modules without exceeding my solar input? Renogy publishes these model-specific details: Optimum Operating Voltage (Vmp): 20.3 V; Optimum Operating Current (Imp): 2.47 A; Open Circuit Voltage (Voc): 24.3 V; Short Circuit Voltage (Isc): 2.75 A. Series wiring adds voltage and parallel wiring adds current. Recalculate the complete array at expected cold conditions and remain below controller, cable, connector, and protection limits. What installation hardware and wiring should I plan around the 50W 12V Flexible solar panel? Renogy publishes these model-specific details: Renogy 50W 12V Flexible Monocrystalline Solar Panel; 50W Flexible Solar Panel; Hardly noticeable, the Renogy 50W Lightweight Panel laid flat is only a tenth of an inch tall making it ideal for a stealthy solar setup.; Reviews: 50 Watt 12 Volt Flexible Monocrystalline Solar Panel. Buy only from the explicit package list: mounting hardware, extensions, roof glands, fuses, controllers, and power-station adapters should be treated as separate unless Renogy states they are included. How do I check whether the Renogy RNG-50DB-H-G3-US suits my power station or solar charge controller? Check the receiving device's permitted solar voltage range and input limits against this panel's listed open-circuit voltage (24.3 V) and voltage at maximum power (20.3 V). Confirm the connector, polarity, and complete array limits before connecting it. These ratings alone do not verify compatibility with a particular device.
