Renogy 5FT 0 AWG Battery Inverter Cables for 3/8 In Lugs Renogy 5FT 0 AWG Battery Inverter Cables for 3/8 In Lugs
SKU: RNG-INVTCB-5FT-0000-G1-US
$149.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner

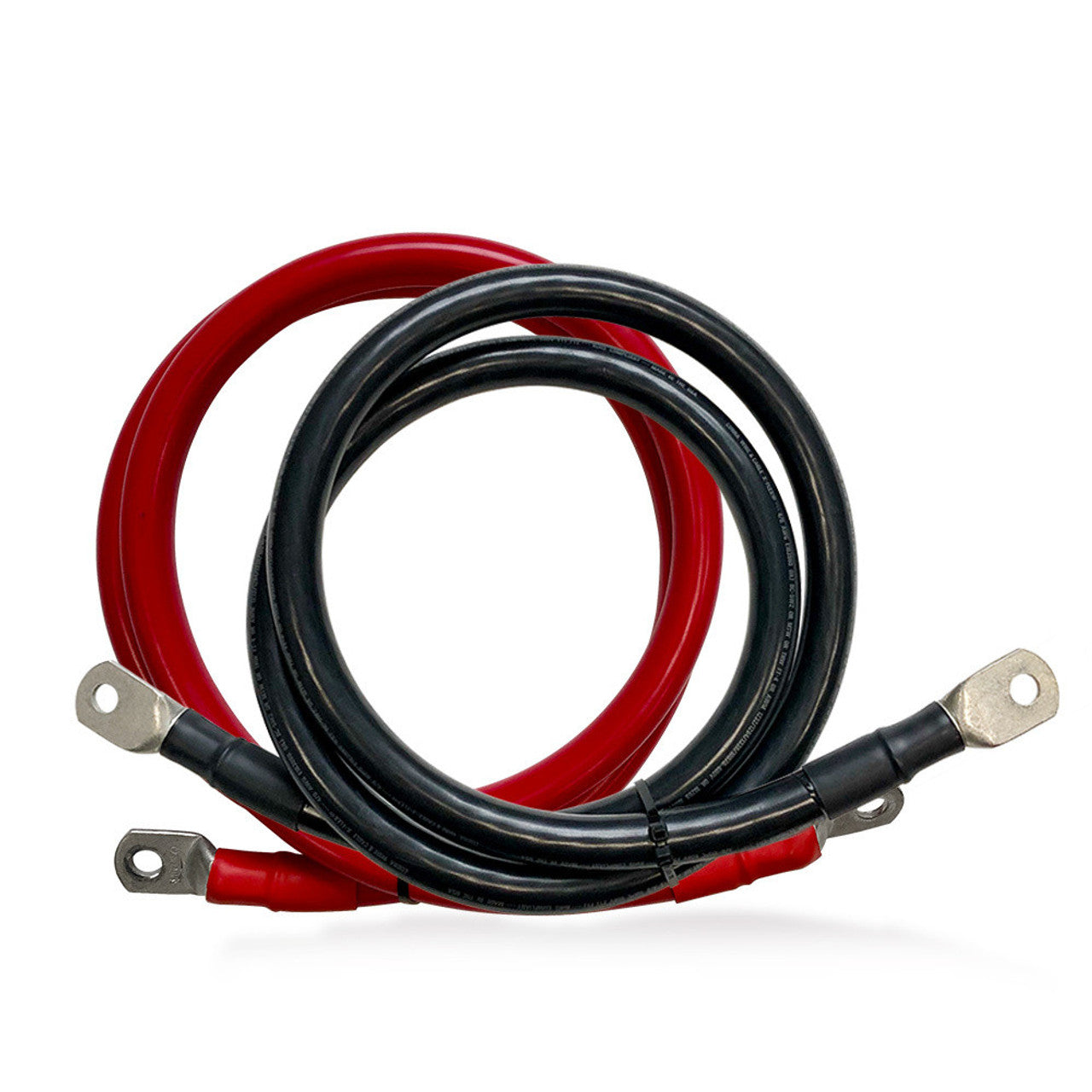

Battery Inverter Cables for 3/8 in Lugs — 5Ft 4/0AWG
Connect a compatible power inverter to a battery bank with Renogy inverter cables designed for a secure power connection. The color-coded cable pair uses UL-certified Cobra X-Flex construction described by Renogy as resistant to moisture, abrasion, acid, diesel fuel and oil, with heat shrink at both ends and stainless steel ring terminals for 3/8-inch lugs.
Package Includes
1x Renogy 5FT 0 AWG Battery Inverter Cables for 3/8 In Lugs
Includes the selected item based on the current package option.
| Renogy 5ft 4/0 AWG Inverter Cables (Pair) | |
| Selected variant SKU | RNG-INVTCB-5FT-0000-G1-US |
|---|---|
| Specifications | |
| Length | 5ft |
| AWG | 4/0 |
| Operating Voltage | 600/1000V |
| Stranding | Stranded Copper |
| Maximum Operating Temperature | 220°F Dry, 165°F Wet |
| Ring Terminal | 3/8" Metal Lugs |
| Maximum Operating Amperage | 230A |
| Length: 8Ft | Size: 1AWG |
| Accessories | 1-year material and workmanship warranty |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What must match the 3/8-inch rings on Renogy's 5-foot 0 AWG cable?
The battery, fuse holder, busbar, shunt, disconnect, and inverter studs must accept 3/8-inch lugs and clamp them correctly. Confirm the equipment's prescribed torque and stacking order before building the circuit.
How should I calculate voltage drop for a 5-foot 0 AWG inverter connection?
Use the complete current path rather than only the advertised one-way cable length. Battery voltage, inverter current, surge duration, conductor temperature, connections, and allowable drop all affect whether 0 AWG is sufficient.
What protection still has to be added around the preterminated 0 AWG lead?
A correctly sized source-side fuse or breaker, safe disconnect, insulated covers, and secure supports are normally separate system components unless expressly listed. Match every component to both the conductor and connected equipment.
Can the 0 AWG Renogy cable guarantee that a motor load starts without inverter shutdown?
No. Larger cable can reduce conductor loss, but startup success also depends on inverter surge capacity, battery voltage sag, BMS current limits, connection quality, and the appliance's actual inrush demand.
Where should a 0 AWG battery cable not be routed in an RV or boat?
Keep it away from exhaust heat, sharp edges, moving mechanisms, unprotected wet terminals, and areas where cargo can crush it. Use appropriate grommets, loom, clamps, and terminal boots for the installation environment.
