Renogy BT-1 Bluetooth Module Renogy BT-1 Bluetooth Module
SKU: RCM-BT1-G2-US
$32.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner

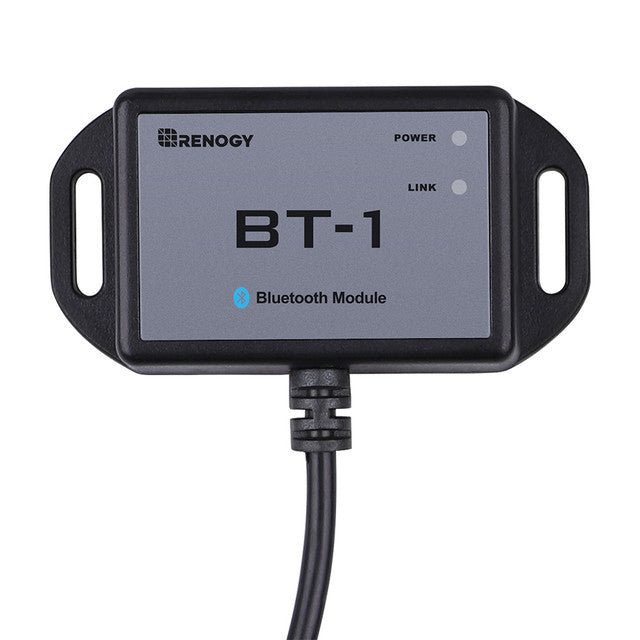

BT-1 Bluetooth Module (New Version)
Connect a compatible Renogy solar charge controller to the DC Home App through the RJ12 port for nearby wireless monitoring and setting changes. The updated BT-1 supports signal range up to 82 feet and includes an additional LED indicator for synced devices.
Package Includes
1 BT-1 Bluetooth Module (New Version)
| Renogy BT-1 Bluetooth Module | |
| Selected variant SKU | RCM-BT1-G2-US |
|---|---|
| Specifications | |
| Communication Protocol | RS232 |
| Port Type | RJ12 |
| Input Voltage | 5V |
| Protection Grade | IP54 |
| Standby Power Consumption | 0.04W |
| Operating Power Consumption | 0.05W |
| Communication Range | ≤82ft |
| Serial Baud Rate | Fixed Baud Rate 9600bps |
| Cable Length | 5.00m / 16.4ft |
| Dimensions | 2.65 x 1.38 x 0.55 in / 67.3 x 35 x 14mm |
| Installation Dimensions | 67.3 x φ3.5mm / 2.66 x φ0.14 in |
| Operation Temperature | -4°F to 185°F / -20°C to 85°C |
| Weight | 130g / 4.58 oz |
| Compatible Models | |
| Compatible Models | All Renogy Controllers with RJ12 port: RNG-CTRL-ADV30, RNG-CTRL-WND10, RNG-CTRL-WND30LI, RNG-CTRL-WNDPG10, RNG-CTRL-RVR20, RNG-CTRL-RVR30, RNG-CTRL-RVR40, RNG-CTRL-RVR60, RNG-CTRL-RVR100 |
| Warranty | |
| Material and Workmanship Warranty | 1 Year |
| Communication Protocol: RS232 | Port Type: RJ12 |
| Input Voltage: 5V | Protection Grade: IP54 |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤82ft | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Installation Dimensions: 67.3 φ3.5mm (2.66 φ 0.14in) | Operation Temperature: -20℃~85℃（-4°F to 185°F） |
| Accessories | 1-year material and workmanship warranty |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
How can I tell whether my Renogy controller needs the BT-1 instead of the BT-2?
Check both the communication protocol and socket in the controller documentation. BT-1 is for supported Renogy devices using RS232 through an RJ12 port; equipment labeled RS485 with an RJ45 port requires BT-2. Similar-looking sockets are not enough to establish compatibility.
What can the BT-1 change or display through the Renogy DC Home app?
On a supported charge controller, the BT-1 sends operating data to the DC Home app and allows supported settings to be adjusted from a phone or tablet. The available readings and editable parameters come from the connected controller, so they vary by controller model and firmware.
Can I check a remote cabin's BT-1 data over the internet from home?
No. BT-1 is a local Bluetooth connection, not a Wi-Fi or cellular gateway. Renogy publishes a maximum signal range of up to 82 ft, and walls, metal compartments, vehicle construction, and radio interference can reduce the usable distance.
Does the Renogy BT-1 need a separate power cable or battery connection?
No separate supply is listed. The module receives 5V power through the compatible controller's RJ12 communication port. Route its attached cable without sharp bends or strain, and keep the IP54 module away from immersion and direct weather exposure.
What is included with the new-version BT-1 Bluetooth listing?
Renogy's package list contains one BT-1 Bluetooth module with its attached 16.4 ft cable. A solar charge controller, phone, and any wider internet gateway are not included; the receiving controller must already provide the correct RS232/RJ12 interface.
