Renogy

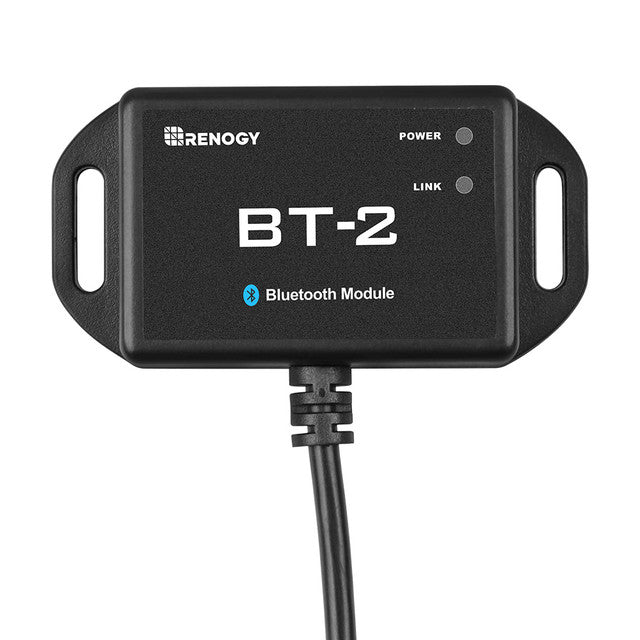

Renogy BT-2 Bluetooth Module G2 Renogy BT-2 Bluetooth Module G2
SKU: RCM-BT2-G2-US
$35.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
BT-2 Bluetooth Module — Selected Option: No Renogy ONE
Connect compatible Renogy RS485 devices through the BT-2 module for supported system monitoring and parameter adjustments in the DC Home App.
Precise Control Over Your Devices
Wirelessly monitor and adjust compatible Renogy RS485 devices, including supported charging, energy storage and inverter equipment.
Real-Time Insight
View supported real-time and historical data through Bluetooth connectivity and the Renogy DC Home App.
Renogy Power Plus Community
Access Renogy community and learning resources presented in the app for additional off-grid system guidance.
Package Includes
1 Renogy BT-2 Bluetooth module
| Renogy BT-2 Bluetooth Module | |
| Selected variant SKU | RCM-BT2-G2-US |
|---|---|
| Compatibility | |
| Compatible Charge Controllers | RCC60RVRE, RNG-CTRL-RVR20, RNG-CTRL-RVR30, RNG-CTRL-RVR40, RNG-CTRL-RVR60, RNG-CTRL-RVR100 |
| Compatible Inverters | R-INVT-PGH1-10111S, RIV4835CSH1S |
| Compatible Battery Chargers | RBC30D1S, RBC50D1S, RBC20D1U, RBC40D1U |
| Compatible App | Renogy DC Home App (App Store & Google Play) |
| Operation Specifications | |
| Communication Protocol | RS485 |
| Port Type | RJ45 |
| Input Voltage | 5V or 12V |
| Protection Grade | IP54 |
| Standby Power Consumption | 0.04W |
| Operating Power Consumption | 0.05W |
| Serial Baud Rate | Fixed Baud Rate 9600bps |
| Mechanical Specifications | |
| Communication Range | ≤82ft / 25m |
| Cable Length | 16.4ft / 5.00m |
| Dimensions | 2.65 x 1.38 x 0.55 in / 67.3 x 35 x 14mm |
| Weight | 4.58 oz / 130g |
| Operation Temperature | -4°F to 185°F / -20°C to 85°C |
| Certifications | |
| FCC Class B Part 15 Compliant | Yes |
| Warranty | |
| Material and Workmanship Warranty | 1 Year |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Is the Renogy BT-2 G2 compatible with every product that has an Ethernet-shaped socket?
No. The connected Renogy device must specifically support RS485 communication through its RJ45 port and list BT-2 compatibility. RJ45 describes the connector shape, not the protocol or pinout, so never plug it into ordinary Ethernet equipment or assume a matching socket is safe.
Why would I order a BT-2 rather than a BT-1 for Renogy monitoring?
Choose BT-2 for supported Renogy equipment with the RS485 protocol and RJ45 port; the older-style module is for supported charge controllers using RS232 and RJ12. Their communication hardware is not interchangeable, so verify the exact device model and protocol before ordering.
Can the BT-2 G2 show historical data as well as live system readings?
Yes. Through Renogy's DC Home app, the BT-2 can expose real-time and historical information and supported configuration or diagnostic controls from the connected device. The precise data fields and controls depend on that device's model and firmware.
Will the BT-2 let me monitor an off-grid installation when I am away from the property?
Not by itself. It creates a local Bluetooth connection with a published range up to 82 ft; walls, metal enclosures, and interference can shorten that distance. Remote internet access requires a separate supported gateway and network arrangement.
Does this BT-2 package include a communication hub for several Renogy devices?
No. Renogy lists one BT-2 module in the package. A Communication Hub is a separate product used when multiple compatible RS485/RJ45 devices need to share one BT-2; the connected equipment and phone are also separate.
