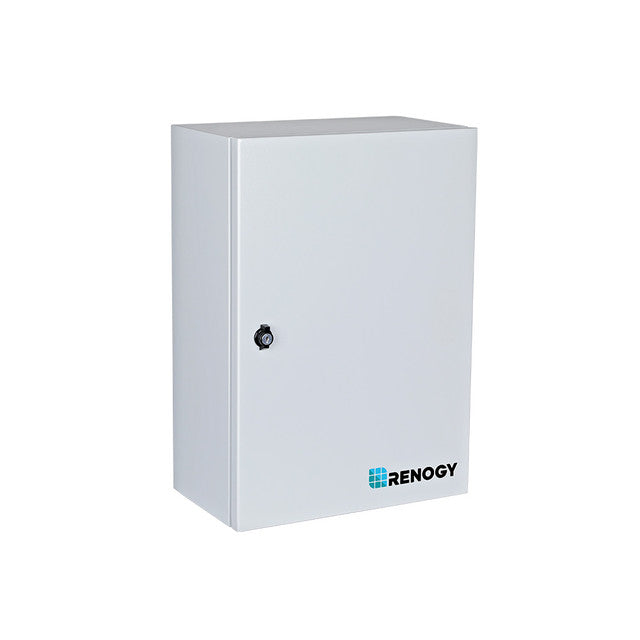

Renogy DC Circuit Breaker Box
DC Circuit Breaker Box
Centralize compatible protection-device installation inside an indoor-rated enclosure designed for suitable residential and commercial solar systems.
Centralized Management
Separate compatible solar-system circuits to support organized protection, maintenance and inspection access.
Safety Protection
Install suitable surge-protection and ground-fault protection devices within the enclosure for a compatible solar protection layout.
Reliable Quality
Cold-formed steel construction and built-in copper busbars support durable, stable operation in compatible installations.
Product Display
The source diagram identifies the enclosure layout and reserved installation positions for compatible conduits or strain reliefs.
Easy to Use
A standard DIN rail and reserved mounting holes support straightforward installation and a stable enclosure setup.
| 160A 2P DC Molded Case Circuit Breaker | |
| Model SKU | RDCCBBMN5PMC2P-G1-US |
|---|---|
| Electrical Specifications | |
| Maximum PV Input/Output Voltage | 250VDC |
| Maximum PV Input/Output Current | 63A / Circuit |
| Maximum Battery Input/Output Voltage | 1000VDC |
| Maximum Battery Input/Output Current | 250A |
| Number of Poles | 5 (PV Positive Busbar, PV Negative Busbar, Battery Positive Busbar, Battery Negative Busbar, Grounding Busbar) |
| Busbar Material | Copper |
| Busbar Rated Current | 200A |
| PV Busbar Terminal | Compression Terminals (8), Lug Terminal (1) |
| Battery Busbar Terminal | Compression Terminals (4), Lug Terminal (2) |
| Grounding Busbar Terminal | Compression Terminals (20), Lug Terminal (1) |
| Busbar Screw | M5 (Compression Terminal), M8 (Lug Terminal) |
| Recommended Busbar Terminal Torque | 26 in-lb / 2.9 N·m (Compression Terminal); 106 in-lb / 12 N·m (Lug Terminal) |
| PV/Grounding Busbar Conductor Size | 14 AWG to 6 AWG (Compression Terminal); 12 AWG to 4 AWG (Lug Terminal) |
| Battery Busbar Conductor Size | 14 AWG to 6 AWG (Compression Terminal); 12 AWG to 2/0 AWG (Lug Terminal) |
| Mechanical Specifications | |
| Dimensions | 19.7 x 13.8 x 7.9 in / 500 x 350 x 200mm |
| Weight | 22.7 lbs |
| Knockout Diameter | 1.99 in (4), 1.12 in (4) |
| Conductor Size | 4 AWG to 4/0 AWG |
| Enclosure Material | Cold-Formed Steel |
| Enclosure Protection Rating | IP54 |
| Enclosure Security | Keyed Cam Lock |
| Mounting Method | Vertical Wall Mount |
| Installation Environment | Indoor |
| Accessories | |
| Key | 1 |
| Labels | 3 |
| Warranty | |
| Material and Workmanship Warranty | 1 Year |
