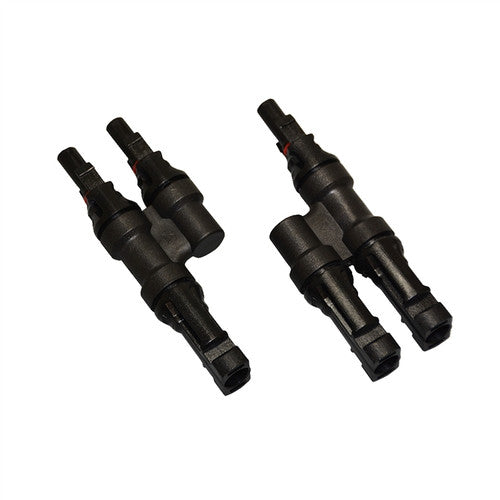

Renogy MC4 Solar Branch Connectors 2 to 1 Renogy MC4 Solar Branch Connectors 2 to 1

How do the Renogy 2-to-1 branch connectors change a two-panel array? The 2-to-1 connectors are intended to place two compatible panel branches in parallel, which keeps array voltage at the branch level while adding current. Confirm identical or electrically compatible modules, controller input limits, conductor ampacity, and required string fusing first. What male and female pieces arrive for wiring a two-module RV roof with the 2-to-1 branch set? Renogy describes these branch products as a paired positive-and-negative combining set. Check the package-specific connector layout in the listing and plan any extension cables, string fuses, combiner, disconnect, or mounting support separately. Could the 2-to-1 connector overload a controller serving a two-module RV roof? Parallel branches increase available current, and the combined array must stay within the controller, wiring, connector, and protection limits under the coldest and brightest expected conditions. Connector capacity is not permission to exceed the controller input rating. How should the mated branches be weather-protected across a two-module RV roof? The official listing describes weather-resistant construction and publishes protection for mated connections. Keep every interface fully locked, supported off standing water, free of mixed incompatible connector brands, and protected from cable strain. Can I assemble or separate the two-way branches while the panels are under load? Treat all PV conductors as energized in sunlight. Use the system's approved isolation sequence and never unplug a loaded DC connector unless the equipment expressly permits it; arcing can damage contacts and create a fire hazard.
