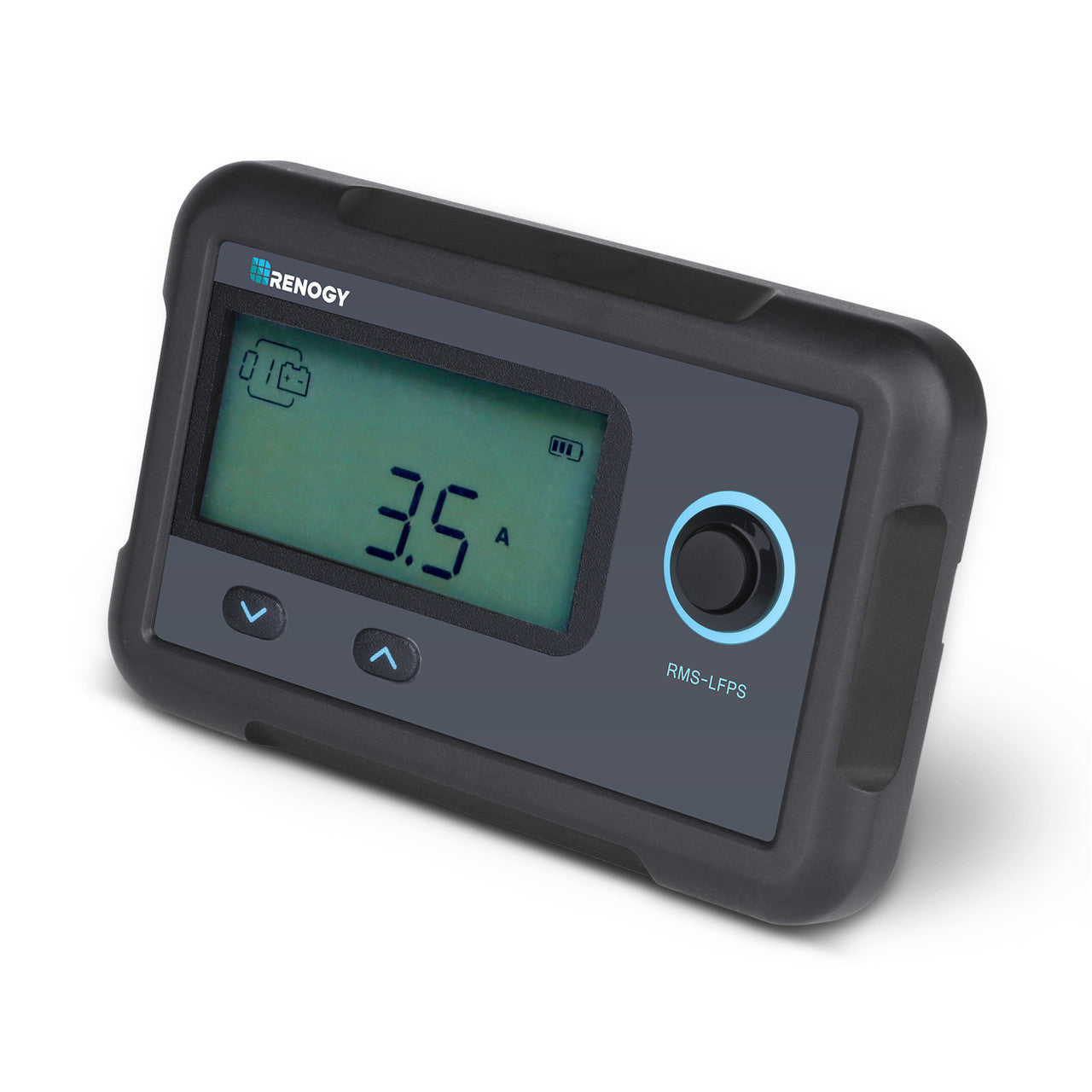

Renogy Monitoring Screen for Smart Lithium Battery Renogy Monitoring Screen for Smart Lithium Battery

SKU: RMS-LFPS-G1-US

Brand Renogy In Stock
$49.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Key features
  • Weight 0.14 lbs / 62 g
  • Material and workmanship warranty 1 Year
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy Monitoring Screen for Smart Lithium Battery

In Stock
Renogy Monitoring Screen for Smart Lithium Battery
Quantity$49.99 each
1

Monitoring Screen for Smart Lithium Battery Series

Monitor compatible Renogy Smart Lithium Iron Phosphate battery banks through a dedicated display that communicates directly with the battery management system for supported operating information.

Easy to Use

Connect the display to a compatible battery or battery bank, then use the front controls to review real-time information without additional calibration.

Renogy smart lithium monitoring screen controls

Accurate Monitoring

Obtain compatible battery-bank operating information directly from the battery management system for precise tracking and prediction.

Renogy smart lithium monitoring data

Parallel Battery Bank

Monitor charging and discharging activity in a compatible parallel battery bank with supported inter-battery communication enabled.

Renogy smart lithium parallel battery bank monitoring

Battery Shelf Mode

Switch a supported battery or battery bank to shelf mode to help preserve power while it is not in use.

Renogy smart lithium battery shelf mode

Designed for Renogy Smart Lithium Batteries

The monitoring screen is designed for compatible Renogy Smart Lithium Iron Phosphate battery installations used in off-grid energy storage systems.

Renogy smart lithium battery compatibility

Quick and Easy Mounting

Mount the display by removing the front cover plate, securing the screen to the surface and reattaching the cover.

Renogy smart lithium monitoring screen installation
Monitoring Screen for Smart Lithium Battery
Package Includes
1 Monitoring Screen for Smart Lithium Battery
RJ45 Communication Cable (5 m)
Package Includes
1 RJ45 Communication Cable (5 m)
Self-Tapping Screw
Package Includes
4 Self-Tapping Screw
Renogy Monitoring Screen for Smart Lithium Battery
Selected variant SKU RMS-LFPS-G1-US
Electrical Specifications
Supply Voltage 12VDC
Supply Current 30mA
Power Consumption <1W
Operating Temperature Range -4°F to 113°F / -20°C to 45°C
Voltage Accuracy ±0.1V
Current Accuracy ±0.1A
Mechanical Specifications
Communication Port RJ45 (RS485 Protocol)
Display Backlit LCD
User Interface 2 Front Panel Menu Buttons, 1 Power Button
Mounting System Wall Mount
Dimensions 2.76 x 4.33 x 1.25 in / 70 x 110 x 31.8mm
Weight 0.14 lbs / 62g
Accessories
RJ45 Communication Cable 5m / 16.4ft
Self-Tapping Screws M2.9 x 13
Certifications
CE, RoHS, FCC, EMC Yes
Warranty
Material and Workmanship Warranty 1 Year
Supply Voltage: 12VDC Communication Port: RJ45 (RS485 Protocol)
Supply Current: 30mA Display: Backlit LCD
Power Consumption: <1W User Interface: 2 Front Panel Menu Buttons, 1 Power Button
Voltage Accuracy: ±0.1V Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm
Current Accuracy: ±0.1A Weight: 0.14 lbs / 62 g
RJ45 Communication Cable: 5m/16.4ft Self-tapping Screws: M2.9 x13
Certification: CE ROHS FCC EMC Material and workmanship warranty: 1 Year
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Warranty Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

Is the RMS-LFPS screen a universal monitor for any LiFePO4 battery? No. It is designed for Renogy's compatible Smart Lithium Iron Phosphate Battery Series and reads data directly from that battery BMS through RJ45/RS485. A generic lithium battery without the supported Renogy communication system will not become compatible simply because its voltage matches. Do older Renogy Smart Lithium batteries have a compatibility risk with this display? Yes. Renogy notes a small chance of compatibility trouble when the connected bank contains one or more Smart Lithium batteries purchased before April 15 2020. Confirm the battery generation with Renogy before ordering the screen for an older bank. Which battery details does the Smart Lithium monitoring screen show without a shunt? It reads the compatible battery BMS to show voltage, current, capacity, state of charge, remaining time, self-heating status, and the number of paralleled batteries. It can also display nine warning codes for recognized battery conditions. Can the Renogy Smart Lithium display place the battery bank into shelf mode? Yes. Shelf mode is one of the screen's published functions for a supported Renogy Smart Lithium bank. Use it according to the battery and monitor manuals; it is a storage-control function, not a replacement for safe isolation during wiring or service. Does the RMS-LFPS package require a separate 500A shunt and signal cable? No external shunt is required because the screen receives operating data from the battery BMS. Renogy lists the monitor and its RJ45 communication connection for this application; battery power cables, overcurrent protection, and the compatible Smart Lithium battery remain separate.
