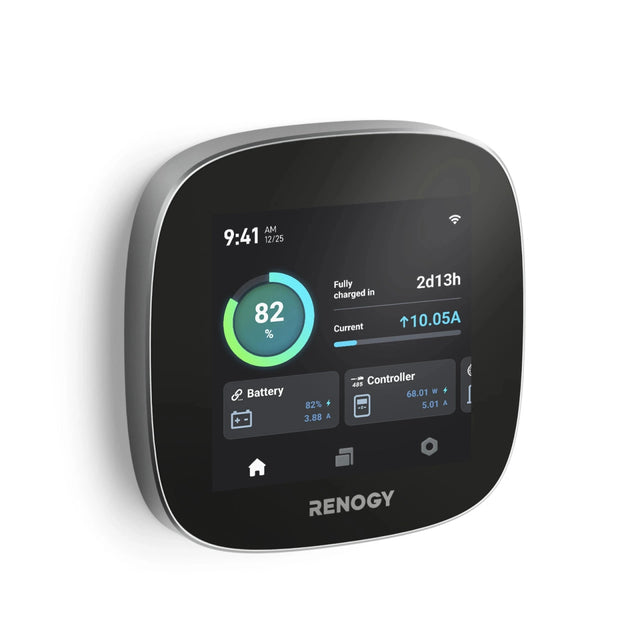

Renogy ONE Core (G3 Version) 1 / 10
Renogy

Renogy ONE Core (G3 Version) Renogy ONE Core (G3 Version)

SKU: RSHGWSN-W02W-G3-US

Brand Renogy In Stock
$186.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Key features
  • Weight 0.28 lb (128g)
  • Material and workmanship warranty 2 years
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy ONE Core (G3 Version)

In Stock
Renogy ONE Core (G3 Version)
Quantity$186.99 each
1

Renogy ONE Core (G3 Version)

Bring compatible energy monitoring, RV leveling assistance and smart automation together in one connected display for easier off-grid system oversight.

All-in-One Smart Energy Centre

Manage compatible energy monitoring, RV leveling assistance and supported smart automation functions from one central interface.

24/7 Energy Monitoring

Monitor supported energy usage information through Bluetooth and RS485 connectivity for compatible Renogy devices.

Worldwide Remote Monitoring

Use the DC Home App and Renogy ONE Portal to remotely review compatible RV system information from supported locations.

RV Leveling Assistant

Built-in leveling assistance helps simplify campsite setup for compatible RV installations.

Smart Automation

Connect supported smart accessories to build suitable automated scenes for off-grid living.

Excellent Design and Installation

The integrated display is designed for clean installation in compatible mobile and off-grid systems.

System Updates Over the Air

Over-the-air updating supports compatible feature and performance improvements released by Renogy.

Proven, Trusted Choice for Customers Worldwide

Renogy ONE Core smart panel overview

Energy Efficiency at Your Fingertips

Track supported energy generation and consumption information from one convenient monitoring experience.

Renogy ONE Core energy data analysis

Distance Is Not a Problem

Review supported system data remotely across suitable RV and off-grid monitoring scenarios.

Renogy ONE Core remote monitoring scenarios

One Command Centre for Compatible Renogy Devices

Renogy ONE Core compatible device overview

Make It a Smart Home

Connect supported smart accessories, such as compatible entry or climate sensors, for convenient automation control.

Renogy ONE Core smart home accessories

Peace of Mind with 24/7 Security

Compatible sensor alerts can help keep you informed of unexpected activity in an RV installation.

Renogy ONE Core security monitoring
Effortless Installation

Step 1

Prepare the mounting opening and gather the device stand components for installation.

Renogy ONE Core installation step one

Step 2

Use the built-in horizontal bubble to align the display during installation.

Renogy ONE Core installation step two

Step 3

Rotate the display into its secured installation position.

Renogy ONE Core installation step three
ONE Core (G3 Version)
Package Includes
1 ONE Core (G3 Version)
Quick Guide
Package Includes
1 Quick Guide
Power Cable
Package Includes
1 Power Cable
Mounting Screw
Package Includes
4 Mounting Screw
Renogy ONE Core
Package Includes
1 Renogy ONE Core
Specifications
Selected variant SKU RSHGWSN-W02W-G3-US
Electrical Data
Operating Voltage 8-35 VDC / 5 VDC for USB Type-C
Power Consumption at 12V Operating, WiFi On, 100% Illumination: 3.2W
Power Consumption at 12V Operating, WiFi On, 50% Illumination: 2.4W
Power Consumption at 12V Operating, WiFi On, 0% Illumination: 1.9W
Power Consumption at 12V Off, Logger Still Active: 1.5W
Communication IEEE 802.11 a/b/g/n 2.4GHz & 5GHz
Communication Bluetooth LE and Bluetooth Mesh
Communication Zigbee 3.0 / IEEE 802.15.4
Communication RS-485 & CAN
Touch Screen 4 in / 480 x 480p
General Data
Model RSHGWSN-W02W-G3
Operating Temperature -4℉ to 158℉ / -20℃ to 70℃
Operating Humidity 0% to 95% RH
Operating Altitude Less Than 5000m Above Sea Level
Installation Flush Mount
Dimensions 4.17 x 4.17 x 1.05 in / 106 x 106 x 26.6 mm
Weight 0.28 lb / 128g
Certifications
Certification CE, FCC, RoHS, TSCA, BQB, IC-ID
Warranty
Material and Workmanship Warranty 2 Years
Renogy ONE Core 1 x Quick Guide 1x
Power Cable 5m Mounting Screw M3.5 x14mm x4 (1 extra)
compatible with Renogy ONE Core, visit https //www.renogy.com/renogy-one-core/.
Dimension tolerance ±0.5 mm (0.2 in)
Operating Voltage z Power Port 8V to 35V DC (Typical 12V)
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

1. What devices are compatible with Renogy ONE Core？ 2. What are the differences between Renogy ONE Core and Renogy ONE M1？ 3. How to I connect Renogy ONE Core with different types of batteries to set up a battery monitoring system? The Renogy ONE Core can function as a power monitor when it is connected to Renogy batteries that support Bluetooth (built-in or with external BT-1/BT-2 modules) and RS-485. 4. Does Renogy ONE Core support RV-C？ Yes, the Renogy ONE Core G3 supports RV-C communication. 5. What is the operational altitude range for the Renogy ONE Core? It can work normally at altitudes below 5000 meters. 6. Does Renogy ONE Core come with a shunt? No, it does not come with a shunt, but it is compatible with the Shunt 300 if needed. 7. Does Renogy ONE Core support 5 GHz Wi-Fi network? Yes. It supports 2.4 GHz Wi-Fi and 5 GHz Wi-Fi. 8. Does Renogy ONE Core support WPA3 encrypted Wi-Fi networks？ No. It does not support WPA3. 9. Is Renogy ONE Core compatible with third-party Zigbee 3.0 devices? We cannot guarantee the compatibility between Renogy ONE Core and third-party Zigbee 3.0 smart home devices. Therefore, it is recommended to use smart accessories that have been authorized by Renogy with your Renogy ONE Core, such as Smart Plug, Motion Sensor, Door & Window Sensor, and Smart Relay. 10. Do the configured smart scenes in Renogy ONE Core still work when it is offline? Yes, the configured smart scenes in Renogy ONE Core will still work when it is offline. Renogy ONE Core utilizes the Zigbee 3.0 protocol to establish wireless connections with smart accessories. When you set up a smart scene for home automation, the configuration is saved within the system of Renogy ONE Core. This means that even if the Wi-Fi network is unavailable, Renogy ONE Core can still communicate with and control smart accessories through Zigbee 3.0. 11. What kind of power systems can Renogy ONE Core work with? Renogy ONE Core can be supplied by a 5V DC source via Type-C or an 8V to 35V DC source via the power cable. As for energy monitoring, Renogy ONE Core allows you to monitor power devices rated at 12V DC or 24V DC. 12. How long will Renogy ONE Core store the data locally? Renogy ONE Core can store data locally for 30 days Which equipment is verified to work with the Renogy RSHGWSN-W02W-G3-US? The manufacturer explicitly lists //www.renogy.com/renogy-one-core/.. Other models are not established as compatible by this evidence.
