Renogy

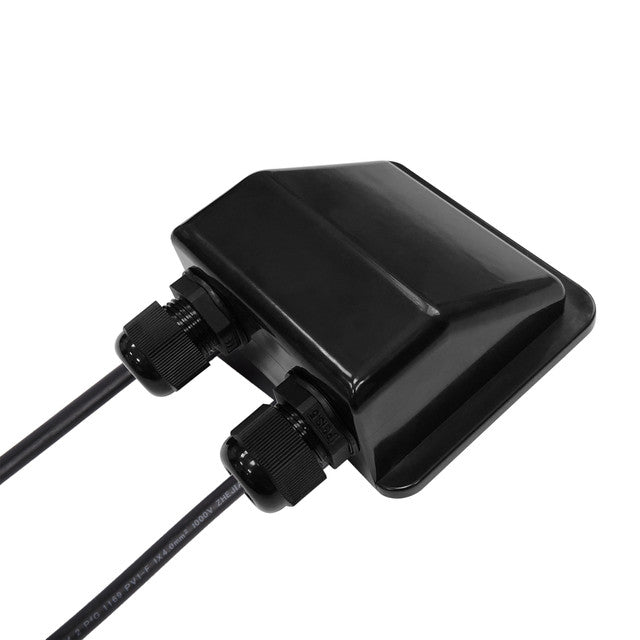

Renogy Solar Double Cable Entry Gland Renogy Solar Double Cable Entry Gland
SKU: RNG-MTS-CE-G1-US
$13.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Key features
- Weight (each component) 7.9 oz.
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
Solar Double Cable Entry Gland
Route compatible solar cables through a roof with the Renogy Solar Double Cable Entry Gland. Made from ABS plastic, this waterproof and UV-resistant housing provides dual cable entry for a clean installation on virtually any suitable roof surface.
Package Includes
1 Renogy Cable Entry Housing
| Renogy Cable Entry Housing | |
| Selected variant SKU | RNG-MTS-CE-G1-US |
|---|---|
| Material | UV-resistant ABS Plastic |
| Weight | (each component) 7.9 oz. |
| Recommended Adhesive | Sikaflex 252 or alike |
| Dimensions (l x w x h) | 4.7 x 3.9 x 2.0 in |
| Cable Gland Diameter Range | 6mm – 12mm |
| Material: UV-resistant ABS Plastic | Weight (each component): 7.9 oz. |
| Recommended Adhesive: Sikaflex 252 or alike | Dimensions (l x w x h): 4.7 x 3.9 x 2.0 in |
| Weight (each component) | 7.9 oz. |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What cable diameters fit through the two seals in the Renogy roof-entry gland?
Renogy publishes these model-specific details: Weight (each component): 7.9 oz.; Recommended Adhesive: Sikaflex 252 or alike; Dimensions (l x w x h): 4.7 x 3.9 x 2.0 in; Cable Gland Diameter Range: 6mm – 12mm. Measure the actual outside diameter, including any jacket, because conductor gauge alone does not determine whether the compression seal will close correctly.
Can the solar double cable-entry gland be bonded to an RV roof without drilling mounting holes?
Renogy publishes these model-specific details: The Renogy Cable Entry Housing is an ideal solution for cable entry through roofs. Made from ABS plastic, this waterproof and UV-resistant housing allows an easy cable entry solution for any condition. With its dual cable entry, this Renogy housing easily passes through solar cables for a smooth installation on virtually any roof surface.. Use an adhesive compatible with both the roof membrane and housing, prepare the surface exactly as the adhesive maker directs, and still create and seal the cable penetration correctly.
Does a waterproof cable gland guarantee that the complete roof penetration will never leak?
No. Water resistance depends on cable diameter, compression, adhesive coverage, surface preparation, drainage, cable strain, and periodic inspection. The housing cannot compensate for an incompatible sealant or damaged roof membrane.
Is adhesive supplied with the Renogy double cable-entry housing?
Renogy publishes these model-specific details: Dimensions (l x w x h): 4.7 x 3.9 x 2.0 in. Treat adhesive, cleaner, primer, fasteners, and interior strain relief as separate unless the package list explicitly includes them.
Can the dual-entry housing be used with more than two solar conductors?
It provides two sealed cable passages. Do not crowd extra wires through one seal unless their combined shape and diameter are expressly supported; use another properly spaced entry or a listed multi-cable solution instead.
