Renogy
Renogy Solar Panel Mounting Curved Z Bracket Set of 4 Renogy Solar Panel Mounting Curved Z Bracket Set of 4
SKU: RNG-MTS-ACB-G1-US
$20.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
Solar Panel Mounting Curved Z Bracket — Set of 4
Mount compatible rigid solar panels on curved surfaces such as Airstreams and other RV roofs with Renogy adjustable curved Z brackets. Built from heavy-duty aluminum alloy, the bracket set is designed to support a secure installation where conventional flat mounting is not practical.

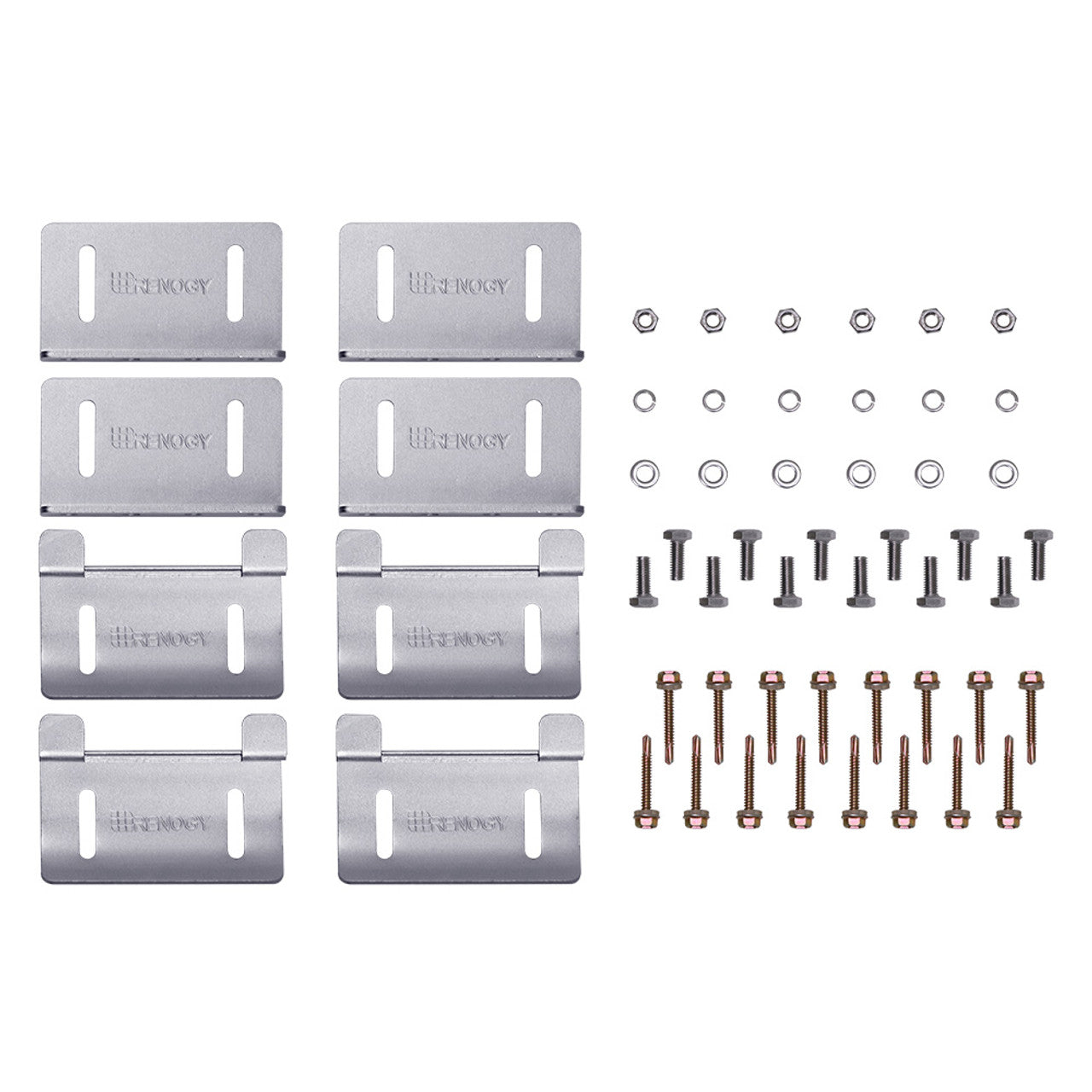

Package Includes
1 Renogy Solar Panel Mounting Z Bracket -- Set of 4
| Renogy Solar Panel Mounting Curved Z Brackets (Set of 4) | |
| Selected variant SKU | RNG-MTS-ACB-G1-US |
|---|---|
| Four pairs of Curved Solar Panel Brackets | |
| Twelve M6-16 Hex Cap Bolt | |
| Four M6 Split Lock Washer | |
| Sixteen M6 Flat Washer | |
| Twelve M6 Hexagonal Nut | |
| Sixteen #10 x 1¼ Self-Drilling Cap Screw and Plastic Retaining Ring | |
| Four pairs of Curved Solar Panel Brackets | Twelve M6-16 Hex Cap Bolt |
| Four M6 Split Lock Washer | Sixteen M6 Flat Washer |
| Twelve M6 Hexagonal Nut | Sixteen #10 x 1¼ Self-Drilling Cap Screw and Plastic Retaining Ring |
| Accessories | 1-year material warranty |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Which rigid-panel wattages can use one set of Renogy curved Z brackets?
Renogy publishes these model-specific details: Renogy Solar Panel Mounting Curved Z Bracket Set of 4; Solar Panel Mounting Curved Z Bracket -- Set of 4. Follow that exact guidance and verify frame dimensions; wattage alone does not capture wind area or mounting-hole spacing.
When should I choose curved Z brackets instead of standard flat-base Z brackets?
The curved version is intended for irregular surfaces such as Airstream and RV roof profiles. The base still needs full, structurally sound contact and compatible sealing; it is not a universal solution for every roof radius.
What bolts, washers, nuts, and self-drilling screws come with the curved bracket set?
Renogy publishes these model-specific details: Renogy Solar Panel Mounting Curved Z Bracket Set of 4; Solar Panel Mounting Curved Z Bracket -- Set of 4. Sealant, backing, pilot tools, and substrate-specific alternatives remain separate unless expressly included.
How should the curved aluminum brackets be sealed on an RV or marine roof?
Renogy publishes these model-specific details: The uniquely designed Renogy adjustable curved brackets have the capability to support solar panels on curved surfaces, such as those found on Airstreams and other types of RVs. Made of heavy duty aluminum-alloy, the MTS-ACB is the perfect installation solution for those hard-to-mount surfaces ensuring a safe solar panel install.. Seal every penetration with materials compatible with the roof and fasteners, preserve drainage, isolate dissimilar metals where required, and inspect after travel.
Can the curved Z brackets be installed without checking the panel frame's approved holes?
No. Fasten only at locations and with hardware allowed by the module manufacturer. Drilling an unapproved frame location or overtightening can damage the module and compromise structural or warranty coverage.
