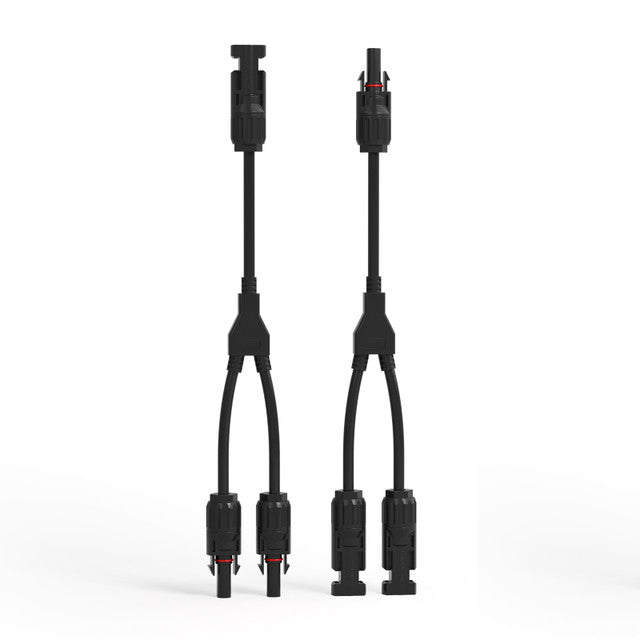

Renogy Y Branch Parallel Adapters 2 to 1 1 / 7
Renogy

Renogy Y Branch Parallel Adapters 2 to 1 Renogy Y Branch Parallel Adapters 2 to 1

SKU: RPC0110EC-Y-G1-US

Brand Renogy In Stock
$23.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy Y Branch Parallel Adapters 2 to 1

In Stock
Renogy Y Branch Parallel Adapters 2 to 1
Quantity$23.99 each
1

Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair

Create a compatible parallel solar connection with a Y-branch adapter cable pair rated at 30A and 1500V DC. The TUV- and CE-certified connector design uses heat- and oil-resistant PC material with IP67 protection for suitable outdoor solar installations.

Plan panel wiring

Our series versus parallel wiring guide explains how series and parallel connections affect the electrical limits of a solar array.

Renogy Y Branch Parallel Adapters 2 to 1
Package Includes
1x Renogy Y Branch Parallel Adapters 2 to 1
Includes the selected item based on the current package option.
Solar Connectors Y Branch
Selected variant SKU RPC0110EC-Y-G1-US
Rated Voltage 1500V DC (IEC)
Rated Current 30A
Contact Resistance 0.5mΩ
Insulation Material PC
Contact Material Copper, tin plated
Temperature -40℃ - 90℃ / -40°F - 194°F
Protection Degree IP67 mated / IP2X unmated
Safety Degree Ⅱ
Flame Class UL94-HB / UL94-V0
Suitable Single Core Cable Section 2.5mm², 4mm², 6mm²
Rated Voltage: 1500V DC(IEC) Rated Current: 30A
Contact Material: Copper,tin plated Temperature: -40℃-90℃/-40°F-194°F
Flame Class: UL94-HB/UL94-V0 Suitable Single Core Cable Section: 2.5mm²,4mm²,6mm²
🛡️
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

How is this Solar Y connector used? To connect another panel in parallel. What range of gauges of wire do these accept? Meant to be used with 14-10 AWG wire. Why are the connectors tight and hard to remove from solar panels? They are waterproof, easier removal can be achieved by using a Solar Connector Assembly tool (RNG-TOOL-MC4-G1-US)
