RICH SOLAR

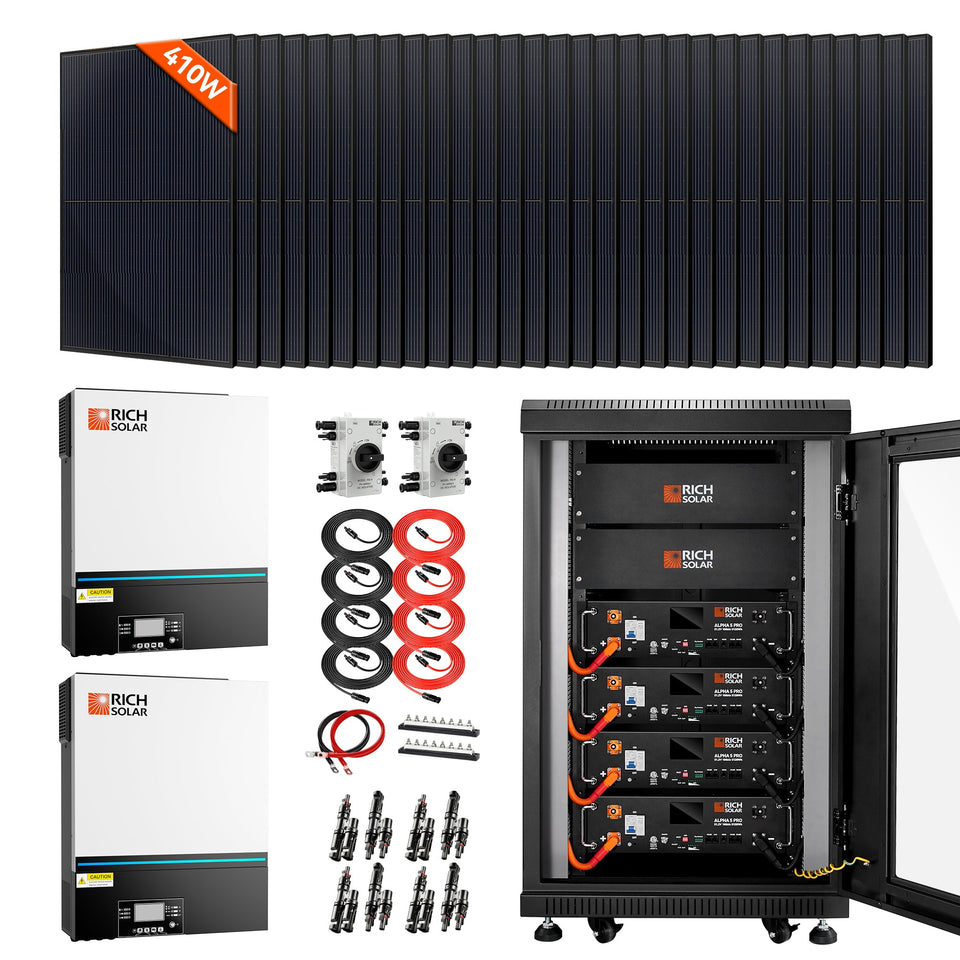

Rich Solar Complete Off-Grid Solar Kit | 30 x MEGA 410 | 13,000W 120/240V Output | 48VDC Rich Solar Complete Off-Grid Solar Kit | 30 x MEGA 410 | 13,000W 120/240V Output | 48VDC
SKU: RS-CBK1301A
$20,999.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRICH SOLAR warranty
Key features
- Minimum Capacity 99.5Ah
- Charging Voltage 56V
- Discharging Cutoff Voltage 44.8V
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
Complete Off-Grid Solar Kit — 30 × MEGA 410, 13,000W 120/240V Output, 48VDC
A fully engineered, whole-home capable off-grid solar system built around 30 MEGA 410 monocrystalline panels (12.3kW array), dual 6.5kW NOVA hybrid inverters running in parallel for a combined 13,000W of 120/240V output, and four ALPHA 5 PRO server-rack lithium batteries delivering over 20kWh of usable storage. Every major wiring component — disconnects, busbars, extension cables — is included and sized for the system, along with a free battery rack to house the entire battery bank.
12.3kW
Solar Array (30 Panels)
13,000W
120/240V AC Output
20.48kWh
Usable Battery Storage
48VDC
System Architecture
Complete Kit Contents
30 × MEGA 410 Solar Panels (RS-M410) — 410W monocrystalline, 12.3kW total array
2 × NOVA 6548 Inverters (RS-H6548) — 6,500W 48V off-grid hybrid, parallel-capable
4 × ALPHA 5 PRO Batteries (RS-B5121P) — 5.12kWh each, 51.2V 100Ah LiFePO4 server rack format
2 × Solar PV DC Quick Disconnect Switch (RS-i4) — array-side disconnect safety
2 × 600A Busbar — high-current battery and inverter interconnection
4 × 4-Foot 2/0 AWG Wire Set — heavy-gauge battery-to-inverter interconnects
8 × 50-Foot 10AWG Solar Extension Cables (RS-50102) — array wiring runs
4 × 30-Foot 10AWG Solar Extension Cables (RS-30102-T2) — additional array wiring runs
1 × Free Battery Rack — houses the full 4-battery ALPHA 5 PRO bank
13,000W Through Two Parallel Inverters
Two NOVA 6548 inverters operating in parallel deliver a combined 13,000W of 120/240V split-phase output — enough to run full-home appliance loads, including 240V equipment like well pumps, electric ranges, or workshop tools, not just 120V circuits.
20.48kWh in a Server-Rack Format
Four ALPHA 5 PRO batteries provide 20.48kWh of total energy storage in a stackable server-rack configuration, with the included free battery rack keeping the bank organized, ventilated, and easy to expand later.
12.3kW Array with 10-Busbar MEGA 410 Panels
Thirty 410W monocrystalline panels using a 10-busbar Mono PERC cell design deliver a 12.3kW array capable of meaningfully recharging a 20kWh battery bank across a full sunny day in most regions.
System Overview
This complete off-grid solar kit is engineered as a matched system rather than a loose collection of compatible parts — every component is sized to work together as a 48VDC architecture capable of supplying full 120/240V split-phase power to a home, cabin, workshop, or off-grid property. The 12.3kW solar array, dual parallel inverters, and 20.48kWh battery bank are proportioned so that the array can realistically recharge the battery bank within a day of good sun, and the inverter pair can carry meaningful whole-property loads without the array or batteries becoming a bottleneck.
The two NOVA 6548 inverters operate in parallel for a combined 13,000W continuous output with 2x surge capacity for five seconds — enough headroom for motor-start loads like well pumps, air conditioners, and power tools that draw a brief inrush current well above their running wattage. Each inverter includes a built-in MPPT solar charger, smart AC charging, Wi-Fi monitoring through Rich Solar's app, and a detachable LCD control module — giving you both local panel access and remote system visibility.
Battery storage comes from four ALPHA 5 PRO server-format LiFePO4 batteries, each rated for 5.12kWh, 100A continuous charge/discharge current, and a sophisticated onboard BMS with overcharge, over-discharge, and overcurrent protection. The included battery rack organizes all four units into a single stacked enclosure, and the platform is rated to expand up to 15 batteries in parallel if you need to grow capacity well beyond what ships in this kit.
Component 1 of 3 — Solar Array
30 × MEGA 410 — 12.3kW Monocrystalline Array
- 410W Per Panel, 24V Class: Each panel operates at 31.3V Vmp and 37.5V Voc, suited to wiring in series strings for the inverters' MPPT input range.
- 10-Busbar Mono PERC Cells: Improves output consistency and low-light performance versus older cell technology, with strong morning, evening, and overcast-day generation.
- Anodized Aluminum Frame + AR-Coated Tempered Glass: Built for permanent outdoor installation, with anti-reflective coating improving light capture across the day.
- 1500VDC Max System Voltage: Supports long series strings for large array configurations like this 30-panel system.
- 25-Year Output / 10-Year Workmanship Warranty: The same warranty structure used across Rich Solar's MEGA rigid panel lineup.
- 45.2 lb, 67.8 × 44.7 × 1.2 in Per Panel: Standard full-size rigid panel dimensions — plan rooftop, ground-mount, or rack space accordingly for 30 units.
Component 2 of 3 — Battery Bank
4 × ALPHA 5 PRO — 20.48kWh Server-Format Storage
- 5.12kWh Per Unit, 51.2V 100Ah LiFePO4: Four units combine for 20.48kWh of total nominal storage in a stackable server-rack form factor.
- 100A Continuous Charge & Discharge: Each battery supports sustained high-current charge and discharge, matched to the demands of a multi-kW inverter setup.
- 7,000 Deep Cycle Life, 10-Year Lifespan: A long-duty-cycle design intended for daily off-grid charge/discharge cycling over a decade of service.
- UL1973 & UL9540A Certified: Independently certified for battery safety and energy storage system safety standards.
- Sophisticated BMS Protection: Onboard battery management handles overcharge, over-discharge, overcurrent, and short-circuit protection automatically.
- Expandable to 15 Units in Parallel: This kit ships with 4 batteries, but the platform supports significant future expansion if your storage needs grow.
- Included Battery Rack: The free rack (27.5"L × 27.5"W × 44.1"H, 196.2 lb) houses and organizes the full 4-battery bank in one stacked enclosure.
Component 3 of 3 — Inverters
2 × NOVA 6548 — 13,000W Combined Hybrid Output
- 6,500W Each, Parallel-Rated to 6 Units: This kit uses 2 of the 6 units the platform supports in parallel — combined 13,000W continuous with 2x rated power surge for 5 seconds.
- Built-In MPPT Solar Charging: Each inverter accepts up to 4000W of PV input (8000W combined across both units) with a 90-450VDC MPPT operating range.
- Pure Sine Wave Output, 91% Peak Efficiency: Clean AC power suitable for sensitive electronics as well as standard household appliances.
- Wi-Fi Monitoring + Detachable LCD: Monitor and configure the system remotely via app, or locally through the detachable LCD control module.
- 120A Max Solar & AC Charge Current: Configurable charging priority and current limits via the LCD control panel based on your specific setup.
- UL 1741 Certified by TÜV: Independently certified to U.S. grid-interactive and stand-alone inverter safety standards.
- 3-Year Warranty: Shorter coverage window than the panels or batteries — factor this into your overall system warranty planning.
MEGA 410 Panel Specs
| Max Power (Pmax) | 410W |
| Vmp / Imp | 31.3V / 13.1A |
| Voc / Isc | 37.5V / 13.8A |
| Max System Voltage | 1500VDC |
| Max Series Fuse | 25A |
| Temperature Range | -40°F to 185°F |
| Weight / Dimensions | 45.2 lb / 67.8 × 44.7 × 1.2 in |
| Warranty | 25-yr output / 10-yr workmanship |
NOVA 6548 Inverter Specs
| Rated Power (Per Unit) | 6500VA / 6500W |
| Battery Voltage | 48VDC |
| Max PV Input (Per Unit) | 4000W |
| MPPT Voltage Range | 90–450VDC |
| Max Solar/AC Charge Current | 120A |
| Peak Efficiency | 91% |
| Parallel Capability | Up to 6 units |
| Certification | UL 1741 (TÜV) |
ALPHA 5 PRO Battery Specs
| Nominal Voltage / Capacity | 51.2V / 100Ah |
| Energy Per Unit | 5120Wh |
| Max Charge/Discharge Current | 100A continuous |
| Cycle Life | 7,000 cycles |
| Max Parallel Expansion | 15 units |
| Battery Weight | 99.2 lb each |
| Communication | RS485 / RS232 / CAN |
| Certification | UL1973, UL9540A, FCC |
| Warranty | 10 years |
Best Uses
- Off-grid homes requiring full 120/240V appliance support
- Cabin and rural property primary power systems
- Workshop, barn, or agricultural off-grid power
- Properties needing well pump or 240V equipment support
- Systems anticipating future battery bank expansion
System design note: This kit is also available with alternative panel configurations (38 × 335W, 32 × 400W) or with no panels included if you're sourcing your own array. Professional installation is strongly recommended for a system at this scale and voltage — 48VDC battery wiring, the included 600A busbars, and the 2/0 AWG interconnects involve current levels that require correct sizing, torque, and protection to install safely. Consult a licensed installer familiar with off-grid hybrid inverter systems for site-specific design, permitting, and commissioning.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
Package Includes
30 MEGA 410 Watt Monocrystalline Solar Panel
Package Includes
2 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter
Package Includes
4 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery
Package Includes
2 Solar PV DC Quick Disconnect Switch
Package Includes
2 Busbar 600 AMP
Package Includes
4 4 Foot 2/0 Gauge AWG Wire Set 3/8"
Package Includes
8 10 Gauge 50 Feet Solar Extension Cable
Package Includes
4 10 Gauge 30 Feet Solar Extension Cable
Package Includes
1 Free Battery Rack
| Rich Solar Complete Off-Grid Solar Kit / 30 x MEGA 410 / 13,000W 120/240V Output / 48VDC | |
| Selected variant SKU | RS-CBK1301A |
|---|---|
| MODEL | |
| Model / SKU | RS-CBK1301A |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| System Continuous Inverter Output | 13,000 W total from two 6,500 W inverters |
| System AC Output Voltage | 120/240 V AC split phase |
| System Battery Voltage | 48 V DC |
| Installed Battery Storage | 19.2 kWh class as configured in this catalog product |
| Solar Array Rating | 12,800 W as configured in this catalog product |
| Efficiency | (Line Mode) >95% ( Rated R load, battery full charged ) |
| Transfer Time | 10ms typical (UPS); |
| Output Frequency | 60Hz or 50Hz |
| DC Output | 12 VDC ± 7%, 100W |
| Rated Power | 4000W 8000W 8000W |
| Max. Input Current | 18A 18A x 2 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 99.5Ah |
| Maximum Charging Current | 100A |
| Continuous Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Maximum Charge Voltage | (CC/CV): 57.6V |
| Waveform | Pure Sine Wave |
| MPPT Operating Voltage Range | 90 ~ 450 VDC |
| Battery System Voltage | 48VDC |
| Listed Inverter Output | 13,000W |
| 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter — Voltage | 120 VAC |
| Solar PV DC Quick Disconnect Switch — Max. Rated Current | 55A |
| Solar PV DC Quick Disconnect Switch — Max. Rated Voltage | 1500VDC |
| CONNECTIONS | |
| Connectors | are not connected to the cable, and user can wired according to the actual application |
| Ports | RS485/RS232/CAN |
| Communication | Ports: RS485/RS232/CAN |
| PHYSICAL | |
| Dimension | (D*W*H), mm 147.4x 432.5 x 553.6 |
| Weight | 45.2 lb |
| Dimensions | 67.8 x 44.7 x 1.2 in |
| Net Weight | 40.6 lb |
| 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery — Weight | 100.9 lb |
| Solar PV DC Quick Disconnect Switch — Dimensions (HxWxD) | 7.1x6.8x4.3 in (179.5x173.9x110 mm) |
| Solar PV DC Quick Disconnect Switch — Net Weight | 1.6lb (0.73kg) |
| OPERATING LIMITS | |
| Operating Temperature | Range -10°C to 50°C -10°C to 40°C |
| Storage temperature | -15°C~ 60°C |
| Certification | UL1973, UL9540A, FCC |
| Warranty | 10 Years Manufacturer Defect |
| PACKAGE | |
| Included Components | 30 × MEGA 410 Watt Monocrystalline Solar Panel, 2 × 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter, 4 × 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery, 2 × Solar PV DC Quick Disconnect Switch, 2 × Busbar 600 AMP, 4 × 4 Foot 2/0 Gauge AWG Wire Set 3/8", 8 × 10 Gauge 50 Feet Solar Extension Cable, 4 × 10 Gauge 30 Feet Solar Extension Cable, 1 × Free Battery Rack |
| 12.3kW Solar Array | Includes thirty 410W monocrystalline solar panels, producing approximately 44.3kWh of energy per day under 4 peak sun hours. |
| 20.48kWh LiFePO₄ Battery Bank | Includes four 51.2V 100Ah (5120Wh) ALPHA 5 PRO batteries for dependable energy storage and backup power. |
| 13,000W Hybrid Inverter System | Includes two 6,500W hybrid inverters, delivering 13,000W continuous (26,000W surge) pure sine wave output with dual 120A MPPT charge controllers, supporting solar, battery, utility, and generator inputs. |
| No. of Panels | 30 x MEGA 410 Watt Solar Panels |
| Wattage Per Panel | 410W |
| Total Wattage of Panels | 12.3KW |
| Maximum Power(Pmax) | 410W |
| Maximum Power Voltage(Vmp) | 31.3V |
| Maximum Power Current(Imp) | 13.1A |
| Open Circuit Voltage(Voc) | 37.5V |
| Short Circuit Current(Isc) | 13.8A |
| Maximum System Voltage(Vmax) | 1500VDC |
| Temperature Range | -40°F ~ 185°F |
| Max Series Fuse Rating | 25A |
| No. of Batteries | 4 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries |
| Charging Voltage | 56V |
| Discharging Cutoff Voltage | 44.8V |
| Battery Dimensions | 17.7"L x 17.8"W x 5.2"H |
| Server Rack Dimensions | 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels) |
| Server Rack Weight | 196.2 lb |
| Operation Voltage | 43.2~58.4V |
| Maximum Discharging Current | 100A |
| Maximum Charge Voltage (CC/CV) | 57.6V |
| Overcharge Protection Voltage (Battery) | 58.4V |
| Overcharge Protection Release Voltage (Battery) | 54V |
| Over Discharge Protection Voltage (Battery) | 43.2V |
| Over Discharge Protection Release Voltage (Battery) | 47.2V |
| Over Discharge Primary Charge Overcurrent Protection Value | 110A |
| First Stage Charge Over Current Delay | 1s |
| Primary Discharge Overcurrent Protection Value | 110A |
| Primary Discharge Overcurrent Protection Delay | 1s |
| Secondary Discharge Overcurrent Protection Value | 150A |
| Secondary Discharge Overcurrent Protection Delay | 500ms |
| Charge Temperature | 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉); |
| Discharge Temperature | -4℉~149℉ (The surface temperature of the cell should not exceed 149℉) |
| Recommended Storage Temperature | 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature) |
| Max. Expansion | 15 pcs in parallel |
| Communication Ports | RS485/RS232/CAN |
| No. of Hybrid Solar Inverters | 2 x NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverters |
| Voltage | 120 VAC |
| Selectable Voltage Range | 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Efficiency (Peak) | 91% |
| Optional DC Voltage | 12 VDC ± 7%, 100W |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Maximum PV Array Power | 8000W (4000W x 2) |
| Maximum PV Array Open Circuit Voltage | 550 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimensions (D X W X H) | 5.8 x 17.0 x 21.8 in |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Compliance Safety | UL 1741 by TUV |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Which major components and installation parts come with the Complete Off Grid Solar Kit 13 000w 120 240v?
The official package list specifies: 30 x MEGA 410 Watt Monocrystalline Solar Panel; 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter; 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery; 2 x Solar PV DC Quick Disconnect Switch; 2 x Busbar 600 AMP; 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"; 8 x 10 Gauge 50 Feet Solar Extension Cable; 4 x 10 Gauge 30 Feet Solar Extension Cable; 1 x Free Battery Rack. Equipment shown elsewhere in photos should not be treated as included unless it appears in that manufacturer list.
What panel count and module model are included with the Complete Off Grid Solar Kit 13 000w 120 240v?
The array hardware is listed as 30 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410). Use those exact module electrical ratings when planning strings, controller inputs, mounting area, roof or ground loading, and future expansion. The advertised kit wattage does not replace a series-parallel voltage and current check.
What battery equipment is physically included with the Complete Off Grid Solar Kit 13 000w 120 240v?
Yes. The battery portion is listed as 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P). Confirm the complete bank voltage, usable energy, continuous and surge current, BMS communication, temperature limits, and permitted expansion before deciding what the package can run or how long it will run it.
Which listed inverter sets the AC-output capability of the Complete Off Grid Solar Kit 13 000w 120 240v?
The supplied AC power equipment is listed as 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548). Use the exact inverter's continuous output, surge duration, voltage, phase arrangement, and transfer or charging functions to qualify loads. The total panel wattage is not the AC-load rating, and motor startup demand must be checked separately.
Is solar charging handled inside the inverter supplied with the Complete Off Grid Solar Kit 13 000w 120 240v?
The official package list names 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548) and does not list a separate charge controller. Verify the exact inverter model's built-in PV inputs and charging functions before wiring panels; an inverter nameplate alone does not establish the array voltage window, charge-current limit, or supported battery profile.
What is not safe to assume from the word complete in the Complete Off Grid Solar Kit 13 000w 120 240v name?
The remaining listed balance-of-system items are 2 x Solar PV DC Quick Disconnect Switch (RS-i4); 2 x Busbar 600 AMP; 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"; 8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102); 4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2); 1 x Free Battery Rack. The site can still require structure-specific mounting, conduit or cable protection, grounding and bonding, code-required disconnects and overcurrent protection, distribution equipment, permits, inspection, and labor. Confirm the final one-line design rather than assuming the word "complete" covers every site condition.
