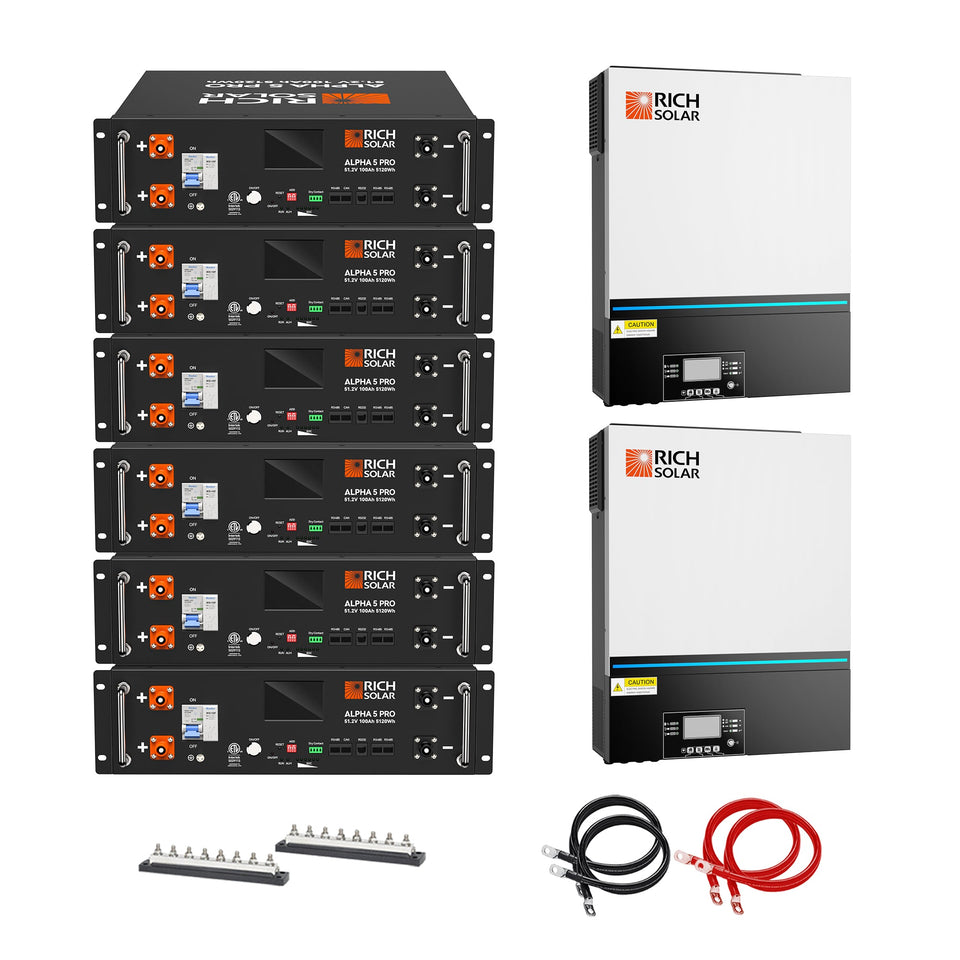

Rich Solar RS-CBK1302 13kW Off-Grid Inverter & 30.72kWh Battery Kit Rich Solar RS-CBK1302 13kW Off-Grid Inverter & 30.72kWh Battery Kit
SKU: RS-CBK1302
Rich Solar RS-CBK1302 13kW Off-Grid Hybrid Inverter & 30.72kWh Battery Kit
The Rich Solar RS-CBK1302 is a large 48V off-grid power kit built around two NOVA 6.5kW hybrid solar inverters and six ALPHA 5 PRO server rack LiFePO4 batteries. Designed for high-capacity backup power, off-grid homes, cabins, workshops, and larger energy storage projects, this kit gives you a powerful inverter foundation with expandable lithium battery storage.
Kit Includes
This kit combines the core inverter, battery, busbar, and cable components needed for a larger 48V off-grid hybrid power setup.
Product Overview
The Rich Solar RS-CBK1302 is designed for customers who need more than a small backup system. With two 6.5kW hybrid inverters and six 5.12kWh ALPHA 5 PRO batteries, this kit provides a strong foundation for larger off-grid and backup power applications where battery capacity, inverter output, and future expandability matter.
The included NOVA 6548 inverters support pure sine wave output, MPPT solar charging, generator or utility charging, Wi-Fi monitoring, parallel operation, and configurable charging priorities. This makes the system flexible for off-grid homes, backup power installations, workshops, cabins, and solar storage projects that need a more capable power platform.
The included ALPHA 5 PRO batteries use lithium iron phosphate chemistry with a built-in battery management system for overcharge, over-discharge, overcurrent, and short-circuit protection. Each battery provides 5.12kWh of storage, giving this kit a total included storage capacity of 30.72kWh before any future battery expansion.
Best Uses
- Large off-grid solar power systems
- Home backup power and energy storage projects
- Cabins, workshops, farms, and remote buildings
- 48V battery-based solar installations
- High-capacity inverter and battery upgrades
- Systems that may need future battery expansion
Key Benefits
- Includes two 6.5kW off-grid hybrid inverters
- Includes six 5.12kWh ALPHA 5 PRO LiFePO4 batteries
- 30.72kWh total included battery capacity
- Pure sine wave inverter output for sensitive electronics
- MPPT solar charging with high PV input capability
- Supports utility or generator charging when configured properly
- Battery system supports parallel expansion
- Built-in BMS protection for safer battery operation
Built Around ALPHA 5 PRO Battery Storage
The ALPHA 5 PRO batteries are designed for larger energy storage systems that need long cycle life, low maintenance operation, and reliable lithium performance. Each included battery provides 5.12kWh of storage and communicates through RS485, RS232, and CAN ports for compatible system integration.
With six batteries included, this kit is well suited for customers who want a serious storage bank from the start instead of building capacity one battery at a time.
Powered by NOVA 6548 Hybrid Inverters
The two included NOVA 6548 inverters provide the power conversion and charging control for the system. Each inverter supports solar charging, AC charging, configurable charge priority, mobile monitoring with Wi-Fi, and communication options for battery management integration.
This inverter platform is designed for off-grid applications where solar input, battery storage, generator or utility charging, and pure sine wave AC output need to work together in one system.
Installation & Compatibility Note
This is a high-capacity electrical system and should be planned carefully before purchase. System design should account for AC load requirements, solar array sizing, battery capacity, wire sizing, overcurrent protection, grounding, ventilation, permits, and local electrical code requirements.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
| ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery | |
| Selected variant SKU | RS-CBK1302 |
|---|---|
| Electrical Specifications | |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 99.5Ah |
| Nominal Energy | 5,120Wh |
| Operating Specifications | |
| Charging Voltage | 56V |
| Discharging Cutoff Voltage | 44.8V |
| Maximum Charging Current | 100A |
| Continuous Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Physical Specifications | |
| Battery Dimensions | 17.7 x 17.8 x 5.2 in |
| Battery Weight | 99.2 lbs |
| Server Rack Dimensions | 27.5 x 27.5 x 44.1 in (Excludes Wheel Height) |
| Server Rack Weight | 196.2 lbs |
| BMS Operation | |
| Operation Voltage | 43.2 to 58.4V |
| Maximum Charging Current | 100A |
| Maximum Discharging Current | 100A |
| Maximum Charge Voltage (CC/CV) | 57.6V |
| Overcharge Protection Voltage (Battery) | 58.4V |
| Overcharge Protection Release Voltage (Battery) | 54V |
| Over Discharge Protection Voltage (Battery) | 43.2V |
| Over Discharge Protection Release Voltage (Battery) | 47.2V |
| Over Discharge Primary Charge Overcurrent Protection Value | 110A |
| First Stage Charge Overcurrent Delay | 1s |
| Primary Discharge Overcurrent Protection Value | 110A |
| Primary Discharge Overcurrent Protection Delay | 1s |
| Secondary Discharge Overcurrent Protection Value | 150A |
| Secondary Discharge Overcurrent Protection Delay | 500ms |
| Temperature Performance | |
| Charge Temperature | 0.1C @ 32°F to 50°F; 0.2C @ 50°F to 68°F; 0.5C @ 68°F to 77°F; 1C @ 77°F to 113°F; 0.3C @ 113°F to 131°F; 0.2C @ 131°F to 140°F |
| Discharge Temperature | -4°F to 149°F (Cell Surface Should Not Exceed 149°F) |
| Storage Temperature | -4°F to 113°F, 90% RH Max (1 Month); 32°F to 95°F, 90% RH Max (6 Months) |
| Recommended Storage Temperature | 32°F to 113°F, 85% RH Max |
| Communication | |
| Communication Ports | RS485/RS232/CAN |
| Max. Expansion | 15 pcs in Parallel |
| Certifications | |
| UL1973, UL9540A, FCC | Yes |
| Warranty | |
| Manufacturer Defect Warranty | 10 Year |
| Kit-level configuration | |
| Included inverters | 2 × NOVA 6548 (6,500W each) |
| Combined inverter output | 13,000W continuous |
| Included batteries | 6 × ALPHA 5 PRO (51.2V, 100Ah, 5.12kWh each) |
| Total nominal battery energy | 30.72kWh |
| AC output configuration | 120/240V |
| NOVA 6548 6500 Watt 48 Volt Off-Grid Hybrid Solar Inverter | |
| Specifications | |
| Model | RS-H6548 |
|---|---|
| Rated Inverter Power | 6,500VA / 6,500W |
| Parallel Capability | Yes, 6 Units |
| Input | |
| Voltage | 120VAC |
| Selectable Voltage Range | 90-140VAC (For Computers), 80-140VAC (For Home Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto Sensing) |
| Output | |
| AC Voltage Regulation (Battery Mode) | 120VAC ± 5% |
| Surge Power | 2x Rated Power for 5s |
| Efficiency (Peak) | 91% |
| Transfer Time | 10ms (For Personal Computers), 20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Optional DC Voltage | 12VDC ± 7%, 100W |
| Battery | |
| Battery Voltage | 48VDC |
| Float Charging Voltage | 54VDC |
| Overcharge Protection | 66VDC |
| Solar Charger & AC Charger | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8,000W (4,000W x 2) |
| MPPT Operating Voltage Range | 90 to 450VDC |
| Maximum PV Array Open-Circuit Voltage | 550VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Physical | |
| Dimensions (D x W x H) | 5.8 x 17.0 x 21.8 in |
| Net Weight | 40.6 lbs |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-Contact |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) |
| Operating Temperature | -14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
| Certifications | |
| UL 1741 by TUV | Yes |
