Solar Kit 3000W 24V Inverter 120V output Lithium Battery 800 Watt Solar Panel SGKT-3PRO
3000W 24V Off-Grid Solar Kit
A complete 24V solar power package built for RVs, cabins, small backup systems, and off-grid projects. The SGKT-3PRO combines a 3000W 120V inverter, 800W of solar panels, and a 5.12kWh LiFePO4 battery bank so you can start with the main system components already matched together.
Complete kit foundation
Core inverter, solar, battery, and wiring hardware in one package
The SGKT-3PRO is designed around the main pieces needed for a medium-size 24V off-grid or backup power system: solar panels for charging, lithium batteries for storage, and a pure sine wave inverter for 120V AC output. It is a practical fit for customers who want more than a small portable station, but do not need a full 48V whole-home system.
Built for practical off-grid power
More capable than a small plug-in backup battery
This kit is built for customers who need a more permanent solar power foundation than a grab-and-go power station. The inverter, battery bank, and solar array work together to support properly sized 120V loads for RV power, small home backup, cabins, sheds, and remote property use.
A stronger RV solar foundation
Use the kit as the starting point for RV loads that need inverter output, lithium storage, and solar recharging in one planned setup.
Useful for cabins and remote utility spaces
The 24V inverter, LiFePO4 batteries, and included panel array make this a practical base for smaller off-grid builds and weekend properties.
Cover the essentials when the grid is down
Use it for appropriately sized essentials like refrigeration, lights, fans, internet equipment, small electronics, and other loads after checking wattage and surge demand.

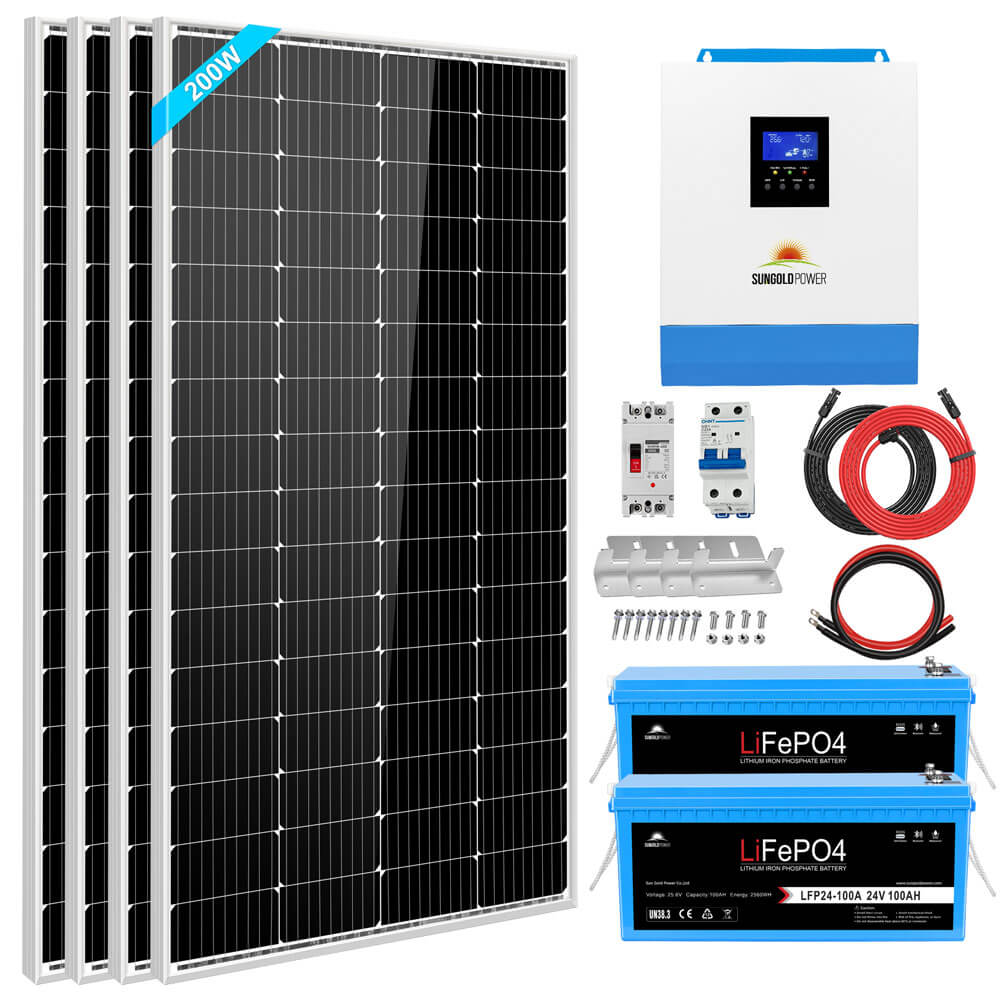

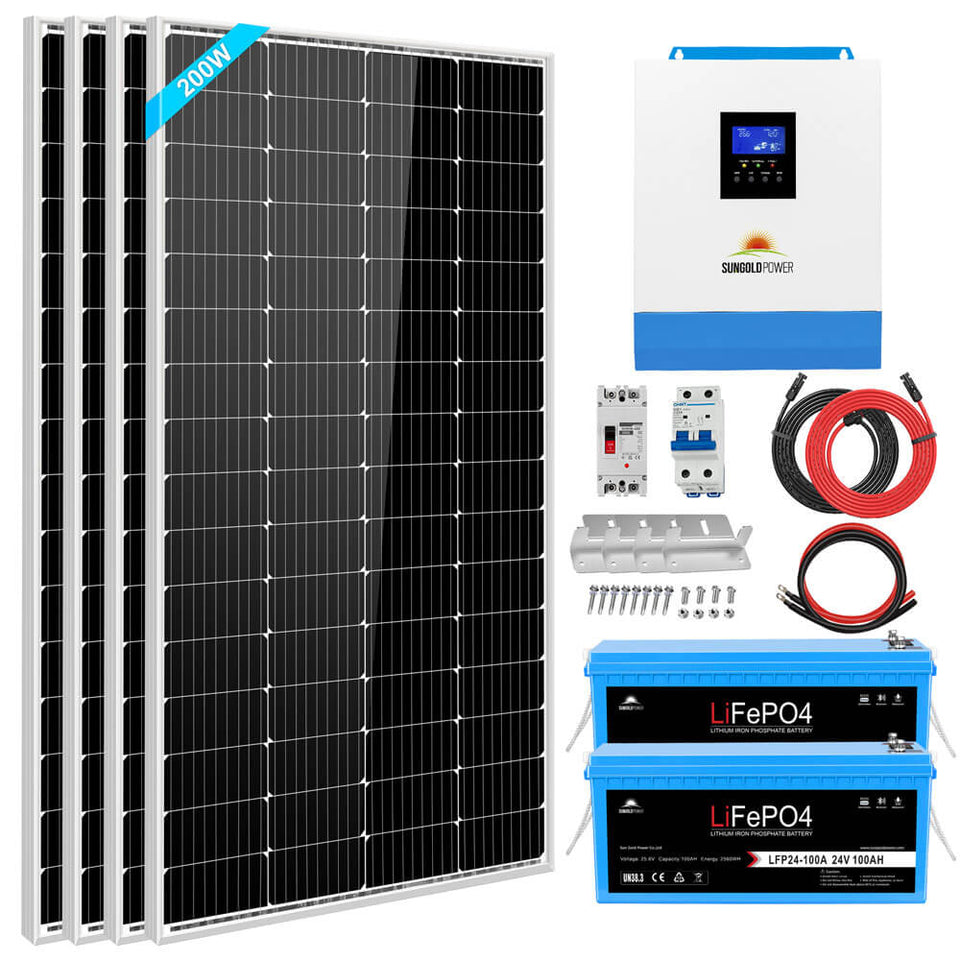

What is included
SGKT-3PRO kit contents
The product page lists the main kit components below. Always confirm final wiring, mounting, breaker placement, grounding, and local code requirements with a qualified installer before installation.
- 1 × 3000W 24V DC / 120V output solar inverter
- 4 × 200W monocrystalline solar panels
- 2 × 24V 100Ah LiFePO4 batteries with Bluetooth
- 4 × sets of solar panel mounting Z-brackets
- 1 × 50 ft solar extension cable set for inverter PV input
- 1 × 200A DC breaker and 1 × 25A PV breaker
- 1 × set of 4AWG cable for breaker-to-inverter connection
Solar + inverter + battery bank
A matched 24V layout for medium-size energy needs
The inverter converts stored battery power into usable 120V AC output, while the solar array helps recharge the batteries from sunlight. Two 24V LiFePO4 batteries provide more useful storage than a basic single-battery setup, making the kit a good fit for RVs, small backup systems, and off-grid spaces with moderate loads.
- 24V system design for efficient medium-size solar and battery builds.
- Solar charging helps reduce generator dependence when sunlight is available.
- LiFePO4 chemistry supports long cycle life and lower-maintenance energy storage.

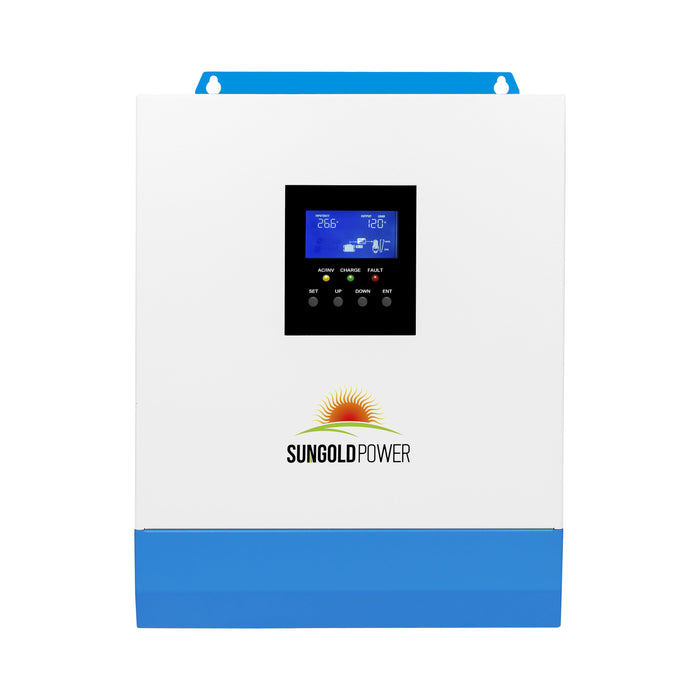

Pure sine wave inverter charger
The center of the 24V system
The 3000W inverter charger is the control point for converting 24V battery power into 120V AC output and managing solar charging. It gives the kit the output needed for many everyday loads, as long as startup surge and total demand are sized correctly.
LiFePO4 battery storage
Battery capacity for essential runtime
The kit includes two 24V 100Ah LiFePO4 batteries, giving the system a listed 5.12kWh storage base. Bluetooth monitoring support helps make the battery bank easier to keep track of during real-world use.
Plan before installing
Best for customers ready to size their loads correctly
This is a solar power system, not a one-cord portable unit. Before ordering, customers should think through daily energy use, startup surge loads, solar panel location, wire runs, breaker placement, battery location, and whether professional installation is needed.
Know what you want to power
List each appliance or circuit, check running watts and surge watts, then compare daily energy use against the battery bank and solar recharge potential.
Panel layout matters
The solar panels need usable sunlight exposure, safe mounting, correct wiring, and minimal shading to perform well.
Have the final system reviewed
Electrical code, grounding, disconnects, overcurrent protection, and safe battery placement should be reviewed before installation.
Component overview
Panels, inverter, and storage without a messy spec-image stack
The kit’s value is that the major power-system pieces are grouped together. These compact visuals show the main hardware while keeping the product description focused and easy to read.
| Solar Kit 3000W 24V Inverter 120V output Lithium Battery 800 Watt Solar Panel SGKT-3PRO | |
| Model SKU | SGKT-3PRO |
|---|---|
| MODEL | |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| 3000 Watt 24V DC 120V Solar Inverter — Rated Output Power | 3,000 W |
| 3000 Watt 24V DC 120V Solar Inverter — Output Waveform | Pure sine wave |
| 3000 Watt 24V DC 120V Solar Inverter — AC Output | 120 V AC, 50/60 Hz |
| 3000 Watt 24V DC 120V Solar Inverter — Rated Battery Voltage | 24 V DC; 22 V minimum start-up voltage |
| 200 Watt Monocrystalline Solar Panels — Maximum Power (Pmax) | 200 W |
| 200 Watt Monocrystalline Solar Panels — Open-Circuit Voltage (Voc) | 43.39 V |
| 200 Watt Monocrystalline Solar Panels — Short-Circuit Current (Isc) | 5.86 A |
| 200 Watt Monocrystalline Solar Panels — Maximum System Voltage | 1,000 V DC |
| Charge | -4°F—113°F (-20℃—45℃) |
| Rated input voltage | 110/120Vac |
| Input voltage range | (90Vac-140Vac) ±2% |
| Efficiency | >95% |
| Rated output voltage | (Vac) 120Vac |
| Output frequency | range (Hz) 50Hz ± 0.3Hz |
| Max. Efficiency | >92% |
| Battery type | Lead acid or lithium battery |
| Charge voltage | range 20 –33Vdc |
| Max. input power | 4000W |
| Open-circuit Voltage (Voc) | 43.39V |
| Short-circuit Current (Isc) | 5.86A |
| Module Efficiency | 20.41% |
| Maximum System Voltage | 1000Vdc |
| Maximum Series Fuse Rating | 10A |
| Cell Type | Mono 166mm |
| Output Cables | 4mm2,Length:(+)1200mm/(-)1200mm+MC4 |
| Listed System Voltage | 24V |
| Listed Solar Power | 3000W |
| CONNECTIONS | |
| 24V 100AH LiFePO4 Battery with Bluetooth — Battery Chemistry | LiFePO4 |
| 24V 100AH LiFePO4 Battery with Bluetooth — Nominal Voltage | 25.6 V |
| 24V 100AH LiFePO4 Battery with Bluetooth — Nominal Capacity | 100 Ah |
| 24V 100AH LiFePO4 Battery with Bluetooth — Nominal Energy | 2,560 Wh |
| 24V 100AH LiFePO4 Battery with Bluetooth — Maximum Discharge Current | 100 A |
| Communication | interface USB/CAN/RS485(WiFi/GPRS)/Dry node control |
| Bluetooth | APP support both iOS and Android system. iOS users can download and install “SGP Battery” |
| PHYSICAL | |
| 24V 100AH LiFePO4 Battery with Bluetooth — Dimensions | 20.7 × 9.4 × 8.7 in |
| 24V 100AH LiFePO4 Battery with Bluetooth — Weight | 45 lb |
| Weight | (kg) 8 |
| Frame | Material Anodized aluminium alloy |
| OPERATING LIMITS | |
| Certification | CE(IEC 62109-1/-2)/FCC/SAA |
| Operating temperature | range -10°C to 55°C |
| Storage temperature range | -25°C ~ 60°C |
| Storage temperature | 68°F~86°F (20℃~30℃ |
| Warranty | 5 years workmanship warranty. |
| PACKAGE | |
| Included Components | 1 × 3000 Watt 24V DC 120V Solar Inverter, 4 × 200 Watt Monocrystalline Solar Panels, 2 × 24V 100AH LiFePO4 Battery with Bluetooth, 4 × Sets of Mounting Z-Brackets, 1 × 50 Feet, Solar Extension Cables-Inverter PV input, 1 × 200A DC Breaker, 1 × 25A PV Breaker, 1 × 4AWG Cable (Breaker to Inverter Connection) |
