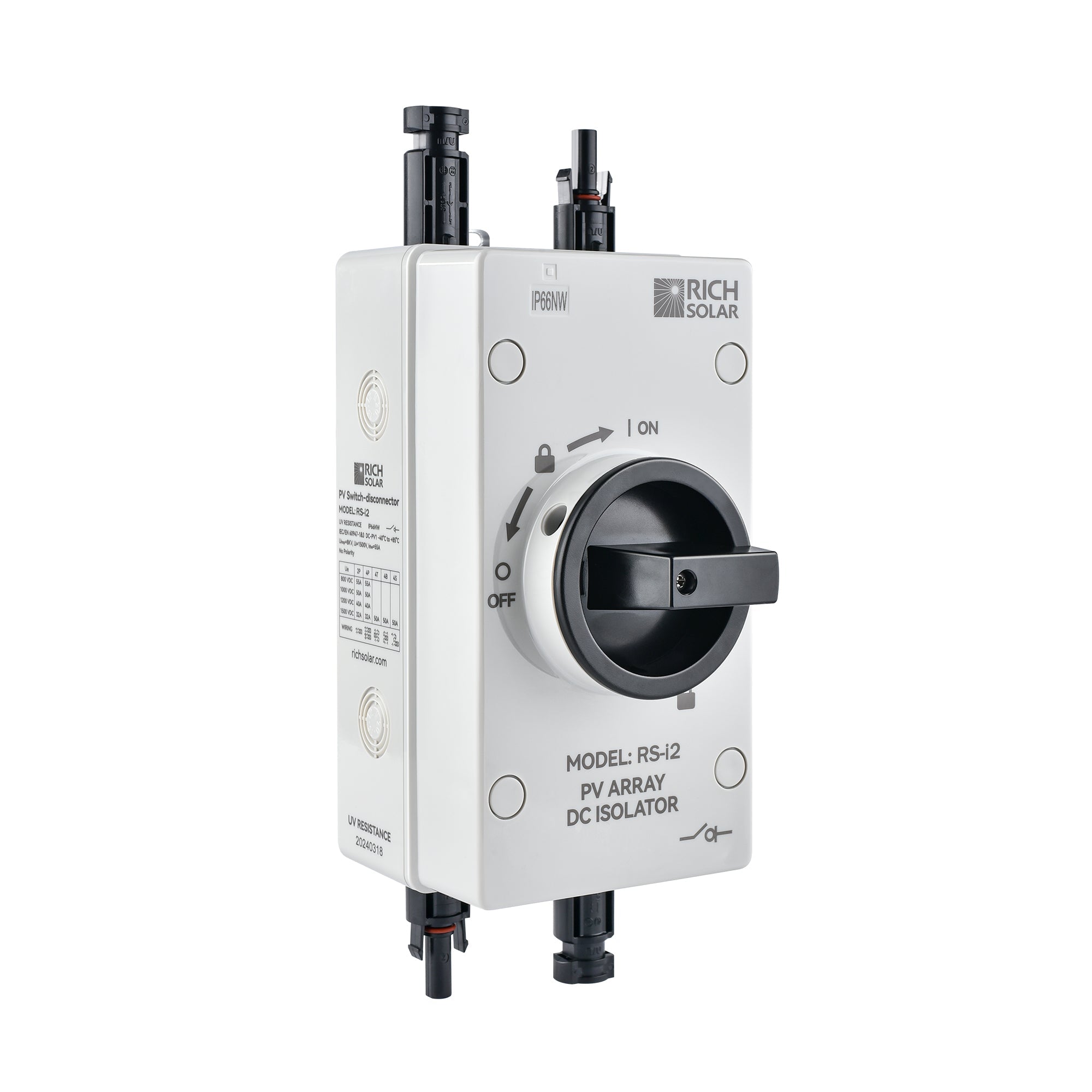

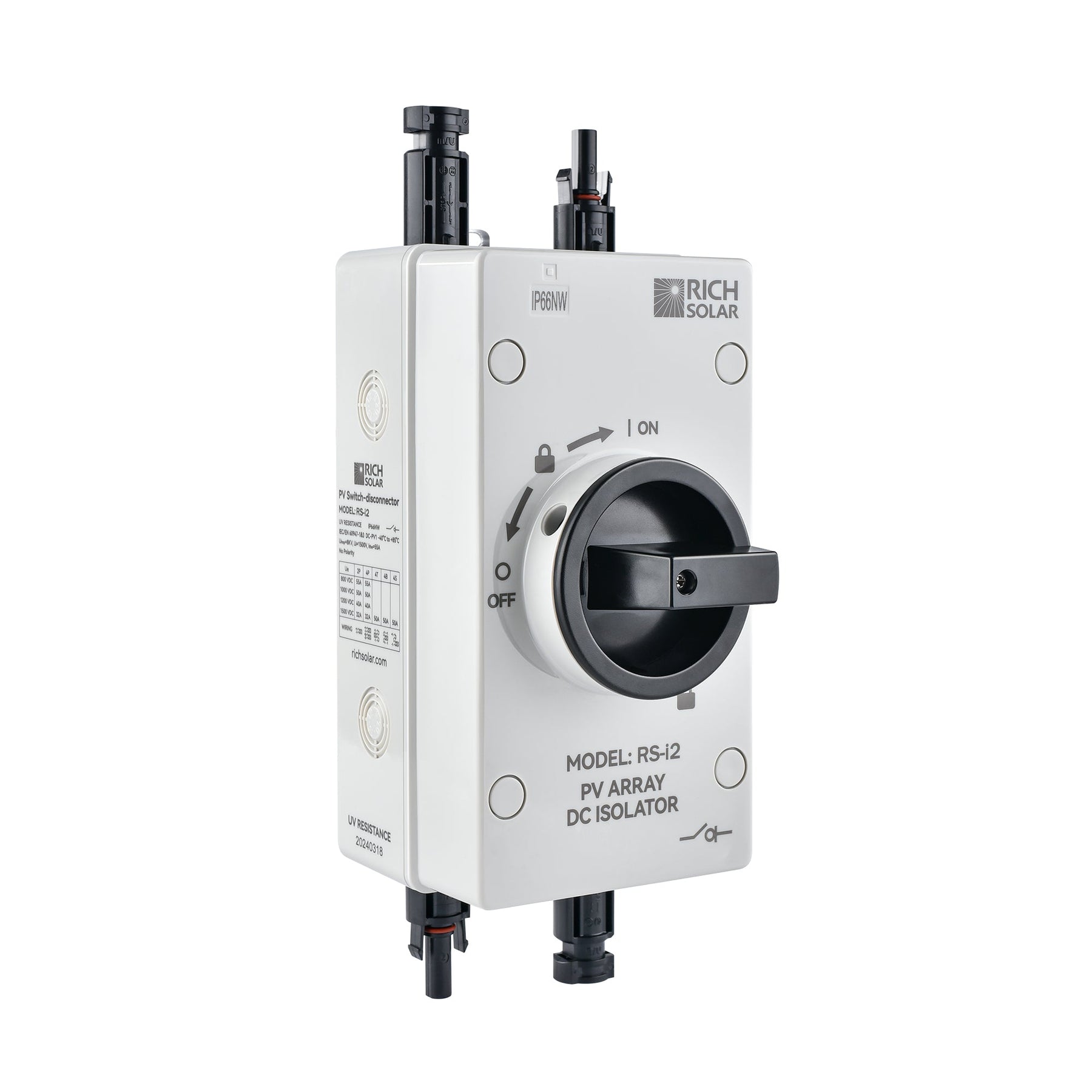

Rich Solar Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 2 Pole 1 String | Easy to Install
Frequently Bought Together
Rich Solar RS-i2 DC Isolator Switch
The Rich Solar RS-i2 DC Isolator Switch provides a safe and reliable way to disconnect DC power between your solar array and critical system components. It is built for outdoor use and is well suited for both off-grid and on-grid solar applications where safe isolation, straightforward installation, and dependable performance matter.
Safe DC Isolation
Quickly disconnect DC power from the solar array to the charge controller, batteries, or inverter when service, maintenance, or system shutdown is needed.
Secure Locking Design
Features an isolated SAFE-LOCK handle with three rotational positions to help reduce tampering and support more secure operation.
Built for Outdoor Use
Designed for outdoor solar installations and suitable for demanding environments where durability and reliable switching performance are important.
Product Overview
The Rich Solar RS-i2 DC Isolator Switch is designed to safely isolate DC power in solar energy systems. It can be installed between the solar array and downstream equipment such as charge controllers, battery banks, and inverters, helping create a safer and more serviceable electrical layout.
This switch is suitable for both off-grid and on-grid applications and is designed for easy setup with accessible input and output connections. It also supports fast circuit disconnection and arc suppression, which is an important part of safer solar system operation.
Best Uses
- Disconnecting DC power from a solar array
- Solar charge controller isolation
- Battery and inverter DC circuit isolation
- On-grid and off-grid solar systems
- Outdoor solar electrical installations
- Creating a more serviceable and safer DC layout
Key Benefits
- Quickly disconnects DC power for service or shutdown
- Outdoor rated for solar applications
- Suitable for on-grid and off-grid systems
- SAFE-LOCK design with three rotational positions
- Lockout option for added control and safety
- Input and output connections designed for easier installation
| Max. Rated Current | 55A |
|---|---|
| Max. Rated Voltage | 1500VDC |
| Poles / Circuit | 2P in series |
| Supported PV Strings | 1 PV string |
| Impulse Withstand Voltage | 8 kV |
| Arc Suppression Time | <3ms |
| IP Rating | IP66NW |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Housing Material | Flame-retardant PC (UL94 V-0) |
| Dimensions (HxWxD) | 9.8x3.8x4.3 in (249.4x97.6x110 mm) |
| Weight | 1.3lb (0.57kg) |
| Certifications | CE |
| Warranty | 3 years |
| Model SKU | RS-i2 |
