Rich Solar • DC Isolator Switch

Rich Solar RS-i4 DC Isolator Switch

The Rich Solar RS-i4 DC Isolator Switch provides a secure way to disconnect DC power between your solar array and downstream equipment. Built for outdoor use, it is designed for on-grid and off-grid solar applications where safe isolation, fast shutoff, and reliable installation matter.

DC power disconnect 4-pole / 2-string Outdoor rated On-grid & off-grid use
⚡

Fast DC Disconnection

Quickly disconnect DC power from the solar array to the charge controller, batteries, or inverter when maintenance, shutdown, or service access is needed.

🔒

SAFE-LOCK Operation

The isolated SAFE-LOCK handle uses three rotational positions to help reduce tampering and support more controlled solar system operation.

☔

Outdoor Solar Ready

Built for outdoor solar electrical installations and suitable for both off-grid and on-grid applications.

Product Overview

The Rich Solar RS-i4 DC Isolator Switch is designed to safely isolate DC power in solar energy systems. It helps create a more serviceable electrical layout by allowing the solar array to be disconnected from charge controllers, batteries, inverters, or other downstream components.

This model is built for 4-pole and 2-string applications, making it a practical choice for solar systems that require a larger DC isolation setup than a basic single-string disconnect. Its input and output connections are designed for easier installation, while the lockout option adds another layer of control during service or system shutdown.

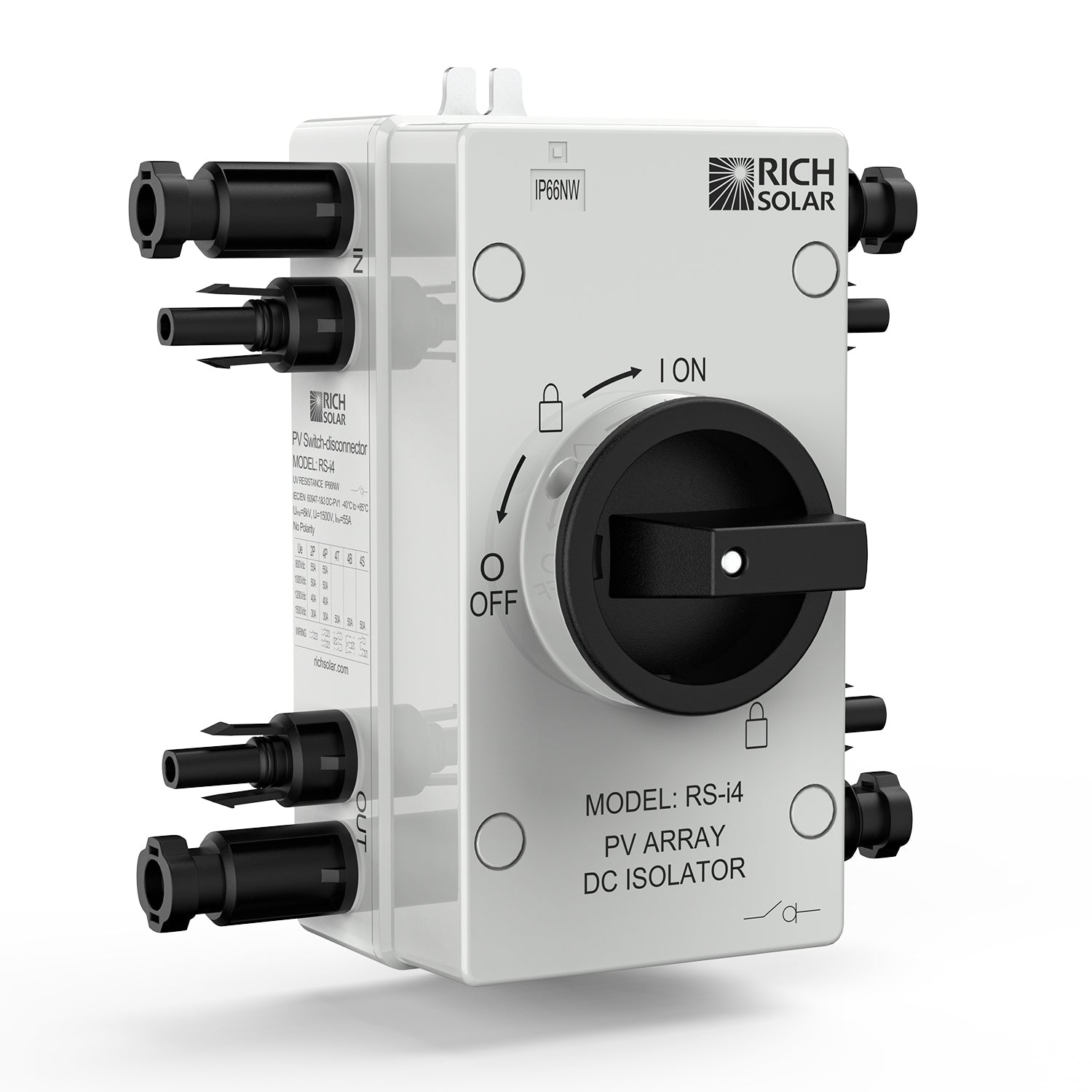

Rich Solar RS-i4 DC isolator switch product or technical drawing

Best Uses

  • Disconnecting DC power from a solar array
  • 4-pole and 2-string solar isolation setups
  • Solar charge controller isolation
  • Battery and inverter DC circuit isolation
  • On-grid and off-grid solar systems
  • Outdoor solar electrical installations

Key Benefits

  • Quickly disconnects DC power for service or shutdown
  • Outdoor rated for solar applications
  • Suitable for on-grid and off-grid systems
  • SAFE-LOCK design with three rotational positions
  • Supports 4-pole and 2-string applications
  • Lockout option for added control and safety
  • Input and output connections designed for easier installation
Compatibility note: Before ordering, confirm your system voltage, current requirements, string layout, conductor size, enclosure location, disconnect placement, and all applicable electrical code and installation requirements.
Rich Solar Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 4 Pole 2 Strings | Easy to Install
Package Includes
1x Rich Solar Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 4 Pole 2 Strings | Easy to Install
Includes the selected item based on the current package option.
Max. Rated Current 55A
Max. Rated Voltage 1500VDC
Poles / Circuit 4P in series
Supported PV Strings 2 PV strings
Impulse Withstand Voltage 8 kV
IP Rating IP66NW
Arc Suppression Time <3ms
Operating Temperature -40°F to +185°F (-40°C to +85°C)
Housing Material Flame-retardant PC (UL94 V-0)
Dimensions (HxWxD) 7.1x6.8x4.3 in (179.5x173.9x110 mm)
Net Weight 1.6lb (0.73kg)
Certifications CE
Warranty 3 years
Nominal Insulation Voltage 1500V
Conventional Thermal Current 32A
Selected variant SKU RS-i4
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
📄
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
📄
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

Why does the two-string RICH SOLAR disconnect use four poles instead of two? This model supports two PV strings and provides 4 poles in series for their disconnect arrangement. It differs from the one-string, 2-pole version, so choose from the actual number of circuits and the wiring diagram rather than enclosure size. Can I combine two PV strings inside the 4-pole quick-disconnect enclosure? The page identifies support for two strings but does not describe the unit as a fused combiner. String combining, reverse-current protection, conductor sizing, and parallel-source rules require separate confirmation from the system design and applicable electrical standard. What must be calculated before applying the 1,500V 40A ratings to both strings? Check each string's cold-weather open-circuit voltage, operating and short-circuit current, parallel-current effects, conductor ratings, derating, and the connected equipment's input limits. The published 40A thermal rating is not a substitute for those calculations. How is the dual-string PV switch protected for an exposed installation? The enclosure is listed IP66NW and uses flame-retardant UL94 V-0 polycarbonate, with operation from -40°F to 158°F. Maintain the rating with appropriate cable entries, mounting orientation, supports, sealing, and service clearances. Can the 4-pole disconnect be locked off while servicing downstream solar equipment? Yes. Its isolated SAFE-LOCK provides three rotational positions and a lockout option. Locking the switch protects against casual operation, but the array remains live on the line side and all sources must be identified and verified under the service procedure. Does the dual-string switch interrupt a DC arc as quickly as the one-string model? RICH SOLAR publishes an arc-suppression time under 3ms for this 4-pole model. If a switch shows heat, damage, water intrusion, or difficult operation, de-energize it safely and inspect the installation rather than relying on the stated opening speed.
