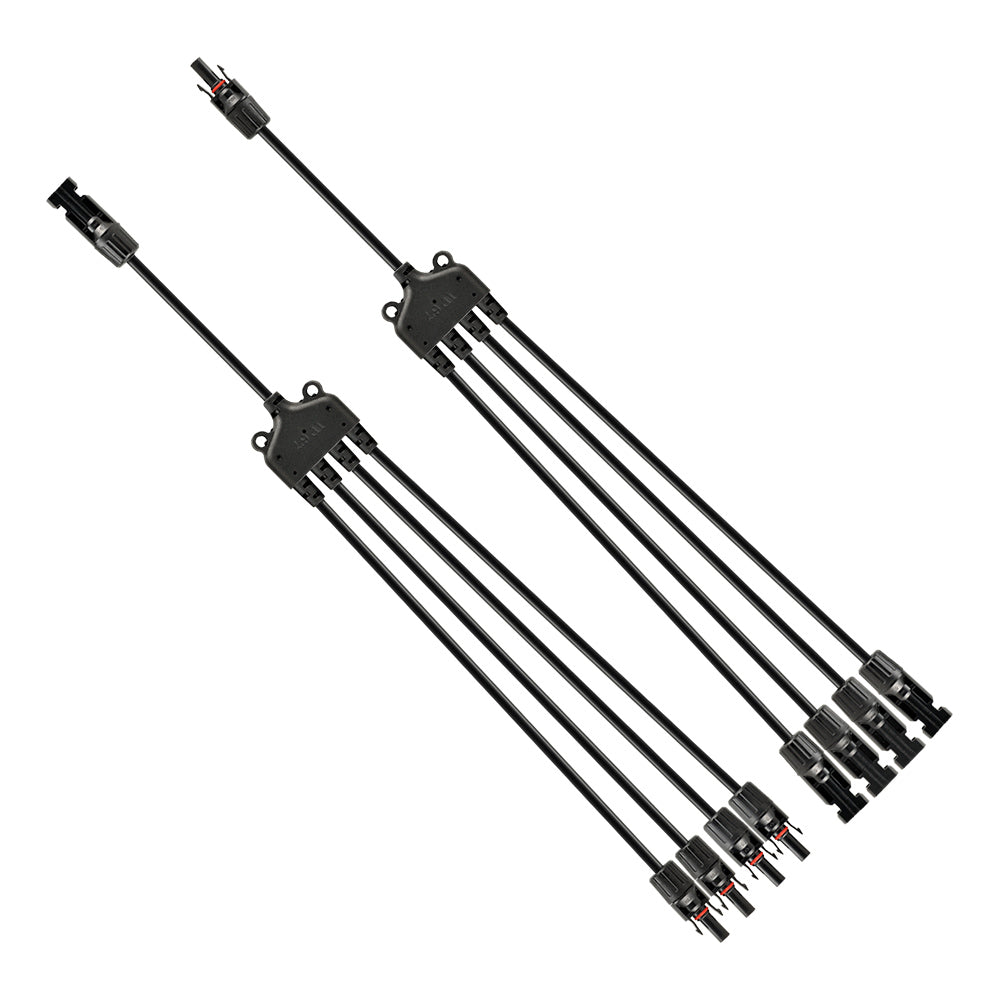

Rich Solar Y Branch Parallel Adapters 4-to-1 | 4-to-1 Weatherproof Parallel Adapters for Solar Panels | Easy to Install Rich Solar Y Branch Parallel Adapters 4-to-1 | 4-to-1 Weatherproof Parallel Adapters for Solar Panels | Easy to Install

Can four panels be added to one controller simply by using the 4-to-1 adapter? Only if the four-panel array remains within the controller's PV current, voltage, power, and short-circuit limits and the modules are suitable for parallel operation. The adapter changes branch count; it does not increase controller capacity. How should the 20A limit be applied to the four-way solar adapter? Apply it to the common adapter path, not independently to each panel input. Sum expected and design-basis branch current, then check the 12AWG leads, downstream cable, disconnects, protection, and controller against the resulting array current. Why should all four panels have closely matched operating voltages? Parallel modules share a common operating voltage. Substantially mismatched voltage characteristics can reduce harvest or produce undesirable current behavior even if the plugs fit, so compare the exact module electrical specifications and controller guidance. Is the 4-to-1 Y assembly designed for year-round array temperatures? Its published range is -40°F to 194°F with IP67 protection. Preserve that performance by fully mating compatible connectors, supporting the branch weight, avoiding sharp bends and abrasion, and keeping unused or disconnected ends sealed. What protection should be reviewed when four PV sources are paralleled? Check each module's maximum series-fuse value, possible reverse current from the other branches, output-conductor ampacity, combiner requirements, disconnecting means, and controller input protection. The adapter itself is not a fused combiner.
