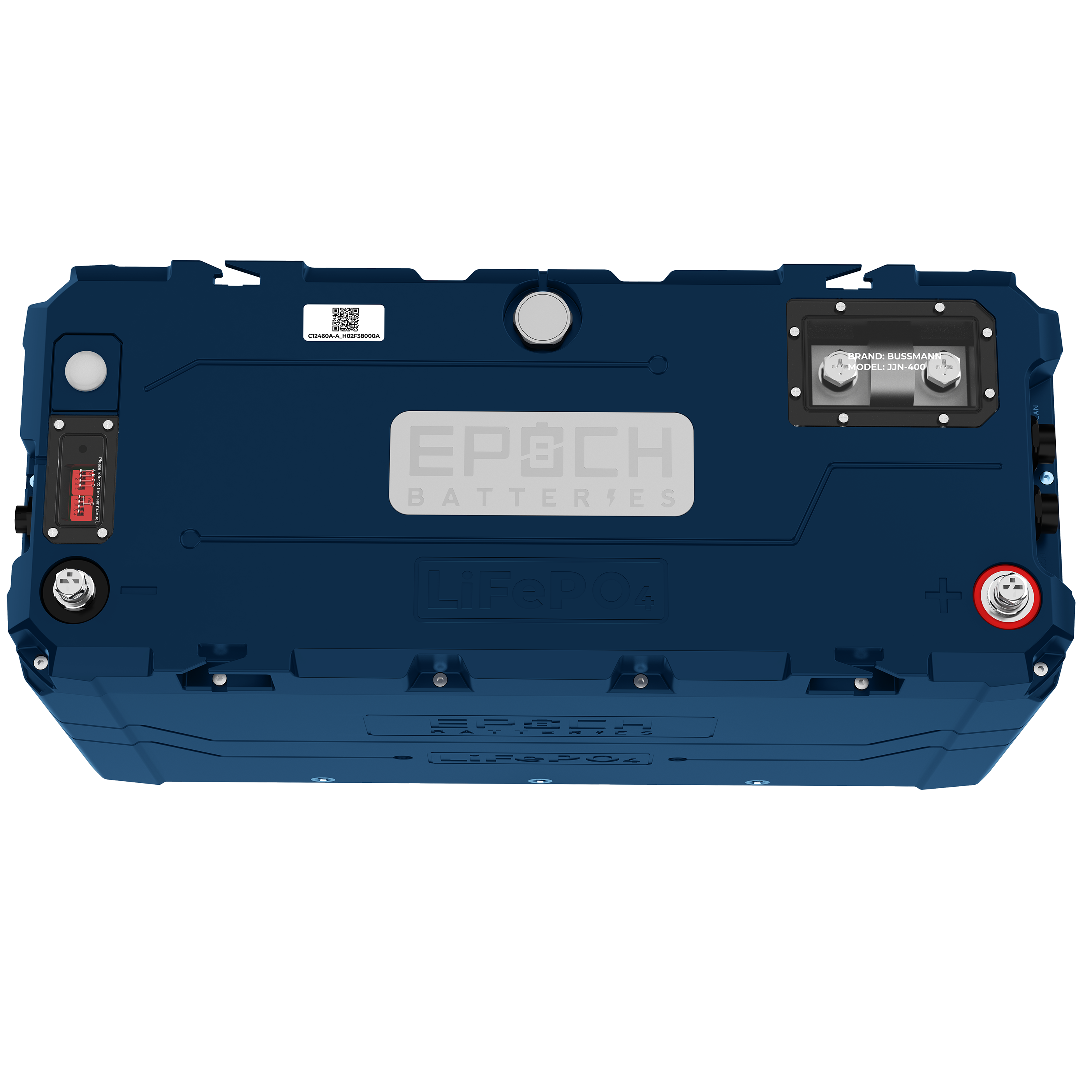

12V 460Ah (5.89kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
The 12V 460Ah (5.89kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery helps complete a more capable solar and off-grid power and backup energy storage setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.
Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.
- Product role: Victron System Component
- Best-use applications: solar and off-grid power and backup energy storage
- Notable features: Bluetooth monitoring support, built-in heating for cold-weather charging support, Victron-compatible system communication, and solar and off-grid system integration
- SKU: C12460A-A
For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.
| 12V 460Ah (5.89kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery | |
| Model SKU | C12460A-A |
|---|---|
| MODEL | |
| 12V 460Ah Elite This model | 460Ah |
| Product Type | Battery |
| ELECTRICAL | |
| Series | V2-T Elite Series |
| Battery type | 12V heated Bluetooth LiFePO4 deep-cycle battery |
| Application focus | Marine, RV, solar, off-grid, industrial, and professional 12V power systems |
| Chemistry | LiFePO4 / lithium iron phosphate |
| Cell configuration | 4S2P |
| Victron integration | DVCC / distributed charge control through compatible GX devices |
| Nominal voltage | 12.8V |
| Nominal capacity | 460Ah |
| Energy capacity | 5.888kWh / 5.89kWh |
| Maximum voltage | 14.52V |
| Minimum voltage | 10.4V |
| Operational state of charge | 0–100% |
| Self-discharge rate | ≤3% per month |
| Published continuous discharge | 230A @ 25°C |
| Published continuous charge | 210A @ 25°C |
| Peak discharge output | 500A for 30 seconds; 1,300A for 1 second |
| Integrated fuse | User-serviceable 400A Eaton Class T fuse |
| Parallel connections | Up to 16 batteries in parallel |
| Series-parallel configuration | Not supported |
| Absorption voltage | 14.2V |
| Float voltage | 13.5V |
| Charge profile | CC/CV, no equalization |
| Victron systems | Use the communication harness, confirm battery visibility on the GX device, enable DVCC, and set Epoch as controlling BMS |
| Battery Features | Bluetooth monitoring, Self-heating, LiFePO4 chemistry |
| CONNECTIONS | |
| Bluetooth | Bluetooth 4.0, compatible with the Epoch app |
| CAN communication | CANbus 500kbit/s with Victron communication support |
| GX communication | Compatible GX device support through BMS CAN connection and DVCC setup |
| Terminals | M8 bolts |
| Terminal torque | 12 N·m / 8.85 lb-ft |
| PHYSICAL | |
| Length | 20.86 in / 529.8 mm |
| Overall dimensions | 20.86 in L × 8.65 in W × 12.06 in H |
| Weight | 97.55 lb / 44.25 kg |
| Case material | PC + ABS, UL94 V-0 |
| OPERATING LIMITS | |
| Cycle life | 4,000+ cycles published product rating |
| Internal fuse certification | UL60691 certified internal fuse |
| Charge temperature range | 0°C to 50°C / 32°F to 122°F, with internal heating support |
| Discharge temperature range | -20°C to 50°C / -4°F to 122°F |
| Storage temperature range, ≤1 month | -20°C to 45°C / -4°F to 113°F |
| Storage temperature range, ≤1 year | 0°C to 35°C / 32°F to 95°F |
| Charge low-temperature protection | 0°C, with heating behavior |
| Ingress protection | IP67, dust-tight and immersion-rated to ≤1m for ≤30 minutes with seals/glands installed |
| Cell certifications | UL1642, UL9540A, IEC 62619:2022 certified cells |
| Pack certification | UL1973 certified battery pack |
