Your RV battery is getting harder to trust. Maybe the lights dim before breakfast, the furnace quits sooner than you expected, or the old battery is simply due for replacement. You start looking at lithium, and the upgrade sounds appealing—until you wonder what else you would have to change.
Will your existing charger work? Can you keep your solar panels? What happens when the truck or motorhome charges the battery while you drive?
Yes, you can often replace an RV’s lead-acid house battery with a lithium iron phosphate battery, usually called LiFePO4. The replacement needs to suit the RV’s voltage, electrical loads, charging equipment, wiring, and installation space. Matching the old battery’s size is only the beginning.
I’d work through those questions with you before choosing a battery. That way, you can understand which equipment you can keep, which settings need changing, and which extra parts belong in the budget.
This guide focuses on the house battery that powers your living area, primarily in nominal 12V systems. Replacing a motorhome’s engine-starting battery is a different job.
Start with what you want the upgrade to fix
Picture your usual camping trip. Are you plugged into campground power most nights, or are you trying to make it through a weekend without hookups?
For frequent off-grid camping, more usable stored energy, lower battery weight, and a charging setup that can replenish what you use may be valuable. If your RV spends nearly every night connected to shore power, a healthy lead-acid battery may already cover your needs. I wouldn’t replace functioning equipment simply because lithium is available.
I would also check whether the battery is actually causing the problem. A battery that never gets fully charged, a loose connection, or an unexpected overnight load can make the system disappointing even when the battery itself is healthy. A new battery won’t repair a damaged cable or make an unsuitable charger suitable.
Write down what you want to improve: another night without hookups, less weight on the trailer tongue, fewer battery-maintenance chores, or reliable power for specific appliances. Those goals give us something useful to size the upgrade around.
First, find out what your existing battery bank really is
Two batteries don’t automatically mean a 24V system. Before shopping, photograph the labels and the existing connections without disturbing them. Look for the voltage, amp-hour rating, battery chemistry, and model numbers.
Two matched 6V, 200Ah lead-acid batteries connected in series form a 12V, 200Ah bank. Two matched 12V, 100Ah lead-acid batteries connected in parallel also form a 12V, 200Ah bank. The battery count is the same; the connections are different.
Choose the replacement for the RV’s system voltage and actual energy needs.
This matters when someone says, “I’m replacing two old batteries with two lithium batteries.” Copying the old connections could create the wrong voltage. A nominal 12V LiFePO4 battery is commonly labeled 12.8V; that doesn’t make it a 6V replacement.
Use the RV’s documented system voltage and the new battery manufacturer’s permitted configurations. Some lithium models support particular series arrangements; others are intended for parallel expansion only. Don’t assume a connection is allowed because another brand permits it.
If the labels are unreadable or the wiring is unclear, identifying the existing bank is the first job for an RV technician. That information is more useful than guessing from the shape of the battery box.
Choose capacity for your camping routine, then check current separately
Amp-hours help describe battery capacity, but I find watt-hours easier when we’re comparing different batteries and appliances. The basic relationship is nominal voltage × amp-hours = nominal watt-hours.
For illustration, a 12V, 200Ah lead-acid bank represents about 2,400Wh nominally. If you plan around using 50%, that gives you about 1,200Wh before allowing for other losses. A 12.8V, 100Ah lithium battery contains 1,280Wh nominally; an illustrative 80% planning window gives about 1,024Wh.
Those percentages are planning assumptions, not universal limits or measured results. Lead-acid performance also depends on discharge rate, temperature, and condition. The useful lesson is that one 100Ah lithium battery is not automatically equivalent to every 200Ah lead-acid bank.
Now estimate what your actual trip needs. Suppose your measured or carefully estimated battery-side use is 700Wh per day. Two days without charging require 1,400Wh, before a reserve. That already exceeds the entire nominal energy of one 12.8V, 100Ah battery. You need more storage, reliable charging during the trip, lower consumption, or a combination.
Include the refrigerator, furnace fan, lights, water pump, electronics, and anything left running overnight. For AC appliances, include inverter losses. If solar is part of the plan, our guide to sizing solar panels for a 100Ah battery explains how to account for both recharging and ongoing use.
Enough energy does not guarantee enough power
A lithium battery’s battery management system, or BMS, monitors the battery and can disconnect it when a protection limit is reached. Its current limits matter when you run an inverter, slide-out, leveling equipment, or other demanding loads.
Here is an illustrative inverter calculation: a 1,500W AC load, supplied at 12V with 90% inverter efficiency, needs about 139A from the battery: 1,500 ÷ 12 ÷ 0.90. That exceeds a battery rated for 100A continuous discharge, even before other loads are included.
A brief peak-current rating is not permission to draw that current continuously. Check the allowed duration, equipment startup demand, and the combined loads. A battery that has enough energy for your evening can still shut down when you start one demanding appliance.
Check all three ways your RV charges the battery

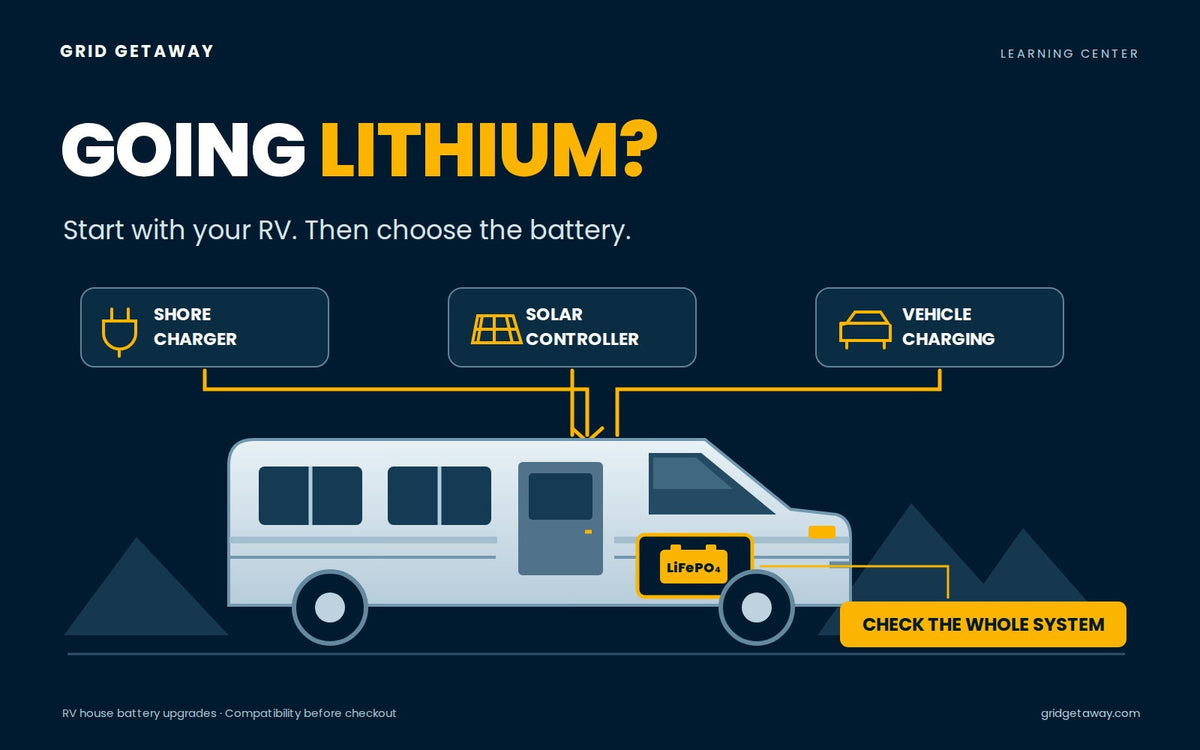

This is where I’d spend most of the planning time. Your RV may charge from a campground hookup, solar panels, and the vehicle. Each path needs checking, even if you rarely use it.
1. Charging from shore power
When you plug the RV into campground electricity, a converter/charger commonly turns AC power into DC power for the RV and its battery. Some systems use a combined inverter/charger instead. An inverter on its own does the opposite job—making AC from the battery—and may not charge anything.
Find the exact converter or inverter/charger model. Then check whether it has a supported LiFePO4 profile, adjustable settings, or chemistry detection. You may be able to keep it. You may need to configure it. An incompatible unit may need replacement.
For example, WFCO’s Auto-Detect system is designed to recognize lead-acid and LiFePO4 batteries and select a charging profile. That is a reason to inspect the model already installed before buying a replacement. It is not evidence that every older WFCO converter has the same capability.
Compare the charger’s actual voltage, charging stages, and current with the new battery’s instructions. Check whether it can run an equalization or desulfation routine intended for lead-acid batteries; an unsuitable high-voltage routine must not be applied to your lithium battery.
Don’t settle for “the charger turns on.” The questions are whether it charges the battery appropriately and whether its instructions match the battery’s requirements. If the documents disagree or leave something unclear, get the equipment manufacturers’ confirmation before using that combination.
2. Charging from solar panels
Changing battery chemistry does not automatically mean buying new solar panels. The key component between the panels and a house battery is the solar charge controller, which regulates charging.
Check its supported battery profiles and adjustable settings against the battery manual. Also verify its output-current rating and the existing array’s voltage and current limits. An MPPT label by itself does not prove that its available settings suit your chosen battery.
If the controller is suitable, changing and verifying its configuration may be all that is needed on this charging path. If it cannot provide appropriate charging, a controller replacement may make sense while the panels stay.
Our MPPT vs. PWM controller guide walks through the controller choices. If you are also changing how you camp, the portable vs. roof-mounted RV solar guide helps separate panel placement from battery selection.
If your portable panel has its own regulator, check that too. Identify every device that controls charging rather than assuming all solar connections pass through the same controller.
3. Charging while you drive
For a motorhome or van, trace the connection between the vehicle charging system and the house battery. It might include a relay, isolator, existing DC-to-DC charger, or manufacturer-specific charging equipment.
A DC-to-DC battery charger can control the charging current and provide an appropriate battery profile. The design must also respect the alternator’s available output, the vehicle manufacturer’s requirements, cable capacity, and protection on the charging circuit.
The Victron Orion XS 12/12-50A is one option to assess when adjustable charging is useful. Its settings allow input and output current limits to be configured. That does not mean every alternator or existing cable can support a 50A setting.
The RICH SOLAR DC-to-DC charger range offers 20A, 40A, and 60A versions. Its installation manual specifies a D+ ignition connection for operation. That small control wire belongs on the parts list along with the heavier charging conductors and protection.
There is a compatibility catch in these examples: that charger manual lists its LFP charging setting as 14.6V ±0.1V. The ALPHA 1 series battery datasheet discussed below specifies a 14.4V maximum. I would not pair those documented settings, even though both products carry the RICH SOLAR name. Choose charging equipment with a profile confirmed to match the exact battery; do not improvise with another chemistry mode.
For a towable trailer, the existing 7-pin charge feed needs its own assessment. It is not automatically equivalent to a dedicated high-current circuit. Don’t attach a higher-output charger and expect the original trailer connector and wiring to carry whatever it demands. Some chargers are specifically designed for limited-current trailer feeds; others require a separately designed connection.
I would have the installer document what stays connected while towing, how charging is controlled, and how the starter battery is protected from unwanted discharge. Simply adding a charger without accounting for an existing bypass path can leave part of the original problem in place.
Add the charging sources together
Solar and another charger can operate at the same time. Suppose a converter can supply 40A and solar can supply another 20A. That creates a possible 60A charging input before accounting for DC loads and actual operating conditions.
If the intended battery charging limit is 50A, two individually reasonable chargers could exceed it together. The system needs coordinated limits or settings that keep the combined charging within the battery bank’s requirements. A maximum battery rating is a ceiling, not a target you must reach.
This is also why I wouldn’t recommend a 100A converter simply because you are buying a 100Ah battery. Amps describe current; amp-hours describe capacity. Matching the numbers does not establish compatibility.
Choose a battery that fits your installation, including the weather
Measure the tray or compartment, including height above the terminals. Account for cable bends, terminal covers, hold-downs, service access, and the battery’s permitted mounting orientation. A smaller case can be useful, but it still needs secure mounting for travel.
For an exposed location, check the battery’s environmental rating and installation instructions. Keep required ventilation for other equipment or remaining lead-acid batteries. Relocating a battery also changes cable lengths and mounting requirements; it is a system change, not just a way to find spare space.
Cold weather deserves a separate check. Low-temperature charging protection and an internal heater are different features. Protection can stop charging when the cells are too cold. A heater can help warm them under the conditions specified by the manufacturer.
Ask what powers the heater, what input it requires, and when charging can resume. A sunny panel or a running engine does not guarantee that a cold battery is accepting charge at that moment. Check the battery’s internal temperature information when available; the afternoon air temperature does not tell you everything about a battery that spent the night in a cold compartment.
Four battery options I would compare for different priorities
These are examples from our catalog, not a universal replacement kit. Confirm the exact version, settings, and installation requirements before ordering.
| Battery | Why consider it? | What I would check first |
|---|---|---|
| RICH SOLAR ALPHA 1 LITE | A 12.8V, 100Ah option when you do not need built-in heating or Bluetooth. | Its 100A continuous discharge limit and the temperature of the installation location. LITE has no internal heater. |
| RICH SOLAR ALPHA 1 | The 100Ah ALPHA option with internal heating and Bluetooth monitoring. | Heater requirements, available charging power, physical fit, and the same 100A continuous discharge limit. |
| Renogy Core Mini 12.8V 100Ah | A compact option: the listed case measures 9.02 × 5.43 × 8.39 inches. | Mounting and terminal clearance. The standard Core Mini is distinct from the separately named DuoHeat version. |
| SOK SK12V100H | A 100Ah option with Bluetooth and built-in heating. | The exact unit’s charging limits, heater operation, and fit. Do not copy another brand’s charger settings. |
Here is a useful model-specific difference. RICH SOLAR’s ALPHA 1 series datasheet lists 14.2V as the recommended charging voltage and 14.4V as the maximum. The current SOK SK12V100H listing specifies a recommended 14.6V charging voltage. A fixed 14.6V setting therefore cannot simply be carried over to the ALPHA example.
The Core Mini manual linked with our listing also separates continuous current from brief peak current and specifies its charging-temperature range. Read the document supplied for the exact battery revision you receive. Similar product names do not remove that check.
None of these 100Ah examples establishes the capacity your RV needs. If your energy calculation points to a larger bank, choose a suitable larger battery or an explicitly permitted matching-battery arrangement, then assess the charging and wiring for that bank.
Build the cable and protection list before checkout
This is the part that can turn a straightforward purchase into several extra orders. A battery box full of cables doesn’t mean the existing connections fit the new battery, and a red-and-black cable pair doesn’t necessarily cover a complete installation.
3 cable sections shown
2 cable sections shown
Length + conductor size + terminal fit + protection.
For a battery replacement or relocation, I would have the installer itemize:
- Positive and negative power cables: sized for current, installed conditions, voltage drop, and the entire current path—not chosen from battery capacity alone.
- Battery-side fuse and holder: suitable DC voltage, current rating, fault-interrupt capacity, and placement for the design. Include covers and mounting hardware.
- Every extra cable section: adding a fuse holder, disconnect, distribution block, or shunt usually changes the required cable count and lengths.
- Correct terminations: lug holes that match the actual studs, suitable wire preparation for clamp terminals, and appropriate insulation and strain relief.
- A rated disconnect and distribution equipment where needed: checked against the RV’s required always-live circuits.
- Mounting and protection: battery restraint, terminal covers, cable supports, abrasion protection, and grommets where conductors pass through openings.
Where RICH SOLAR cables can fit
Our RICH SOLAR 2 AWG battery cable pair has preinstalled 5/16-inch lugs. Our RICH SOLAR 1/0 AWG pair uses 3/8-inch lugs. Those are different terminal openings as well as different conductor sizes.
Use them where the specified gauge, length, lug fit, and cable ratings suit the actual circuit. A larger conductor does not make the wrong lug suitable, and ring-terminal cables are not ready-made connections for every charger’s clamp terminals.
There is also a simple counting issue. A positive run interrupted by a separate fuse holder needs a conductor on each side of that holder. Add a separate disconnect and you may need another section. On the negative side, a battery-monitor shunt can require another short cable. Order from the finished connection plan, not from the assumption that one pair covers everything.
A fuse’s amp rating is only part of its specification. Its interrupt rating describes the fault current it can safely break. The BMS does not eliminate the need for appropriate external circuit protection. Victron’s Wiring Unlimited reference explains why lithium-system fuse selection must include that fault-current assessment.
If you add a DC-to-DC charger
The charging circuit needs suitable input and output conductors, the specified negative return or grounding connections, protection near battery-fed sources, and any required control wiring. Trailer installations may also need a suitably rated detachable connector and a new protected cable route between vehicle and trailer.
For a concrete reference, the Orion XS installation manual includes a cable-length table and a 60–70A external battery-protection fuse recommendation for that charger. Its listed minimum conductor sizes change with length. Those instructions apply to the charger circuit; they are not the fuse specification for your inverter or the whole RV.
Have the installer check the exact manual, complete cable route, terminal limits, and vehicle requirements before selecting parts. I would rather give you the right questions and a verified equipment reference than pretend one cable gauge works for every motorhome and trailer.
Make the battery monitor and the RV’s essential systems part of the plan
Your old battery display may rely mainly on voltage. Lithium’s relatively flat voltage through much of its discharge makes that approach less useful for estimating remaining capacity. An appropriate battery monitor can give you a clearer picture of energy going in and out.
A shunt-based monitor measures current through a small sensing component in the battery circuit. For a whole-bank monitor, the loads and charging paths need to be on the correct side of that shunt so they are counted. A bypassed connection can make the display misleading even when the monitor works properly. Configure capacity and synchronization settings for the new bank.
Also check slide-outs, leveling jacks, inverter startup, and any emergency-start or battery-combine function. For a trailer, have the RV or brake-system manufacturer’s requirements for breakaway power confirmed. Do not move an essential brake feed behind a new disconnect or assume a portable power station can take over that function.
The goal is a battery system that supports the RV’s actual functions, including what happens when the BMS disconnects. That review belongs with the RV manufacturer’s instructions and a qualified installer, especially when changing the original electrical design.
Decide what stays, what changes, and what the upgrade really costs
Before spending money, I’d want a written list with three categories: equipment that stays, settings or connections that change, and parts that need replacing. That makes the quote much easier to understand.
Ask for the battery and mounting costs, any converter or controller work, vehicle-charging equipment, cables and protection, monitoring, and installation labor separately. A battery-only price tells you very little about an RV that also needs a new charging circuit.
For an RV with a suitable converter, configurable solar controller, adequate wiring, and an approved vehicle-charging arrangement, the job may be relatively contained. Another RV may need several changes before the same battery becomes an appropriate choice.
If the complete upgrade is larger than your camping needs justify, keeping a suitable lead-acid setup is a reasonable decision. If you regularly run short of power away from hookups, a properly planned lithium system may solve a problem you feel on every trip.
Before the first campsite outing, have each charging source and the combined charging behavior checked, confirm the monitor works, and verify the RV functions affected by the change. Keep the final settings and equipment model numbers with your RV records. You will appreciate having them when a charging question comes up later.
Questions I’d expect before you make the switch
Can I keep one lead-acid house battery and add one lithium battery?
Don’t directly parallel them as one mixed house bank. Their charging and operating characteristics differ. A lead-acid starter battery charging a separate lithium house battery through an appropriately designed DC-to-DC system is a different arrangement. Have any other mixed-chemistry design explicitly approved for the equipment involved.
Will lithium make every outlet work without hookups?
The battery upgrade alone does not create an AC supply. Outlets need an appropriate inverter and a correctly designed RV distribution arrangement to operate from batteries. Battery capacity, inverter output, wiring, and the connected appliances must all support the intended use.
Can I replace two 6V batteries with one 12V lithium battery?
Potentially, if the old pair forms a 12V house bank. Check usable energy, current capability, physical fit, and every charging source. One battery being labeled “12V” does not prove it can replace the capacity or starting demands of the old pair.
Do I need a heated battery?
That depends on the temperatures the battery experiences and whether you need to charge in those conditions. Compare an approved protected installation location with a heated model’s requirements. A low-temperature cutoff protects against unsuitable charging; it does not warm the battery by itself.
Can I install the replacement myself?
You can gather labels, measure space, list appliances, and organize the manuals before the job. For installation, follow the battery, equipment, and RV instructions, including their installer requirements. Changes involving AC equipment, alternator circuits, high-current wiring, or essential trailer systems warrant qualified RV electrical help.
After checking your existing charging equipment, compare the Renogy Core 12V 300Ah lithium battery and Rich Solar ALPHA 1 12V 100Ah lithium battery as two different capacity options. Confirm dimensions, charging profile, current limits, and installation fit against your RV’s actual system.
The next step is a short equipment list
You don’t need to know every electrical term before choosing an upgrade. Start with the RV model and year, photos of the battery labels, the converter model, the solar controller model, and what you want to run away from hookups.
Then we can work from your actual setup: choose enough battery capacity, confirm that your equipment can charge it correctly, and identify the connections the installation needs.
That is how I would approach replacing your RV’s lead-acid battery with lithium—one clear decision at a time, with a complete plan before the battery arrives.
