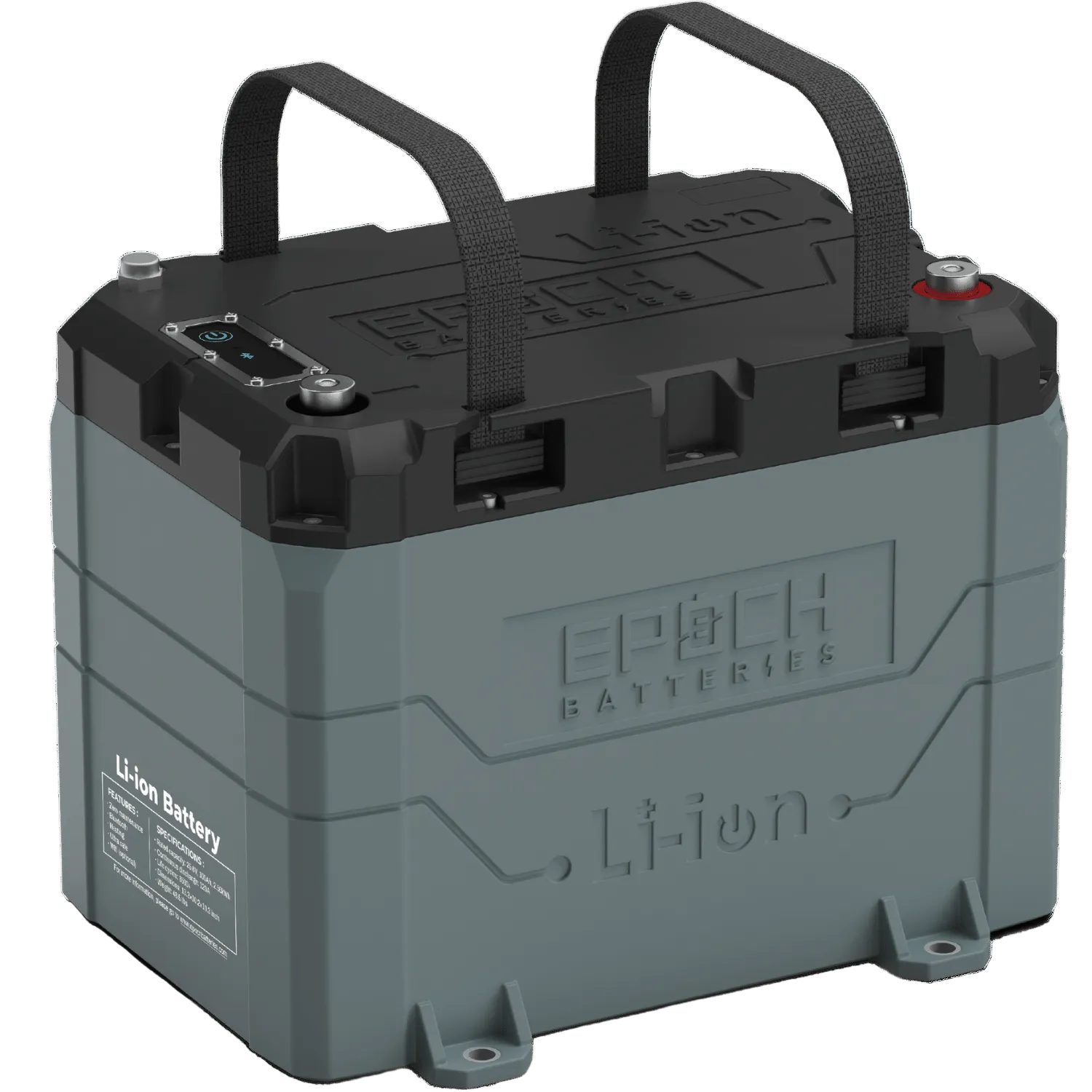

24V 100Ah (2.56kWh) LiFePO4 Lithium Battery - Bluetooth Heating Waterproof
The Epoch 24V 100Ah (2.56kWh) LiFePO4 Lithium Battery - Bluetooth Heating Waterproof gives customers a lithium iron phosphate power option for solar and off-grid power and backup energy storage. It is a strong fit for shoppers comparing dependable LiFePO4 batteries for cleaner energy storage, lighter maintenance, and a more modern replacement path than traditional lead-acid battery setups.
Use this model when you need a 24v, 100ah, and 2.56kwh that can support mobile, marine, golf cart, backup, or off-grid electrical systems depending on the installation. The description is written for real-world buying decisions: voltage, capacity, fitment, monitoring features, and charging compatibility should all be checked against your existing equipment before purchase.
- Core configuration: 24V, 100Ah, and 2.56kWh
- Best-use applications: solar and off-grid power and backup energy storage
- Notable features: Bluetooth monitoring support, built-in heating for cold-weather charging support, and weather-resistant construction for mobile and marine setups
- SKU: B24100A-C
For the best long-term setup, pair this battery with the correct charger, cable sizing, fusing, and voltage-compatible equipment. When comparing models, focus on usable capacity, system voltage, communication features, installation space, and how the battery will be charged day to day.
| 24V 100Ah (2.56kWh) LiFePO4 Lithium Battery - Bluetooth Heating Waterproof | |
| Model SKU | B24100A-C |
|---|---|
| MODEL | |
| Product Type | Battery |
| ELECTRICAL | |
| Battery type | Heated Bluetooth deep-cycle LiFePO4 battery |
| Chemistry | LiFePO4 / lithium iron phosphate |
| Cell configuration | 8S |
| Nominal voltage | 24V system class / 25.6V nominal |
| Nominal capacity | 100Ah |
| Energy stored | 2.56kWh |
| Operating voltage range | 20.0V – 29.2V |
| Maximum charge voltage | 29.2V |
| Max continuous discharge | 120A |
| Continuous charge current | 50A recommended / 50% charge-rate guidance |
| Max charge current | 150A for 10 seconds |
| Max discharge peak current | 200A for 60 seconds |
| Series connections | Max 2 batteries in series, up to 48V |
| Parallel connections | Max 4 batteries in parallel, up to 400Ah at 24V |
| Battery / cell charge range | 0°C to 55°C / 32°F to 131°F after heating |
| IP rating | IP67 waterproof and dustproof |
| Required charger type | 24V LiFePO4-compatible marine charger, RV converter, inverter charger, solar charge controller, or DC-to-DC charger |
| Bulk / absorption voltage | 28.4V – 29.2V; do not exceed 29.2V max charge voltage |
| Charge profile note | Avoid 12V chargers and non-programmable lead-acid chargers |
| Battery Features | Bluetooth monitoring, Self-heating, LiFePO4 chemistry |
| CONNECTIONS | |
| Bluetooth | Yes — compatible with Epoch Li-Ion app for iOS and Android |
| PHYSICAL | |
| Length | 13 in |
| Weight | 48.5 lb |
| OPERATING LIMITS | |
| Cycle life | 3,500+ cycles |
| Charge temperature range | -20°C to 55°C / -4°F to 131°F with heating |
| Discharge temperature range | -20°C to 60°C / -4°F to 140°F |
| Storage temperature | 0°C to 35°C / 32°F to 95°F, max 12 months |
