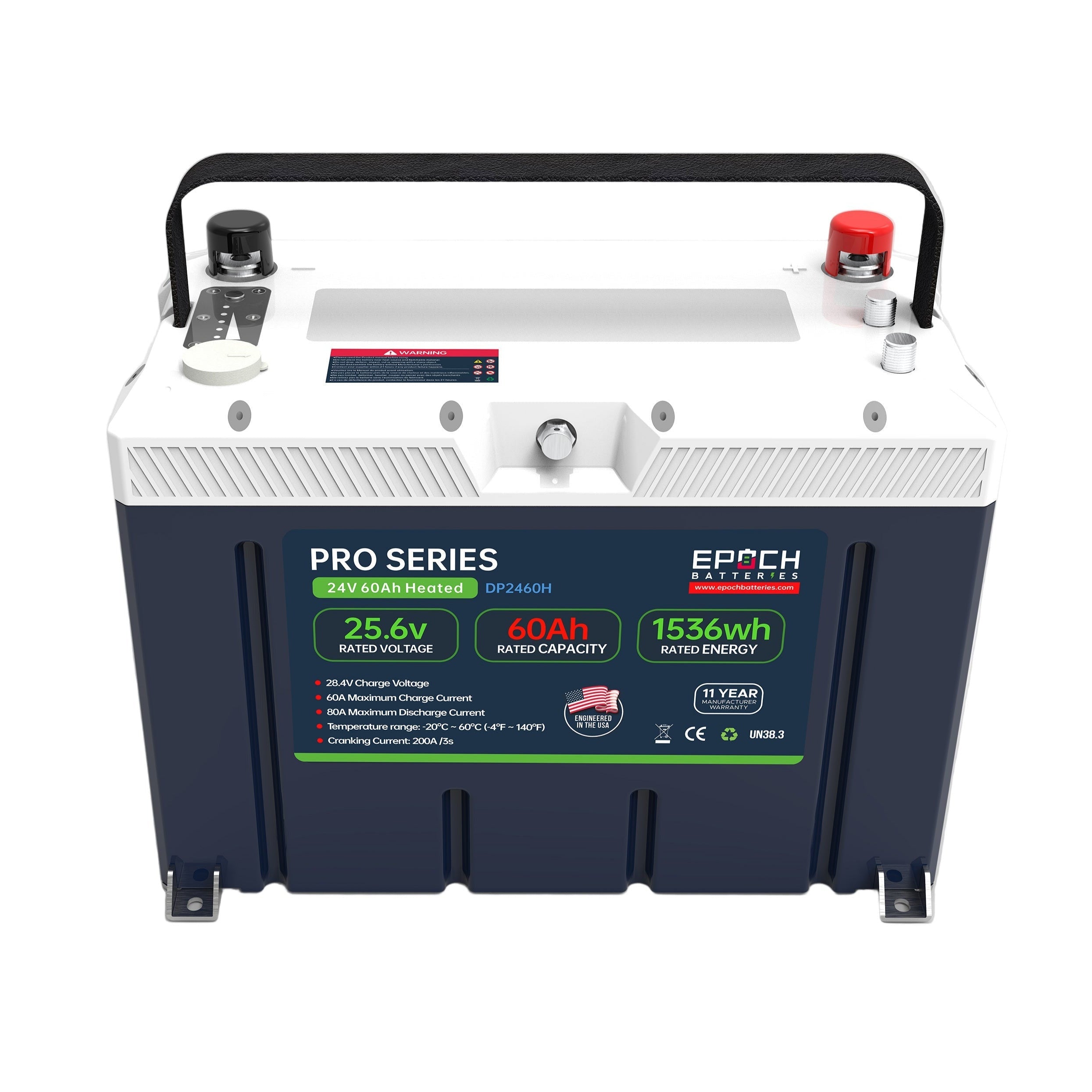

24V 60Ah (1.54kWh) Pro Series - Heated Bluetooth & Victron Comms LiFePO4 Battery 24V 60Ah (1.54kWh) Pro Series - Heated Bluetooth & Victron Comms LiFePO4 Battery
SKU: DP2460H
- 2.7 Allowed MAX charge current 60.0A @25℃
- 2.9 Allowed MAX discharge current 80.0A @25℃
- 2.22 Self-discharge rate2 Residual capacity ≤3%/month ≤15%/year
The 24V 60Ah (1.54kWh) Pro Series - Heated Bluetooth & Victron Comms LiFePO4 Battery helps complete a more capable solar and off-grid power and backup energy storage setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.
Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.
- Product role: Victron System Component
- Best-use applications: solar and off-grid power and backup energy storage
- Notable features: Bluetooth monitoring support, built-in heating for cold-weather charging support, Victron-compatible system communication, and solar and off-grid system integration
- SKU: DP2460H
For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.
Compare related products
Compare other options in our 24V lithium batteries collection.
Compare before you choose
Compare nominal voltage, stored energy, BMS current, temperature protection and communication before sizing a bank.
See the 24V 100Ah (2.56kWh) LiFePO4 Lithium Battery - Bluetooth Heating Waterproof for another Epoch Batteries battery option.
| 24V 60Ah (1.54kWh) Pro Series - Heated Bluetooth & Victron Comms LiFePO4 Battery | |
| Selected variant SKU | DP2460H |
|---|---|
| MODEL | |
| Model / SKU | DP2460H |
| Product Type | Battery |
| ELECTRICAL | |
| Battery Chemistry | Lithium iron phosphate (LiFePO4) |
| Nominal Voltage | 25.6 V |
| Nominal Capacity | 60 Ah |
| Stored Energy | 1,536 Wh (1.54 kWh) |
| Charge Voltage | 28.4 V |
| Float Voltage | 27.6 V |
| Maximum Charge Current | 60 A at 25°C |
| Recommended Charge Current | 30 A |
| Maximum Discharge Current | 80 A at 25°C |
| Recommended Discharge Current | 30 A |
| Peak / Surge Current | 200 A for 3 seconds |
| End-of-Discharge Voltage | 22.0-23.2 V |
| Parallel Configuration | Up to 16 matched batteries |
| Series Configuration | Not supported |
| Recommended Storage Environment | 59°F to 95°F (15°C to 35°C), 5%-75% relative humidity |
| Self-Discharge | 3% or less per month; 15% or less per year |
| Battery Features | Bluetooth monitoring, Self-heating, LiFePO4 chemistry |
| CONNECTIONS | |
| Communications | Epoch Pro Bluetooth app, CAN, and RS485 |
| PHYSICAL | |
| Terminal Size / Torque | M8; 8-10 N·m |
| Dimensions | 308 × 168 × 211 mm (±2 mm) |
| Weight | 13.7 kg (±1.0 kg), excluding accessories |
| OPERATING LIMITS | |
| Short-Circuit Protection | 800 A for 500 microseconds |
| Cycle Life | At least 6,000 cycles at 80% depth of discharge under the manufacturer data-sheet test conditions |
| Ingress Protection | IP67 |
| Charge Temperature Range | -4°F to 140°F (-20°C to 60°C), with internal heating operation |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Maximum Operating Altitude | Below 3,000 m |
| 2.7 Allowed MAX charge current 60.0A | @25℃ |
| 2.9 Allowed MAX discharge current 80.0A | @25℃ |
| 2.22 Self-discharge rate2 Residual capacity ≤3%/month | ≤15%/year |
| Recover capacity ≤1.5%/Month | ≤8%/ year |
