BougeRV 400W 12V CIGS Flexible Solar System Kit (Pre-Punched Holes) BougeRV 400W 12V CIGS Flexible Solar System Kit (Pre-Punched Holes)
SKU: TT-ISE154-2
$1,439.99
$2,199.99
Save $760.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerBougeRV warranty
Key features
- Solar Cells Efficiency 17%
- Warranty Description 10 Years
- Performance Warranty 25 years
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
BougeRV 400W 12V CIGS Flexible Solar System Kit (Pre-Punched Holes)

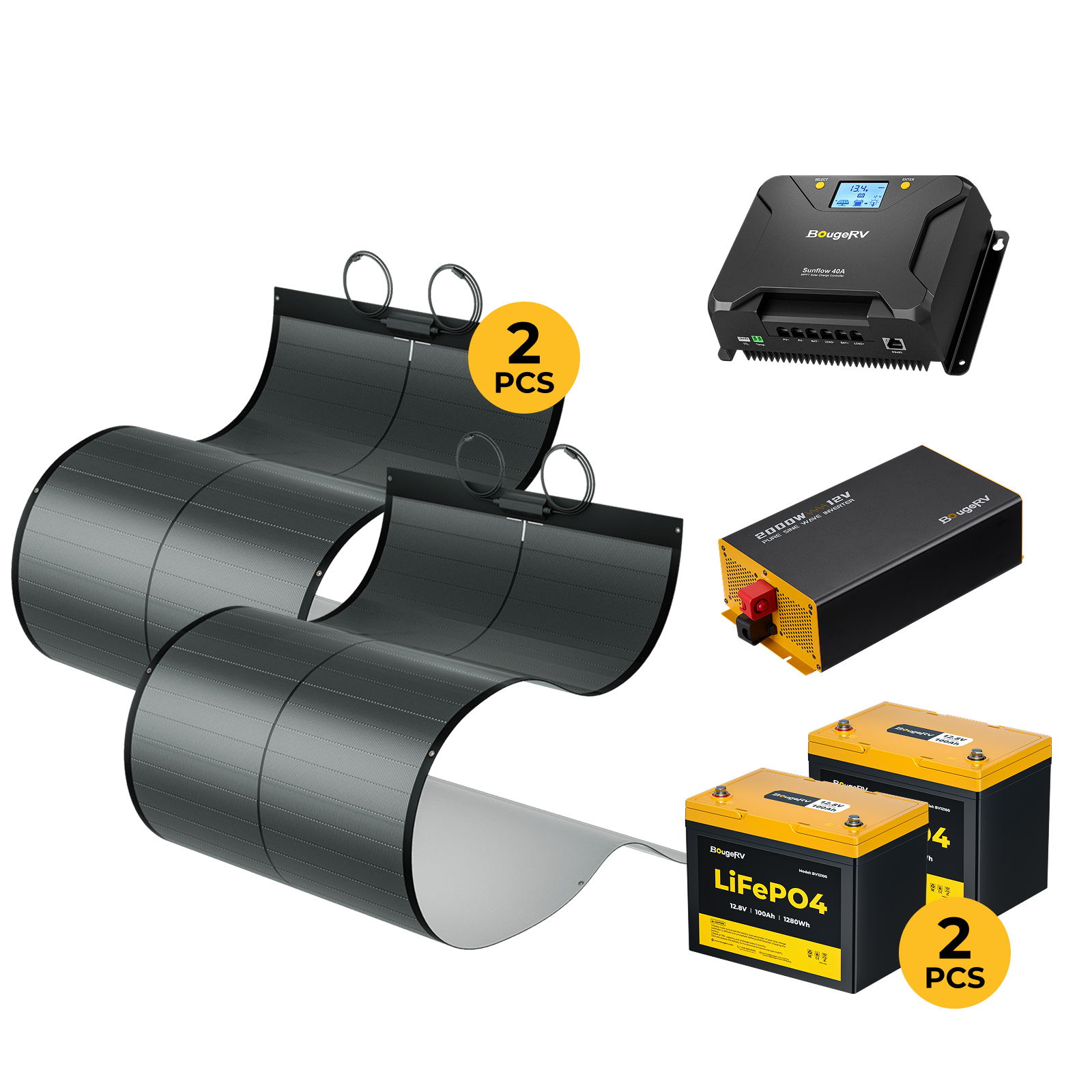

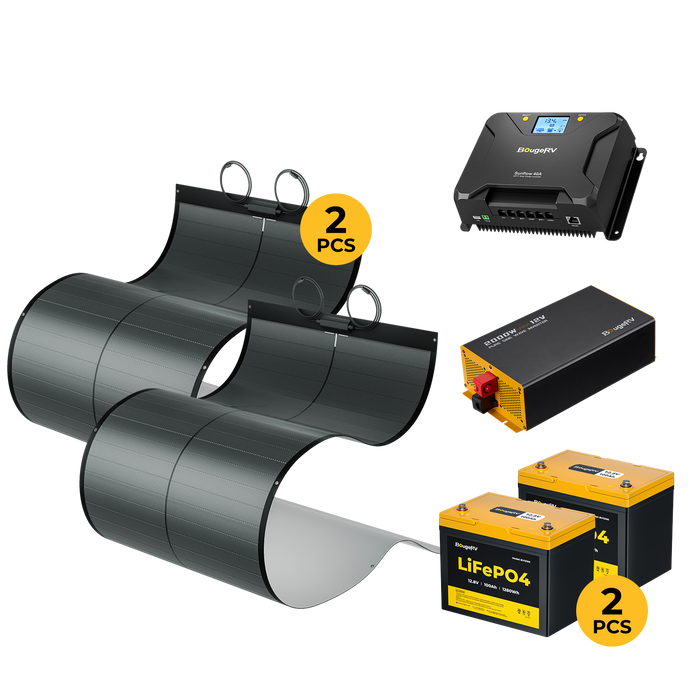

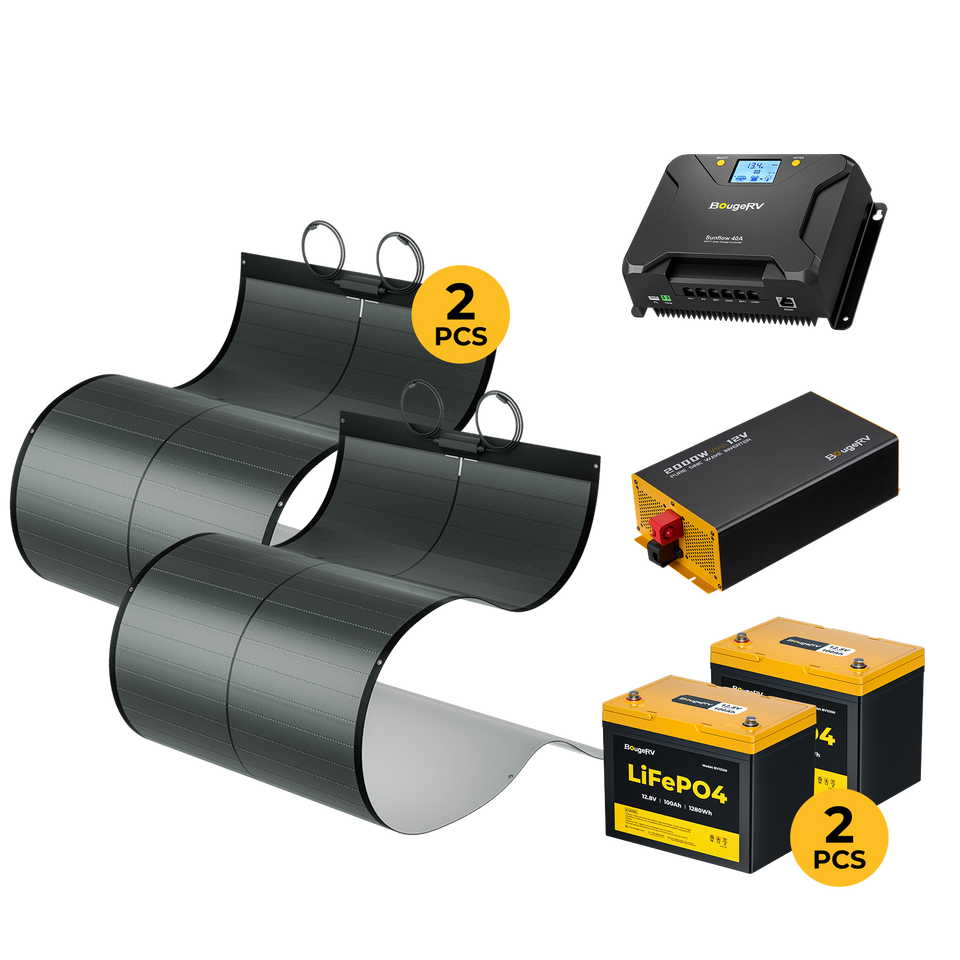

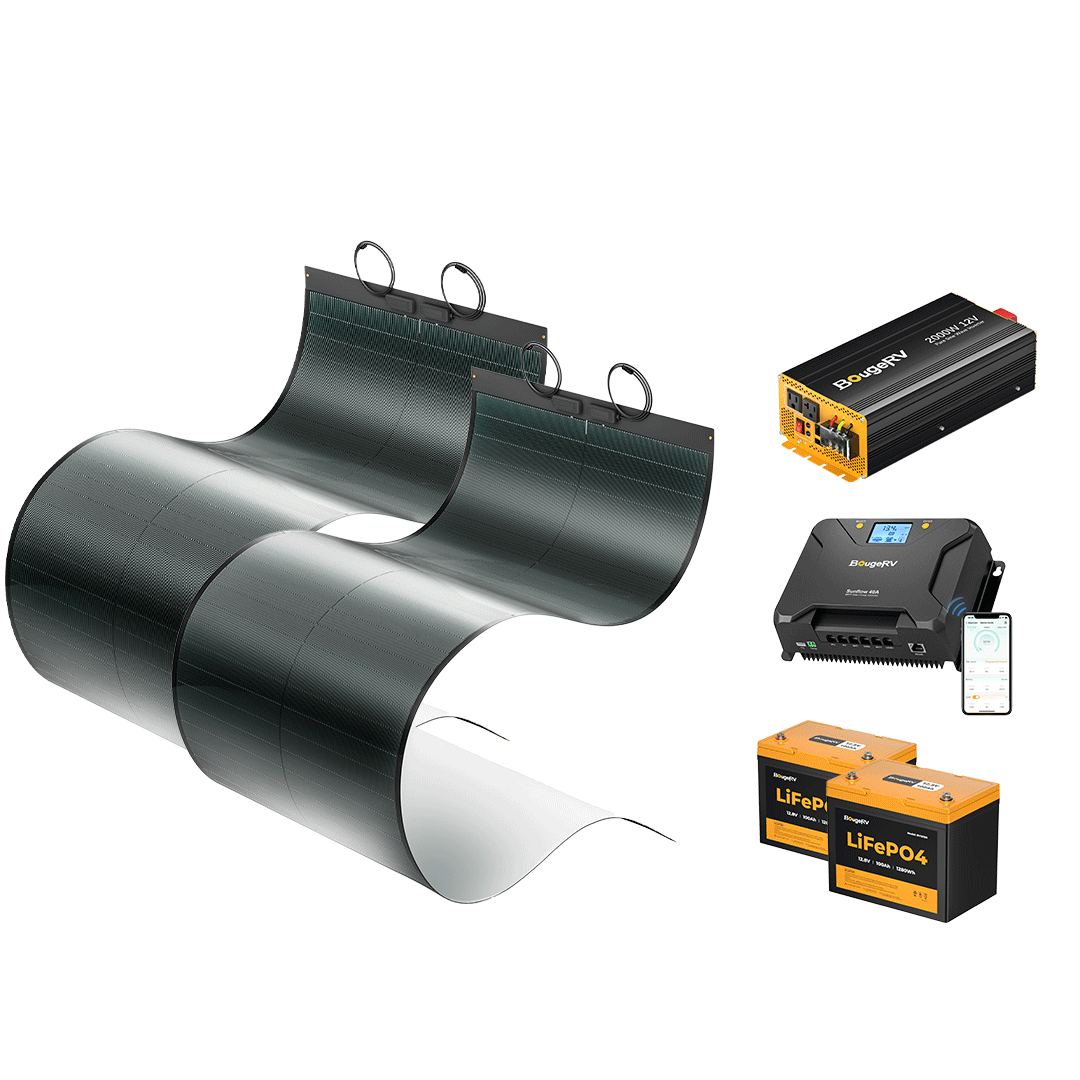

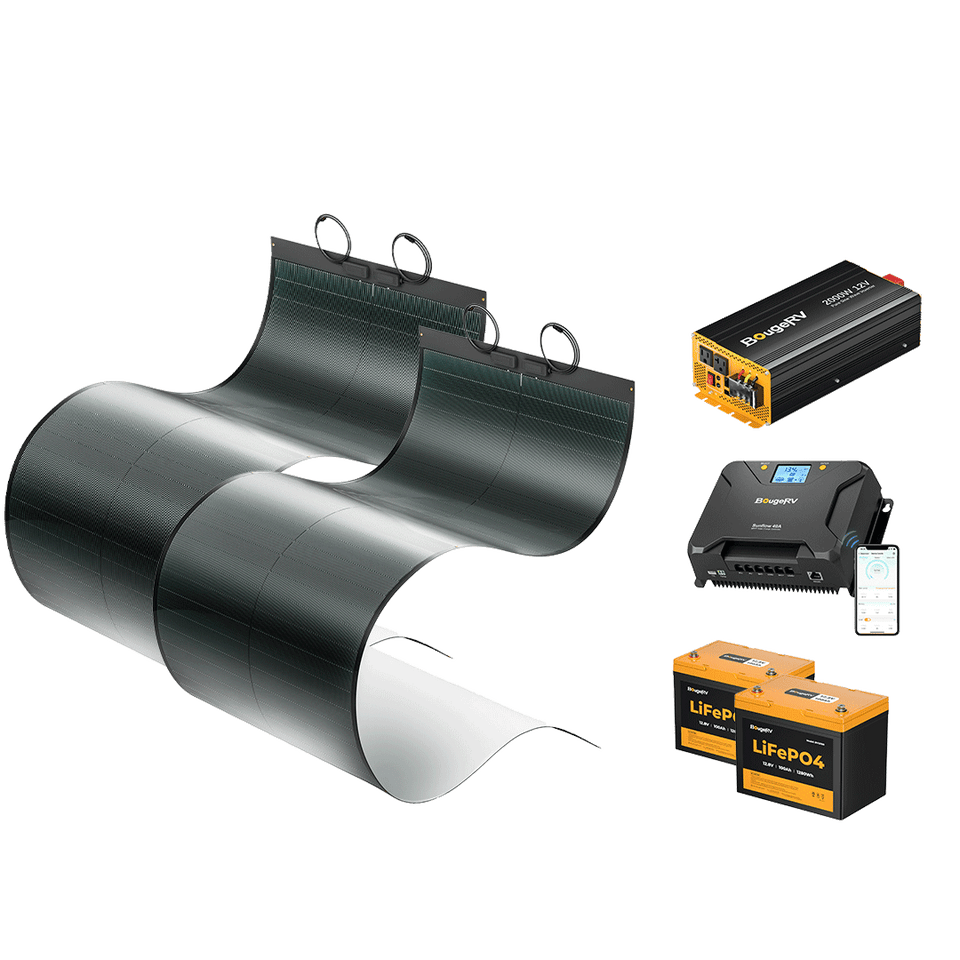

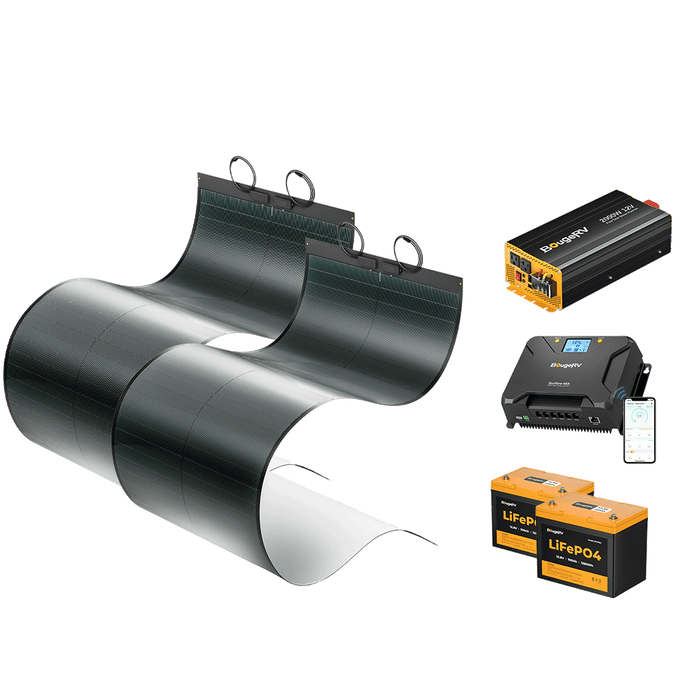

This 400W solar system kit pairs two pre-punched Yuma 200W CIGS flexible panels with a 40A MPPT solar charge controller, two 12V 100Ah Group 24 LiFePO4 batteries, and a 2000W 12V pure sine wave inverter. It brings together the charging, storage, and AC conversion components listed below; check your load, battery wiring, mounting space, and solar exposure when sizing the system.
What is included
- 2PCS Yuma 200W CIGS Thin-film Flexible Solar Panel with Pre-Punched Holes
- 1PC 40A MPPT Solar Charge Controller
- 1PC 2000W 12V Pure Sine Wave Inverter
- 2PCS 12V 100Ah Group 24 LiFePO4 Battery
Check the fit before installation
The pre-punched panel version calls for a mounting approach suited to its holes and your installation surface. Confirm panel and controller input limits, battery configuration, wire protection, and inverter load requirements against the manufacturer manuals. The 400W panel figure is a nameplate rating, so actual daily energy depends on sun, shade, temperature, and installation.
Use our solar charge controller sizing guide to plan charging, or browse BougeRV equipment for other system sizes.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
Package Includes
1x BougeRV 400W 12V CIGS Flexible Solar System Kit (Pre-Punched Holes)
Includes the selected item based on the current package option.
| Specifications | |
| Selected variant SKU | TT-ISE154-2 |
|---|---|
| Maximum Power (Pmax) | 200±5%W |
| Solar Cells Efficiency | 17% |
| Max. Power Voltage Vmp (Vmp) | 24±5%V |
| Max. Power Current Imp (Imp) | 8.52±5％A |
| Open Circuit Voltage Voc (Voc) | 30.4±5%V |
| Short Circuit Current (Isc) | 9.48±5％A |
| Max. System Voltage | 1000V DC |
| Warranty Description | 10 Years |
| Operating Temperature Limits | -40℉ ~ +185℉ -40℉ ~ +85℃ |
| Series Fuse Rating | 10A |
| Temperature Coefficient Pmax | -0.38%/℃ |
| Temperature Coefficient Voc | -0.28%/℃ |
| Temperature Coefficient Isc | -0.008%/℃ |
| Performance Warranty | 25 years |
| System Voltage | 12V/24V |
| Rated Charging Current | 40 Amp |
| Maximum PV Input Voltage | 100V (95V protection, 90V recovery) |
| Maximum Input of PV System | 600W/12V; 1200W/24V |
| Rated Load Current | 20 Amp |
| Charge Current Ajust Range | 0 Amp to 40 Amp |
| Battery Operate Voltage Range | 8V to 32V |
| Battery Type | LiFePO4, SLD, GEL, FLD, AGM, User Defined |
| Grounding Type | Common Negative |
| Operating Temperature Range | -31℉ to 149℉ (-35℃ to 65℃) |
| Protection Grade | IP34 |
| Bluetooth Communication | built-in bluetooth |
| Data Storage | Save the last 200 days of historical data |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Charge Voltage | 14.4~14.6V |
| Energy | 1280Wh |
| Standard charge | 20A (0.2C, recommend charge current) |
| Maximum charge | 100A（1C） |
| Maximum Continuous Charge Current | 100A (25°C, 77°F) |
| Maximum Continuous Discharge Current | 100A (1C) |
| Maximum Discharge Current | 330A (2.5s) |
| Over-Charging Protection Voltage | 14.6V |
| Over-Charging Recovery Voltage | 14.0V |
| Over-Discharging Protection Voltage | 8.8V |
| Over-Discharging Protection Recovery Voltage | 10.4V |
| Charge Temperature Range | 0°C~65°C (32°F~149°F) |
| Discharge Temperature Range | -20°C~75°C (-4°F~167°F) |
| Cycle Life | 4000 times (25°C, 0.2C, 100%DOD） |
| Low Temperature Charging Protection | 0°C (32°F), after the low temperature protection is activated, the battery temperature returns to 2°C (35.6°F) for recharging. |
| Short Term | -20°C~45°C (-4°F~113°F) |
| Long Term | 10°C~35°C (50°F~95°F) |
| Maximum Series Voltage Of Battery Pack | 48V(4S) |
| Maximum Parallel Current Of Battery Pack | 400Ah(4P) |
| Item Demension | L10.24*W6.61*H8.23 |
| Item Weight | 24.25 lbs |
| Protection Rating | IP65 |
| Communication Port | RS485 (Remote Control) Bluetooth (APP) |
| USB port | 18W*1 (5V-3.4A, 9V-2A, 12V-1.5A) |
| Operating ambient temperature range | 14°F~104°F（-10°C~40°C） |
| Noise | ≤60dB |
| Rated Output Power | 2000W |
| Overload power | 2300W |
| Peak power | 4000W (1s) |
| Output voltage | 120VAC (default) |
| Output frequency | 50/60 Hz (default) |
| Rated input voltage | 12VDC |
| The input voltage ranges | 10V-15.5VDC |
| Output waveform | Pure sine wave |
| Output harmonic component (THD) | <5% |
| Maximum output efficiency | ＞90% |
| Full Load Efficiency | ＞85% |
| Protection function | 1 Input over-voltage 2 Over-discharge protection 3 Output overload 4 Short-circuit protection 5 Inverter overtemperature protection 6 Ground fault circuit protection |
| Battery low voltage alarm | 10.5VDC (±0.3V) |
| Over-discharge voltage | 10VDC (±0.3V) |
| Overvoltage | 15.5VDC (±0.3V) |
| Over temperature protect | ≥167°F（75°C） |
| Over-temperature protection recovery | ≤131°F（55°C） |
| Fan start-up temp | ≥113℉ (45℃) / ≥40% load |
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What does the cycle-life rating mean for long-term use of the BougeRV TT-ISE154-2?
The manufacturer lists 4000 times (25°C, 0.2C, 100%DOD）. Keep the stated test conditions and remaining-capacity threshold with this rating; it is not a promise of the same runtime for every load.
How do I check whether the BougeRV TT-ISE154-2 can power my appliances?
The listed AC output is 2000W. Compare this with the combined running load of your appliances and check their startup requirements separately. Read Power Planner: https://gridgetaway.com/pages/power-planner
