Your solar plans started with one panel. Then you added up what the fridge, lights, and a few days away from hookups would need, and suddenly you’re looking at 400W or 800W of solar.
Now there’s another decision: does that mean you need a 30A charge controller, a 40A one, or something bigger?
I’d start by looking at your battery bank. The same panels can require very different charging current depending on whether they’re feeding a 12V or 24V system. And the controller’s amp number is only part of the answer.
To size an MPPT solar charge controller, match its battery voltage and charging settings, check its published panel-wattage allowance at that battery voltage, and verify the array’s cold-weather voltage and input current. Then size the cables and protection for the actual circuit.
For a quick starting point, a 200W array charging a 12V bank often leads you toward a 20A MPPT controller. A 400W array commonly puts 30A–40A models on the shortlist. Those are shopping starting points—not approval to connect any panels to any controller with that number.
Let’s turn that shortlist into a choice you can explain before you order.
First, make sure you need a separate controller
This guide is for panels charging a separate RV, van, boat, or cabin battery bank.
A portable power station with a built-in solar controller already handles that job internally. With a compatible Jackery setup, for example, you use the station’s approved solar input and cable arrangement. You don’t normally add a second charge controller between the panel and that solar input.
If that’s your setup, our power station solar-panel compatibility guide is the more useful next step.
For a separate battery bank, we’ll focus on MPPT sizing. If you’re still choosing between controller technologies, read our MPPT vs. PWM guide. PWM controllers need their own panel-voltage and array-current checks; don’t apply an MPPT conversion example to them.
Write down these numbers before shopping
You don’t need an engineering notebook. A photo of the battery label, the panel datasheet, and a simple connection sketch will get you moving.
- Battery bank: nominal voltage, chemistry, required charging settings, and permitted charging current.
- Panels: number of modules, watts, open-circuit voltage (Voc), operating voltage (Vmp), short-circuit current (Isc), and the Voc temperature coefficient.
- Panel arrangement: how many panels will be in each series string, and how many strings will connect in parallel.
- Installation: the lowest design temperature, cable distances, controller location, and any other chargers feeding the battery.
The battery bank’s voltage means the voltage of the complete connected bank. Two approved 12V batteries in series make a nominal 24V bank; two in parallel remain nominal 12V. Only connect batteries in arrangements their manufacturer permits.
Likewise, a panel described as “12V” does not produce a constant 12V. Use its electrical specifications for the controller checks.

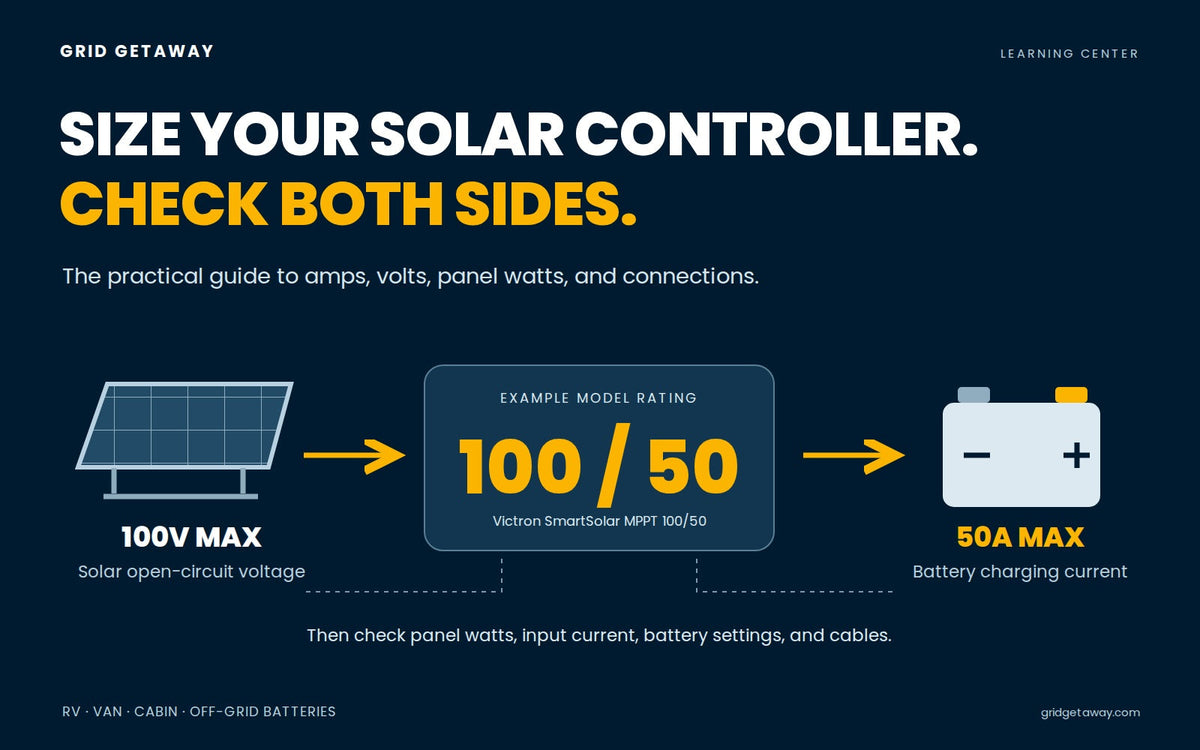

What does the controller’s amp rating mean?
On an MPPT controller, the prominent amp rating generally describes its maximum battery-charging output. It is not automatically the allowed current coming from the panels.
An MPPT controller can take higher-voltage solar input and convert it to the lower voltage needed by the battery. That changes current on the two sides.
Here’s the basic relationship:
Approximate battery-charging current = available solar power × conversion efficiency ÷ battery voltage at that moment.
Suppose 400W actually reaches the controller, the battery is at 14.4V, and we assume 95% conversion efficiency for illustration:
400W × 0.95 ÷ 14.4V ≈ 26.4A.
That is a teaching example, not a measured result or a universal charging setting. Sunshine, battery voltage, charging stage, temperature, losses, and controller limits all affect the real current.
Size the input and output circuits separately.
You’ll also see the shortcut “panel watts divided by nominal battery volts.” For 400W and a nominal 12V bank, that gives about 33.3A. It helps you judge the scale, but a manufacturer’s model-specific limits still decide whether the controller fits.
Adding 25% to that shortcut doesn’t complete the design either. Apply the factors required by the equipment instructions and the circuit design; check cold-weather voltage separately. A bigger output-amp rating cannot compensate for excessive PV input voltage.
A quick current comparison for 200W to 1,000W
This table shows why battery voltage changes the conversation. It uses example charging voltages of 14.4V and 28.8V and assumes all the listed panel power is available, before conversion losses.
| Available solar power | Ideal current at 14.4V | Ideal current at 28.8V |
|---|---|---|
| 200W | 13.9A | 6.9A |
| 400W | 27.8A | 13.9A |
| 600W | 41.7A | 20.8A |
| 800W | 55.6A | 27.8A |
| 1,000W | 69.4A | 34.7A |
These are calculated currents, not controller recommendations. Lower battery voltage can increase the current needed to process the same power. Your battery may also require different charging voltages than the examples.
Notice that 800W represents about 55.6A at 14.4V but about 27.8A at 28.8V. That’s why an otherwise suitable controller may support much more solar wattage on a 24V bank.
It doesn’t mean you should casually convert an RV to 24V. Your inverter, chargers, batteries, and 12V appliances must all be addressed. For an existing RV, start with the system you actually have.
Compare real controller limits—not just the number on the box
Here are four options from our catalog. The wattage column describes each manufacturer’s published rating at the stated battery voltage. Other electrical and installation checks still apply.
| MPPT controller | Charge output | Published PV power: 12V / 24V | Maximum PV voltage |
|---|---|---|---|
| Renogy Rover Li 20A | 20A | 260W / 520W rated | 100V Voc |
| Renogy Rover Li 40A | 40A | 520W / 1,040W rated | 100V Voc |
| Victron SmartSolar 100/50 | 50A | 700W / 1,400W nominal | 100V Voc |
| RICH SOLAR RS-MPPT60 | 60A | 800W / 1,600W nominal | 150V maximum PV input |
The Rover family manual separates the ratings for each model. Victron’s specifications also list a separate maximum PV short-circuit current of 60A for the 100/50. The RS-MPPT60 datasheet gives its own voltage and power ratings.
For a 400W, 12V project, the Rover 40A is therefore a sensible model to investigate: 400W is within its published 520W rating. The Rover 20A’s 260W rating at 12V does not make it the same choice.
For 600W at 12V, the Victron 100/50 is another candidate because its nominal PV figure is 700W. For 800W at 12V, the RS-MPPT60’s 800W nominal figure gives you a relevant starting point.
On a 24V bank, those comparisons change. That’s the reason I want your battery voltage written beside every controller you shortlist.
Check the voltage before choosing series wiring
Open-circuit voltage, or Voc, is the panel voltage when it isn’t delivering current to a load. In a series string, the panel voltages add.
The catch is temperature. Solar-cell voltage rises as the cells get colder. A series string that appears to fit a controller at standard test conditions can exceed its limit on a cold morning.
Let’s use an actual panel so this doesn’t stay abstract. The RICH SOLAR MEGA 200, model RS-M200, has these figures in its July 2026 datasheet:
- 200W rated power.
- 21.8V open-circuit voltage.
- 18.4V operating voltage.
- 11.6A short-circuit current.
- A Voc temperature coefficient of −0.28% per °C.
Use the label and datasheet for the panels you receive. A similarly named older revision may have different figures.
Why four panels in series deserve a cold-weather check
Four of these panels in series have a combined rated power of 800W and a standard-test Voc of:
4 × 21.8V = 87.2V.
Now use an illustrative design cell temperature of −30°C. That is 55°C below the standard test temperature of 25°C. With the published coefficient, the simplified calculation is:
87.2V × [1 + (0.0028 × 55)] ≈ 100.6V.
That already exceeds a 100V controller limit before further applicable allowances. A 50A or 60A output rating would not fix that voltage problem.
Controller limit being evaluated: 100V
The −30°C figure is an example, not a temperature to use for every location. Your final calculation needs the appropriate local design minimum, the actual panel coefficient and tolerances, and the manufacturer’s sizing requirements.
Also check minimum operating and startup voltage. An array can be below the maximum yet too low to charge the battery properly when the panels are hot. Victron’s 100/50 documentation, for example, specifies a PV voltage above battery voltage by 5V for startup and by 1V afterward.
Then check the current on the solar side
When matching panels are connected in series, voltage adds while string current stays approximately that of one panel. When matching strings are connected in parallel, their currents add.
The panel’s Isc figure means short-circuit current. It is a design reference, not the current your battery constantly receives.
Consider four MEGA 200 panels arranged as two series pairs connected in parallel. This is often written as 2S2P:
- Total rated power remains 800W.
- Standard-test array Voc becomes 43.6V.
- The illustrative −30°C Voc becomes about 50.3V.
- Combined standard-test Isc becomes 23.2A.
That arrangement reduces voltage compared with putting all four in series, but it increases the combined current. The controller input, branches or combiner, cables, disconnects, and required protection all need to accommodate that design.
These numbers are an electrical comparison, not a complete installation approval. Apply the required current factors and check reverse-current protection for the modules. Our series vs. parallel guide explains the connection layouts.
If a controller manual does not clearly state its permitted PV input current or array Isc, ask the manufacturer to confirm your proposed string arrangement. Give them the panel model, number in series, number of parallel strings, and calculated current. Don’t substitute the battery-output amp rating for missing input information.
If you choose bifacial panels, include the manufacturer’s rear-illumination current guidance. Our bifacial panel guide shows why the front-only rating can be an incomplete basis for selecting a branch connector.
Check how much charging your battery can accept
A controller that fits the solar array still has to suit the battery.
Start with the battery manufacturer’s permitted and recommended charging current. Then include chargers that could operate at the same time: solar, a shore-power charger, and an alternator-fed DC-to-DC charger.
For a hypothetical battery limited to 50A of charging, 40A from solar plus 30A from another charger creates a possible 70A total. Each charger might be suitable individually while their combined output exceeds the battery’s limit.
You would need appropriate current settings or another approved way to manage the combined charging. Don’t depend on the battery management system repeatedly disconnecting the battery as your normal control strategy.
Check charging voltages, lithium temperature restrictions, and any required temperature sensing as well. “Lithium compatible” on a controller listing does not configure it for your particular battery.
If you charge while driving, our RV DC-to-DC charger guide explains that additional charging path.
Plan the cables with the controller—not afterward
There are two main cable runs, and they may carry very different current. There are also short connecting leads that are easy to leave out of an order.
From the panels to the controller
A series pair normally uses the panels’ attached leads for the connection between them. If those leads won’t reach, you need a properly rated extension with approved mating connectors.
The remaining positive and negative ends then need a route to the controller. For suitable screw-terminal equipment, the RICH SOLAR 10 AWG panel-to-controller pair is one cable type to evaluate: solar connectors at one end and prepared wire ends at the other.
That is different from an extension with solar connectors at both ends. It is also not automatically suitable for every controller terminal. The Rover manual, for example, lists a 6–8 AWG cable range for its 40A model. Don’t assume a 10 AWG kit matches that specification.
If a screw-terminal PV disconnect sits between the panels and controller, include the separate positive and negative leads from the disconnect to the controller. Parallel strings may also need approved branch connectors or a combiner and string protection.
Verify connector manufacturer, mating family, polarity, and ratings. Stäubli’s connector compatibility statement explains why a physical fit or “MC4-compatible” description is insufficient.
From the controller to the battery
Size this run for the controller’s designed charging output, installation conditions, and acceptable voltage drop. Include the outgoing and return distance when calculating wire loss.
The RICH SOLAR controller-to-battery cable pair has prepared controller ends and battery ring terminals, but the manufacturer lists a 30A rating. I would not choose that assembly as a default lead for a circuit designed to carry 40A, 50A, or 60A.
For those larger circuits, source appropriately rated leads that fit the controller terminals and your battery or busbar studs. Wire thickness alone does not establish the rating of a finished cable assembly. Don’t trim conductor strands to make a cable fit.
Include the fuse jumper and the small hardware
A battery-side fuse holder usually creates an additional connection: a short positive jumper between the battery or protected distribution point and the holder, followed by the main positive lead to the controller.
The jumper may need ring terminals at both ends, while the main controller lead needs a prepared controller end. Match the terminal holes to the actual studs. If you have a shunt or busbar, account for those connecting leads too.
Choose DC-rated protection with suitable voltage, current, and fault-interruption ratings for the battery bank and conductors. The Victron 100/50 installation instructions, for example, specify a 55A–70A battery-fuse range. The final fuse and cable selection must work together; that range is not a recommendation for every 50A controller.
Also include approved mounts, cable supports, strain relief, weatherproof roof entry where needed, required grounding or bonding, and suitable isolation. Follow the model’s installation sequence and have the finished design checked against the equipment instructions and applicable electrical requirements.
Two practical buying decisions
You’re planning 400W on an existing 12V RV
I’d first compare a controller such as the Rover 40A against your battery requirements. Its published 520W rating at 12V covers the panel wattage, but we still check the array.
Two current-spec MEGA 200 panels in series would provide 43.6V Voc and 11.6A Isc at standard test conditions. The same illustrative −30°C calculation gives about 50.3V Voc. Those figures establish useful starting information for the remaining input and protection checks.
Then I’d price the proper 6–8 AWG terminal-compatible wiring, protection, short leads, and mounting. A cheaper controller bundled with the wrong cable assortment isn’t a finished solution.
You’re planning 800W for a 24V cabin bank
The Rover 40A’s 1,040W rating at 24V and the Victron 100/50’s 1,400W nominal rating both make them worth evaluating. That does not make either one automatically suitable for your battery or panel arrangement.
For the four-panel MEGA 200 example, I’d compare the 2S2P arrangement with the controller’s full input specifications. I would reject the four-in-series arrangement for a 100V controller under the −30°C example we calculated.
Finally, I’d compare monitoring, charging controls, terminal sizes, environmental limits, and the cost of the complete installation. That’s a more useful choice than buying whichever controller has the biggest amp number.
Can you oversize the panels or buy a larger controller?
Those are two different decisions.
A larger controller can leave room for expansion, provided it supports your battery and panels. Where necessary, use a supported charge-current setting that respects the battery’s limit.
Make that expansion plan specific. Going from 400W to 800W on a 12V bank would move beyond the Rover 40A’s published 520W rating. If that upgrade is likely, compare a suitable larger model now and plan its eventual cables, protection, and battery charging limits. Buying extra controller capacity while leaving an undersized battery cable in place doesn’t finish the upgrade.
More panel wattage than the controller’s nominal rating is called overpaneling. Some manufacturers explicitly permit it within specified limits, with the controller reducing the power it accepts when necessary. This reduction is often called clipping.
Victron’s 100/50 specifications expressly describe limiting power when more PV power is connected. That statement does not remove its voltage and PV short-circuit-current limits, or approve the same practice on a different controller.
I’d only plan overpaneling using the exact model’s instructions. Never assume that a device able to limit output current can safely tolerate unlimited panel voltage or current.
More panels in series
Recalculate cold-weather voltage and check the controller’s operating range.
More strings in parallel
Recalculate array current and check branches, conductors, and protection.
More charging capacity
Check the battery’s limit, other chargers, output cables, and fuse arrangement.
Quick answers before you order
What size controller do I need for a 100Ah battery?
The 100Ah capacity alone doesn’t answer it. You need the bank voltage, battery charging limits, and solar array specifications. A larger battery may take longer to refill without requiring a larger controller if the panels and permitted charging current remain unchanged. Our 100Ah solar-charging guide helps size the energy supply.
How many panels can a 60A controller handle?
Check panel watts and electrical characteristics. The RS-MPPT60’s nominal 800W at 12V equals four 200W panels by wattage; its 1,600W at 24V equals eight. Those counts do not specify a safe series/parallel arrangement or replace the other checks.
Does a 2,000W inverter mean I need a 2,000W controller?
No. The inverter’s output rating and the solar controller’s charging capacity describe different parts of the system. Your energy use determines how much solar you need over time. The inverter connects through its own properly designed battery circuit; don’t connect a large inverter to the controller’s small load terminals.
Will a bigger controller make my panels produce more power?
Only if the existing controller is a meaningful constraint and the rest of the system can use the additional output. A bigger controller won’t create sunlight, remove shade, or fix a battery that is already full.
The choice I’d want you to feel comfortable making
Start with your battery. Match the controller’s published panel allowance to that battery voltage. Check the cold-weather voltage and the array current, then finish the cable and protection plan.
By that point, you should be able to explain your purchase in a sentence: “This controller accepts my panel arrangement, charges my battery correctly, and has the connections and capacity my installation needs.”
That’s the answer we’re after—not just a bigger number on the box.
